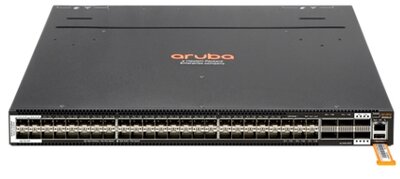

HPE Aruba CX 8360-48Y6C v2 Switch 48-porte 25 Gigabit Ethernet

HPE Aruba CX 8360-48Y6C v2 - Switch - L3 - Administreret - 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28 - front til ryg-luftstrøm - monterbar på stativ

  • Product no 1000357630

    Model JL704C

    Brand Hewlett Packard Ente

    EAN 0190017567662

    Weight 10.73 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse HPE Aruba CX 8360-48Y6C v2 - switch - 48 porte - Administreret - monterbar på stativ
Enhedstype Switch - 48 porte - L3 - Administreret
Pakningstype Front til ryg-luftstrøm monterbar på stativ 1U
Undertype 25 Gigabit Ethernet
Porte 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
Præstation Omkoblingskapacitet: 4.8 Tbps<br>Omkoblingskapacitet: 2,678 Mpps
Kapacitet MAC adresser: 212992<br>IPv4 værtstabelkapacitet: 145780<br>IPv6 værtstabelkapacitet: 145780<br>IPv4 ruter (Unicast): 606977<br>IPv6 ruter (Unicast): 630784<br>IPv4 ACL-indgange (ingress): 65536<br>IPv6 ACL-poster (indgang): 16384<br>MAC ACL-indgange (ingress): 65536<br>IPv4 ACL-indgange (egress): 8192<br>IPv6 ACL-poster (udgang): 2048<br>MAC ACL-indgange (egress): 8192<br>VLANs understøttet: 4094<br>IGMP-grupper: 7000<br>MLD-grupper: 7000<br>IPv4 ruter (Multicast): 7000<br>IPv6 ruter (Multicast): 7000
Jumborammesupport 9KB
Routingprotokol OSPF, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, statisk IPv6 routing, police-baseret routing (PBR), RIPng, MLDv2, MLD, CIDR, BGP-MP
Protokol til fjernadministration SNMP 1, SNMP 2, RMON, SNMP 3, TFTP, SSH, SSH 6, SFTP, ICMP
Egenskaber Datatransport, DHCP-understøttelse, understøttet af BOOTP, understøttet af ARP, aktivitet, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, IPv6 understøttet, Høj rådighedsgrad, sFlow, STP support, RSTP support, VRRP support, MSTP support, QoS, DHCP server, MDL snooping, ECMP, BFD, DWRR, DHCP videresendelse, DCB, SNMP fælde, dobbelt firmware-billeder, NDP, pakkestormbeskyttelse, SP, Loopback, ERPS, MACsec support, hot swappable 5 blæsere, ECN, BPDU, ICMP IRDP, 32 MB pakkebuffer, VXLAN, Link Aggregation, RoCE v2, EVPN, hurtig udgang, NTP, Private VLAN, Cisco IPSLA, IP-videresendelsessupport, IPv4 og IPv6 dobbelt stak, DDoS Protection, IPv6 addressering, VSX, Aruba VSF, RPVST+, DNS support, UDP support, TCP support, BGP, UDLD, IPv6 multicasting
Overensstemmelsesstandarder IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by, IEEE 802.3cc
Effekt AC 100-240 V (47 - 63 Hz)
Overskudsspænding Ja
Dimensioner (B x D x H) 44.25 cm x 55.88 cm x 4.4 cm
Vægt 10.73 kg
Producentgaranti Begrænset livtidsgaranti

HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP/+/28 4 Sec 6p 100G QSFP+/28 2 Sec FB 5Fs 2 AC Bdl

The HPE Aruba Networking CX 8360 v2 Switch Series is designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor. These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.

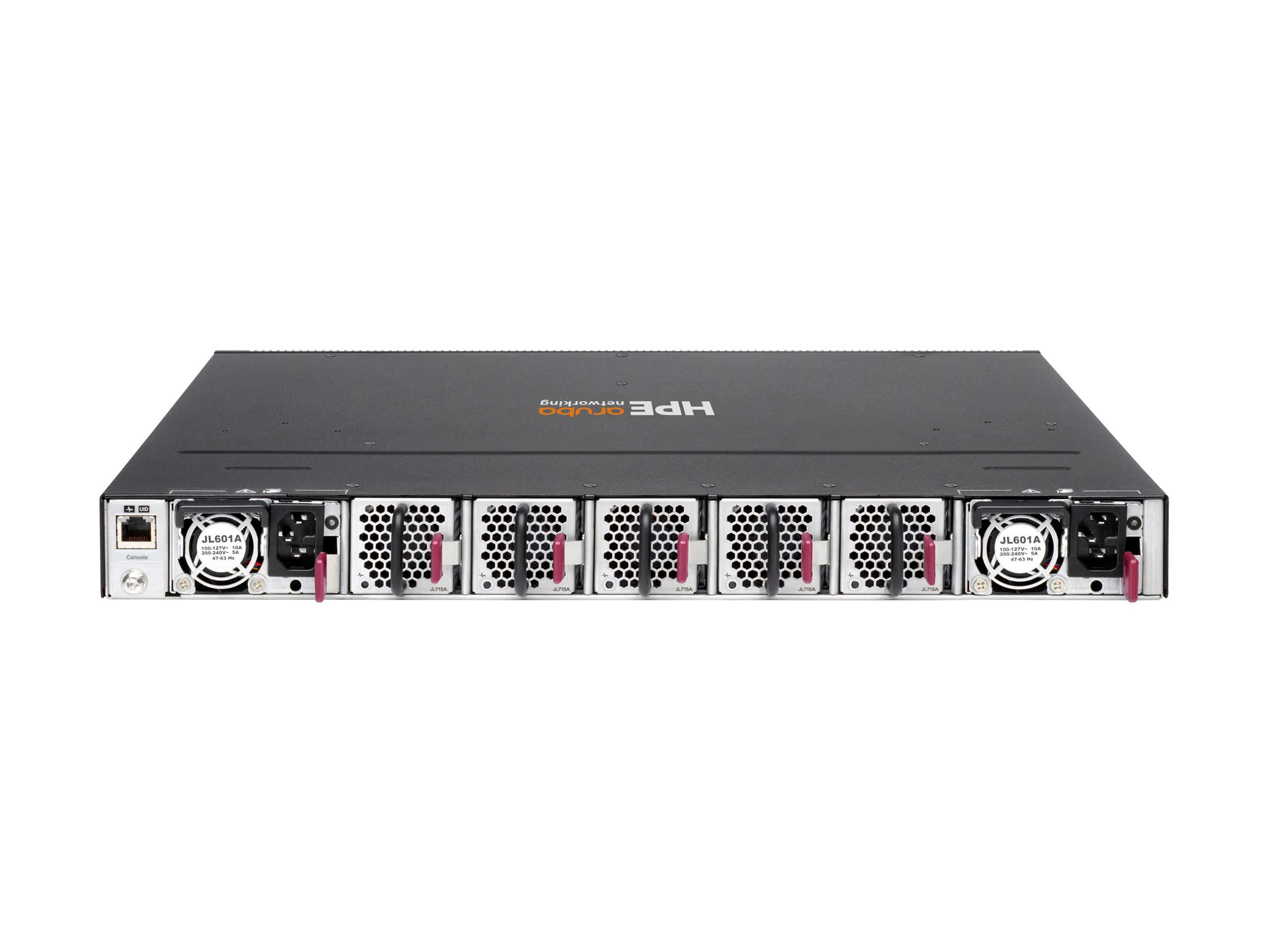

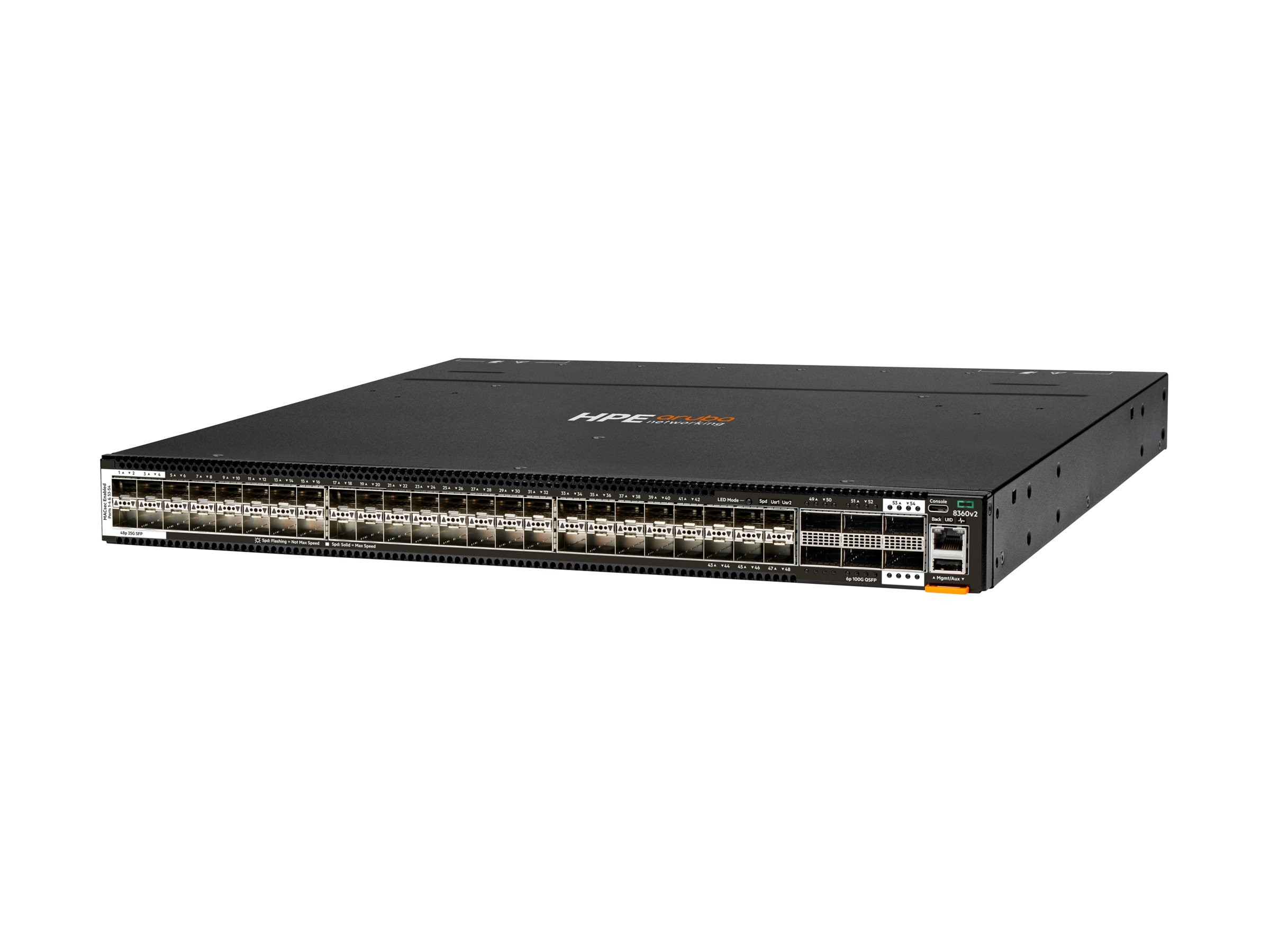

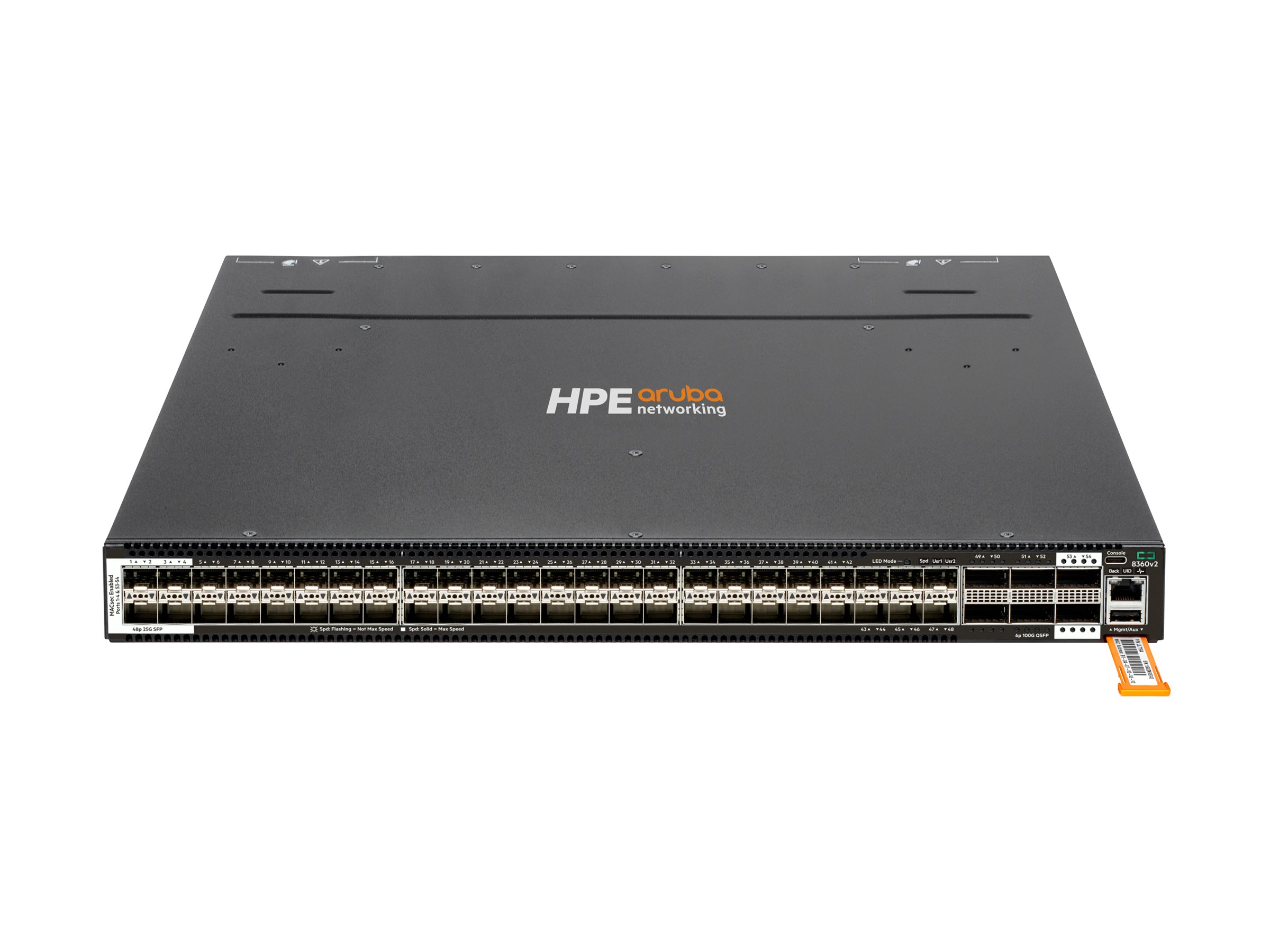

HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP/+/28 4 Sec 6p 100G QSFP+/28 2 Sec FB 5Fs 2 AC Bdl
slide {0} of {1}, zoom in, HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP/+/28 4 Sec 6p 100G QSFP+/28 2 Sec FB 5Fs 2 AC Bdl
slide {0} of {1}, zoom in, HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP/+/28 4 Sec 6p 100G QSFP+/28 2 Sec FB 5Fs 2 AC Bdl
slide {0} of {1}, zoom in, HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP/+/28 4 Sec 6p 100G QSFP+/28 2 Sec FB 5Fs 2 AC Bdl
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains
Modular cloud-native architecture

Modular cloud-native architecture

  • HPE Aruba Networking CX 8360 v2 Switch Series features HPE Aruba Networking CX Switch Operating System (AOS-CX) which simplifies the complexities of managing data center networks with automation options to match your IT organization’s operating model.
  • It proactively detects issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch.
  • REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
  • Continual state synchronization provides superior fault tolerance and high availability with uninterrupted infrastructure, designed for resiliency and upgrades with zero downtime.
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
HPE Aruba Networking CX Network Analytics Engine (NAE)

HPE Aruba Networking CX Network Analytics Engine (NAE)

  • HPE Aruba Networking CX 8360 v2 Switch Series utilizes the HPE Aruba Networking CX Network Analytics Engine (NAE) for advanced telemetry and automation to provide industry-first monitoring and troubleshooting systems that greatly improves network operations.
  • The time series database (TSDB) is used to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.
High availability and resiliency

High availability and resiliency

  • Software processes in the HPE Aruba Networking CX 8360 v2 Switch Series run as microservices that communicate through the state database of the switch.
  • HPE Aruba Networking Virtual Switching Extension (VSX) provides a robust solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link.
Software-defined automation

Software-defined automation

  • The HPE Aruba Networking CX 8360 v2 Switch Series is supported by HPE Aruba Networking Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
  • It orchestrates a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

TechnicalSpecifications
Ports44-port of 1/10/25GbE (SFP/SFP+/SFP28) 4-port of 10/25GbE (SFP+/SFP28) with MACsec 4-port of 40/100GbE (QSFP+/QSFP28) 2-port of 40/100GbE (QSFP+/QSFP28) with MACsec
Memory and processorCPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB
Throughput1309 Mpps depending on the model
Switching capacity4.8 Tbps
Management featuresRJ45 serial and USB-C console RJ45 Ethernet port USB-Type A
Power supply2 field-replaceable and hot-swappable power supplies depending on the model
Input voltage100-127 VAC/200-240 VAC 10A (Low Voltage) / 5A (High Voltage)
Power consumptionMaximum: 725W Idle: 230W
Heat dissipation1,450 BTU/hr
Product dimensions (metric)4.40 x 4.42 x 55.9 cm
Weight10.73 kg

HPE Aruba Networking CX 8360 v2 Switch Series QuickSpecs (English)HPE Aruba Networking CX 8360 v2 Switch Series QuickSpecs (English)
