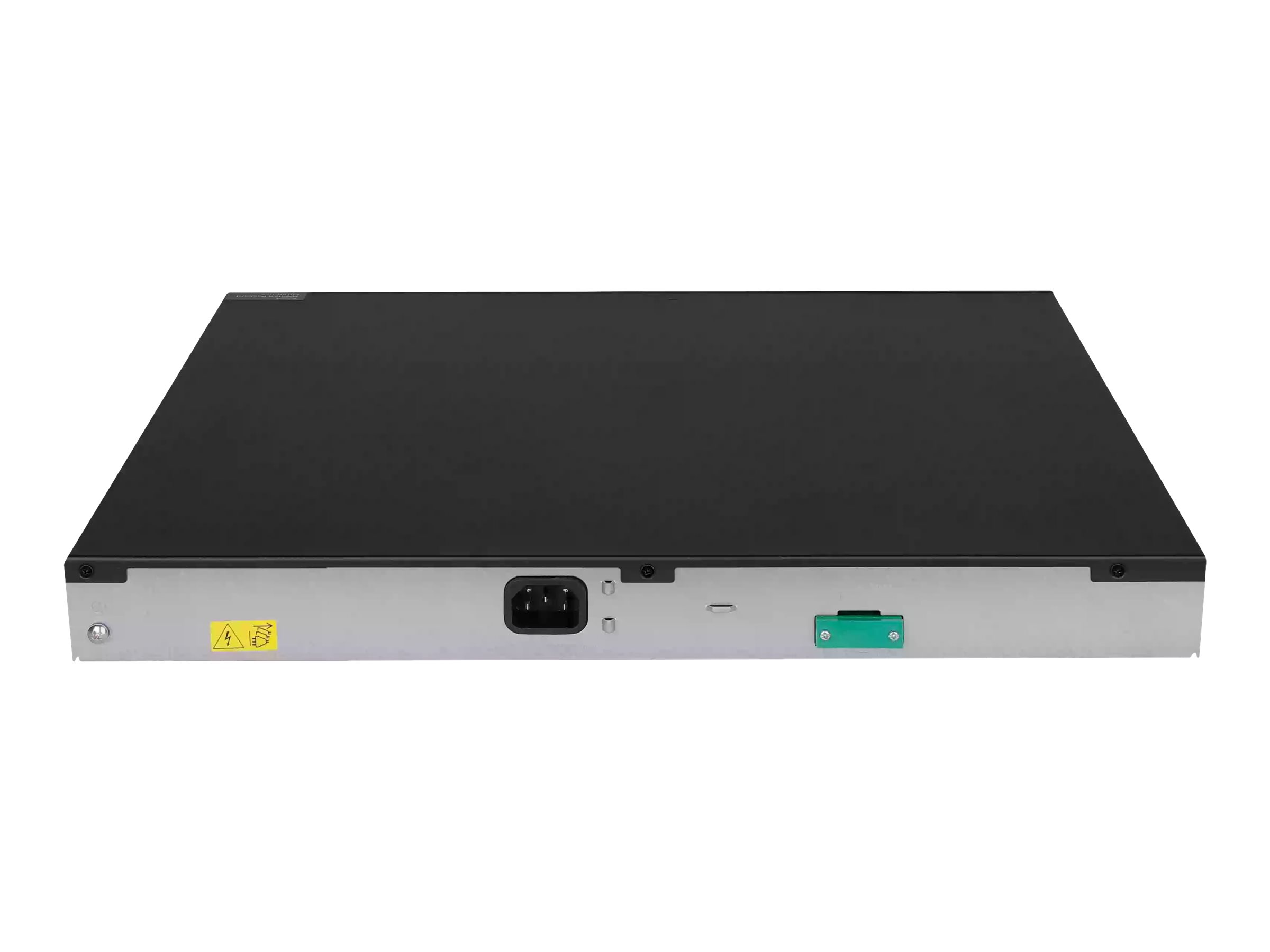

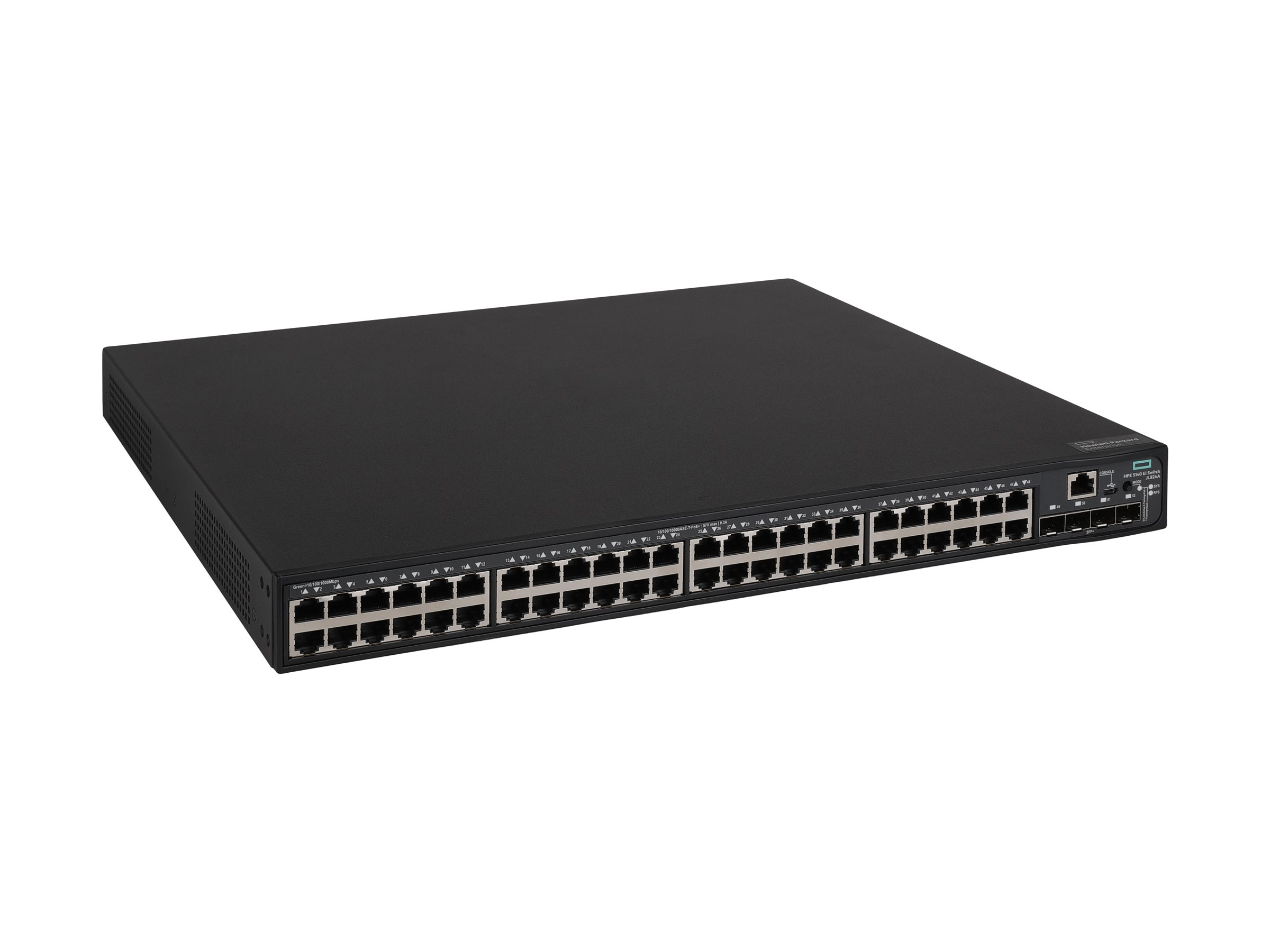

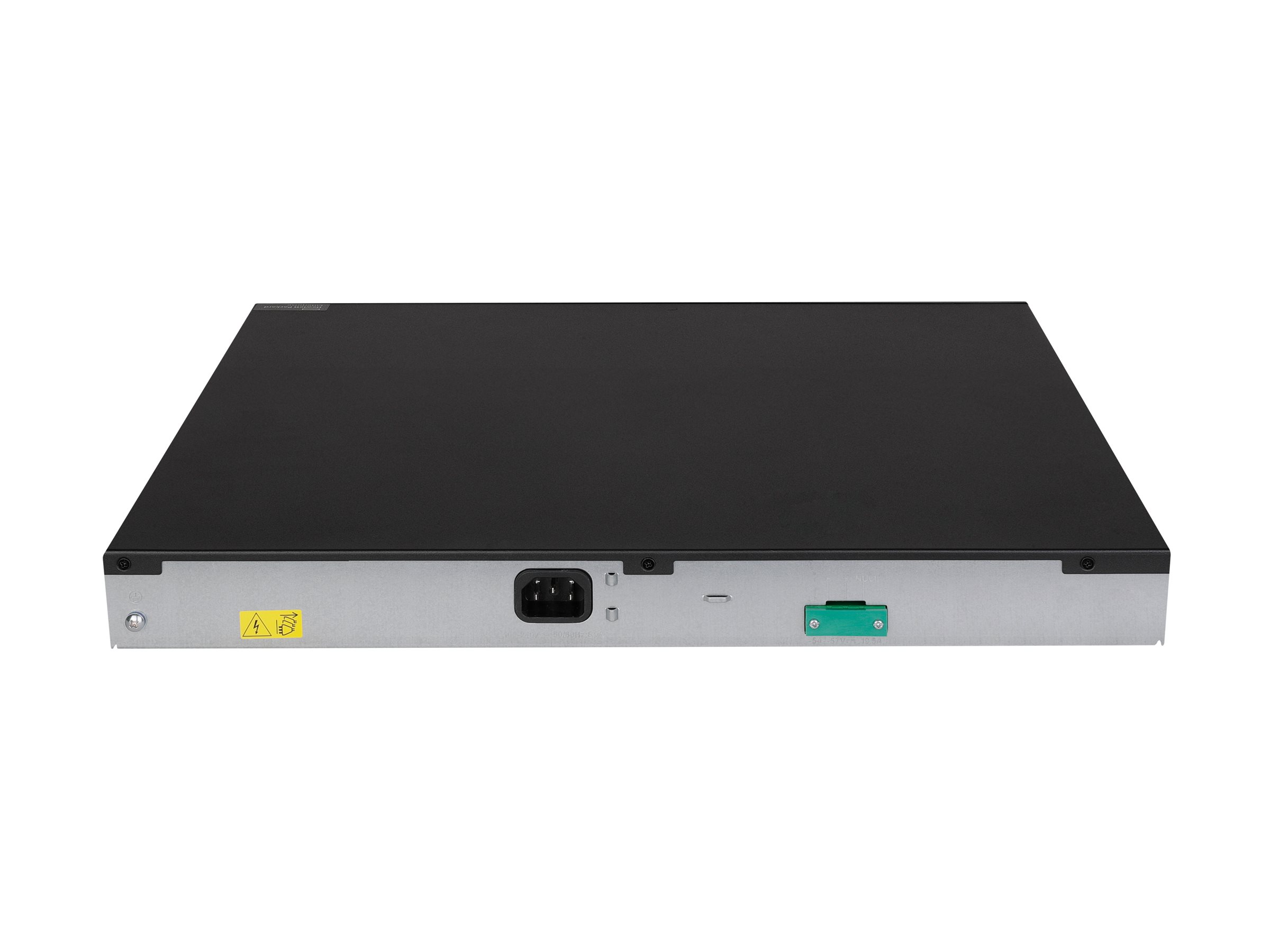

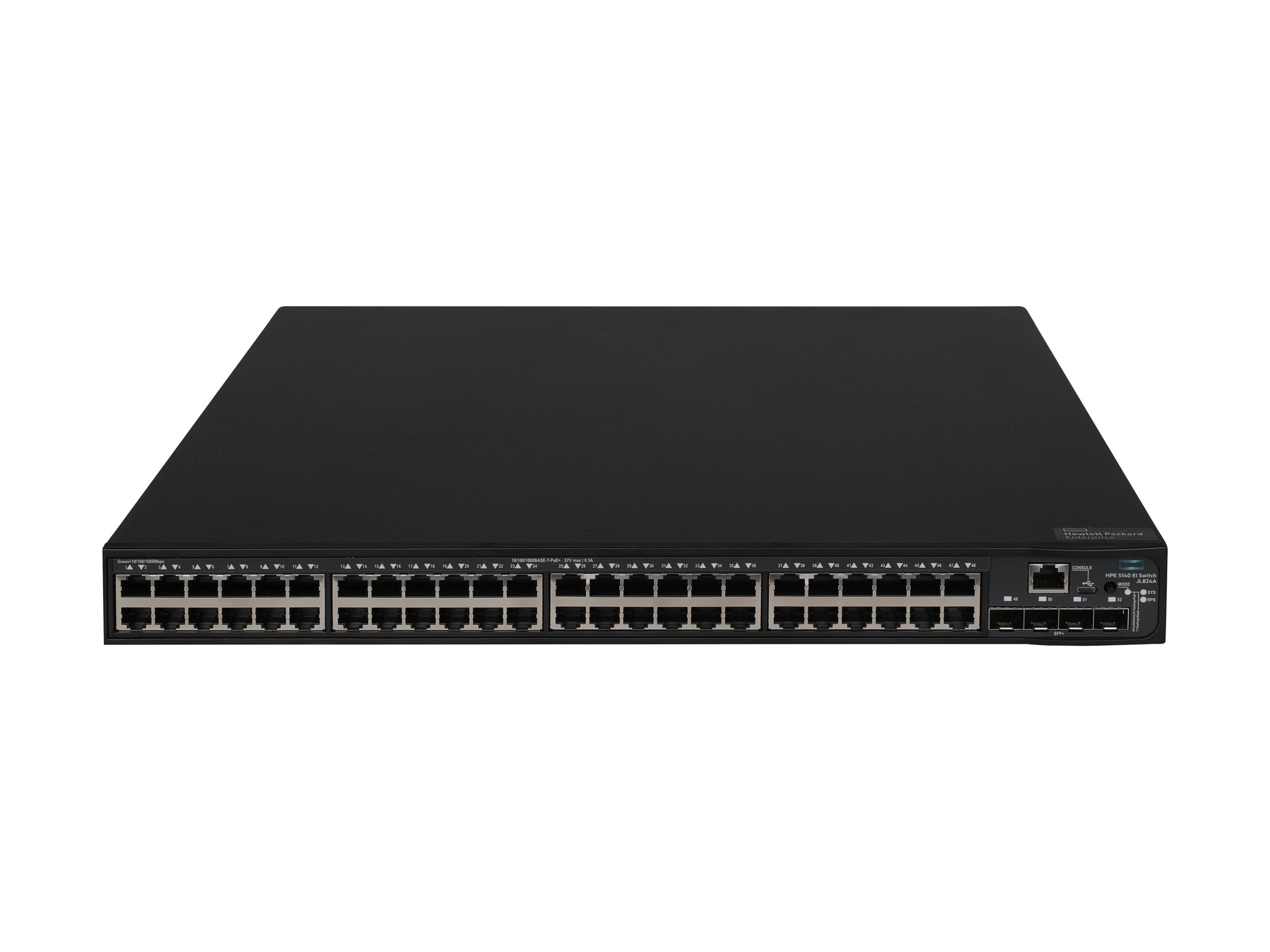

HPE FlexNetwork 5140 48G 4SFP EI Switch 52-porte Gigabit PoE+
HPE FlexNetwork 5140 48G PoE+ 4SFP+ EI - Switch - L3 - smart - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ - monterbar på stativ - PoE+ (370 W)
-
Product no 999341431
Model JL824A
Brand Hewlett Packard Ente
EAN 0190017497273
Weight 8 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE FlexNetwork 5140 48G PoE+ 4SFP+ EI - switch - 52 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 52 porte - L3 - smart |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 370 W |
| Præstation | Latens (1000 Mbps): 5 µs<br>Latens (10 Gbps): 3 µs<br>Kapacitet: 132 Mpps<br>Routing/switching kapacitet: 176 Gbps |
| Kapacitet | IPv4 indtastning i routing-tabel: 512<br>IPv6 indtastning i routing-tabel: 256<br>VLAN ID'er: 4094 |
| MAC adresse table størrelse | 16.384 indtastninger |
| Jumborammesupport | 9216 byte |
| Routingprotokol | OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, statisk IPv4 routing, statisk IPv6 routing, CIDR |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, NTP, ICMP, RADIUS |
| Egenskaber | Datatransport, understøttet af BOOTP, understøttet af ARP, aktivitet, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ understøttet, Høj rådighedsgrad, halv dupleksmodus, fuld dupleksmodus, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, DHCP server, MDL snooping, DLDP support, STP Root Guard, DHCP videresendelse, LACP, Port Security, Energy Efficient Ethernet, dynamisk ARP beskyttelse, DHCP beskyttelse, MVRP, SPQ, portisolering, GARP, OpenFlow support, IP-kildebekyttelse, ICMP IRDP, Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU-beskyttelse, UDP support, MRP |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44 cm x 36 cm x 4.36 cm |
| Vægt | 8 kg |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS |
| Capacity | IPv4 routing table entries: 512 | IPv6 routing table entries: 256 | VLAN IDs: 4094 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANS |
| Device Type | Switch - 52 ports - L3 - smart |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, High Availability, half duplex mode, full duplex mode, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16384 entries |
| Performance | Latency (1000 Mbps): 5 µs | Latency (10 Gbps): 3 µs | Throughput: 132 Mpps | Routing/switching capacity: 176 Gbps |
| PoE Budget | 370 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 512 MB SDRAM |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, NTP, ICMP, RADIUS |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR |
| Status Indicators | Port status, system |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ | 4 x Gigabit / 10Gbit LAN SFP+ | 1 x console RJ-45 management | 1 x micro-USB 5 pin USB header management |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 478 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 36 cm |
| Height | 4.36 cm |
| Weight | 8 kg |
| Width | 44 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140
The HPE Networking Comware Switch Series 5140 EI delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, HPE Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP; convenient fixed 10 GbE uplink ports, PoE+, ACLs, and IPv6; and delivers energy savings with Energy Efficient Ethernet. The HPE Networking Comware Switch Series 5140 EI also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Aruba Networking IMC for a single view of your entire network.
Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10 GbE uplinks, and POE+ models for voice, video, and wireless.
It supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization.
It includes embedded network management capabilities with Smart Management Center (SmartMC).
It includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports.
Scalability and High Availability
- The HPE Networking Comware Switch Series 5140 EI delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Framework (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router.
- HPE IRF stacking enhances performance and reliability with uninterrupted L2 switching and L3 forwarding and reduces operational complexity with simpler, flatter, and more agile networks.
- Four fixed uplinks (SFP, SFP+, and 10GBASE-T) deliver performance for bandwidth intensive applications.
- Link redundancy with support for protocols such as Spanning Tree/MSTP, RSTP, and Smart link provides high availability.
Comprehensive Security Control
- The HPE Networking Comware Switch Series 5140 EI supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
- ACLs provide IP Layer 2 to Layer 4 traffic filtering while supporting global ACL, VLAN ACL, port ACL, and IPv6 ACL.
- Dynamic ARP protection with functions such as ARP Detection and ARP packet validation that block broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
- Centralized security policy management and network protection with HPE Aruba Networking IMC End User Admission Domination (EAD) which integrates security policies, network access control, and access right control policies to form a cooperative security system.
- Enhance security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, and RADIUS/HWTACAS.
Simplified Management
- The HPE Networking Comware Switch Series 5140 EI can be seamlessly managed with HPE Aruba Networking IMC to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
- It supports SmartMC, an embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It offers features such as configuration backup, software version management and seamless switch replacement.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Enhanced Quality of Service
- The HPE Networking Comware Switch Series 5140 EI supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
- It provides traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.
- Reduce unwanted network traffic with broadcast control and limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: Ports 1-48 support 10BASE-T/100BASE-TX, 1000BASE-T (full only) 4 SFP+ 1000/10000 SFP+ ports 1 RJ-45 serial console port |
| Memory and processor | 512 MB SDRAM, 256 MB flash |
| Latency | 1000 Mb latency: < 5 µs 10 Gbps latency: < 3 µs |
| Throughput | 131 Mpps |
| Switching capacity | 176 Gbps |
| PoE capability | 370W PoE+ Maximum, depending on model |
| Routing capabilities | Table Size: 1024 entries MAC address: 16,384 entries IPv6 Ready Certified |
| Stacking capabilities | IRF 9 switches |
| Management features | HPE Aruba Networking IMC - Intelligent Management Center SmartMC Command-line interface Web browser SNMP manager |
| Power supply | At least 1 power supply is required (not included, must be ordered separately) |
| Input voltage | AC Voltage: 100 VAC–240 VAC DC Voltage: –54 VDC to –57 VDC |
| Power consumption | 478W (Maximum), 47W (Idle) Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. When supplemented with the use of an HPE RPS1600, up to 740W of PoE+ can be supplied. Maximum current rating for DC power is 25A. AC input power is 47W typical and 490W maximum (including 370W PoE+ consumption). DC input voltage range is –54 VDC to –57 VDC. Total DC input power is 43W typical and 890W with 800W PoE+ power consumption. DC input voltage range is –54 VDC to –57 VDC. DC input source is the HPE RPS1600. |
| Heat dissipation | Maximum: 160/1671 BTU/hr. (168.8/1762.91 kJ/hr.) for AC power. For DC power, minimum heat dissipation is 147 BTU/hr. and 3037 BTU/hr. maximum. |
| Product dimensions (metric) | 4.36 x 44 x 40 cm |
| Weight | 6 kg |
