Produktbeskrivelse
|
HPE Smart Array E208e-p SR Gen10 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
|
|
Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort
|
|
Bustype
|
PCIe 3.0 x8
|
|
Interface
|
SATA 6Gb/s / SAS 12Gb/s
|
|
Dataoverførselshastighed
|
12 Gbit/s
|
|
Understøttede enheder
|
Harddisk, diskarray (RAID)
|
|
Antal kanaler
|
8
|
|
RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 10
|
|
Systemkrav
|
Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
|
|
Designet for
|
Apollo 4200 Gen10; Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10; ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL365 Gen10, DL380 Gen10, DL560 Gen10, ML30 Gen10, XL220n Gen10
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

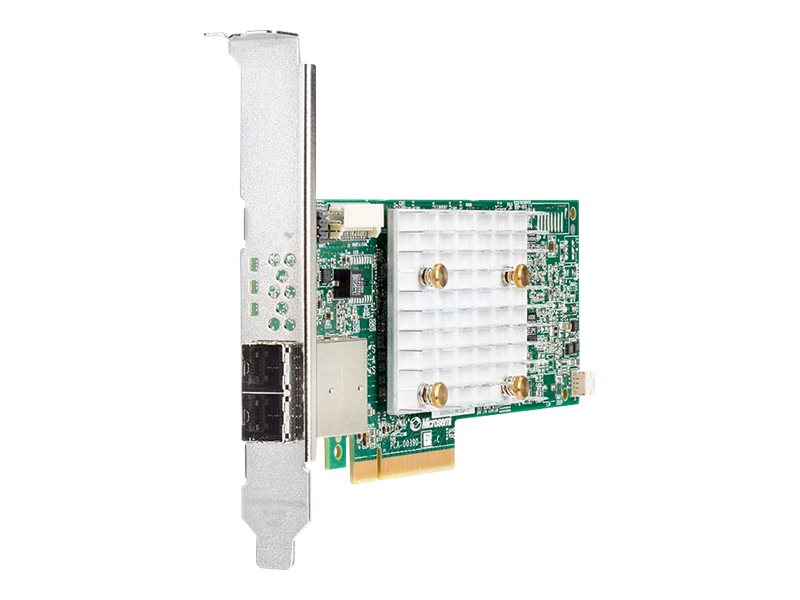

HPE Smart Array E208e-p SR Gen10 Styreenhed til lagring (RAID)
HPE Smart Array E208e-p SR Gen10 - Styreenhed til lagring (RAID) - 8 Kanal - SATA 6Gb/s / SAS 12Gb/s - RAID 0, 1, 5, 10 - PCIe 3.0 x8 - for ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL380 Gen10, ML30 Gen10, XL220n Gen10
HPE Smart Array E208e-p SR Gen10 Controller, der understøtter 12 Gb/s SAS og PCIe 3.0, er en ideel omkostningseffektiv løsning til RAID 0, 1, 5 og 10 og Software Defined Storage-løsninger på eksternt tilsluttede drev. Denne controller fungerer i Mixed Mode, som kombinerer RAID- og HBA-operationer samtidigt. Den har otte eksterne SAS-baner, som muliggør tilslutning til eksternt tilsluttede SAS- eller SATA-drev, og den giver pålidelighed, sikkerhed og effektivitet i virksomhedsklassen, som er nødvendig for at imødekomme dine skiftende behov for datalagring. Denne controller tilbyder forbedret sikkerhed ved at kryptere data i hvile på ethvert drev med HPE Smart Array SR Secure Encryption.
Product no:
992672894
Model:
804398-B21
EAN:
0889296143710
Brand:
Weight:
0.29 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Storage controller (RAID) - plug-in card
|
|
Host Bus
|
PCIe 3.0 x8
|
|
Storage Controller
|
|
|
Channel Qty
|
8
|
|
Data Transfer Rate
|
12 Gbit/s
|
|
Interface
|
SATA 6Gb/s / SAS 12Gb/s
|
|
Maximum LUNs
|
64
|
|
RAID Level
|
RAID 0, RAID 1, RAID 5, RAID 10
|
|
Supported Devices
|
Hard drive, disk array (RAID)
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
2 x SATA 6Gb/s / SAS 12Gb/s
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
|
|
Compatibility Information
|
|
|
Designed For
|
HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform | HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLia
|
Media
HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller
Are you looking for a cost effective, enterprise-class controller to connect to externally attached drives? The HPE Smart Array E208e-p SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides a cost-effective storage solution with enterprise-class reliability supporting RAID 0, 1, 5, and 10 and software-defined storage (SDS). This controller has eight external SAS lanes, allowing connection to SAS or SATA drives in an external disk enclosure, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive. This controller occupies a PCIe expansion slot.
Cost-Effective SAS Storage Connectivity
- The HPE Smart Array E208e-p SR Gen10 Controller is a cost effective enterprise-class controller that provides the basic building blocks for simple RAID storage solutions while delivering 12 Gb/s SAS connectivity on HPE ProLiant Gen10 Servers when connected to 12 Gb/s external storage devices.
- Offers a low-cost solution to enable software-defined storage.
- Connects to external just a bunch of disks (JBODs) and advanced external storage arrays.
Built-in reliability and security
- The HPE Smart Array E208e-p SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).
- Comply with regulations for sensitive data, such as HIPAA and Sarbanes-Oxley with HPE Smart Array SR Secure Encryption.
- Preserve data integrity with HPE SmartSSD Wear Gauge, which alerts you to potential drive issues before a drive fails.
Improved Efficiency and Storage Management
- The HPE Smart Array E208e-p SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.
- Rapidly configure simple RAID volumes on servers with the UEFI storage configuration tool, which also facilitates scripting support to configure an array via iLO through RESTful interface.
- Quickly set up, configure, and manage drives attached to the controller with HPE Smart Storage Administrator (SSA), an intuitive interface used to create RAID volumes, manage advanced controller features, and deploy Smart Array solutions.
Specifications
| TechnicalSpecifications | |
|---|---|
| Transfer rate | 12Gb/s SAS per lane 6Gb/s SATA per lane PCI Express 3.0 x8 lane width |
| Form factor | Standard PCIe plug-in controller |
| Ports | External: 8 SAS lanes across 2 x4 Mini-SAS HD ports |
| Cache | No cache |
| RAID levels | 0, 1, 5, 10 |
| Additional features | HPE Smart Array SR Secure Encryption (optional license) |
| Servers supported | HPE ProLiant DL360 Gen10 HPE ProLiant DL380 Gen10 HPE ProLiant DL560 Gen10 HPE ProLiant DL580 Gen10 HPE ProLiant ML110 Gen10 HPE ProLiant ML350 Gen10 HPE ProLiant XL170r Gen10 HPE ProLiant XL190r Gen10 HPE ProLiant XL230K Gen10 |
| Supported disk enclosure | HPE D3610 Disk Enclosure HPE D3710 Disk Enclosure HPE D6020 Disk Enclosure HPE MSA 1040 SAN Storage HPE MSA 1050 SAN Storage HPE MSA 2040 SAN Storage HPE MSA 2050 SAN Storage |
