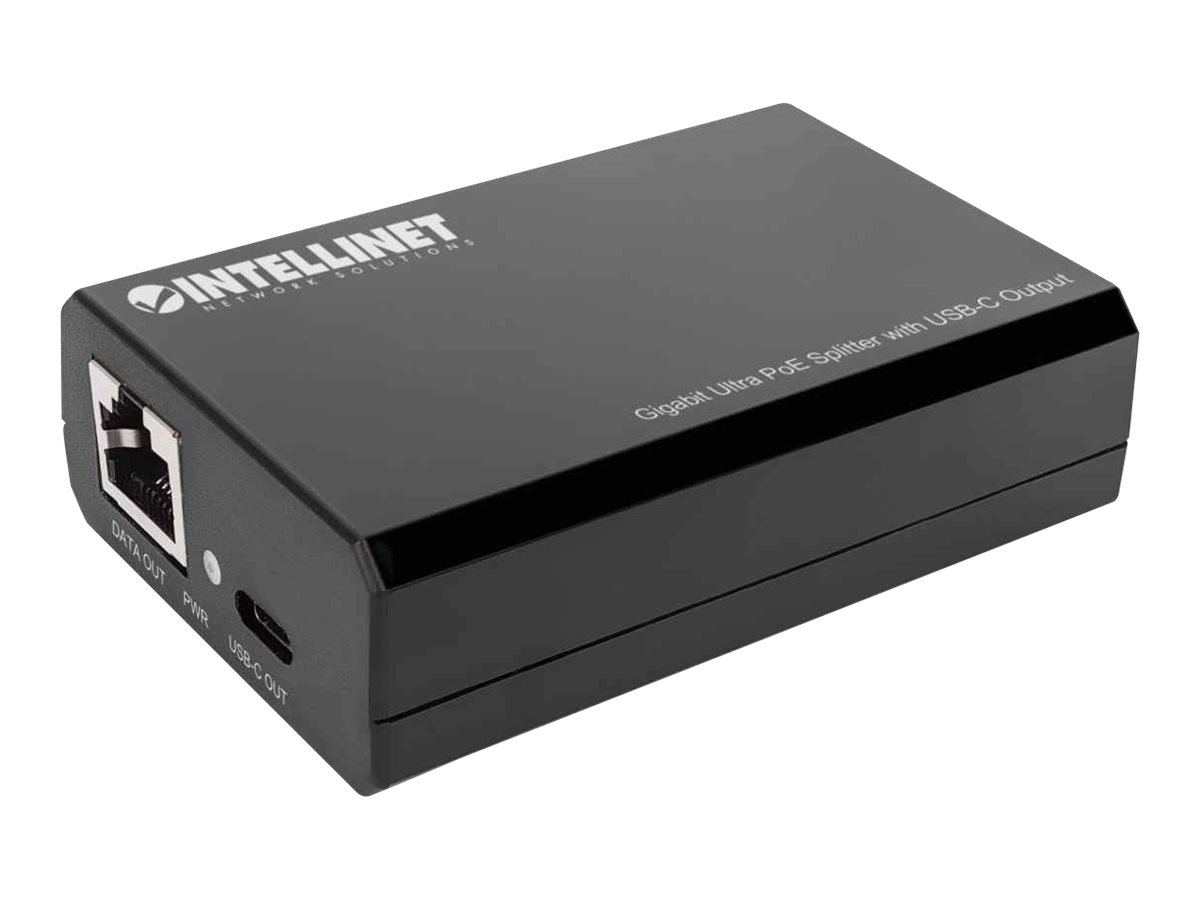

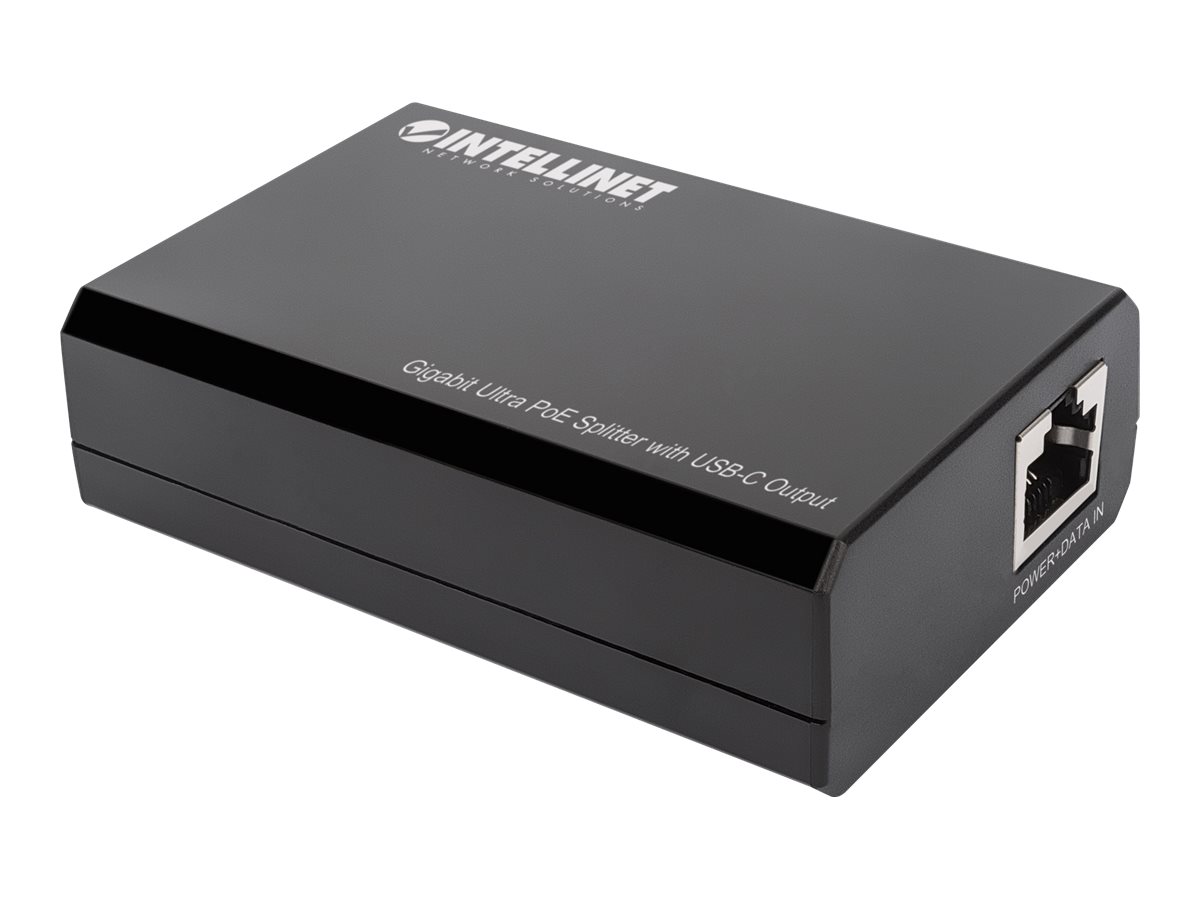

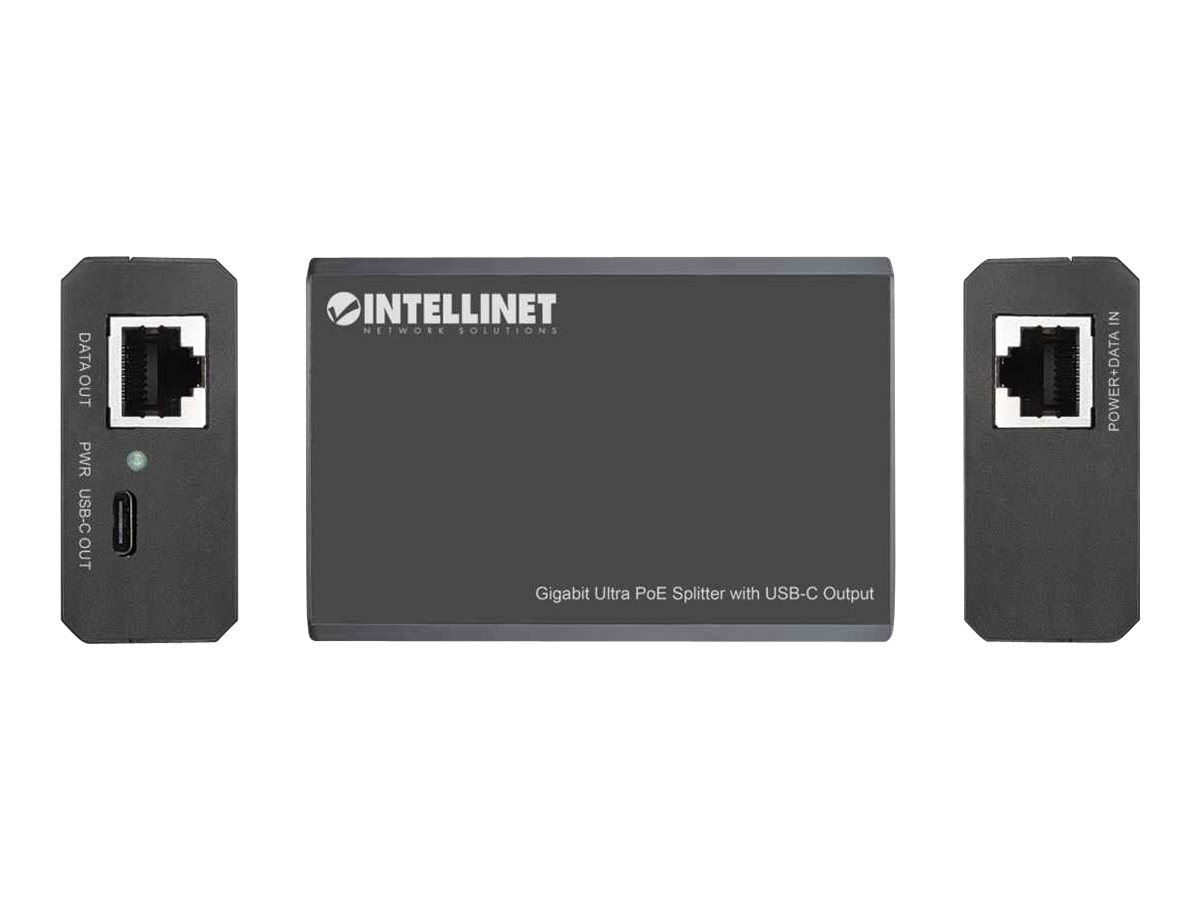

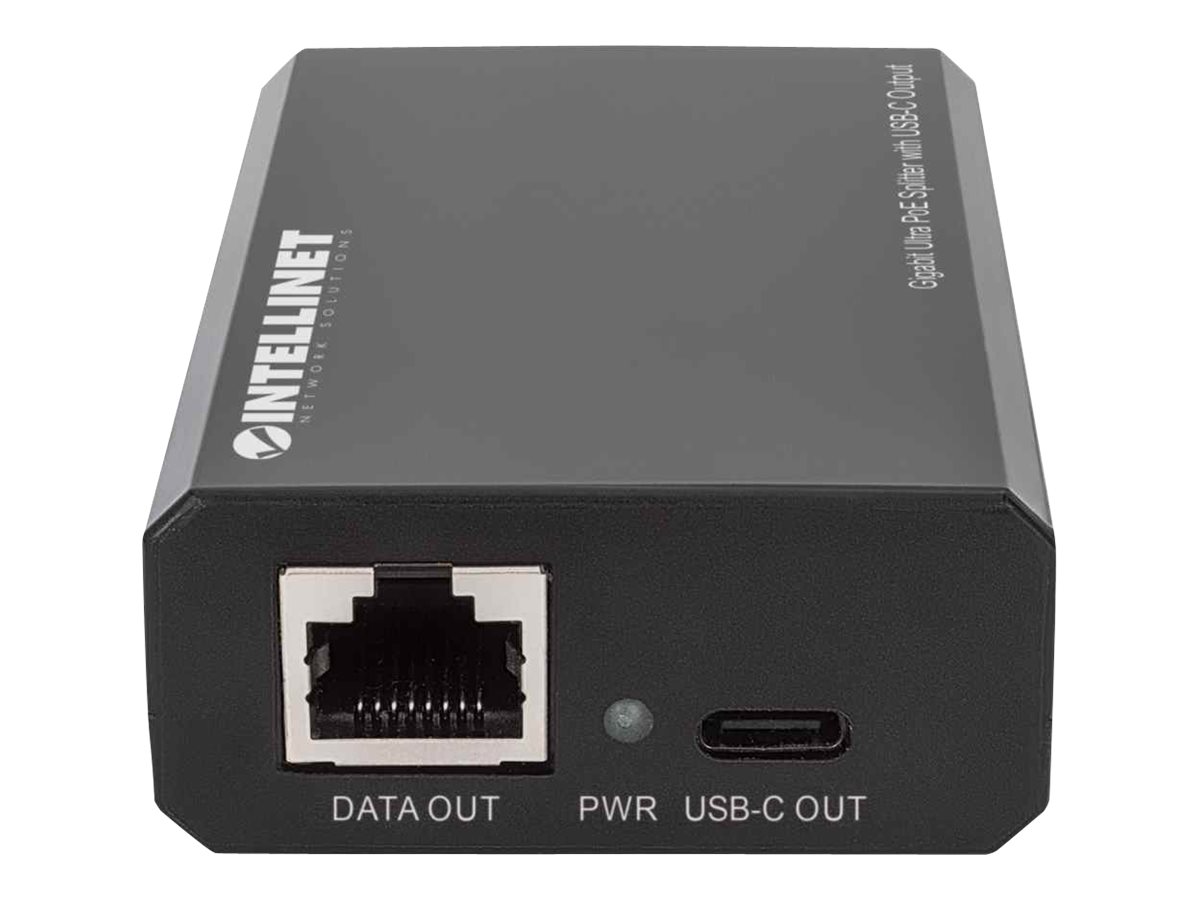

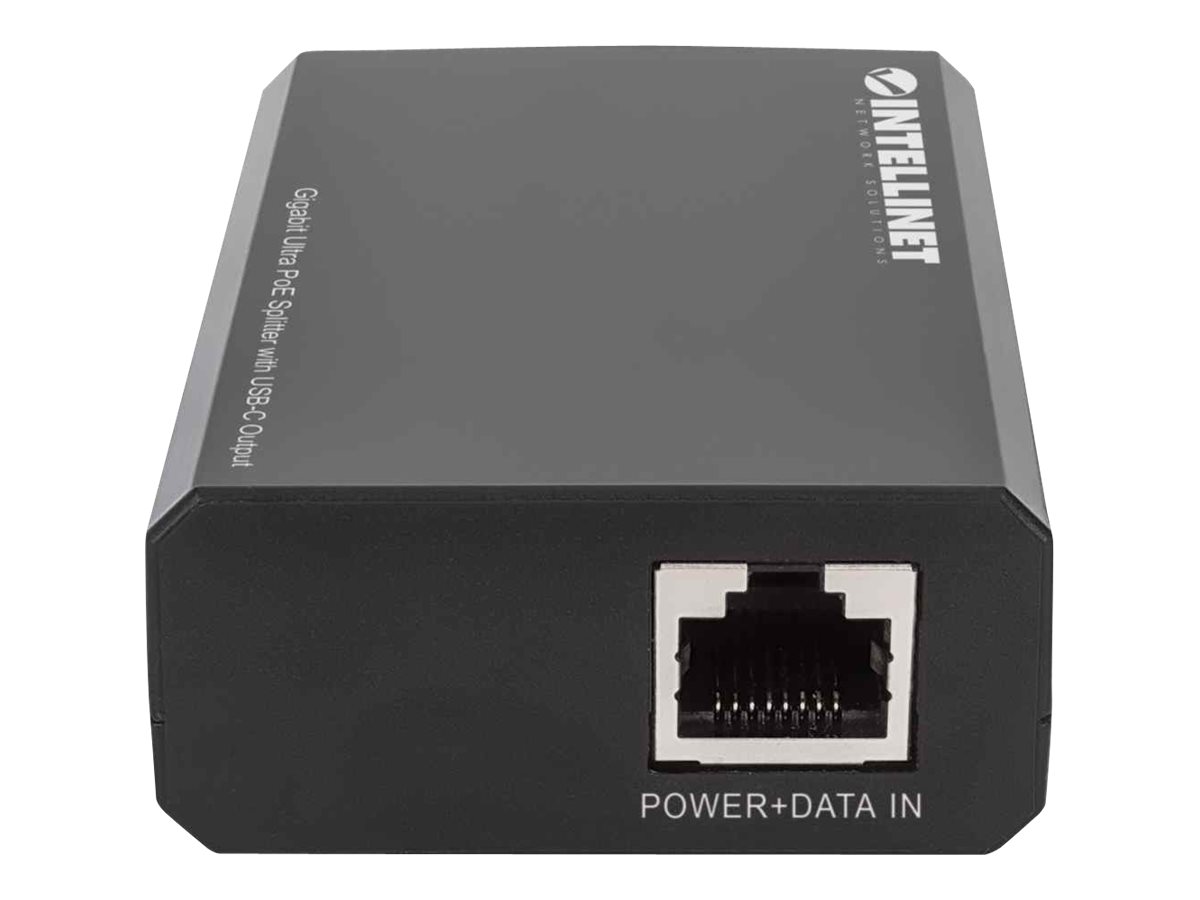

Intellinet PoE Splitter with USB-C Output, PoE++ / 4PPoE, Gigabit Ultra, IEEE 802.3bt, RJ45 In and Out Ports, Up to 45 W USB-C Output Port 45Watt
Intellinet PoE Splitter with USB-C Output, PoE++ / 4PPoE, Gigabit Ultra, IEEE 802.3bt, RJ45 In and Out Ports, Up to 45 W USB-C Output Port - PoE fordeler - 45 watt - output-stikforbindelser: 1
-
Product no 998365463
Model 561693
Brand Intellinet
EAN 0766623561693
Weight 0.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Intellinet PoE Splitter with USB-C Output, PoE++ / 4PPoE, Gigabit Ultra, IEEE 802.3bt, RJ45 In and Out Ports, Up to 45 W USB-C Output Port - PoE fordeler - 45 watt |
| Enhedstype | PoE fordeler - ekstern |
| Power Over Ethernet (PoE) | PoE++ |
| Vægt | 170 g |
| Udgangspænding | 5 / 9 / 12 / 15 / 20 V |
| Strømkapacitet | 45 watt |
| Input-stik | 1 x RJ-45 |
| Output-stikforbindelser | 1 x 24 pin USB-C |
| Dimensioner (B x D x H) | 8 cm x 5.4 cm x 2.4 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | PoE splitter - external |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Power Device | |
| Input Connectors | 1 x RJ-45 |
| Output Voltage | 5 / 9 / 12 / 15 / 20 V |
| Power Capacity | 45 Watt |
| Power Output Connectors Details | 1 x 24 pin USB-C |
| Expansion / Connectivity | |
| Interfaces | 1 x LAN - RJ-45 |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, FCC Class A certified, RoHS |
| Features | Plastic housing, overheat protection, overcurrent protection, overvoltage protection, overload protection, short-circuit protection, Power Delivery (PD) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 5.4 cm |
| Height | 2.4 cm |
| Weight | 170 g |
| Width | 8 cm |
