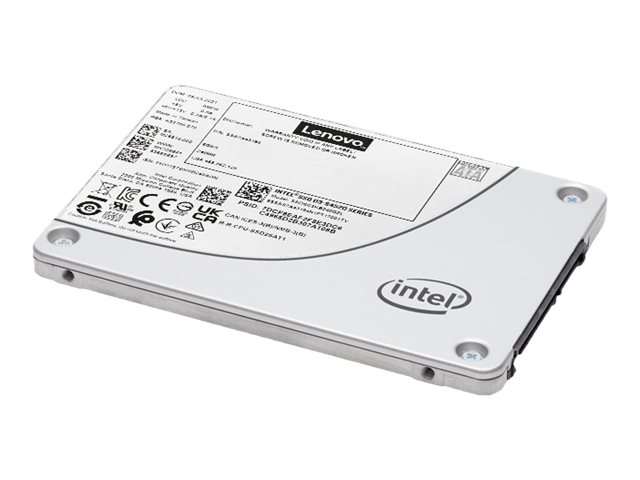

Lenovo ThinkSystem Solid state-drev S4520 960GB 2.5" SATA-600
Lenovo ThinkSystem S4520 - SSD - Read Intensive - krypteret - 960 GB - intern - 2.5" - SATA 6Gb/s - 256-bit AES - for ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5")
-
Product no 1000654782
Model 4XB7A77461
Brand
Go to brand's websiteEAN 0889488593415
Weight 0.07 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Lenovo ThinkSystem S4520 - SSD - Read Intensive - 960 GB - SATA 6Gb/s |
| Type | Solid state-drev - intern |
| Kapacitet | 960 GB |
| Hardware kryptering | Ja |
| Krypterings algoritme | 256-bit AES |
| NAND Flashhukommelses-type | 3D triple-level cell (TLC) |
| Model | 2.5" |
| Grænseflade | SATA 6Gb/s |
| Dataoverførselshastighed | 600 MBps |
| Drevklasse | Read Intensive |
| Egenskaber | Termisk drosling, Ende-til-ende databeskyttelse, 3D NAND Technology, Standard Endurance Technology (SET), Enhanced Power Loss Protection, S.M.A.R.T. |
| Dimensioner (B x D x H) | 70 mm x 100 mm x 7 mm |
| Vægt | 70 g |
| Producentgaranti | 1 års garanti |
| Designet for | ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5") |
| General | |
|---|---|
| Capacity | 960 GB |
| Depth | 100 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | Thermal throttling, End-to-end data protection, 3D NAND Technology, Standard Endurance Technology (SET), Enhanced Power Loss Protection, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 7 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 70 g |
| Width | 70 mm |
| Performance | |
| 4KB Random Read | 90000 IOPS |
| 4KB Random Write | 43000 IOPS |
| Average Latency | 36 μs |
| Drive Class | Read Intensive |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 550 MBps (read) / 510 MBps (write) |
| SSD Endurance | 5.3 PB |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| Power | |
| Power Consumption | 3 Watt (typical) |
| Miscellaneous | |
| Compliant Standards | VCCI, ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, BSMI CNS 13438, RoHS 2011/65/EU, EN55022:2006, AS/NZS CISPR22:2009+A1:2010, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, FCC CFR47 Part 15 B Class B, EN 55032:2012, KCC Article 11.1, AS/NZS CI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 1000 g @ 0.5 ms |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 g @ 5-800 Hz |
| Vibration Tolerance (operating) | 2.17 g @ 5-700 Hz |
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5") |
