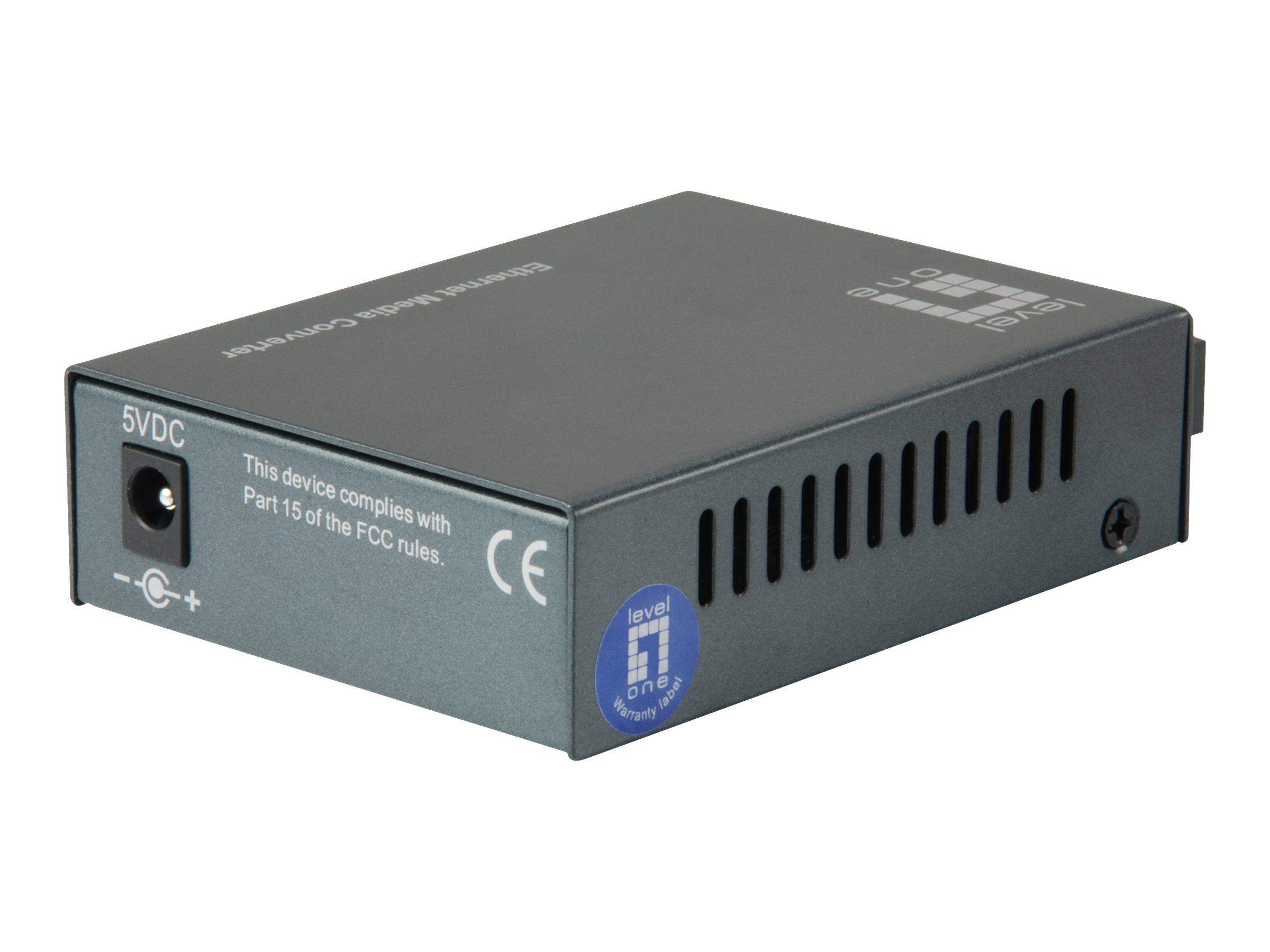

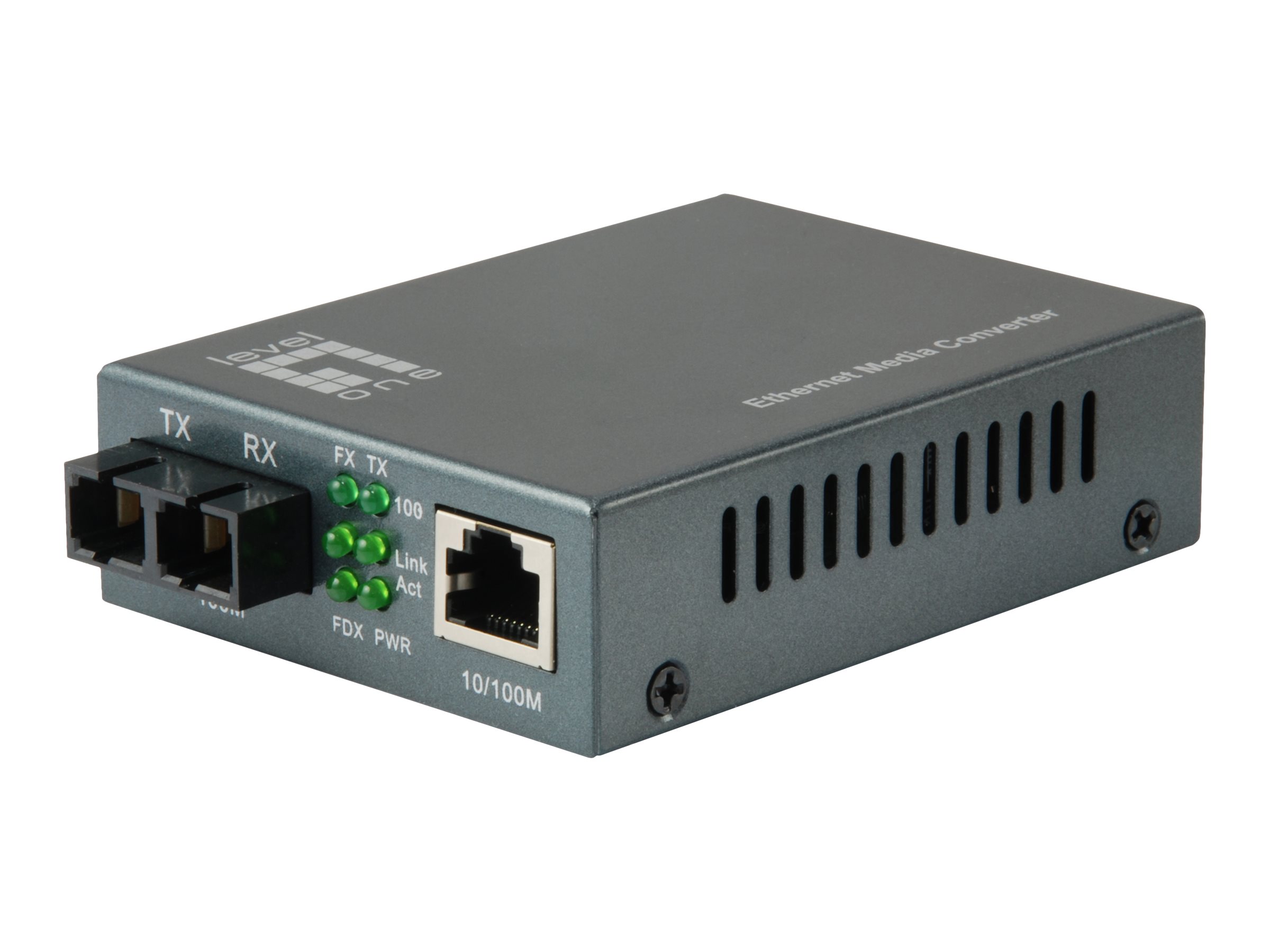

LevelOne FVT-1102 Fibermedieomformer Ethernet Fast Ethernet

LevelOne FVT-1102 - Fibermedieomformer - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC enkelttilstand - op til 20 km - 1310 nm

Product no: 994181231
Model: FVT-1102
EAN: 4015867208045
Brand:
LevelOne
Weight: 0.38 kg

Specifications

Produktbeskrivelse
LevelOne FVT-1102 - fibermedieomformer - 10Mb LAN, 100Mb LAN
Enhedstype
Fibermedieomformer - RJ-45 / SC enkelttilstand
Model
Ekstern
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataoverførselshastighed
100 Mbps
Optisk bølgelængde
1310 nm
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Maks. overføringsafstand
20 km
Dimensioner (B x D x H)
7.1 cm x 9.4 cm x 2.6 cm
Vægt
420 g
Specifications

Full specifications

General
Device Type
Fiber media converter
Form Factor
External
Networking
Cabling Type
10Base-T, 100Base-FX, 100Base-TX
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Connectivity Technology
Wired
Data Link Protocol
10Mb LAN, 100Mb LAN
Data Transfer Rate
100 Mbps
Features
Full duplex capability
Max Transfer Distance
20 km
Optical Wave Length
1310 nm
Status Indicators
Collision status, port transmission speed, port duplex mode, power, link/activity
Expansion / Connectivity
Interfaces
1 x Ethernet 10Base-T/100Base-TX - RJ-45 female | 1 x Ethernet 100Base-FX - SC single-mode female x 2
Miscellaneous
Compliant Standards
FCC, RoHS
MTBF
100,000 hours
Power
Power Device
External power adapter
Dimensions & Weight
Depth
9.4 cm
Height
2.6 cm
Weight
420 g
Width
7.1 cm
Environmental Parameters
Humidity Range Operating
10 - 90% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
0 °C
