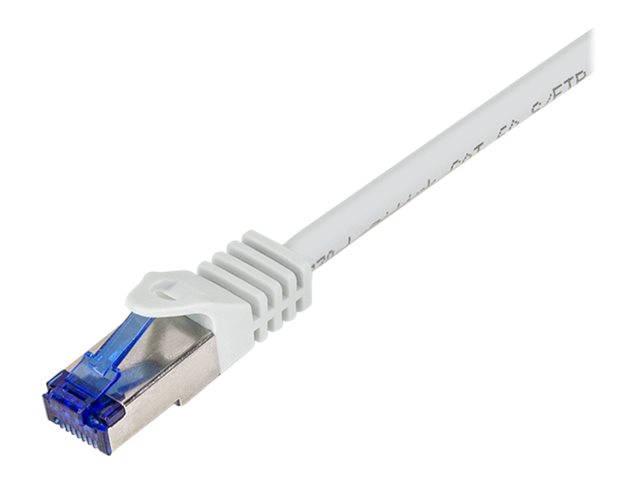

LogiLink Professional CAT 6a S/FTP 10m Patchkabel Grå RAL 7035
LogiLink Professional Ultraflex - Patchkabel - RJ-45 (han) til RJ-45 (han) - 10 m - 6 mm - S/FTP - CAT 7 (kabel)/CAT 6a (stikforbindelser) - halogenfri, formet, knastfri - grå, RAL 7035
-
Product no 1000924671
Model C6A092S
Brand 2direct
EAN 4052792055849
Weight kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LogiLink Professional Ultraflex - patchkabel - 10 m - grå, RAL 7035 |
| Type | Patchkabel - CAT 7 (kabel)/CAT 6a (stikforbindelser) |
| Teknologi | S/FTP |
| Afskærmningsmateriale | Kobberfletning |
| Ledninger pr. kabel | 8 ledninger |
| Egenskaber | Halogenfri, formet, knastfri, PoE+ klar, presaflastning, PoE-klar, PoE++ klar, bar kobber, bøjeradius 25 mm, ultra flex, op til 10 Gbps |
| Længde | 10 m |
| Diameter | 6 mm |
| Forbindelsesled | RJ-45 - han |
| Stikforbindelse (anden ende) | RJ-45 - han |
| Farve | Grå, RAL 7035 |
| General | |
|---|---|
| American Wire Gauge (AWG) | 26/7 |
| Color | Gray, RAL 7035 |
| Diameter | 6 mm |
| Features | Halogen-free, molded, snagless, PoE+ Ready, strain relief, PoE ready, PoE++ ready, bare copper, bending radius 25mm, ultra flex, up to 10 Gbps |
| Jacket Material | Halogen Free Flame-Retardant (HFFR) |
| Length | 10 m |
| Network Cable Type | Patch cable - CAT 6a |
| Pairs per Cable | 4 pairs |
| Shielding Material | Copper braid |
| Technology | S/FTP |
| Weight | 310 g |
| Wires per Cable | 8 wires |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | WEEE, 3P, IEC 60332-1-2, IEC 60754-2, IEC 61034, EN 50173, ANSI/TIA-568-C.2, ISO 11801 Class Ea, UKCA, GHMT - up to 500 MHz |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 25 cm |
| Shipping Height | 5 cm |
| Shipping Weight | 313 g |
| Shipping Width | 20 cm |
| Environmental Parameters | |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -20 °C |
