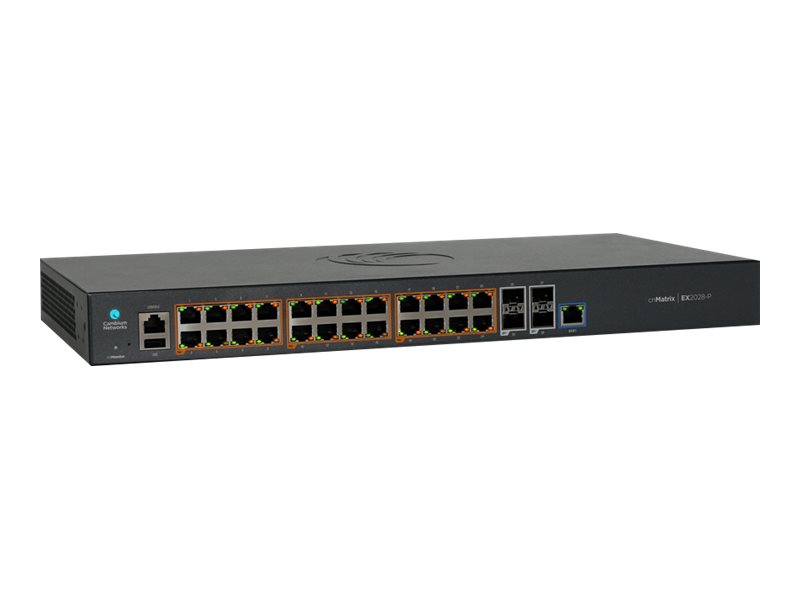

Cambium Networks cnMatrix EX2028-P Switch 28-porte PoE+
Cambium Networks cnMatrix EX2028-P - Switch - L3 - Administreret - 24 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink) - monterbar på stativ - PoE+ (400 W)
Product no:
1002286485
Model:
MX-EX2028PXB-0
EAN:
5715063365298
Brand:
Weight:
4.8 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Cambium Networks cnMatrix EX2028-P - switch - 28 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 28 porte - L3 - Administreret
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Porte
|
24 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
400 W
|
|
Præstation
|
Kapacitet: 128 Gbps<br>Videresendelsesrate (64‑byte pakker): 120 Mpps
|
|
Kapacitet
|
VLANs understøttet: 4000<br>QoS-køer: 8<br>ACL-poster (indgang/udgang): 8<br>Prioritets QoS-køer: 8<br>ACL-poster (indgang/udgang): 145<br>Statiske ARP-indtastninger: 512<br>ARP-indtastninger: 1000<br>Statiske ruter: 64<br>Pakkebufferstørrelse: 1,5 MB<br>Dynamiske ruter: 512<br>IGMP multicast-grupper: 512<br>L3 grænseflader: 64
|
|
MAC adresse table størrelse
|
16K indtastningshukommelse
|
|
Jumborammesupport
|
9KB
|
|
Routingprotokol
|
IGMPv2, IGMP, IGMPv3, OSPFv2, RIP-1, RIP-2
|
|
Protokol til fjernadministration
|
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI, ICMP 6, SSH, SSH-2, RMON 1, RMON 2, RMON 3, SFTP, RMON 9
|
|
Egenskaber
|
Auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, DiffServ understøttet, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, PVST, DHCP snooping, QoS, nulstillingsknap, LLDP support, DHCP videresendelse, PVRST, DHCP klient, portisolering, IGMP proxy, 2 blæsere, Link Aggregation, Root Guard, PVE, LLDP-MED, IGMP hurtigafgang, DoS protection, BPDU Filter, Telnet-server, Telnet-klient, BPDU Guard, understøttet af BOOTP, QinQ VLAN, PBA, trafikmåling, MAB, WRR, SP, Auto-MDI/MDIX support, datatransport, DSCP based CoS, DSCP-baseret ToS, Inter-VLAN Routing, DHCP server, Static Link Aggregation, Storm Control, LACP, VLAN-understøttet, traffic-shaping, SPQ, WRR kø, tempogrænse, Traffic Control, 802.1x autentificering, systemlog, MIB II, IF MIB
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3ab
|
|
Effekt
|
AC 100-240 V
|
|
Dimensioner (B x D x H)
|
44 cm x 25 cm x 4.4 cm
|
|
Vægt
|
3.96 kg
|
|
Producentgaranti
|
5 års garanti
|
