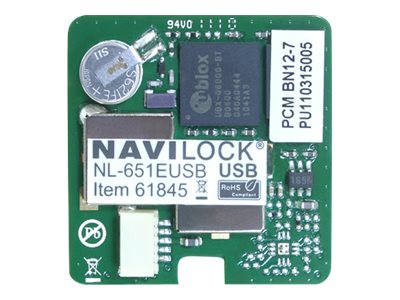

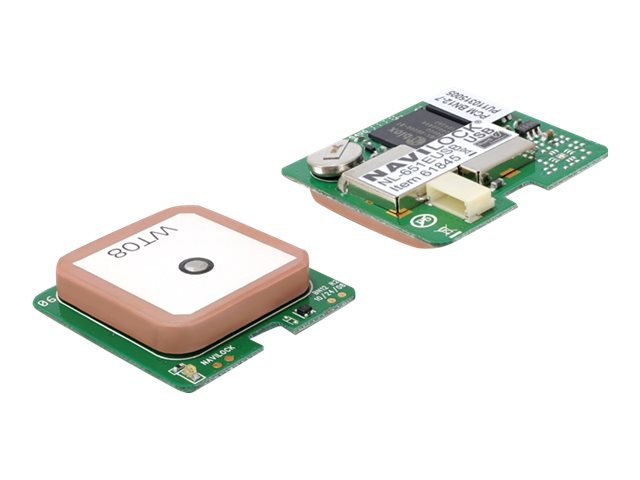

Navilock NL-651EUSB

Navilock NL-651EUSB - GPS modtagermodul

Product no: 988727472
Model: 61845
EAN: 4043619618453
Brand:
NAVILOCK
Weight: 0.02 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Navilock NL-651EUSB - GPS modtagermodul
Produkttype
GPS modtagermodul
Modtager
U-blox 6 - 50 kanaler
Grænseflade
NMEA 0183
SBAS
WAAS, EGNOS (European Geostationary Navigation Overlay Service), MSAS (Multifunctional Transport Satellite-based Augmentation System)
DGPS
DGPS-klar

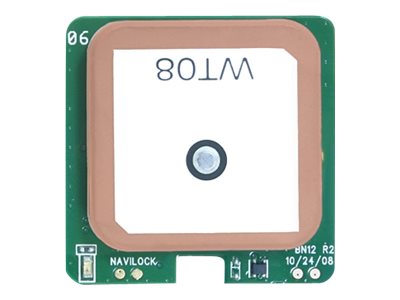

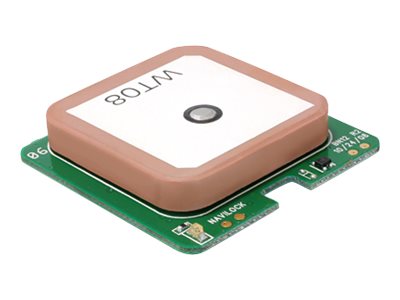

Antenne
Indbygget
Dimensioner (B x D x H)
3 cm x 3 cm x 0.79 cm
Specifications

Full specifications

General
Accuracy
Velocity - 0.1 m/sec | Position - 2 m
Antenna
Built-in
DGPS
DGPS ready
Interface
NMEA 0183
Product Type
GPS receiver module
Receiver
U-blox 6 - 50-channel
SBAS
WAAS, EGNOS, MSAS
Tracking Sensitivity
-160 dBm
Acquisition Times
Cold
30 sec
Hot
3.5 sec
Warm
25 sec
PC System Requirements for GPS
OS Required
Microsoft Windows XP, Microsoft Windows 98, Microsoft Windows Millennium Edition, Microsoft Windows 98 SE, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows CE, Linux Kernel 2.6.x, Windows 8, Apple MacOS, Linux Kernel 2.4.x
Connections
Interfaces
USB
Dimensions & Weight
Depth
3 cm
Height
0.79 cm
Width
3 cm
Environmental Parameters
Max Operating Temperature
85 °C
Min Operating Temperature
-40 °C
