Product no 993447190
Model NF-A20 5V PWM
Brand Noctua
EAN 9010018100075
Weight 0.73 kg

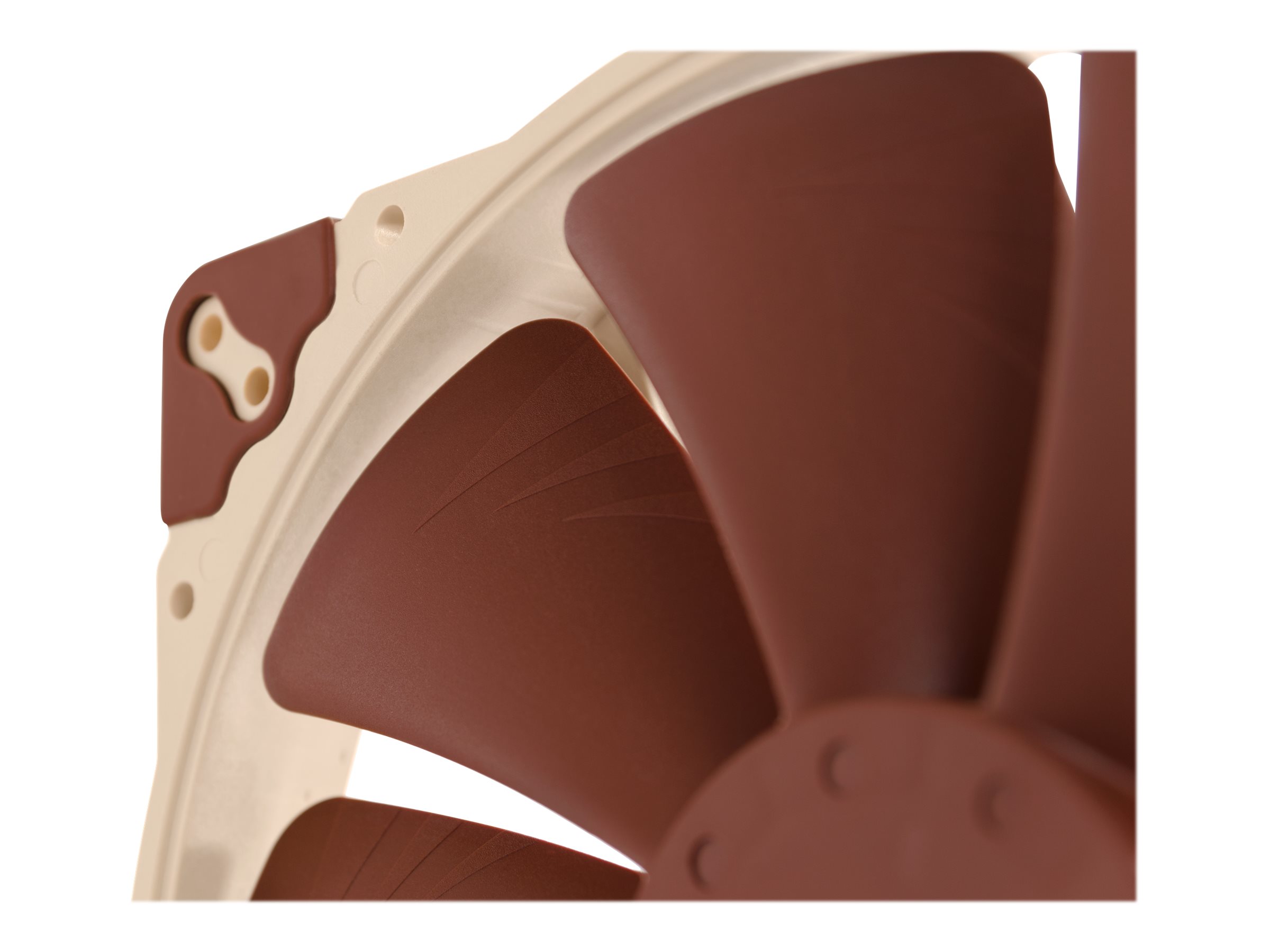

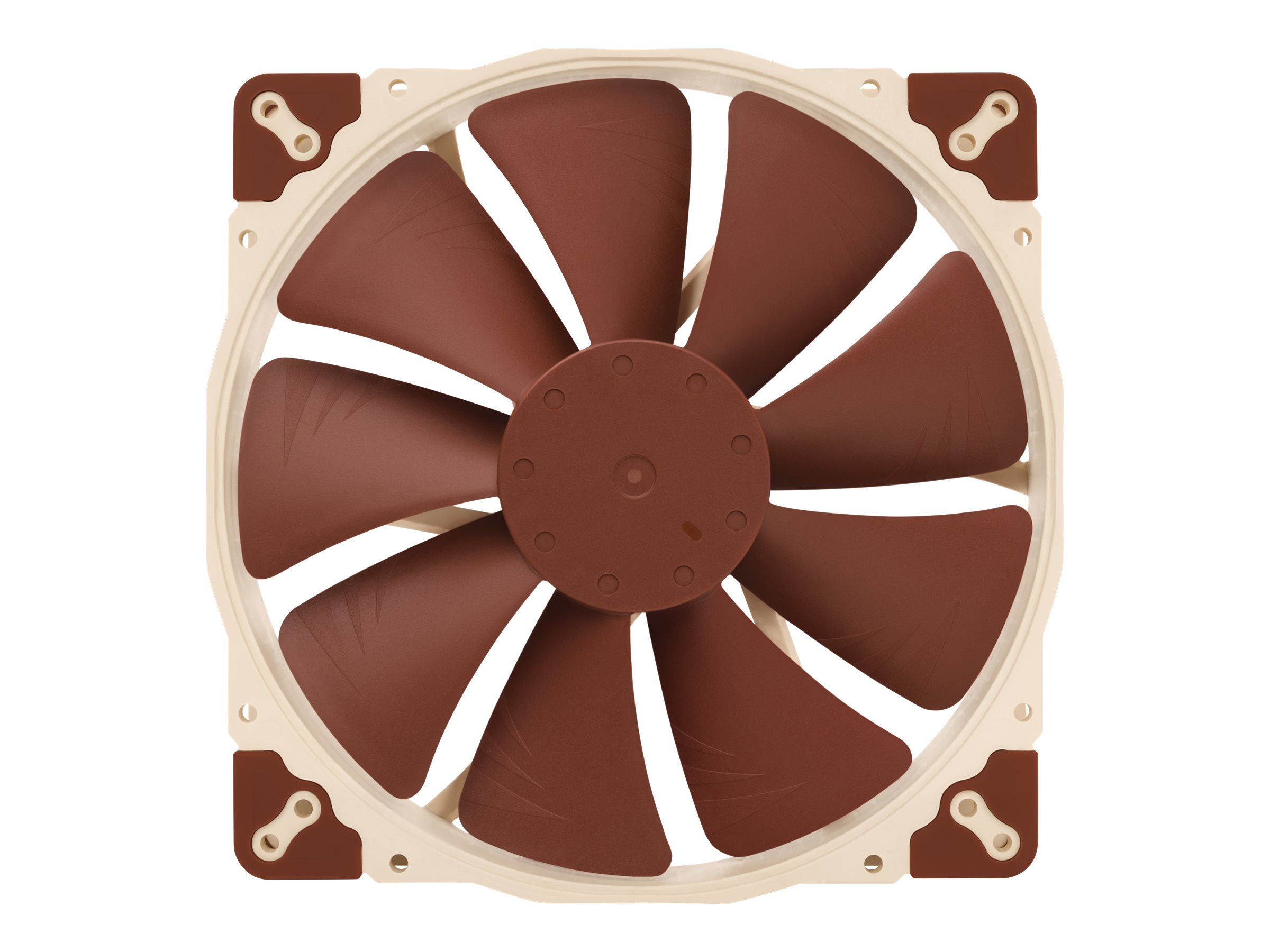

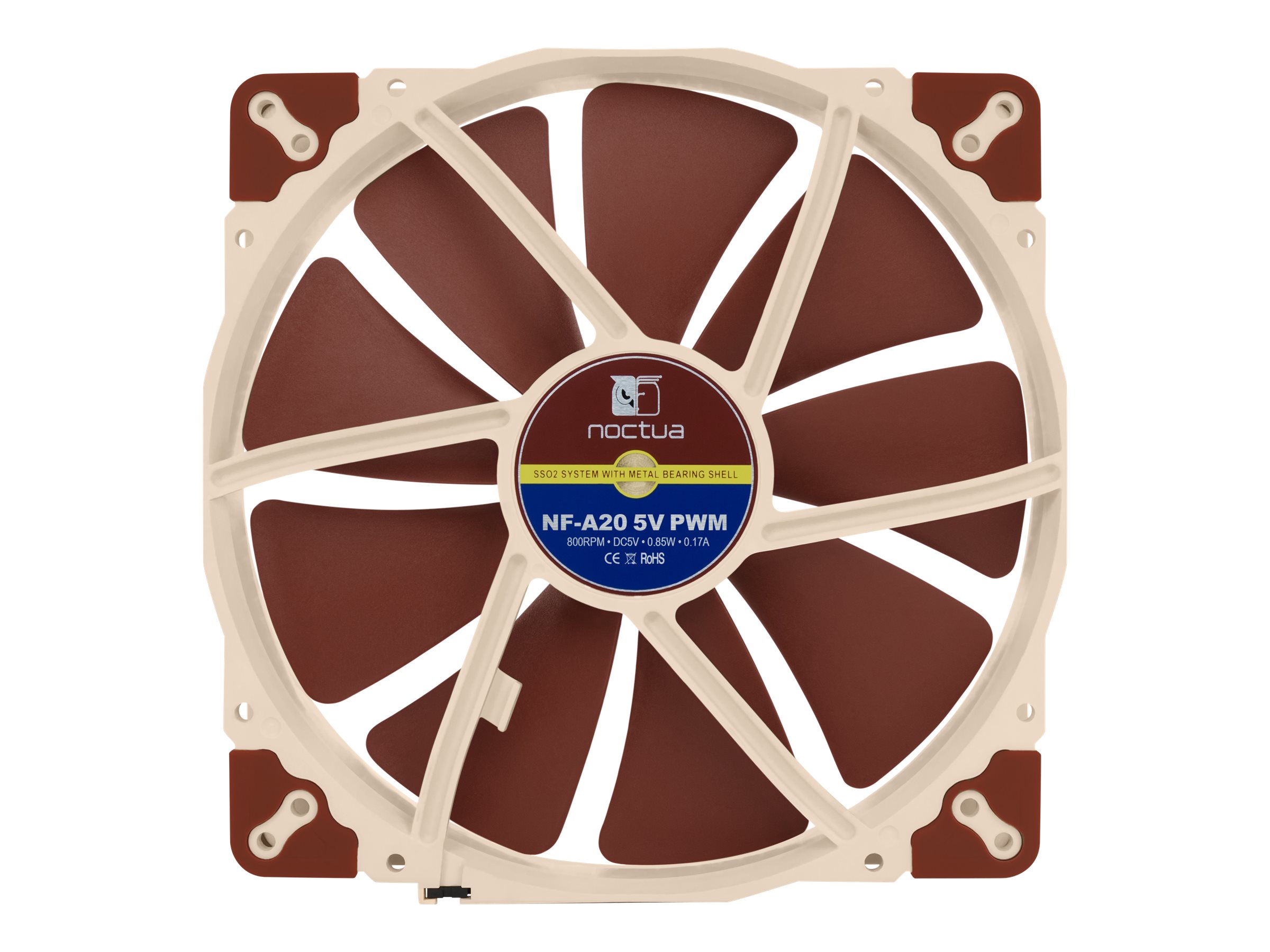

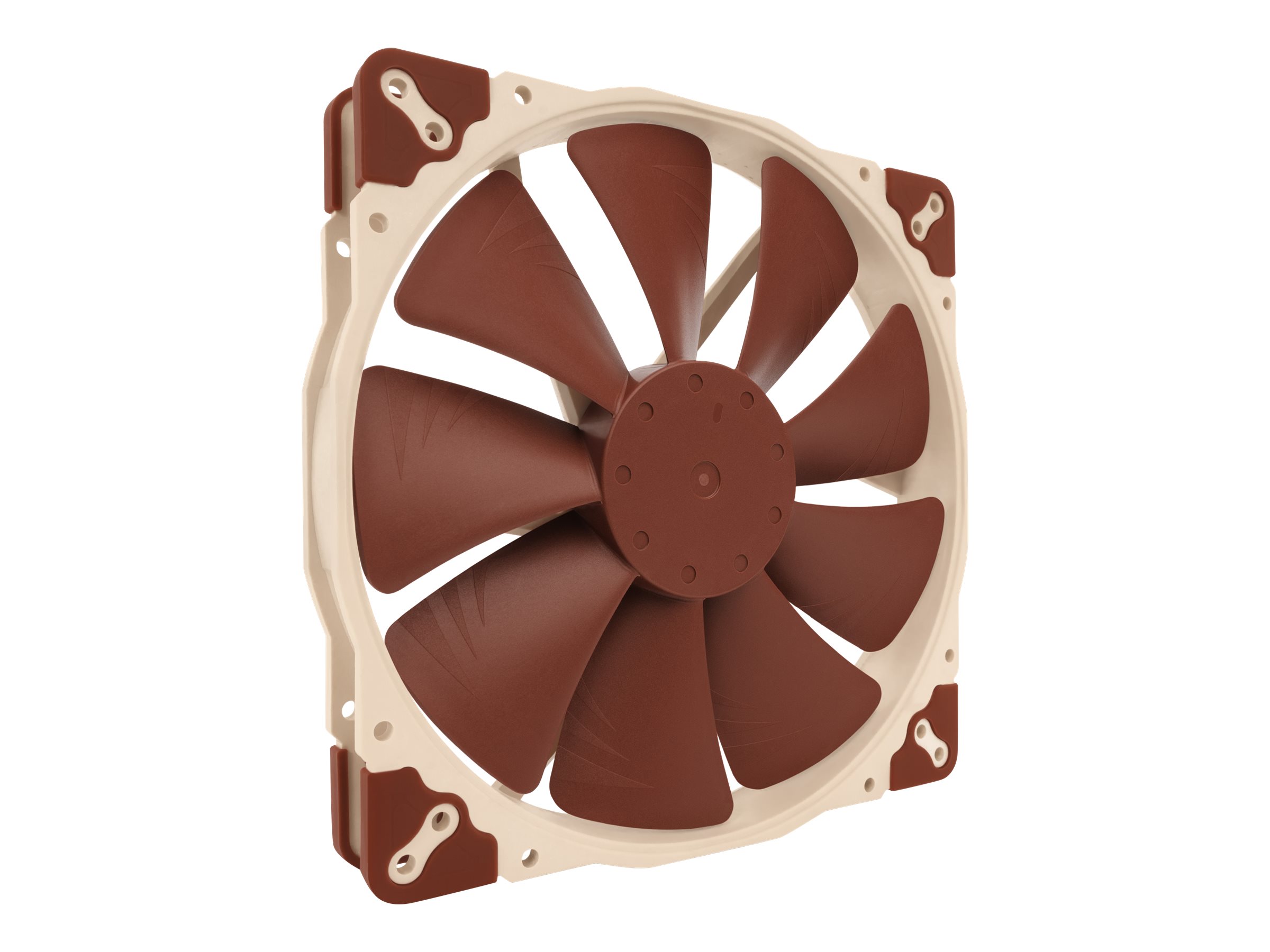

Produktbeskrivelse | Noctua NF-A20 5V PWM - indsats med blæser |
Produkttype | Indsats med blæser |
Pakke Indhold | Skruer, OmniJoin Adaptor Set, forlængerkabel (30 cm), NA-AV3 anti-vibrationsmonteringer |
Blæser diameter | 200 mm |
Blæser-højde | 30 mm |
Blæser med kugleleje | SSO2 leje |
Omdrejningshastighed | 800 rpm |
Luftstrøm | 86,5 cfm |
Støjniveau | 18.1 dBA |
Stik | 4-pins blæser-stikforbindelse |
Rated Voltage | 5 V |
Egenskaber | Puls-bredde modulation (PWM) support, Advanced Acoustic Optimisation (AAO), flow-accelerationskanaler, Smooth Commutation Drive (SCD) teknologi, integrerede anti-vibrationspuder, Stepped Inlet Design, Inner Surface Microstructures |
Dimensioner (B x D x H) | 20 cm x 20 cm x 3 cm |
Producentgaranti | 6 års garanti |
General | |
---|---|
Depth | 20 cm |
Height | 3 cm |
Package Content | Screws, OmniJoin Adaptor Set, extension cable (30 cm), NA-AV3 anti-vibration mounts |
Product Type | Case fan |
Width | 20 cm |
Heatsink & Fan | |
Air Flow | 86.5 cfm |
Air Pressure | 1.08 mm |
Fan Bearing | SSO2 bearing |
Fan Diameter | 200 mm |
Fan Height | 30 mm |
Features | Pulse-width modulation (PWM) support, Advanced Acoustic Optimisation (AAO), flow acceleration channels, Smooth Commutation Drive (SCD) technology, integrated anti-vibration pads, Stepped Inlet Design, Inner Surface Microstructures |
Noise Level | 18.1 dBA |
Power Connector | 4-pin fan connector |
Power Consumption | 0.85 W |
Rated Current | 0.17 A |
Rated Voltage | 5 V |
Rotation Speed | 800 rpm |
Miscellaneous | |
Mounting Kit | Included |
MTBF | 150,000 hour(s) |
Manufacturer Warranty | |
Service & Support | Limited warranty: - 6 years |
