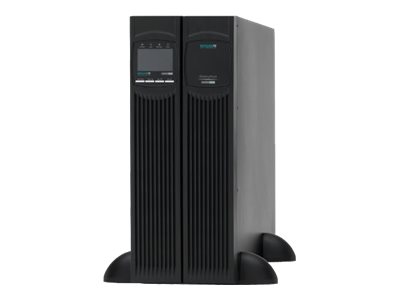

Online USV XANTO 6000 UPS

Online USV XANTO 6000 - UPS (stativ-monterbar / ekstern) - AC 230 V - 6000 watt - 6000 VA - 7 At - RS-232, USB - 2U - 19"

Product no: 992627711
Model: X6000
EAN: 4026908003710
Brand:
ONLINE USV-Systeme
Weight: 20 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Online USV XANTO 6000 - UPS - 6000 watt - 6000 VA
Enhedstype
UPS - stativ-monterbar / ekstern
Rackstørrelse
19" - 2U
Vægt
17 kg
Indgangspænding
AC 230 V
Udgangspænding
AC 208/220/230/240 V ± 1%
Strømkapacitet
6000 watt / 6000 VA
Overskudsspænding
Valgfri
Input-stik
Terminalblok
Output-stikforbindelser
Terminalblok
Batteri
Blysyre - 7 At
Antal batterier
16
Netværk
RS-232, USB
Udstyr inkluderet
Lodret stander
Dimensioner (B x D x H)
43.8 cm x 61 cm x 8.8 cm
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Rack Size
19"
Power Device
Efficiency
98%, 91% Battery mode
Frequency Provided
50/60 Hz ± 4Hz
Frequency Required
50/60 Hz
Input Connectors
Terminal block
Input Voltage
AC 230 V
Input Voltage Range
AC 110 - 300 V / 176 - 300 V
Output Voltage
AC 208/220/230/240 V ± 1% - 50/60 Hz
Output Waveform
Sinewave
Power Capacity
6000 Watt / 6000 VA
Power Output Connectors Details
Terminal block
Power Redundancy
Optional
UPS Technology
On-line
Battery
Capacity
7 Ah
Quantity
16
Technology
Lead acid
Voltage Provided
12 V
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Expansion Slots
1 expansion slot
Interfaces
Management (RS-232) - 9 pin D-Sub (DB-9) | Management (USB) - 4 pin USB Type B | EPO (emergency power off) - screw terminal | Cascading
Miscellaneous
Cables Included
USB cable - external | Cascade cable - external | Synchronisation cable - external | Battery cable - external
Compliant Standards
IEC 62040-3, IEC 62040-2, IP21, IEC 62040-1, VFI-SS-111
Features
Built-in 2 cooling fans, LCD display, overload protection, cold-start function, Dynamic Power Technology (DPT)
Included Accessories
Vertical stand
MTBF
47,000 hours
Rack Mounting Kit
Included
Software / System Requirements
Software Included
Drivers & Utilities
Manufacturer Warranty
Service & Support
Limited warranty - 2 years | Limited warranty - batteries - 2 years
Environmental Parameters
Humidity Range Operating
0 - 95%
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Sound Emission
55 dBA
Dimensions & Weight
Depth
61 cm
Height
8.8 cm
Weight
17 kg
Width
43.8 cm
