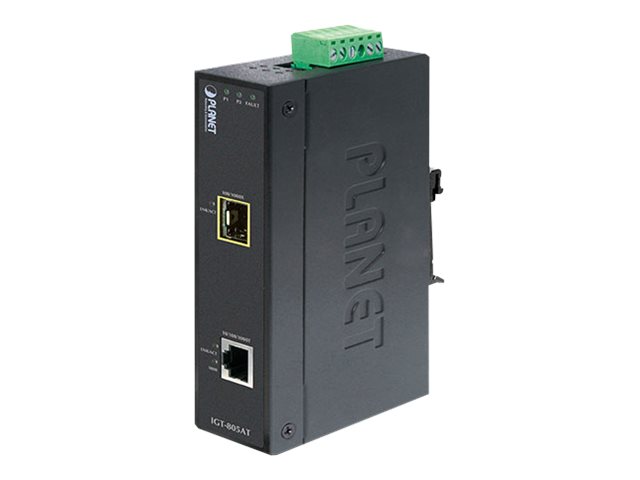

PLANET IGT-805AT Fibermedieomformer

PLANET IGT-805AT - Fibermedieomformer - 1GbE - RJ-45 / SFP (mini-GBIC)

  • Product no 991818156

    Model IGT-805AT

    Brand PLANET Technology

    EAN 4711605281119

    Weight 0.56 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse PLANET IGT-805AT - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE
Enhedstype Fibermedieomformer - RJ-45 / SFP (mini-GBIC)
Model Ekstern
Dataoverførselshastighed 1 Gbps
Dataforbindelsesprotokol 10Mb LAN, 100Mb LAN, 1GbE
Dimensioner (B x D x H) 13.5 cm x 8.7 cm x 3.2 cm
Vægt 458 g
General
Device Type Fiber media converter
Form Factor External
Networking
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Connectivity Technology Wired
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate 1 Gbps
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), wall mountable, Jumbo Frames support, DIN rail mountable, 6KV ESD Protector, 6KV EFT protector
Status Indicators Power, link/activity
Expansion / Connectivity
Interfaces 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 | 1 x Ethernet 1000 - SFP
Miscellaneous
Compliant Standards FCC Class A certified, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Power
Power Consumption Operational 3.3 Watt
Power Device External power adapter
Dimensions & Weight
Depth 8.7 cm
Height 3.2 cm
Weight 458 g
Width 13.5 cm
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 75 °C
Min Operating Temperature -40 °C
