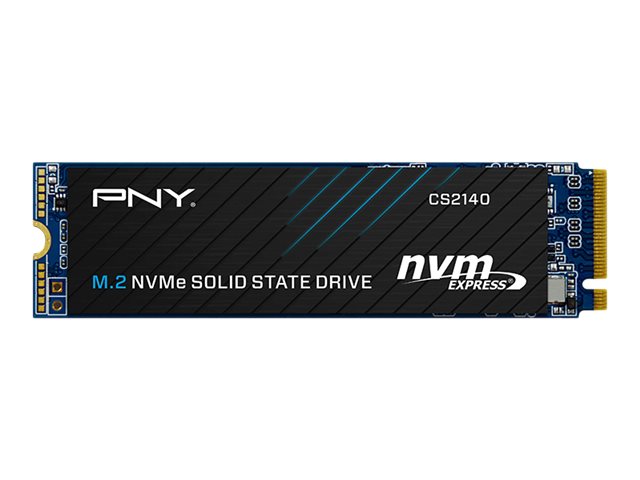

PNY SSD CS2140 1TB M.2 PCI Express 4.0 x4 (NVMe)

PNY CS2140 - SSD - 1 TB - intern - M.2 2280 - PCIe 4.0 x4 (NVMe) - 256-bit AES

Product no: 1000731695
Model: M280CS2140-1TB-RB
EAN: 0751492650944
Brand:
PNY Technologies
Weight: 0.03 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
PNY CS2140 - SSD - 1 TB - PCIe 4.0 x4 (NVMe)
Type
Solid state-drev - intern
Kapacitet
1 TB
Krypterings algoritme
256-bit AES
Model
M.2 2280
Grænseflade
PCIe 4.0 x4 (NVMe)
Egenskaber
RAID 0+1 - fabrikskonfigureret, TRIM support, ende-til-ende datastibeskyttelse, LDCP-fejlrettelse, NVM Express (NVMe) 1.4, Autonomous Power State Transition (APST), Active State Power Management (ASPM), S.M.A.R.T.
Dimensioner (B x D x H)
22 mm x 80 mm x 4 mm
Vægt
6.6 g
Producentgaranti
5 års garanti
Specifications

Full specifications

General
Capacity
1 TB
Depth
80 mm
Device Type
Solid state drive - internal
Encryption Algorithm
256-bit AES
Features
RAID 0+1 - factory configured, TRIM support, End-to-end data path protection, LDPC error correction, NVM Express (NVMe) 1.4, Autonomous Power State Transition (APST), Active State Power Management (ASPM), S.M.A.R.T.
Form Factor
M.2 2280
Height
4 mm
Interface
PCIe 4.0 x4 (NVMe)
Weight
6.6 g
Width
22 mm
Performance
Internal Data Rate
3600 MBps (read) / 3200 MBps (write)
Reliability
MTBF
1,500,000 hours
Expansion & Connectivity
Compatible Bay
M.2 2280
Interfaces
1 x PCI Express 4.0 x4 (NVMe)
Miscellaneous
Compliant Standards
VCCI, BSMI, FCC, RoHS, KCC, REACH
Dimensions & Weight (Shipping)
Shipping Depth
6.99 cm
Shipping Height
0.64 cm
Shipping Width
9.91 cm
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Max Operating Temperature
70 °C
Max Storage Temperature
85 °C
Min Operating Temperature
0 °C
Min Storage Temperature
-40 °C
