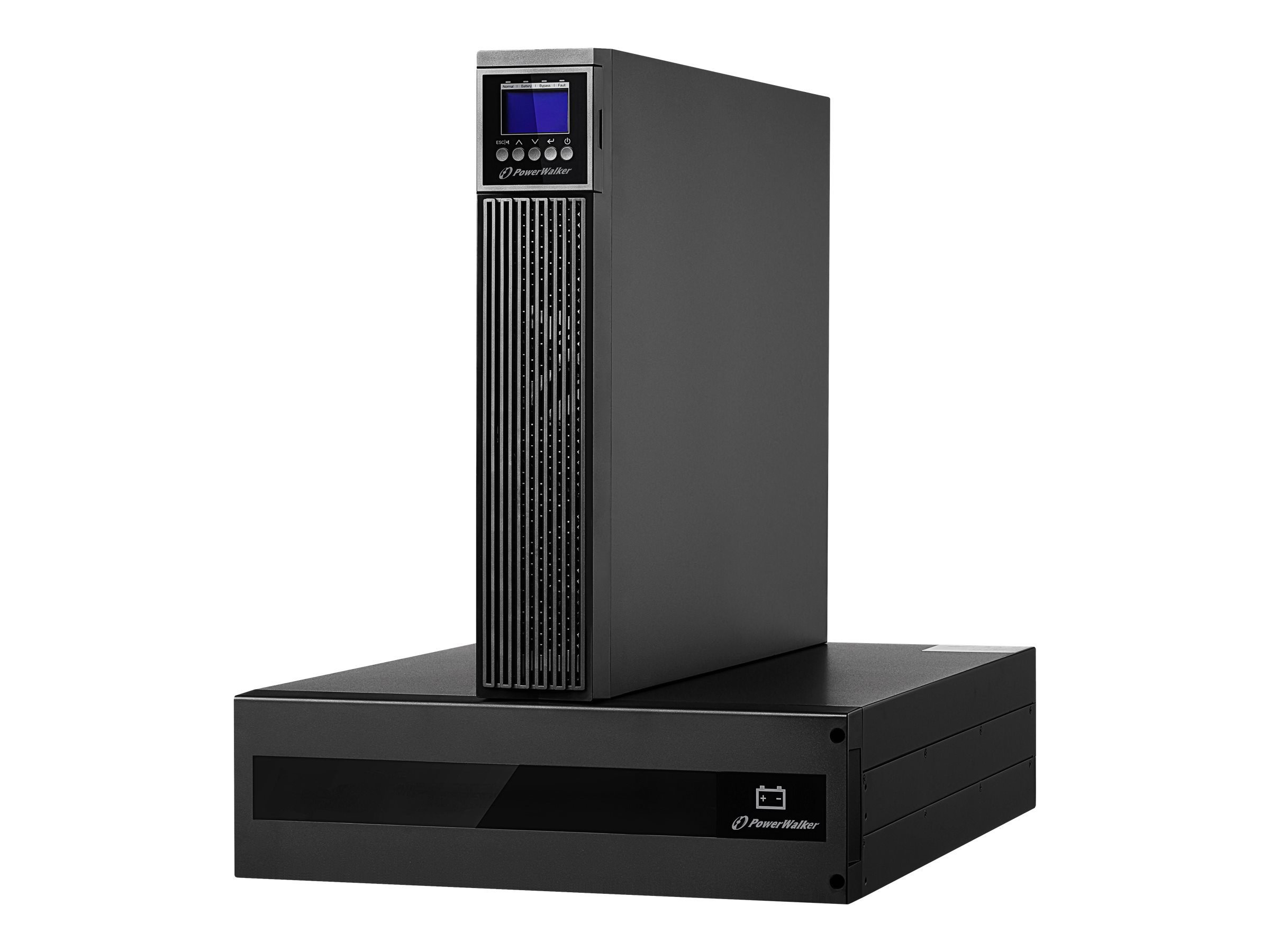

PowerWalker VFI 6000 RTG PF1 UPS
PowerWalker VFI 6000 RTG PF1 - UPS (rackversion) - AC 110 - 276 V - 6000 watt - 6000 VA - 7 At - RS-232, USB - output-stikforbindelser: 3 - 2U - 19"
-
Product no 992949114
Model 10122132
Brand BlueWalker
EAN 4260074980318
Weight 16.3 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PowerWalker VFI 6000 RTG PF1 - UPS - 6000 watt - 6000 VA |
| Enhedstype | UPS - rackversion |
| Rackstørrelse | 19" - 2U |
| Vægt | 13 kg |
| Indgangspænding | AC 110 - 276 V |
| Udgangspænding | AC 208/220/230/240 V ± 1% |
| Strømkapacitet | 6000 watt / 6000 VA |
| Input-stik | 1 x terminalblok |
| Output-stikforbindelser | 1 x terminalblok<br>2 x power IEC 60320 C13 |
| Batteri | - 7 At |
| Antal batterier | 16 |
| Driftstid (op til) | 4 min ved fuld belastning |
| Netværk | RS-232, USB |
| Udstyr inkluderet | Ekstern batteripakke |
| Dimensioner (B x D x H) | 43.8 cm x 57.3 cm x 8.6 cm |
| General | |
|---|---|
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 95% |
| Frequency Provided | ± 0.1Hz |
| Input Connectors | 1 x terminal block |
| Input Voltage | AC 110 - 276 V |
| Output Voltage | AC 208/220/230/240 V ± 1% |
| Output Waveform | Sinewave |
| Power Capacity | 6000 Watt / 6000 VA |
| Power Factor (PF) | 1.0 |
| Power Output Connectors Details | 1 x terminal block | 2 x power IEC 60320 C13 |
| UPS Technology | On-line |
| Battery | |
| Capacity | 7 Ah |
| Quantity | 16 |
| Run Time (Up To) | 4 min at full load | 11 min at half load |
| Voltage Provided | 12 V |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | 1 x EPO (emergency power off) |
| Miscellaneous | |
| Features | LCD display, overload protection |
| Included Accessories | External battery pack |
| Software / System Requirements | |
| Software Included | Winpower |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dB |
| Dimensions & Weight | |
| Depth | 57.3 cm |
| Height | 8.6 cm |
| Weight | 13 kg |
| Width | 43.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 76.6 cm |
| Shipping Height | 23.8 cm |
| Shipping Weight | 16.3 kg |
| Shipping Width | 58.6 cm |
