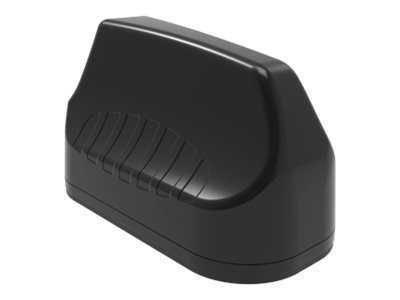

Poynting Antennas MIMO-3-15 Antenne Indendørs / udendørs Klæbende montering Sort
Poynting Antennas MIMO-3-15 - Antenne - radome - navigation, mobil, Wi-Fi - 5 dBi (for 2.4 - 2.5 GHz), 3,5 dBi (til 698 - 960 MHz), 4 dBi (til 3,4 - 3,8 GHz), 1 dBi (til 410 - 470 MHz), 5,8 dBi (til 1,71 - 2,7 GHz), 21 dBi (til 1.575,42 MHz), 21 dBi (til 1600 MHz), 7 dBi (til 5 - 6 GHz) - omni-directional - Indendørs / udendørs, klæbende montering
-
Product no 1000482334
Model A-MIMO-0003-V2-15-B
Brand Poynting Antennas
EAN 6009710922101
Weight 1.36 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Poynting Antennas MIMO-3-15 - antenne |
| Enhedstype | Antenne |
| Model | Radome |
| Beregnet til | Navigation, mobil, Wi-Fi |
| Antenneplacering/montering | Indendørs / udendørs, klæbende montering |
| Dimensioner (B x D x H) | 25.3 cm x 12.8 cm x 14.4 cm |
| Vægt | 1.36 kg |
| Farve | Sort |
| Kompatibilitet | GPS, LTE, GLONASS, 2G, 3G, 4G, Wi-Fi, 5G, CBRS |
| Frekvensrækkevidde | 2.4 - 2.5 GHz, 698 - 960 MHz, 1.71 - 2.7 GHz, 1575.42 MHz, 5 - 6 GHz, 410 - 470 MHz, 3.4 - 3.8 GHz, 1600 MHz |
| Forstærkning | 5 dBi (for 2.4 - 2.5 GHz), 3,5 dBi (til 698 - 960 MHz), 4 dBi (til 3,4 - 3,8 GHz), 1 dBi (til 410 - 470 MHz), 5,8 dBi (til 1,71 - 2,7 GHz), 21 dBi (til 1.575,42 MHz), 21 dBi (til 1600 MHz), 7 dBi (til 5 - 6 GHz) |
| Direktivitet | Omni-directional |
| Egenskaber | Højre cirkulær polarisering (RHCP), lodret polarisering, lineær polarisering, MIMO-teknologi, flammeafvisende, IP 68, IK10, vandresistent |
| General | |
|---|---|
| Antenna Placing / Mounting | Indoor / outdoor, adhesive mount |
| Color | Black |
| Depth | 12.8 cm |
| Form Factor | Radome |
| Height | 14.4 cm |
| Intended For | Navigation, cellular, Wi-Fi |
| Product Material | ASA plastic |
| Product Type | Antenna |
| Weight | 1.36 kg |
| Width | 25.3 cm |
| Antenna | |
| Compatibility | GPS, LTE, GLONASS, 2G, 3G, 4G, Wi-Fi, 5G, CBRS |
| Directivity | Omni-directional |
| Features | Right-hand circular polarization (RHCP), vertical polarization, linear polarization, MIMO technology, flame retardant, IP 68, IK10, water-resistant |
| Frequency Range | 2.4 - 2.5 GHz, 698 - 960 MHz, 1.71 - 2.7 GHz, 1575.42 MHz, 5 - 6 GHz, 410 - 470 MHz, 3.4 - 3.8 GHz, 1600 MHz |
| Gain | 5 dBi (for 2.4 - 2.5 GHz), 3.5 dBi (for 698 - 960 MHz), 4 dBi (for 3.4 - 3.8 GHz), 1 dBi (for 410 - 470 MHz), 5.8 dBi (for 1.71 - 2.7 GHz), 21 dBi (for 1575.42 MHz), 21 dBi (for 1600 MHz), 7 dBi (for 5 - 6 GHz) |
| Impedance | 50 Ohm |
| Max Power | 10 Watt |
| Max Wind Speed | 220 km/h |
| Connector Provided | |
| Type | Antenna - SMA (male) |
| Miscellaneous | |
| Cables Included | Antenna cable - 2 m |
| Included Accessories | Antenna adapter (RP-SMA-male to SMA female) |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 21.1 cm |
| Shipping Height | 20.4 cm |
| Shipping Weight | 1.46 kg |
| Shipping Width | 26.5 cm |
