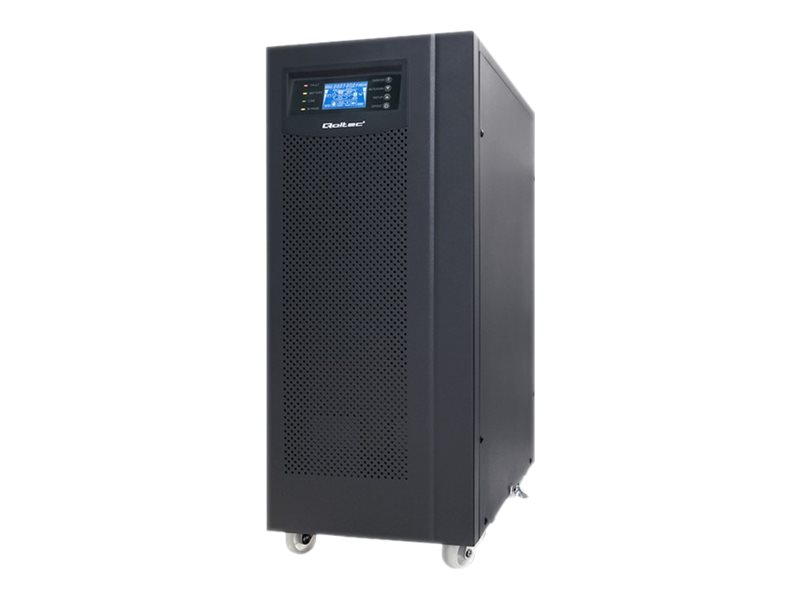

Qoltec UPS 8kW 10000VA
Qoltec - UPS - AC 120-275 V - 8 kW - 10000 VA - 7 At - RS-232, USB
-
Product no 994147356
Model 53044
Brand Qoltec
EAN 5901878530444
Weight 60 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Qoltec - UPS - 8 kW - 10000 VA |
| Enhedstype | UPS - ekstern |
| Vægt | 56.1 kg |
| Indgangspænding | AC 120-275 V |
| Strømkapacitet | 8 kW / 10000 VA |
| Batteri | - 7 At |
| Antal batterier | 16 |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 25 cm x 61 cm x 50.5 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | UPS - external |
| Power Device | |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Frequency Required | 45 - 55 Hz ± 0.5Hz |
| Input Voltage | AC 120-275 V |
| Output Waveform | Sinewave |
| Power Capacity | 8 kW / 10000 VA |
| Power Factor (PF) | 0.8 |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Battery | |
| Capacity | 7 Ah |
| Features | Maintenance free |
| Quantity | 16 |
| Recharge Time | 8 hours |
| Run Time (Up To) | 457 min at 100 Watts | 230 min at 200 Watts | 151 min at 300 Watts | 97 min at 500 Watts | 43 min at 1000 Watts |
| Transfer Time | 0 ms |
| Voltage Provided | 192 V |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |

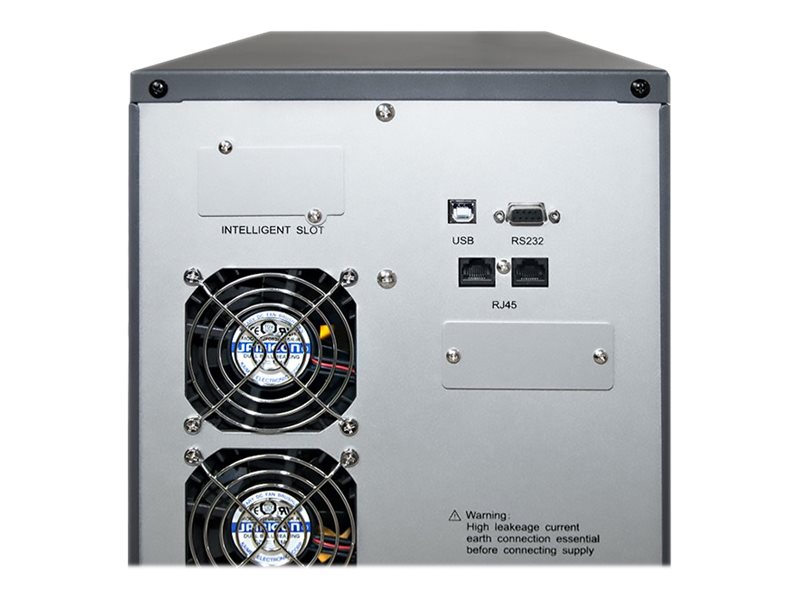

| Interfaces | 1 x management (USB) - 4 pin USB Type B | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Miscellaneous | |

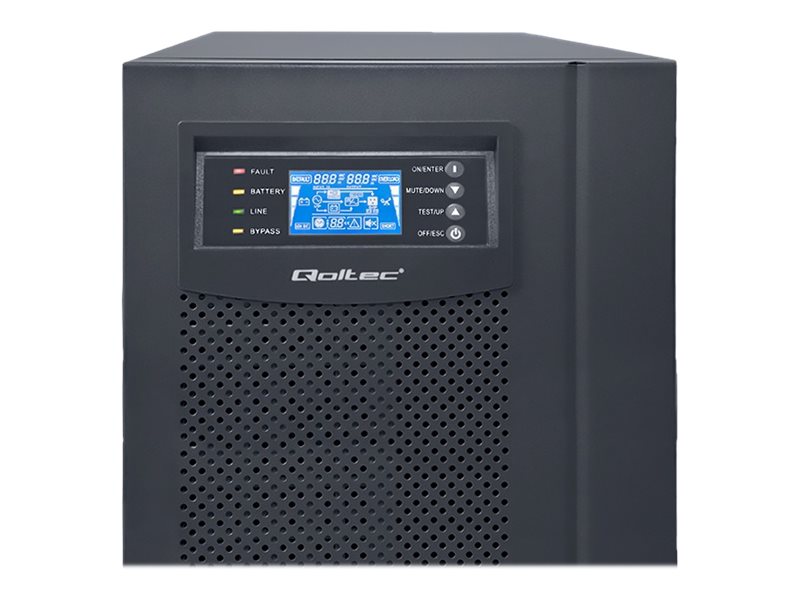

| Features | Audible alarm, LCD display, LED indicators, overvoltage protection, overload protection, undervoltage protection, short-circuit protection |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Sound Emission | 50 dBA |
| Dimensions & Weight | |
| Depth | 61 cm |
| Height | 50.5 cm |
| Weight | 56.1 kg |
| Width | 25 cm |
