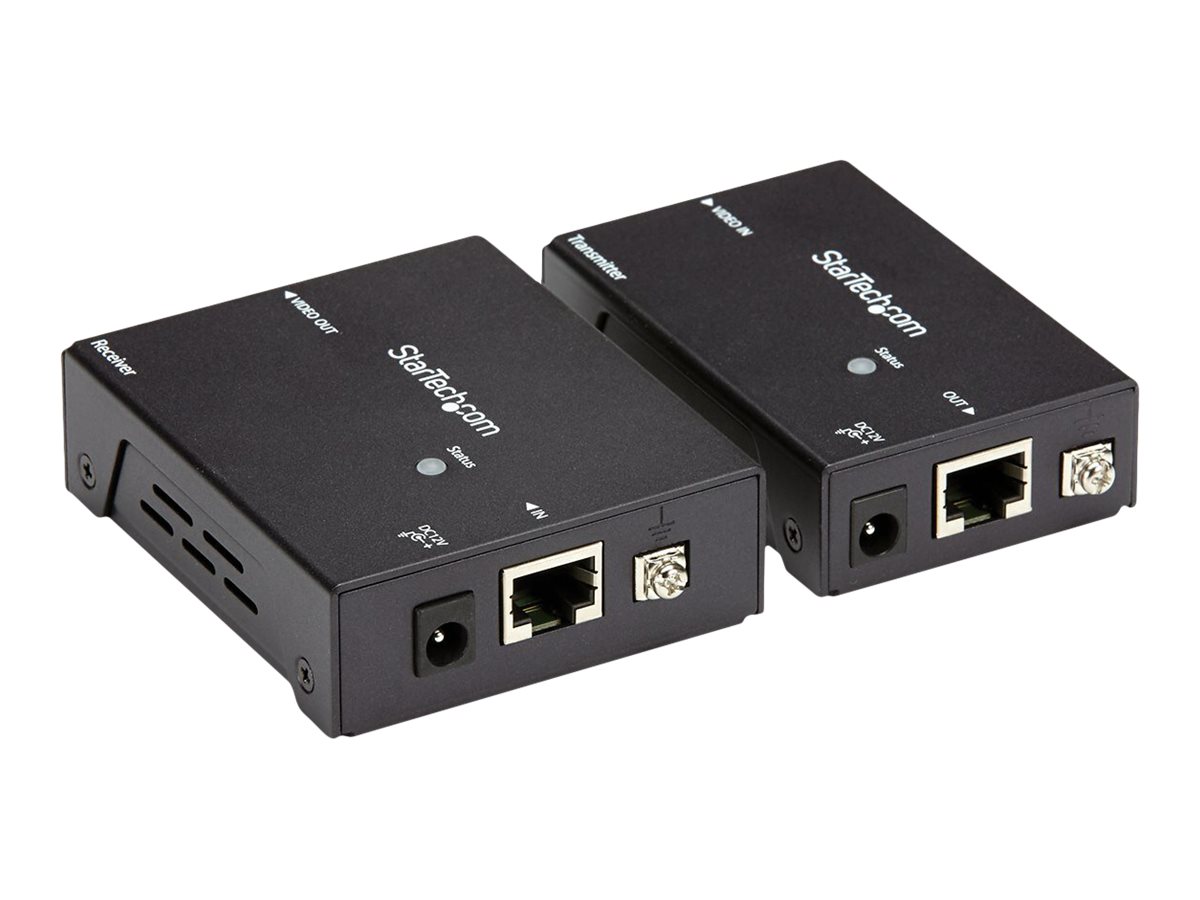

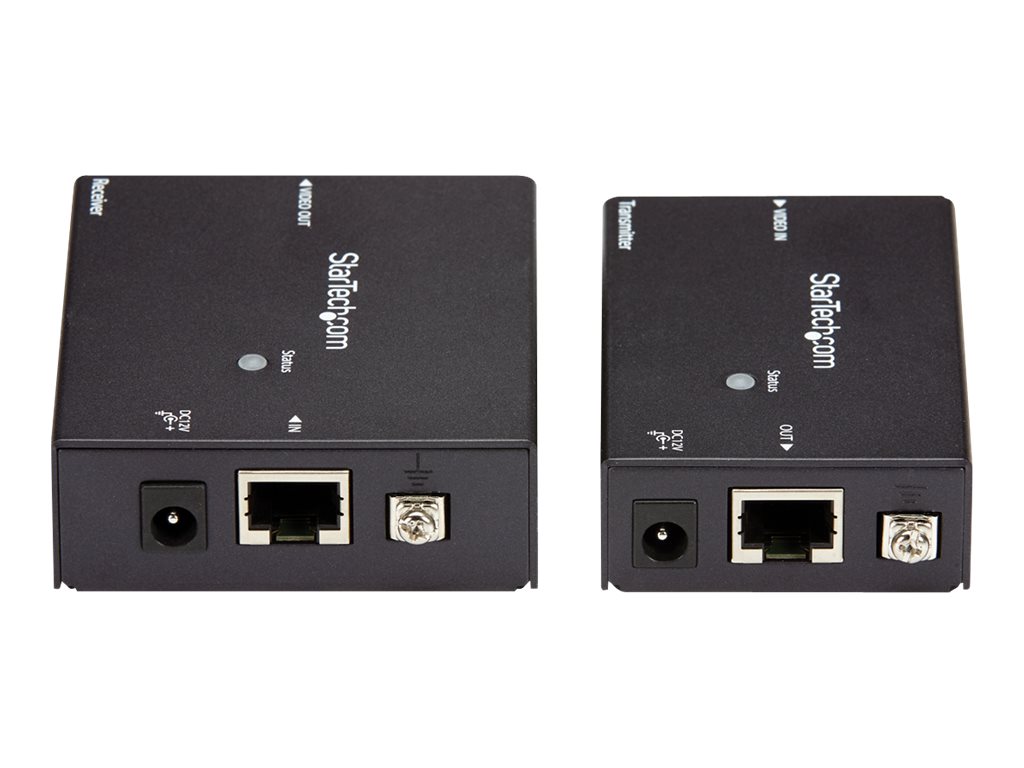

StarTech.com HDMI over CAT5/CAT6 Extender HDBaseT - 4K@115ft, 1080p@230ft - HDMI Video Transmitter and Receiver Kit w/ POC (ST121HDBTE) Video/audio ekspander
Startech HDMI over CAT5e / CAT6 Ethernet Extender with HDBaseT - 4K@115ft, 1080p@230ft - HDMI Video Transmitter and Receiver Kit w/ POC (ST121HDBTE) - Video/audio ekspander - over CAT 5e/6 - op til 70 m - for P/N: ST121HDBTRP, ST124HD4K, SVA12M2NEUA, SVA12M5NA
-
Product no 988493266
Model ST121HDBTE
Brand StarTech.com
EAN 0065030851107
Weight 1.09 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Startech HDMI over CAT5e / CAT6 Ethernet Extender with HDBaseT - 4K@115ft, 1080p@230ft - HDMI Video Transmitter and Receiver Kit w/ POC (ST121HDBTE) - video/audio ekspander |
| Enhedstype | Video/audio ekspander |
| Model | Ekstern |
| Transmissionsmedie | CAT 5e/6 |
| Maks. overføringsafstand | 70 m |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 6.7 cm x 8 cm x 2.5 cm |
| Vægt | 310 g |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: ST121HDBTRP, ST124HD4K, SVA12M2NEUA, SVA12M5NA |
| General | |
|---|---|
| Color | Black |
| Device Type | Video/audio extender |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Transfer Distance | 70 m |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 2.5 cm |
| Weight | 310 g |
| Width | 6.7 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: ST121HDBTRP, ST124HD4K, SVA12M2NEUA, SVA12M5NA |
HDMI® Over Single Cat 5e / 6 Extender with Power Over Cable - 230 ft (70m)
- Extend video where power outlets are limited with power over cable that powers both the transmitter and receiver using a single power source at either side of the connection
- Maintains astonishing picture quality up to 115 ft. (35 m) away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
- Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft. (70m)

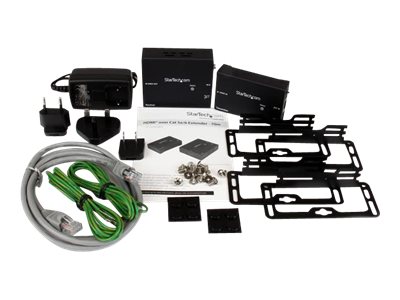

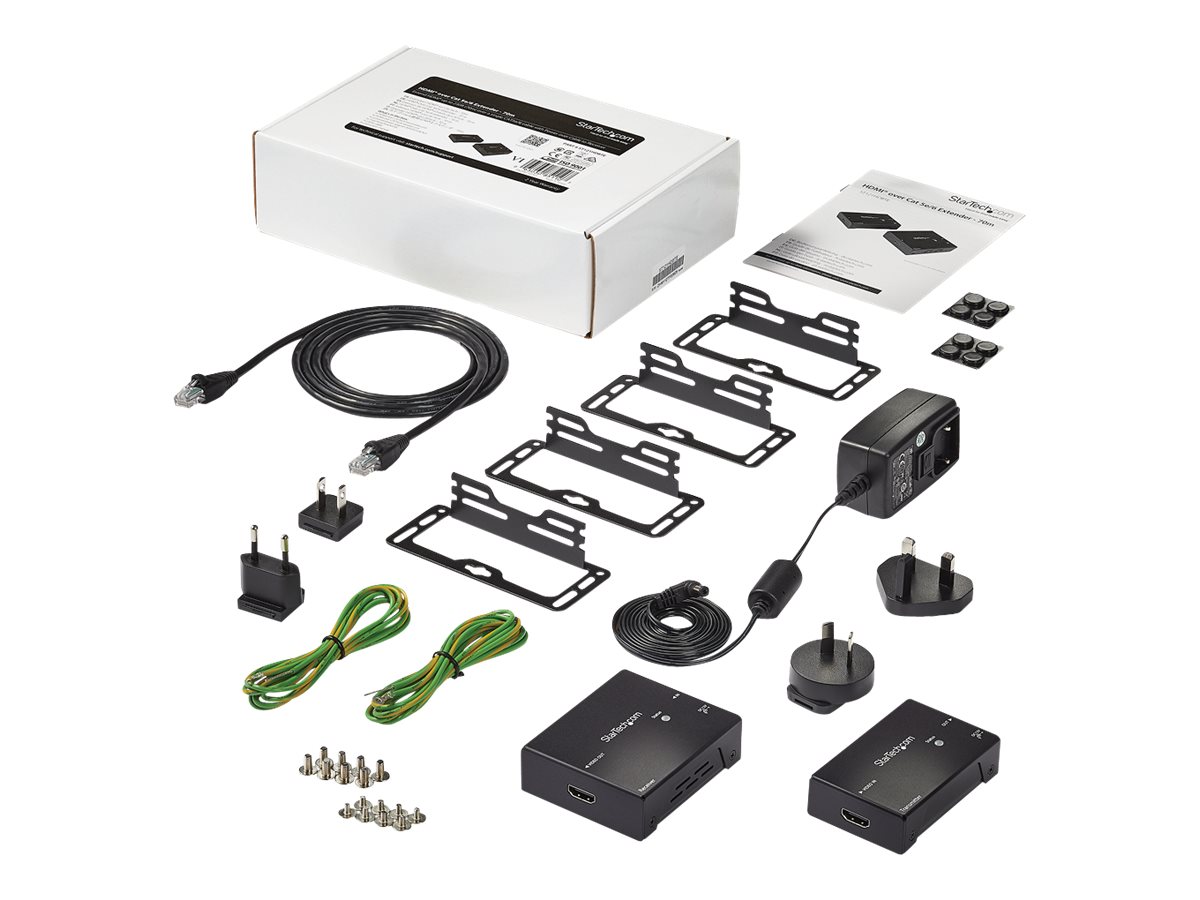

- Hassle-free, professional installation with included mounting brackets, and full video extension over one CAT5 cable
- 70m (230ft) maximum Cat5 cable distance
- No software/drivers required
- Mounting Hardware Included
- Dolby® TrueHD, DTS-HD MA Audio
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable..jpg)
Extend more with HDBaseT
The extender offers HDBaseT technology with HDMI and Power in a single extender kit, for complete end-to-end solution. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending video to areas where power outlets may be limited, such as industrial sites..jpg)
Astonishing 4K picture quality from an impressive distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great.
.jpg)
Applications
- Extend HDMI when power outlets are limited, with only a single power adapter required at either the Transmitter or Receiver, using Power Over Cable

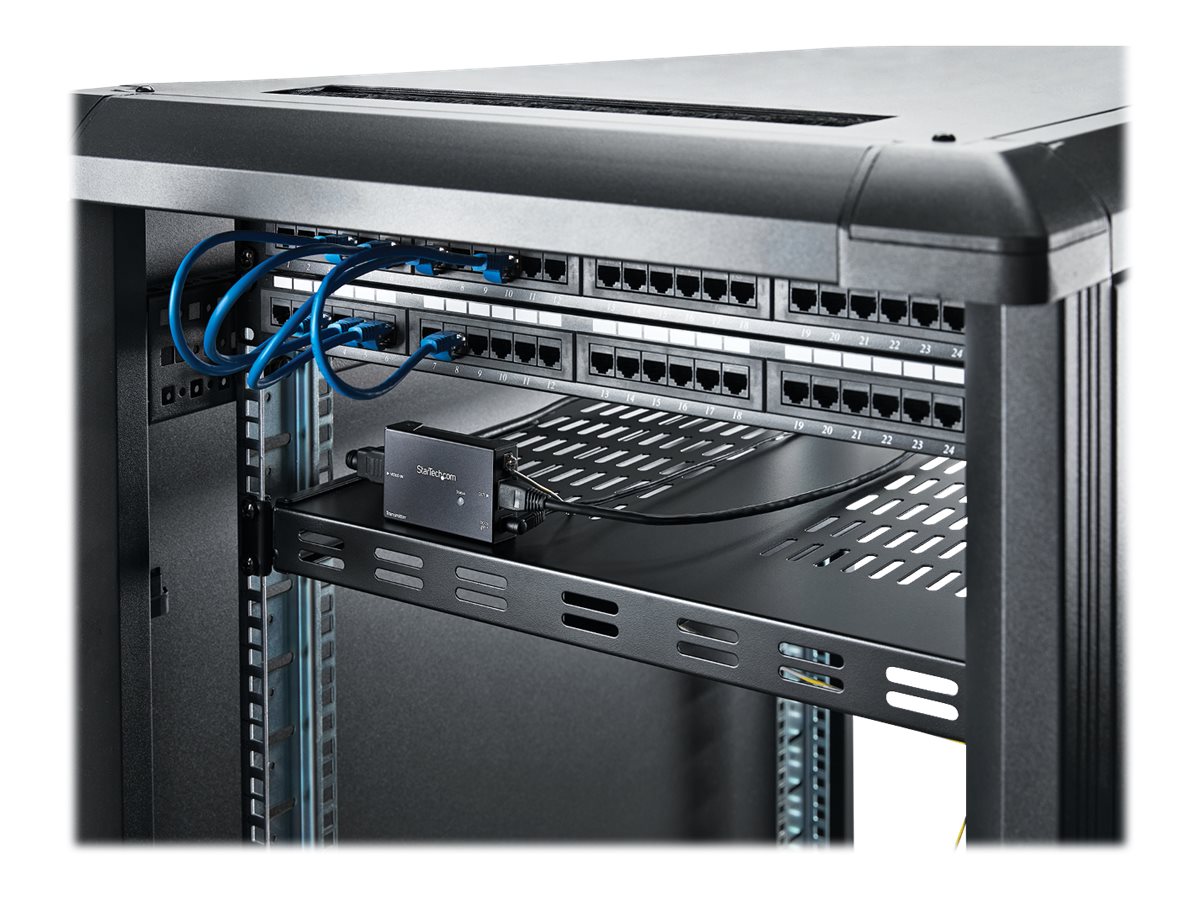

- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Optimize placement of your demo stations at tradeshows and in auditoriums
