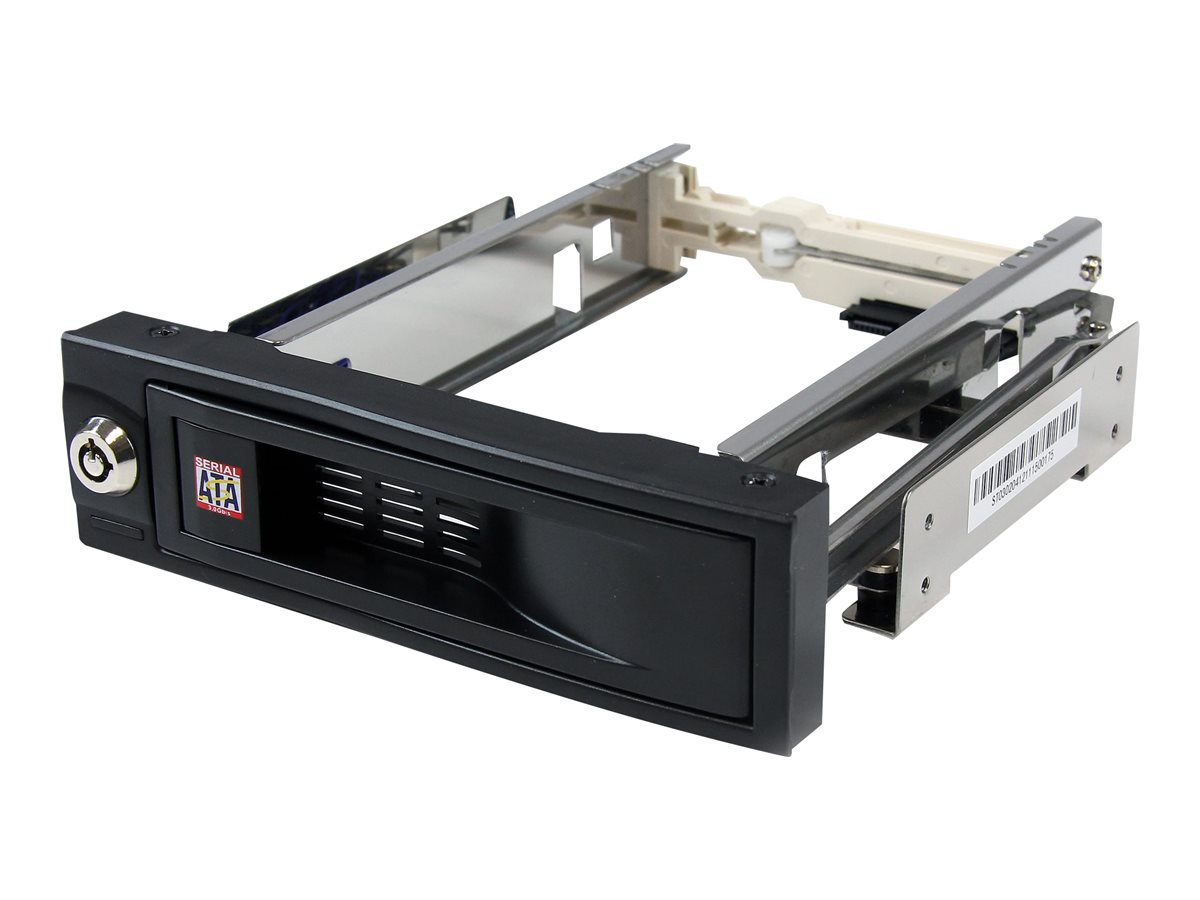

StarTech.com Lagrings mobil rack 3.5" Sort

StarTech.com 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive - Internal SATA Backplane Enclosure - Lockable drive bay (HSB100SATBK) - Lagrings mobil rack - 3.5" - sort - for P/N: 25SAT35HDD, 25SATSAS35HD

  • Product no 988492277

    Model HSB100SATBK

    Brand StarTech.com

    EAN 0065030821360

    Weight 0.36 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive - Internal SATA Backplane Enclosure - Lockable drive bay (HSB100SATBK) - lagrings mobil rack
Enhedstype Lagrings mobil rack
Farve Sort
Udvidelses-båse 1 x intern - 3.5"
Kompatibel bås 1 5.25" x 1/2H
Harddiskens formfaktorkompatibilitet 3.5"
Understøttet grænseflade SATA-600
Drev connector 7- pin seriel ATA
Bay connector 7- pin seriel ATA
Egenskaber Tastelås, drive carrier muliggør installering af hot-swap
Dimensioner (B x D x H) 14.9 cm x 18.4 cm x 4.2 cm
Vægt 305 g
Producentgaranti 2 års garanti
Designet for P/N: 25SAT35HDD, 25SATSAS35HD
General
Color Black
Device Type Storage mobile rack
Features Key lock, hot-swappable drive carrier
Hard Drive Form Factor Compatibility 3.5"
Supported Interface SATA-600
Storage Controller
Processor No CPU
Expansion / Connectivity
Bays 1 x internal - 3.5"
Compatible Bay 1 x external 5.25" x 1/2H
Connections 1 x SATA 6Gb/s - 7 pin Serial ATA
Interfaces 1 x SATA 6Gb/s - SATA
Miscellaneous
Compliant Standards FCC, RoHS
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Dimensions & Weight
Depth 18.4 cm
Height 4.2 cm
Weight 305 g
Width 14.9 cm
Environmental Parameters
Humidity Range Operating 5 - 85%
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: 25SAT35HDD, 25SATSAS35HD

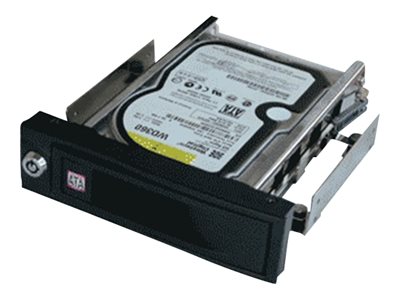

Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay

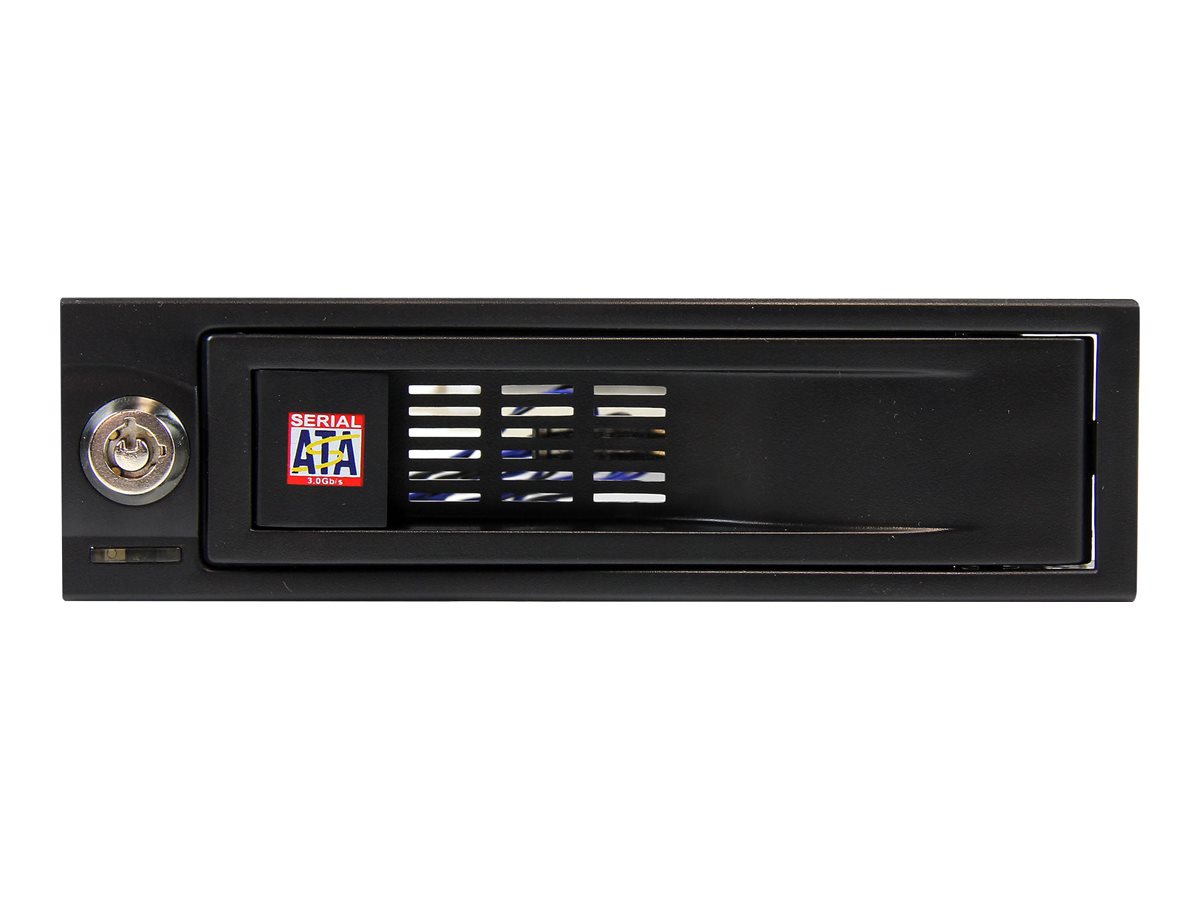

  • Holds a 3.5" SATA drive in a front accessible 5.25" bay

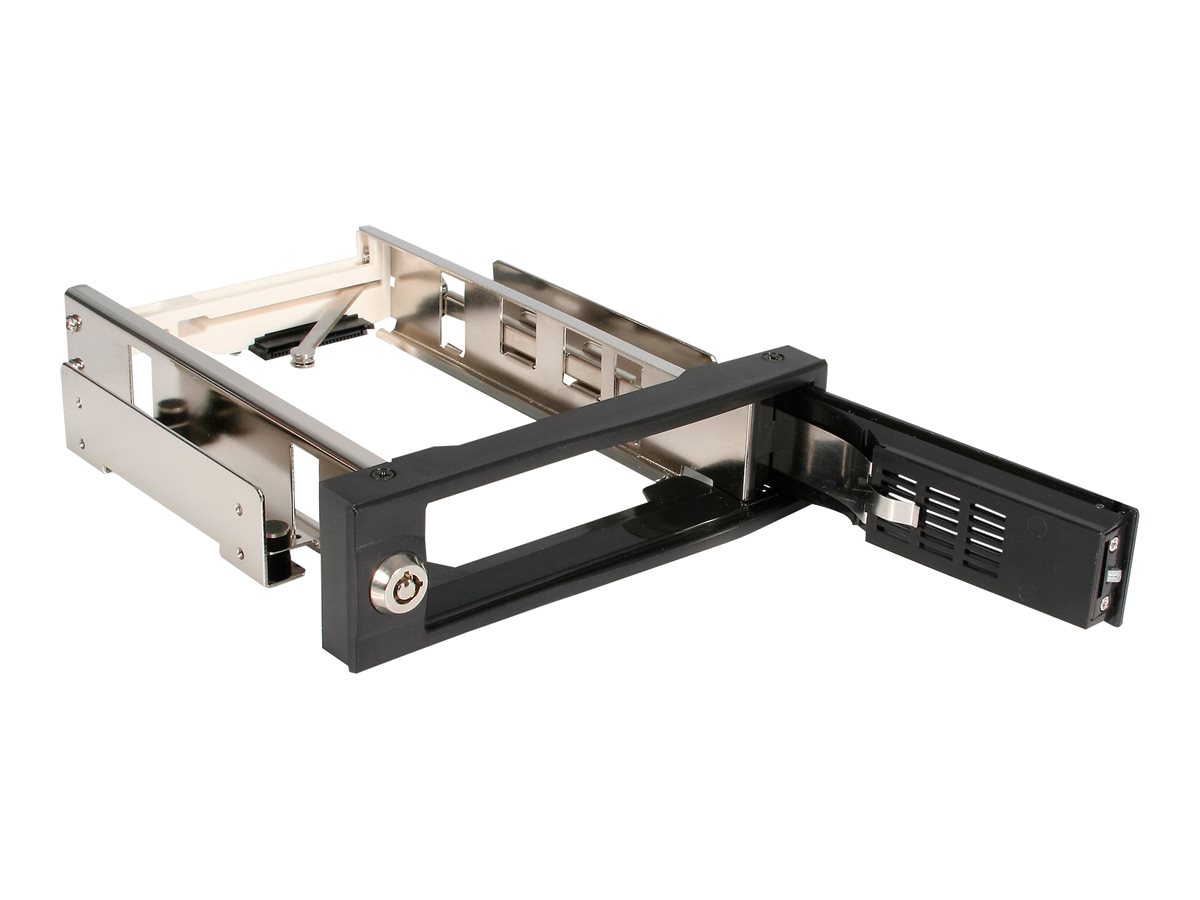

  • Trayless design: drives are not mounted into separate trays/enclosures
  • Lockable drive bay
  • Internal rubber shock absorbers
  • 50,000+ insertion rating
  • Power and Activity LED indicator
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 3.5" form factor SATA hard drives
  • Plug-and-Play and Hot-Swap compatible
Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay
slide {0} of {1}, zoom in, Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay
slide {0} of {1}, zoom in, Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay
slide {0} of {1}, zoom in, Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay
slide {0} of {1}, zoom in, Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay
slide {0} of {1}, zoom in, Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay
slide {0} of {1}, zoom in, Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay
Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller

Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

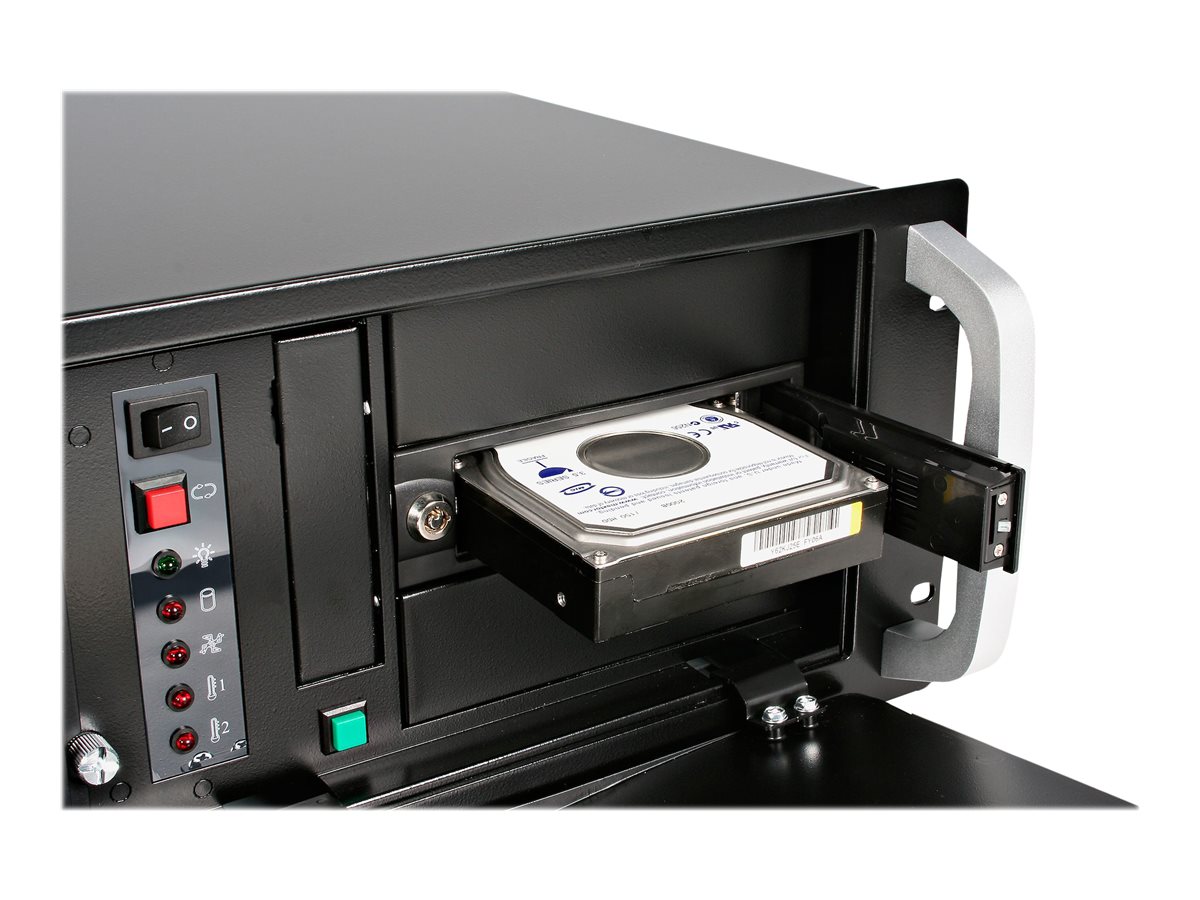

Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design

Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay

Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating.

Applications

  • Add additional hot-swap bays to a server or workstation computer
  • Replace or upgrade old IDE backplane with a SATA backplane
  • System builders who need to image drives quickly and efficiently
  • Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
  • Be able to replace/remove individual drives from a storage array with minimal or no system down time
