StarTech.com Netværk / USB-adapter PCI Express 2.0 x1 5Gbps

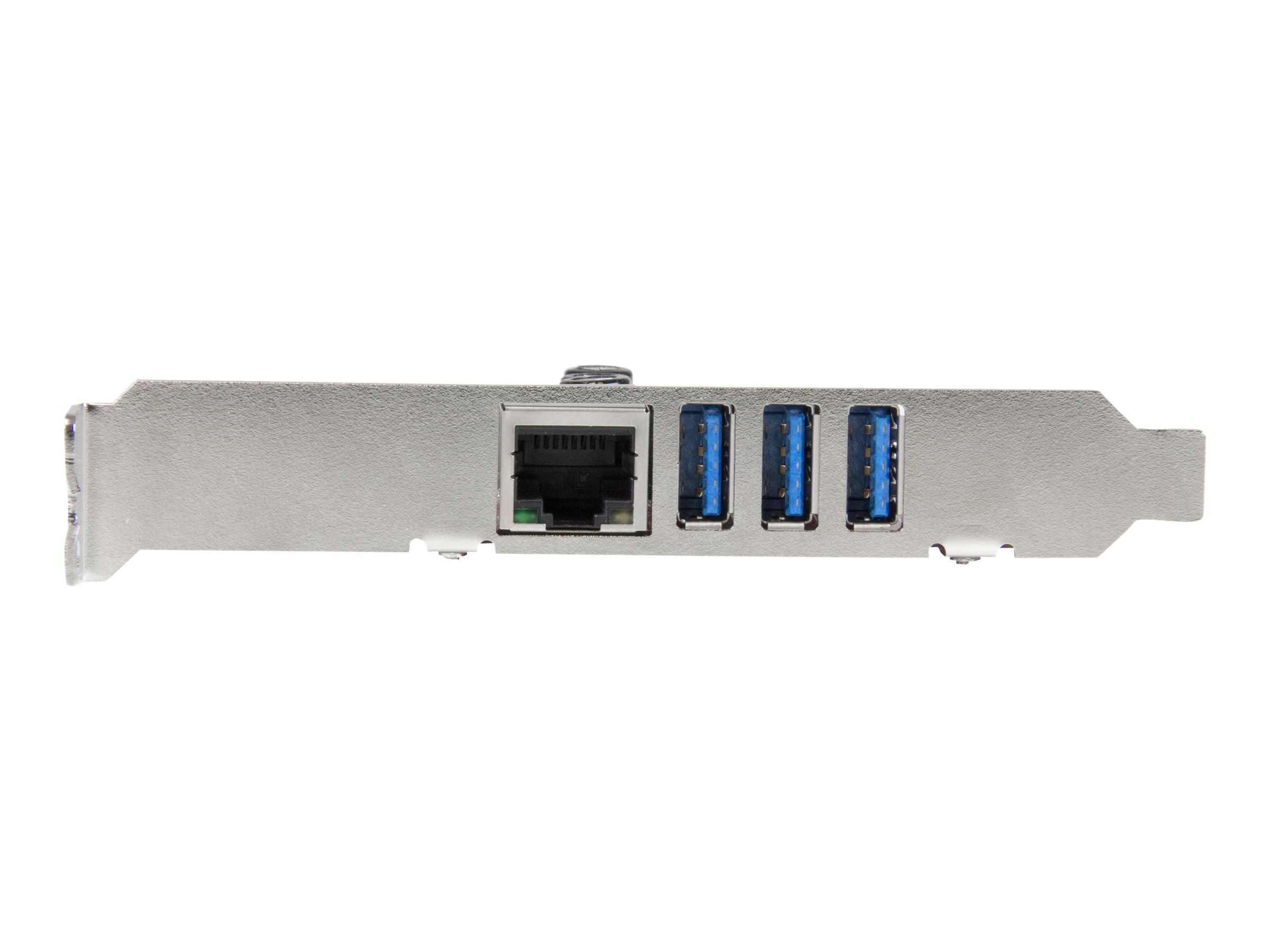

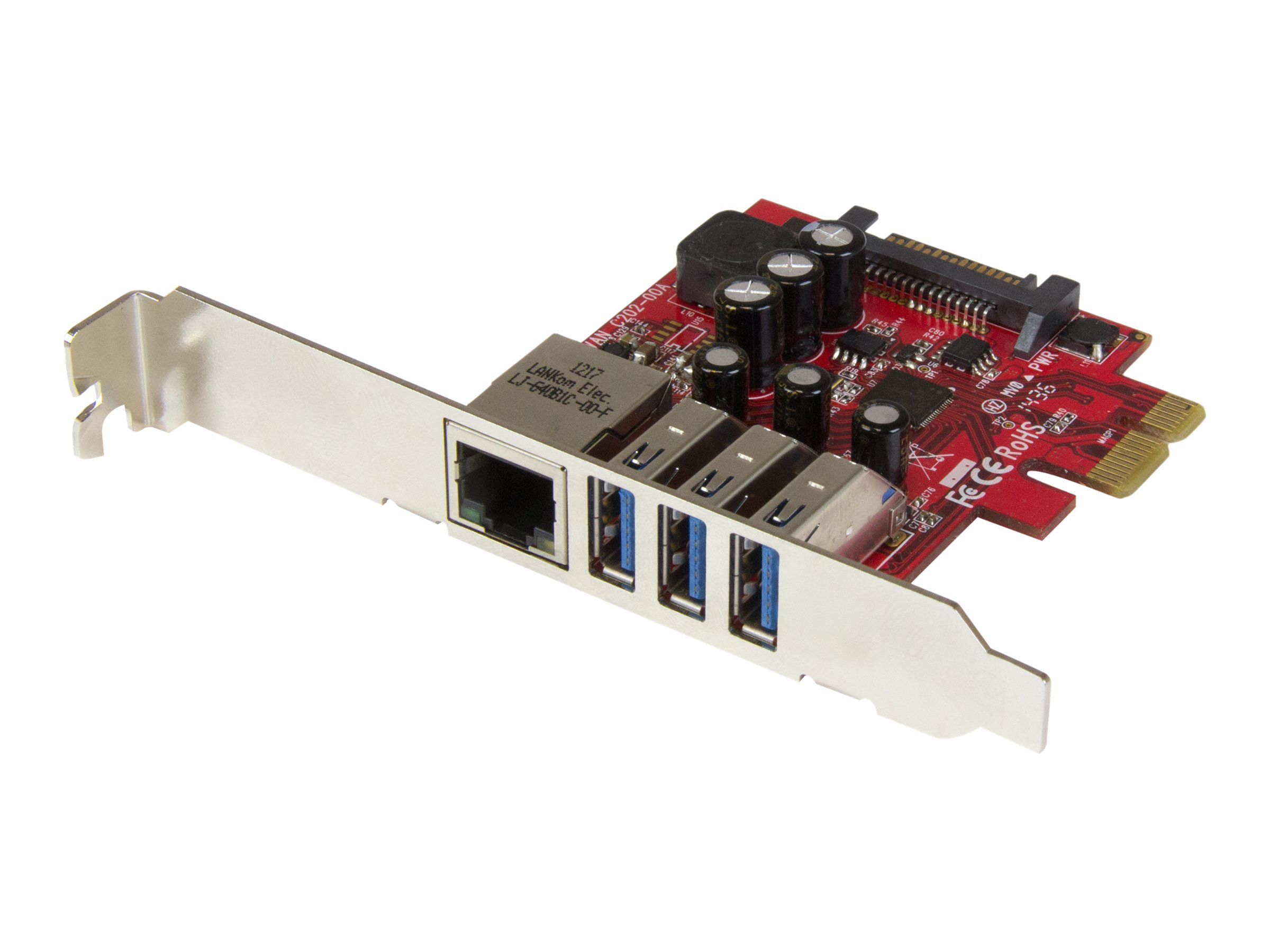

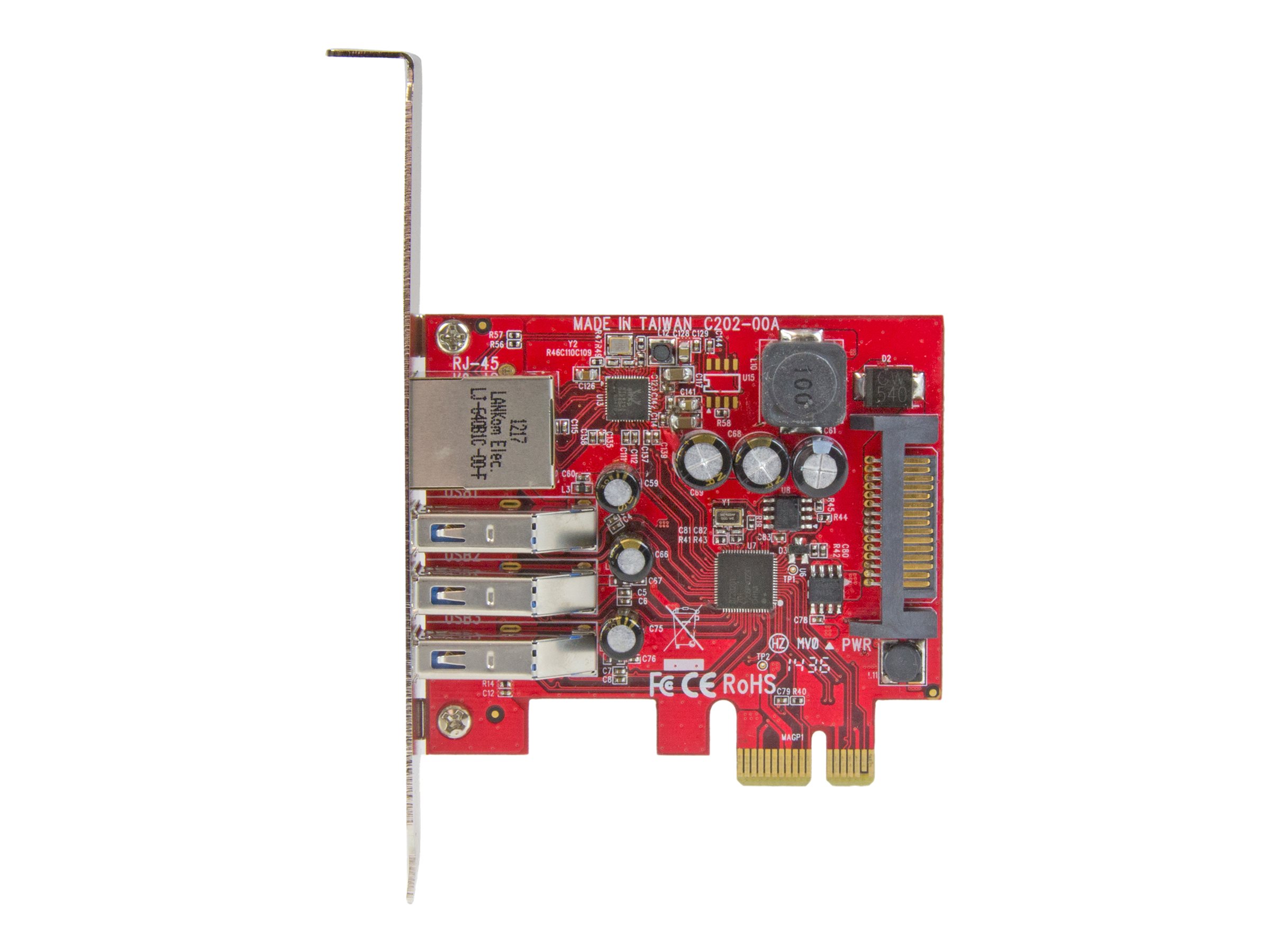

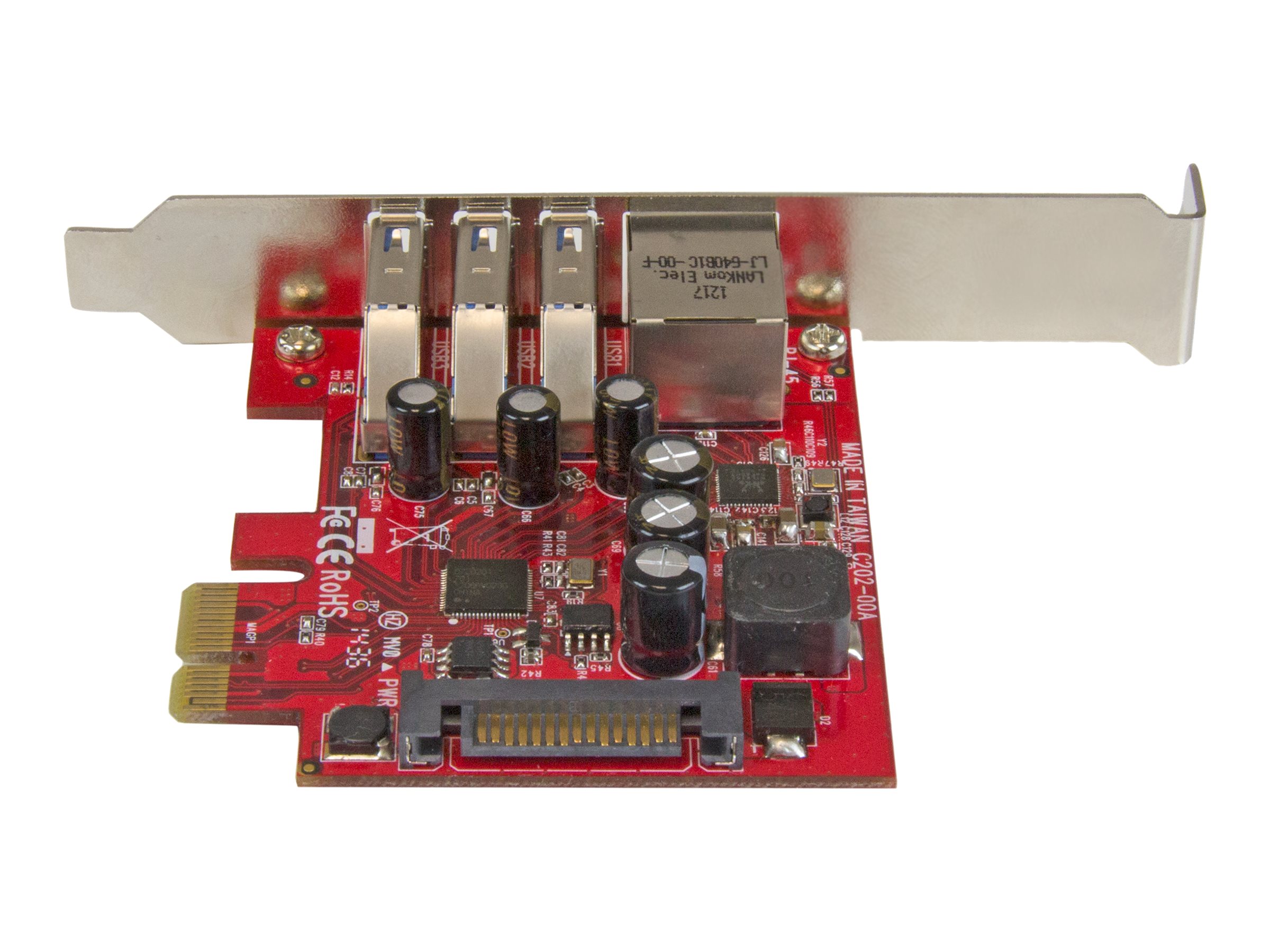

StarTech.com 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - Fits Standard & Low-Profile PCs - UASP Supported - Optional SATA Power (PEXUSB3S3GE) - Netværk / USB-adapter - PCIe 2.0 lavprofil - USB 3.0 x 3 + 1000Base-T x 1

  • Product no 989790422

    Model PEXUSB3S3GE

    Brand StarTech.com

    EAN 0065030860796

    Weight 0.15 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - Fits Standard & Low-Profile PCs - UASP Supported - Optional SATA Power (PEXUSB3S3GE) - netværk / USB-adapter - PCIe 2.0 - USB 3.0 x 3 + 1000Base-T x 1
Enhedstype Netværk / USB-adapter
Model Indstikskort - lavprofil
Grænseflade (bus) type PCI Express 2.0 x1
Porte USB 3.0 x 3 + 1000Base-T x 1
Dimensioner (B x D x H) 1.8 cm x 7.7 cm x 12 cm
Vægt 150 g
Dataforbindelsesprotokol USB, 1GbE, USB 2.0, USB 3.0
Dataoverførselshastighed 5 Gbps
Processor Renesas uPD720201
Overensstemmelsesstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az
Systemkrav Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 eller senere, Microsoft Windows Server 2012, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bits)
Producentgaranti 2 års garanti
General
Device Type Network / USB adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x1
Networking
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az
Connectivity Technology Wired
Data Link Protocol USB, Gigabit Ethernet, USB 2.0, SuperSpeed USB 3.0
Data Transfer Rate 5 Gbps
Features Built-in SATA power connector, USB Attached SCSI Protocol (UASP)
Ports USB 3.0 x 3 + 1000Base-T x 1
Processor / Memory
Processor Renesas uPD720201
Expansion / Connectivity
Interfaces 3 x USB 3.0 - 9 pin USB Type A (external) | 1 x 1000Base-T - RJ-45 (external)
Miscellaneous
Compliant Standards FCC, RoHS

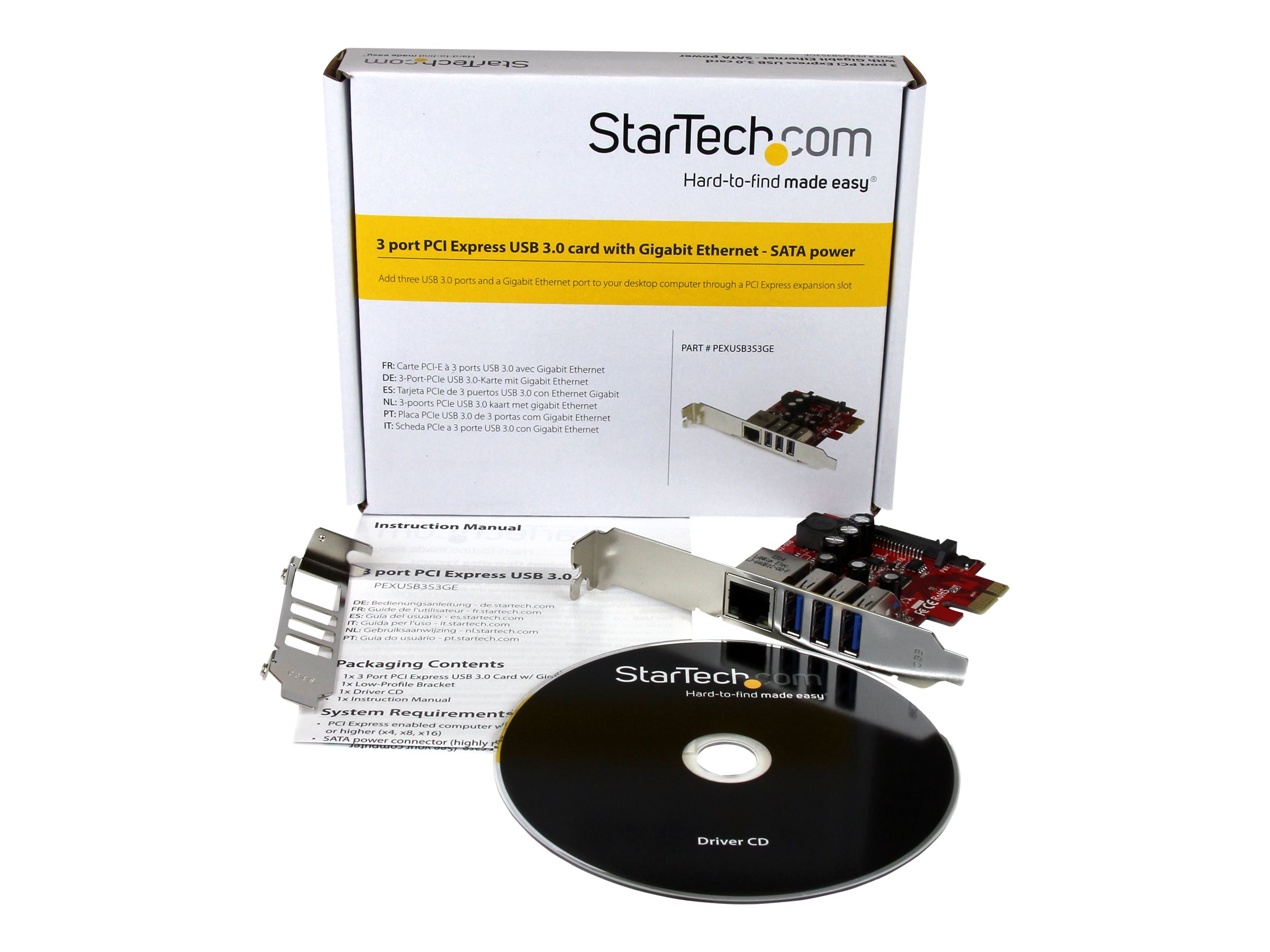

Included Accessories Low-profile bracket
MTBF 1,920,042 hour(s)
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 or later, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Windo
Software Included Drivers & Utilities
Dimensions & Weight
Depth 7.7 cm
Height 12 cm
Weight 150 g
Width 1.8 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 20 - 80%
Max Operating Temperature 50 °C
Min Operating Temperature 5 °C

Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card

  • Frees up a PCIe slot by consolidating 3x USB 3.0 & 1x Gigabit Ethernet ports into a single card
  • Provides installation flexability for standard and low-profile computers, with a dual-profile design
  • Lets you save money and connect your existing devices with USB 2.0 and 1.x backward compatibility
Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card
slide {0} of {1}, zoom in, Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card
slide {0} of {1}, zoom in, Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card
slide {0} of {1}, zoom in, Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card
slide {0} of {1}, zoom in, Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card
slide {0} of {1}, zoom in, Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card
slide {0} of {1}, zoom in, Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card
Combo-card convenience and cost-savings

Combo-card convenience and cost-savings

If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.

This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.
Flexible install options and legacy device support

Flexible install options and legacy device support

You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.

The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.
Gigabit connectivity and network management

Gigabit connectivity and network management

Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi® is unavailable or unreliable.

Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.

Applications

  • Connect tablets, smartphones, external hard drives, printers, and other USB-based devices to your computer
  • Add scalable connection options when building or upgrading your computer
  • Upgrade or replace your onboard USB 3.0 or RJ45 ports
