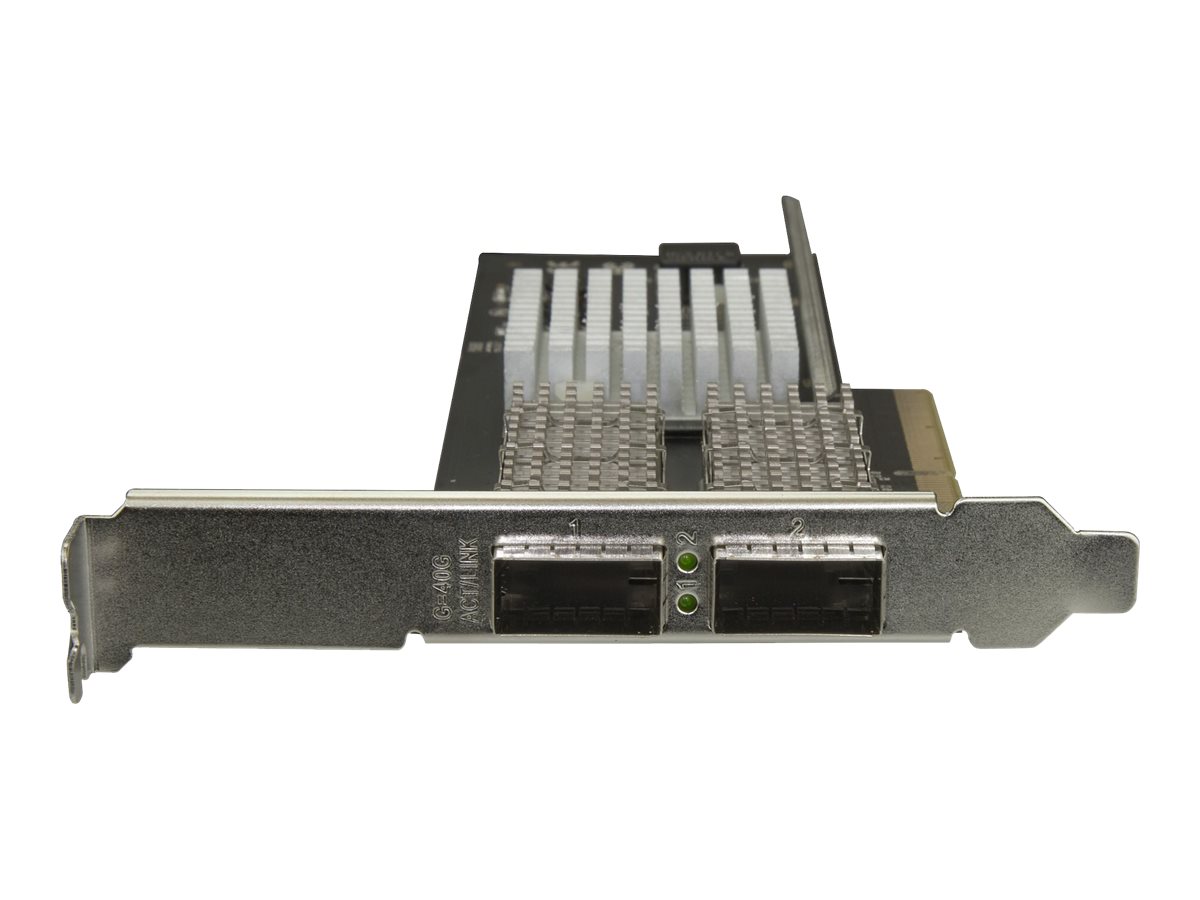

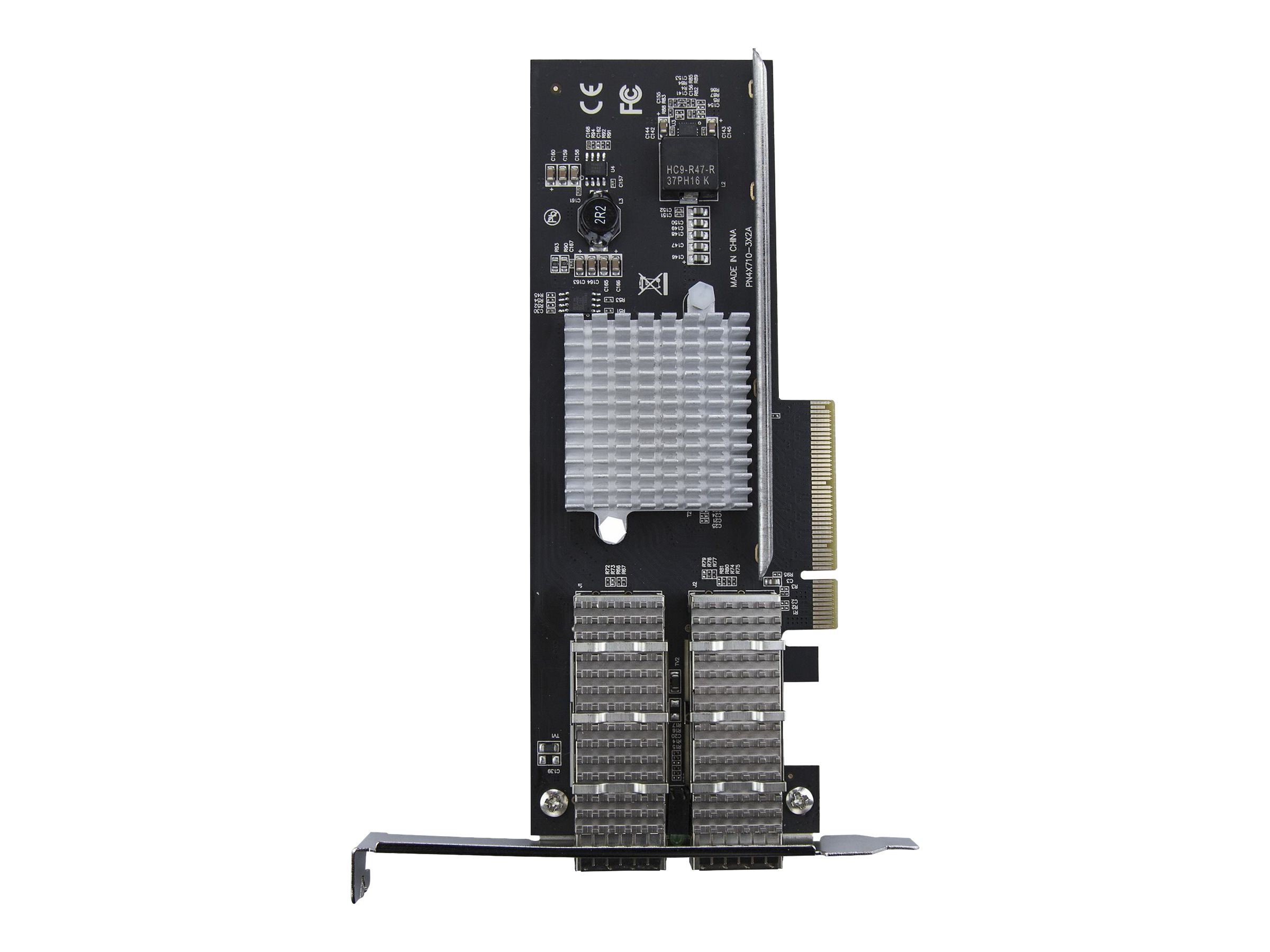

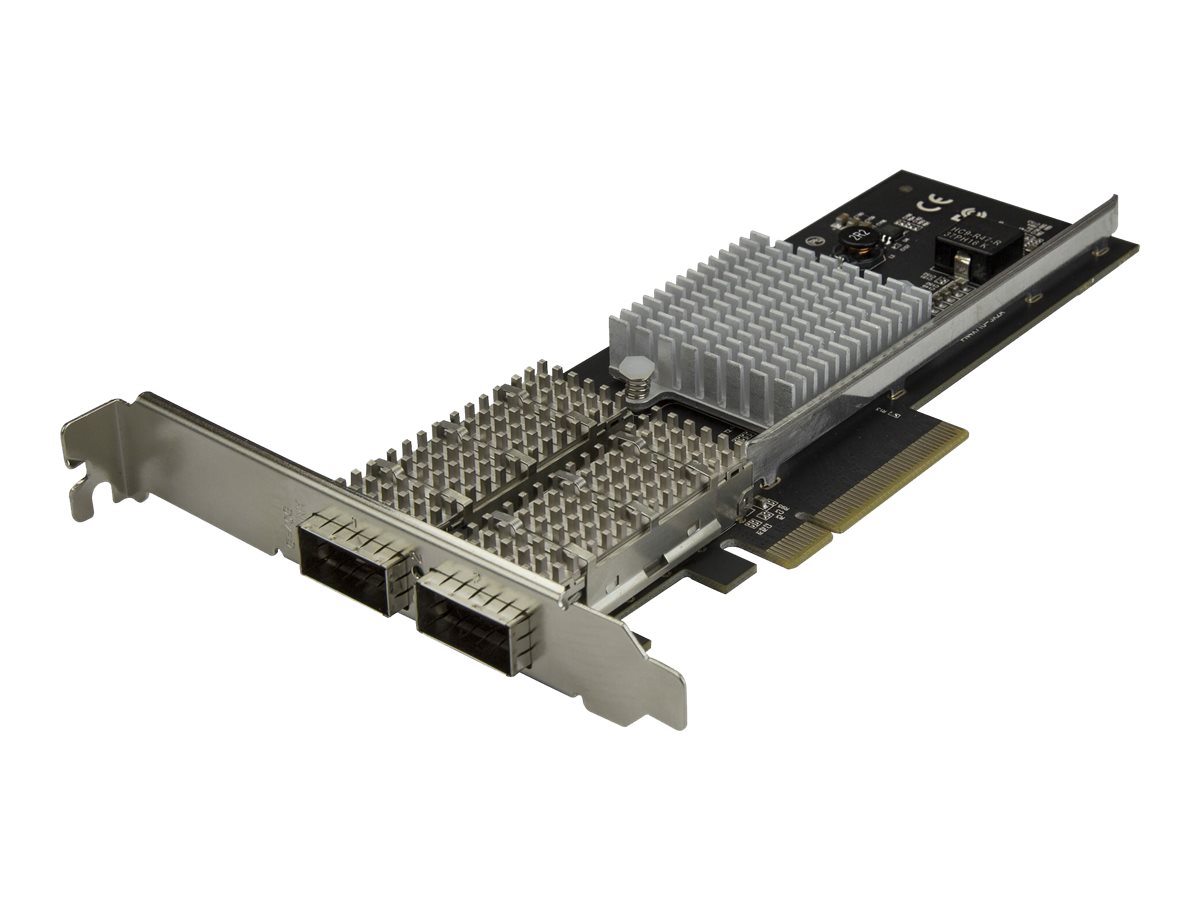

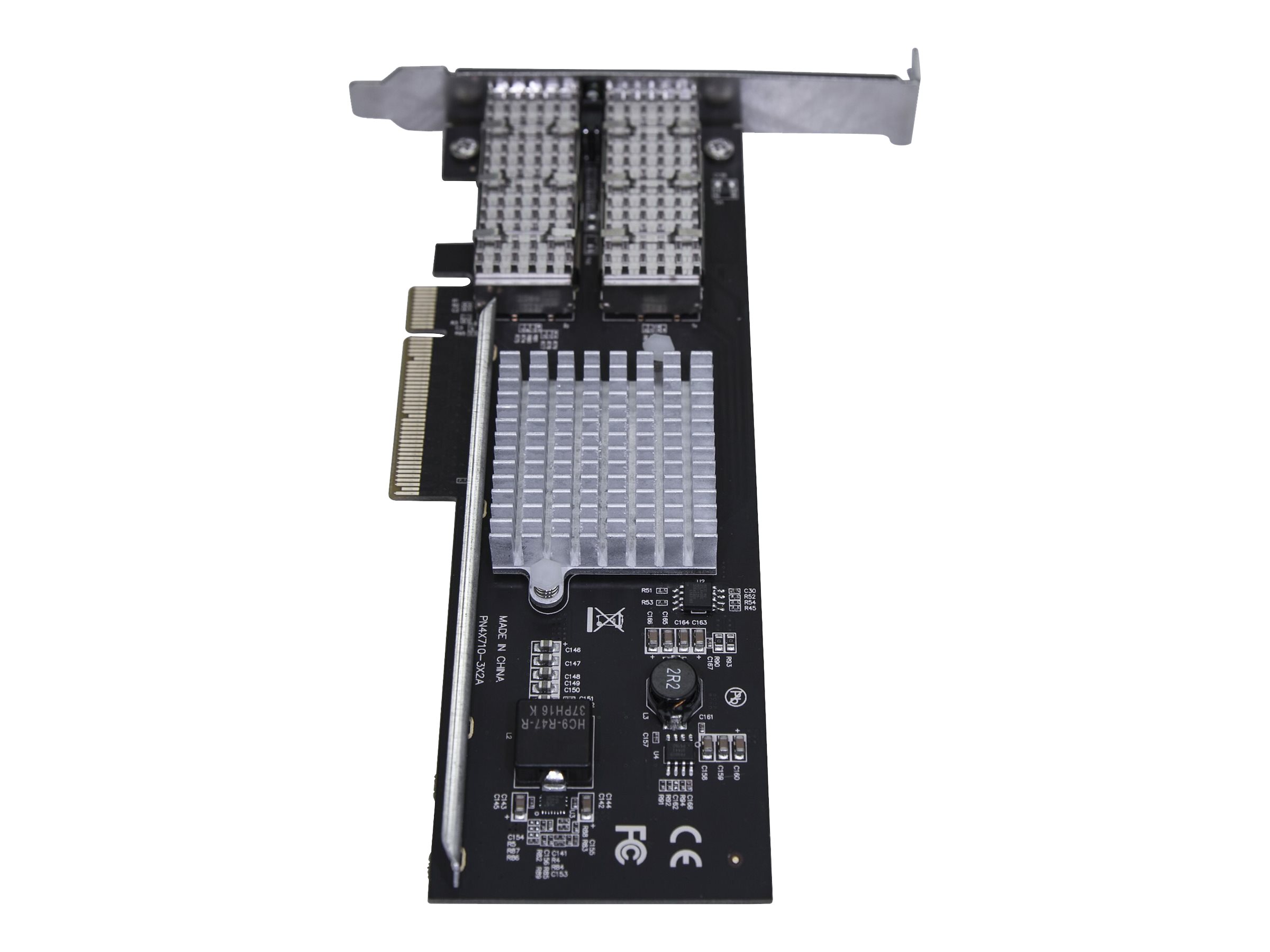

StarTech.com Netværksadapter PCI Express 40Gbps

StarTech.com Dual Port 40G QSFP+ Network Card, Intel XL710 Open QSFP+ Converged Adapter, PCIe 40 Gigabit Ethernet Server NIC, 40GbE Fiber Optic LAN Card, Dell PowerEdge HPE ProLiant, 40Gb - Network Interface Card - Netværksadapter - PCIe - 40 Gigabit QSFP+ x 2

  • Product no 993211177

    Model PEX40GQSFDPI

    Brand StarTech.com

    EAN 0065030872676

    Weight 0.23 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com Dual Port 40G QSFP+ Network Card, Intel XL710 Open QSFP+ Converged Adapter, PCIe 40 Gigabit Ethernet Server NIC, 40GbE Fiber Optic LAN Card, Dell PowerEdge HPE ProLiant, 40Gb - Network Interface Card - netværksadapter - PCIe - 40 Gigabit QSFP+ x 2
Enhedstype Netværksadapter
Model Indstikskort
Grænseflade (bus) type PCI Express
Porte 40 Gigabit QSFP+ x 2
Dataforbindelsesprotokol 40GbE
Dataoverførselshastighed 40 Gbps
Processor Intel XL710
Systemkrav Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bit), Microsoft Windows Server 2016 (64-bit), Linux 2.6.24 - 4.11.x (64-bit) LTS versioner, Microsoft Windows Server 2019 (64-bit)
Producentgaranti 2 års garanti
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express
Networking
Connectivity Technology Wired
Data Link Protocol 40 Gigabit Ethernet
Data Transfer Rate 40 Gbps
Ports 40 Gigabit QSFP+ x 2
Processor / Memory
Processor Intel XL710
Expansion / Connectivity
Interfaces 2 x 40Gb Ethernet - QSFP+
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 2.6.24 - 4.11.x (64-bit
Manufacturer Warranty
Service & Support Limited warranty - 2 years

Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice

  • Add two open 40G QSFP+ slots to your server or workstation for fast, high-bandwidth connectivity
  • Provides redundant network links to mission-critical systems
  • Compatible with multimode and single-mode fiber
  • Intel XL710-BM2 chipset with Intel Virtualization Technology for Connectivity, intelligent offloads and iSCSI / NFS storage over Ethernet
  • Compliant with PCI Express 3.0 specification, using PCIe x8 (or higher) slot
  • Supports IEEE 802.1Q VLAN tagging, IPv4, and IPv6
  • Dual profile with both low-profile and full-profile brackets included, plus link/activity indicator
Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice
slide {0} of {1}, zoom in, Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice
slide {0} of {1}, zoom in, Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice
slide {0} of {1}, zoom in, Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice
slide {0} of {1}, zoom in, Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice
Add redundant connections in zero-downtime environments

Add redundant connections in zero-downtime environments

With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.
Add scalable network connections

Add scalable network connections

With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance your network capabilities

Enhance your network capabilities

The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

Applications

  • Add ultra-fast 40Gbps network connectivity to database, file or application servers and high-performance workstations
  • Transmit full 40Gpbs network speeds to a remote terminal over longer distance than copper cabling
  • Ideal for agile and high-demand data centers that require data security, no downtime, and infrastructure updates
  • Supports secure setups - a direct fiber connection meansno electronic interference, which can be a problem with RJ45 network cards
  • Create a video/audio editing console with 40Gbps access to network storage
  • Ideal for remote embedded industrial monitoring system, and high-speed video surveillance
