StarTech.com Netværksadapter PCI Express x1 1Gbps

Startech Dual Port Gigabit PCI Express Server Network Adapter Card - 1 Gbps PCIe NIC - Dual Port Server Adapter - 2 Port Ethernet Card (ST1000SPEXD4) - Netværksadapter - PCI Express x1 lavprofil - Gigabit Ethernet x 2 - for P/N: ET91000SM10, ET91000SM20

  • Product no 989488602

    Model ST1000SPEXD4

    Brand StarTech.com

    EAN 0065030859356

    Weight 0.14 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Startech Dual Port Gigabit PCI Express Server Network Adapter Card - 1 Gbps PCIe NIC - Dual Port Server Adapter - 2 Port Ethernet Card (ST1000SPEXD4) - netværksadapter - PCI Express x1 - Gigabit Ethernet x 2
Enhedstype Netværksadapter
Model Indstikskort - lavprofil
Grænseflade (bus) type PCI Express x1
Porte Gigabit Ethernet x 2
Dimensioner (B x D x H) 1.8 cm x 9.26 cm x 12 cm
Vægt 54 g
Kabeltype Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Dataforbindelsesprotokol 10Mb LAN, 100Mb LAN, 1GbE
Dataoverførselshastighed 1 Gbps
Processor 1 x Realtek Semiconductor RTL8111E
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Systemkrav Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.4 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Producentgaranti 2 års garanti
Designet for P/N: ET91000SM10, ET91000SM20
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express x1
Networking
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate 1 Gbps
Features Flow control, half duplex mode, full duplex mode, Jumbo Frames support, tagged VLAN
Ports Gigabit Ethernet x 2
Status Indicators Link/activity
Processor / Memory
Processor 1 x Realtek Semiconductor RTL8111E
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45
Miscellaneous
Compliant Standards FCC, RoHS
Included Accessories Low-profile bracket
Software / System Requirements
OS Required Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.4 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.1
Software Included Drivers & Utilities
Dimensions & Weight
Depth 9.26 cm
Height 12 cm
Weight 54 g
Width 1.8 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 10 - 90%
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: ET91000SM10, ET91000SM20
Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image

Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot

Product image
Product image
Product image

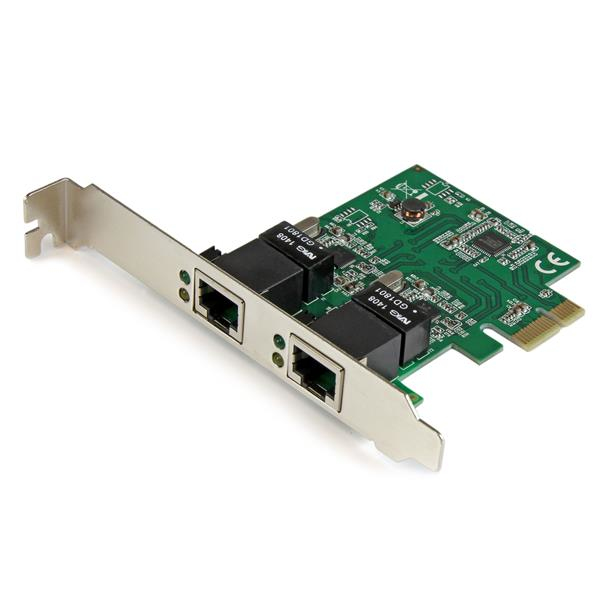

The PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot.

Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.

The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL).

The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
