StarTech.com Netværksadapter PCI Express x4 2.5Gbps
Startech 1 Port PCIe Network Card - 2.5Gbps 2.5GBASE-T PCIe Network Card x4 PCIe - PCI Express LAN Card - RTL8125 (ST2GPEX) - Netværksadapter - PCIe x4 lavprofil - 10M/100M/1G/2,5 Gigabit Ethernet x 1
-
Product no 995541242
Model ST2GPEX
Brand StarTech.com
EAN 0065030882040
Weight 0.11 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Startech 1 Port PCIe Network Card - 2.5Gbps 2.5GBASE-T PCIe Network Card x4 PCIe - PCI Express LAN Card - RTL8125 (ST2GPEX) - netværksadapter - PCIe x4 - 10M/100M/1G/2,5 Gigabit Ethernet x 1 |
| Enhedstype | Netværksadapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI Express x4 |
| Porte | 10M/100M/1G/2,5 Gigabit Ethernet x 1 |
| Dimensioner (B x D x H) | 12 cm x 8 cm x 2 cm |
| Vægt | 138 g |
| Kabeltype | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, NBase-T |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Dataoverførselshastighed | 2.5 Gbps |
| Processor | Realtek Semiconductor RTL8125 |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz |
| Systemkrav | Microsoft Windows Server 2008 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2016 R2, kun Linux 2.4.20 - 4.x LTS versioner |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x4 |
| Networking | |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, NBase-T |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Features | Full duplex mode, Jumbo Frames support, PXE support |
| Ports | 10M/100M/1G/2.5 Gigabit Ethernet x 1 |
| Status Indicators | Status |
| Processor / Memory | |
| Processor | Realtek Semiconductor RTL8125 |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5Gb Ethernet - RJ-45 - female |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, REACH |
| Included Accessories | Low-profile bracket |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2016 R2, Linux 2.4.20 - 4.x LTS versions only |
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 2 cm |
| Weight | 138 g |
| Width | 12 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 14.2 cm |
| Shipping Height | 3 cm |
| Shipping Width | 17 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 5 °C |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

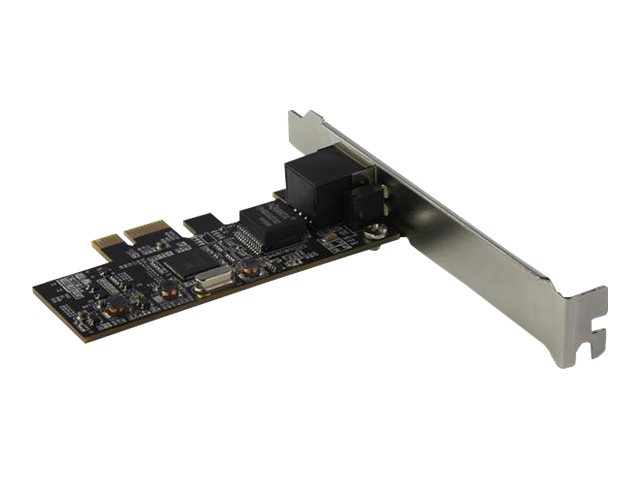

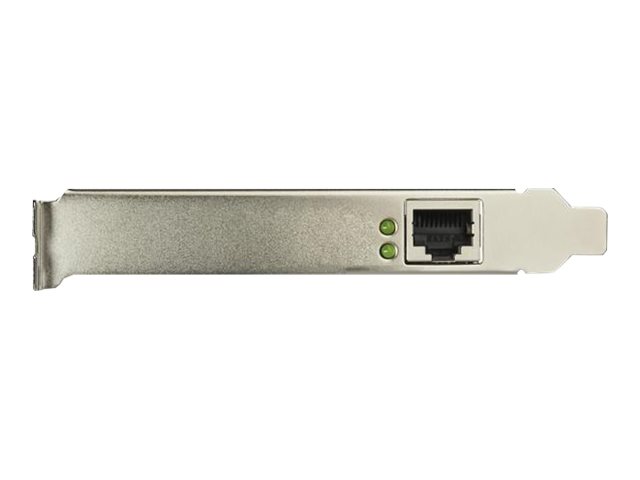

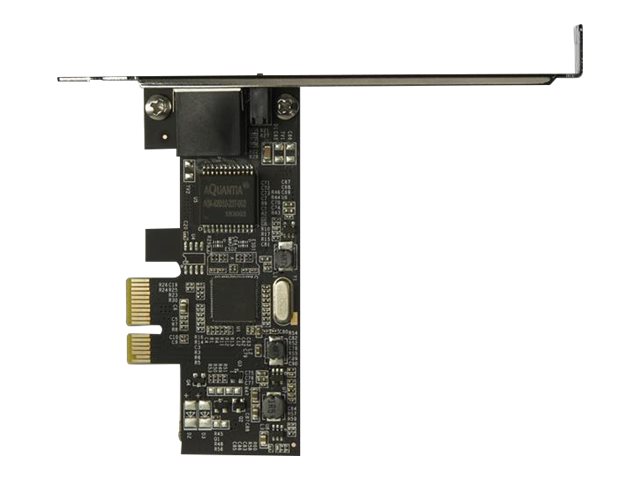

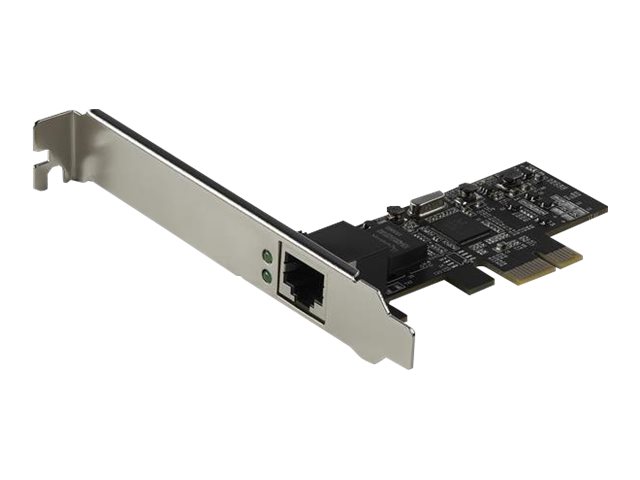

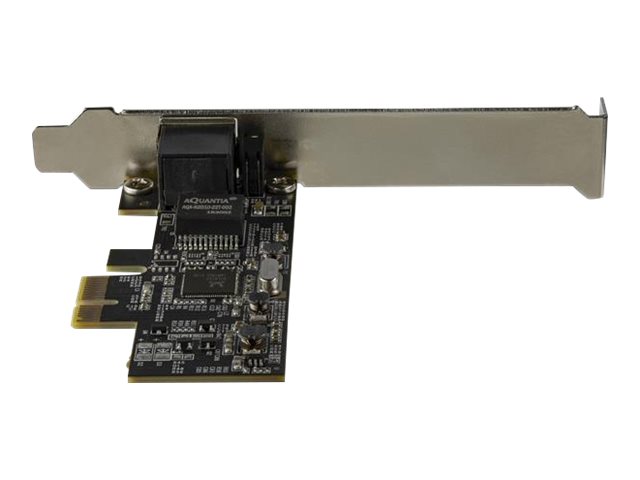

This single-port 2.5 Gbps PCIe network card offers a versatile and low-cost way to deploy 2.5 GbE network connectivity. It adds one copper Ethernet port to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5 Gbps, 1G, 100 Mbps, 10 Mbps.
Cost-Effective Multi-Gigabit Ethernet Solution
The 2.5GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 2.5GBASE-T and NBASE-T equipment at network speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps over your CAT5e cabling (up to 100 m depending on the network configuration).
Optimal Technology for Optimal Performance
The network adapter card adds one Ethernet port to your workstation through a x1 PCIe slot. It features 2.5GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The network card also supports NBASE-T and additional features including 16K Jumbo Frames, Auto-MDIX and Wake-on-LAN (WoL).
Efficient Ethernet
The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE802.3u supports the PCIe 2.0 interface for PC embedded applications. It provides up to a 250% increase in data rate over Gigabit Ethernet and requires no changes to existing cable infrastructure.
The ST2GPEX is backed by a StarTech.com 2-year warranty and free lifetime technical support.
