StarTech.com Seriel adapter PCI Express

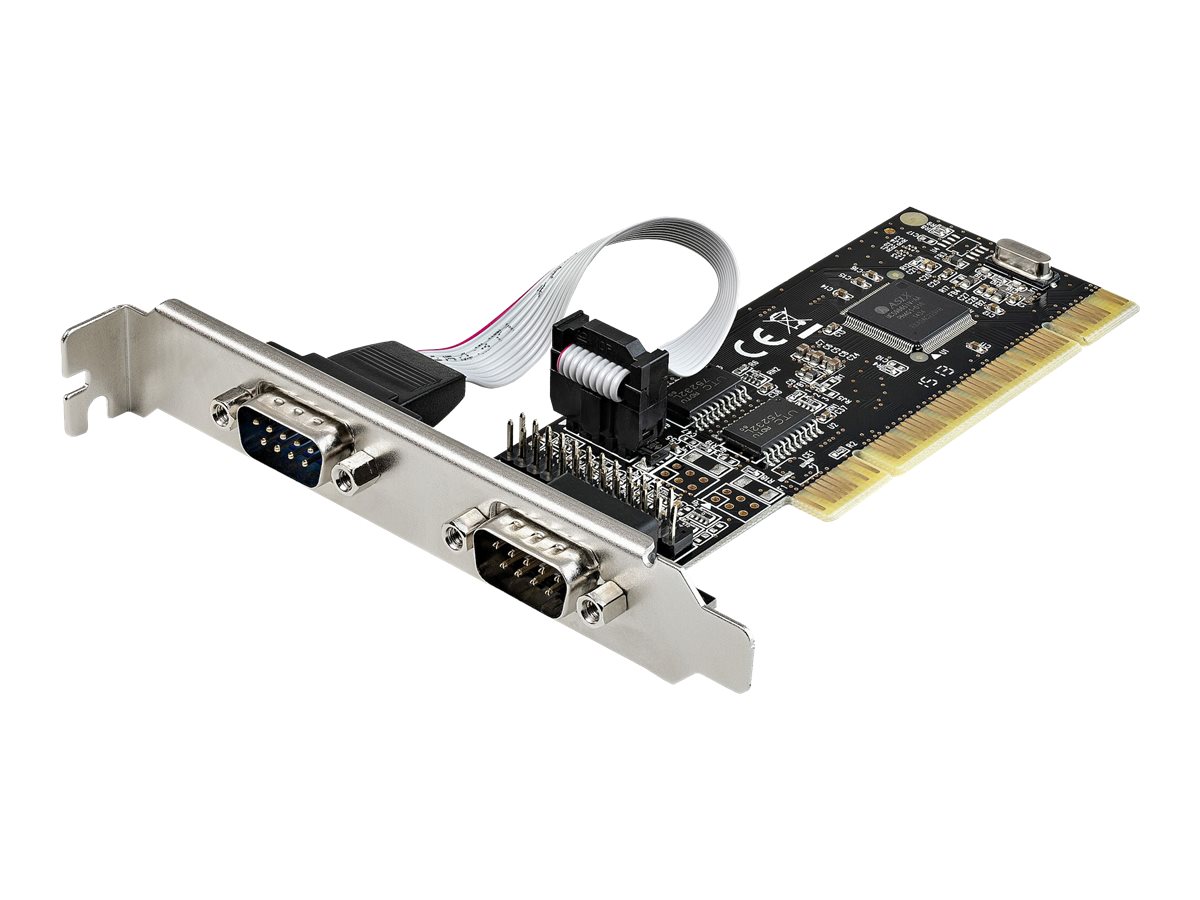

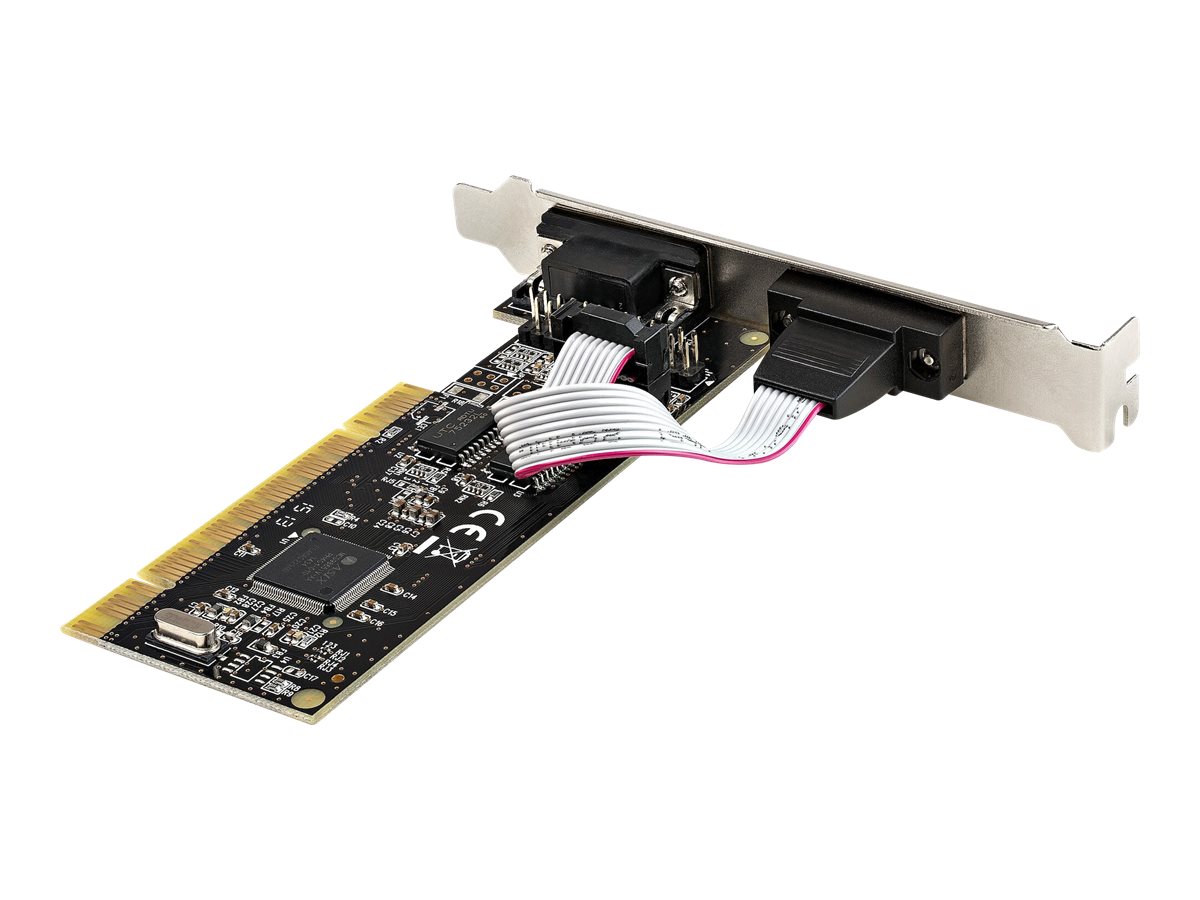

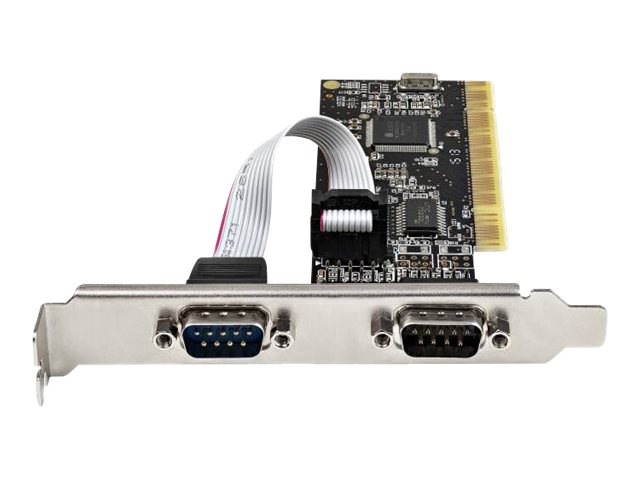

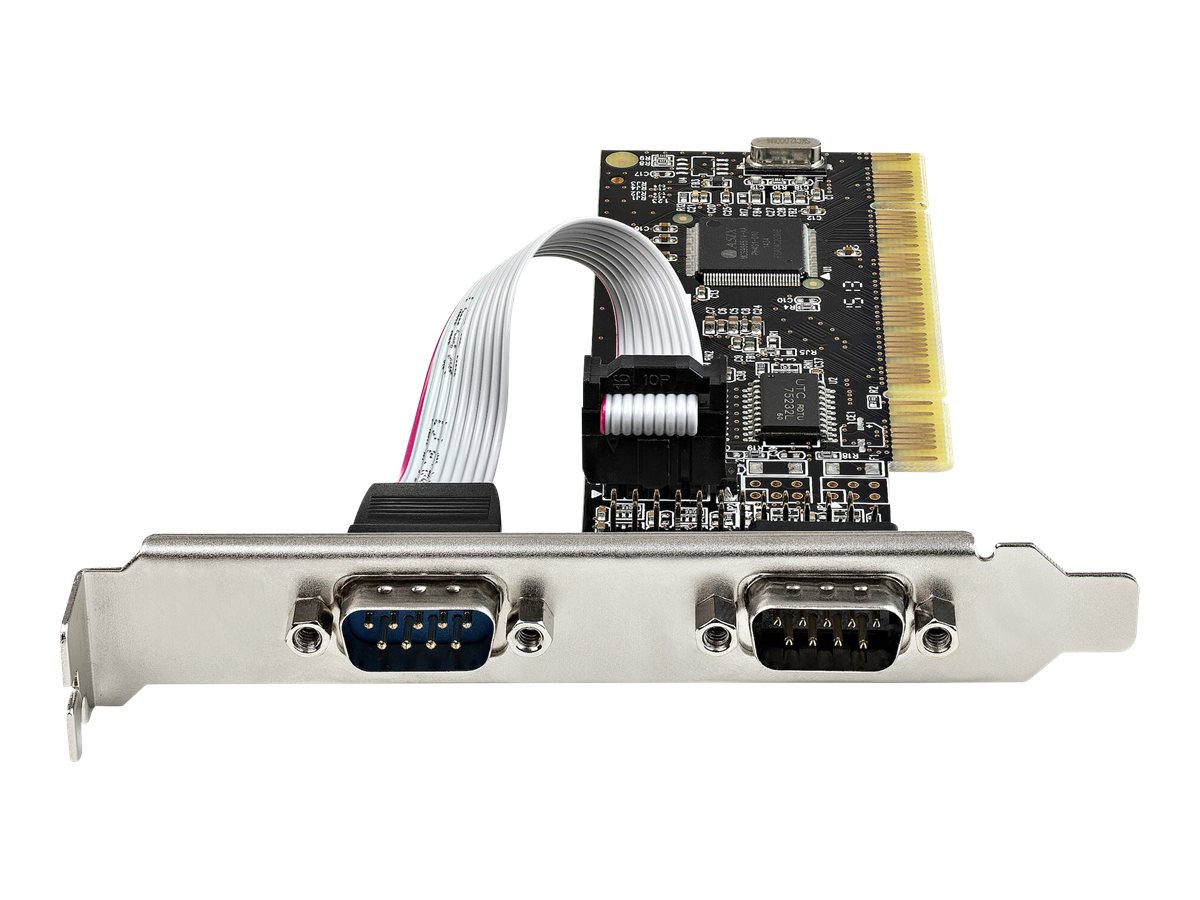

StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25), PCI Combo Adapter Card, PCI Expansion Card Controller, PCI to Printer Card - PCI Serial & Parallel Card (PCI2S1P2) - Seriel adapter - PCIe lavprofil - RS-232 x 2 - sort

  • Product no 999362180

    Model PCI2S1P2

    Brand StarTech.com

    EAN 0065030891301

    Weight 0.19 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25), PCI Combo Adapter Card, PCI Expansion Card Controller, PCI to Printer Card - PCI Serial & Parallel Card (PCI2S1P2) - seriel adapter - PCIe - RS-232 x 2
Enhedstype Seriel adapter
Model Indstikskort - lavprofil
Grænseflade (bus) type PCI Express
Porte RS-232 x 2
Dimensioner (B x D x H) 2.16 cm x 13.4 cm x 12 cm
Vægt 141 g
Kabeltype Seriel RS-232
Dataforbindelsesprotokol RS-232
Netværks/overføselsprotokol SPP
Processor MCS9865
Overensstemmelsesstandarder 16C550 UART, IEEE 1284
Farve Sort
Systemkrav Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 2.6.x til 5.x LTS versioner
Producentgaranti Begrænset livtidsgaranti
General
Device Type Serial adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express
Networking
Cabling Type Serial RS-232
Compliant Standards 16C550 UART, IEEE 1284
Connectivity Technology Wired
Data Link Protocol RS-232
Features Edge Control Protocol (ECP), 256-byte FIFO
Network / Transport Protocol SPP
Ports RS-232 x 2
Processor / Memory
Processor MCS9865
Expansion / Connectivity
Interfaces 2 x RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
Color Black
Compliant Standards FCC, RoHS
Included Accessories 2 x low-profile bracket, 1 x bracket with DB25 connector
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 2.6.x to 5.x LTS versions
Dimensions & Weight
Depth 13.4 cm
Height 12 cm
Weight 141 g
Width 2.16 cm
Dimensions & Weight (Shipping)
Shipping Depth 17 cm
Shipping Height 3 cm
Shipping Weight 190 g
Shipping Width 14.2 cm
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating 10 - 90%
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C
Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
PCI | RS-232 Serial | IEEE 1284 Parallel
Adds an LPT Parallel Port
Adds a COM Serial Port
Wide Installation Compatibility

Adds an LPT Parallel Port

The controller card features an Asix MCS9865 chip and enables you to connect a DB25 parallel device to your desktop computer.The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes.The parallel (LPT) port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 for speeds up to 1.5Mbps.

Adds a COM Serial Port

The Asix MCS9865 chip also enables you to connect two DB9 devices using the same controller card, compatible with industry standard 16C550 UART.The serial ports are ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes.The serial (COM) ports support bi-directional RS232 speeds up to 115.2Kbps per port, available 256 byte FIFO buffer & 9th data bit.

Wide Installation Compatibility

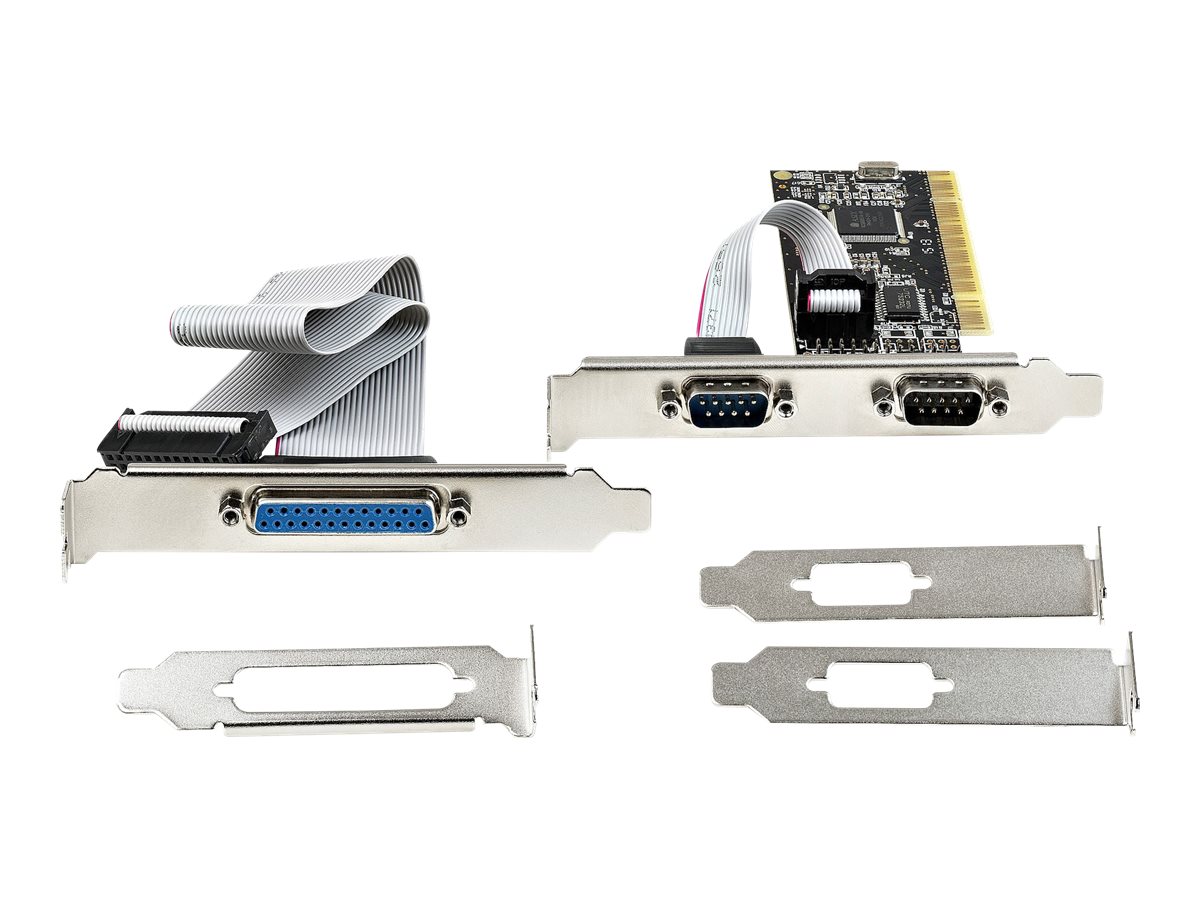

With broad OS support, including for Windows (7 and up), and Linux (2.6.x to 5.x LTS versions only), this PCI serial/parallel card is easy to integrate into mixed environments.The card comes pre-configured with 2x full-profile brackets, and includes optional 3x low-profile brackets, so installation is easy regardless of the case form factor.
