StarTech.com Seriel adapter PCI Express x1 460.8Kbps

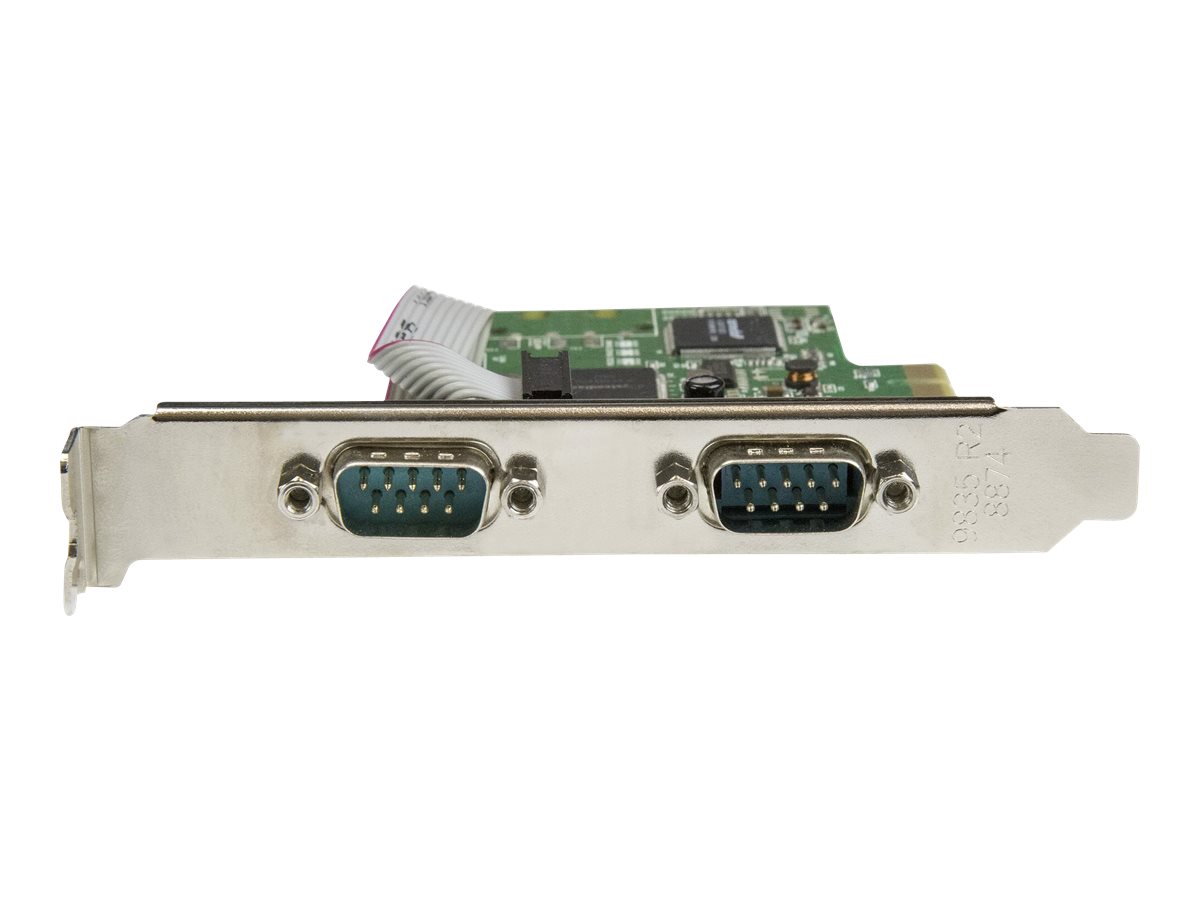

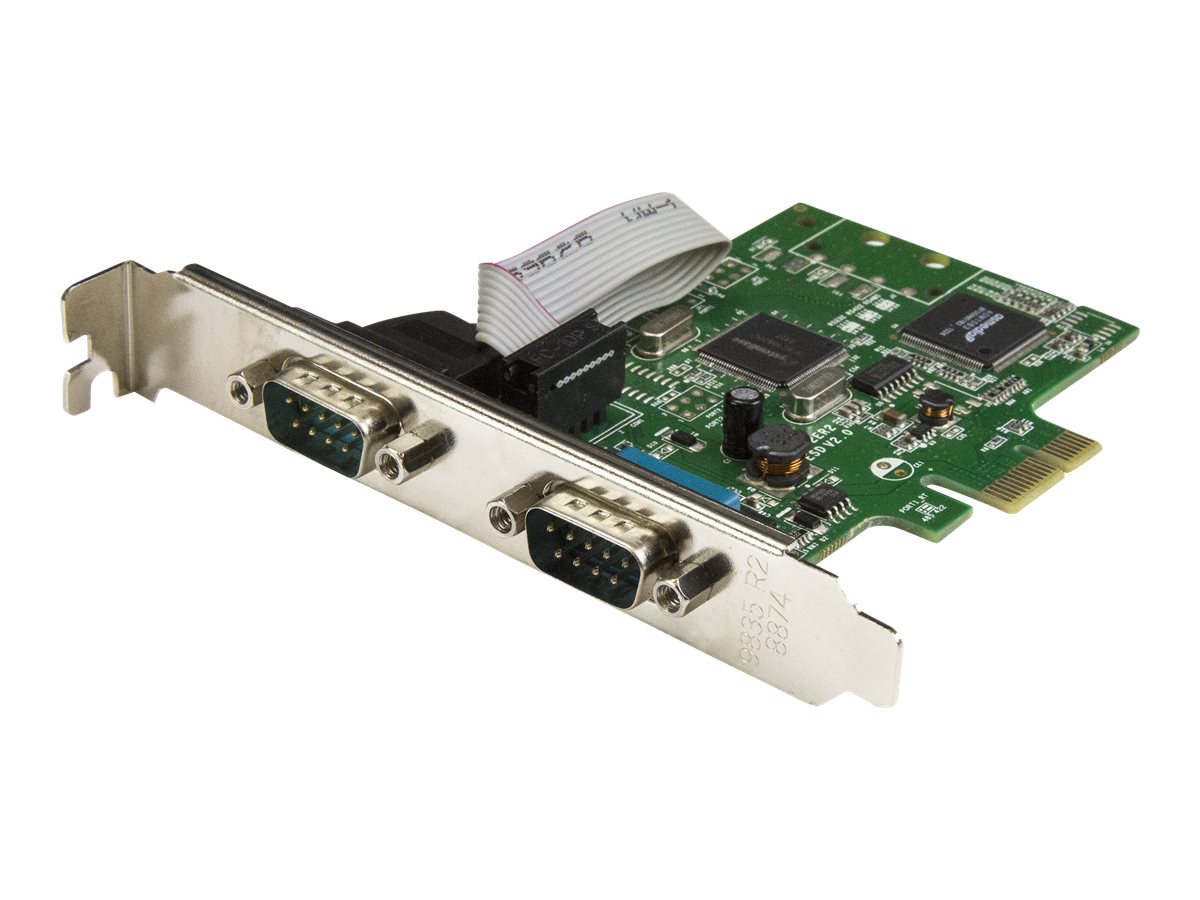

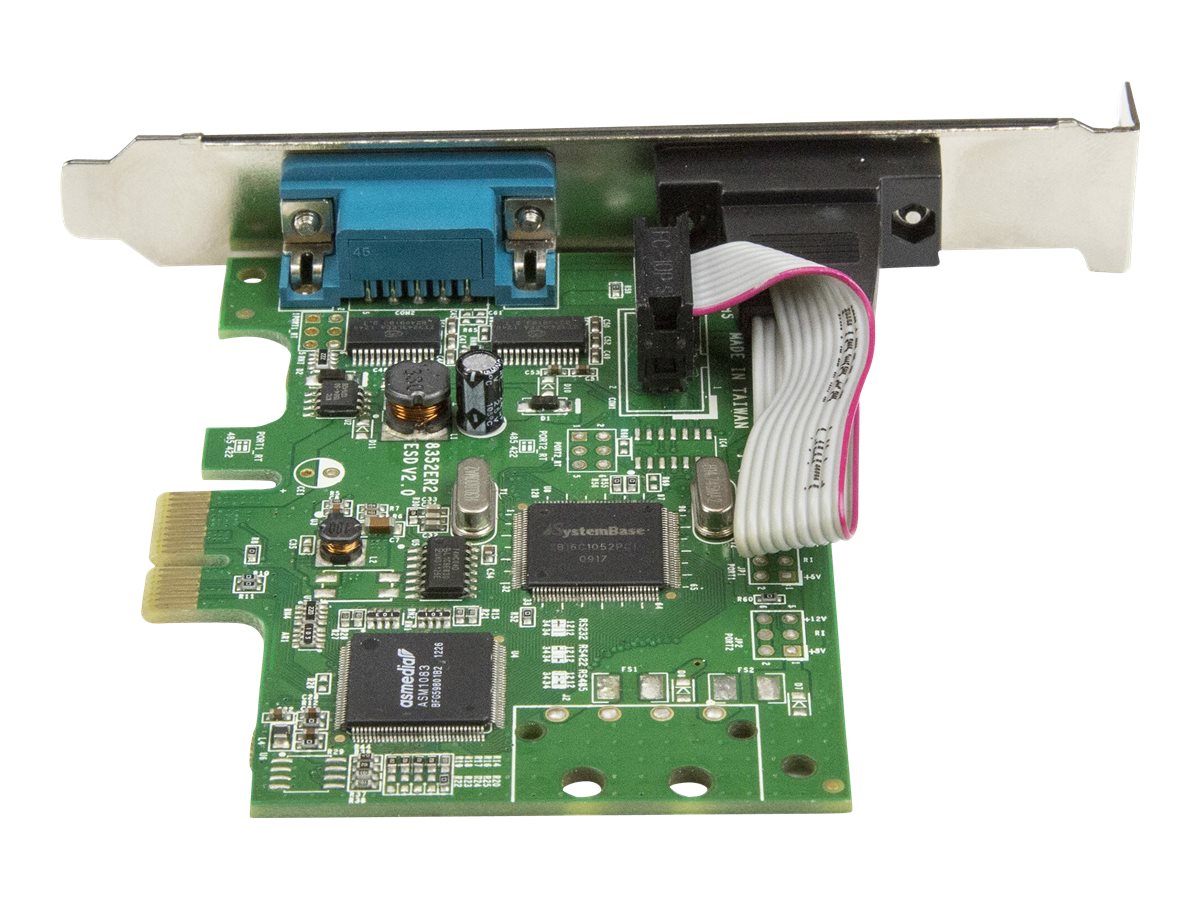

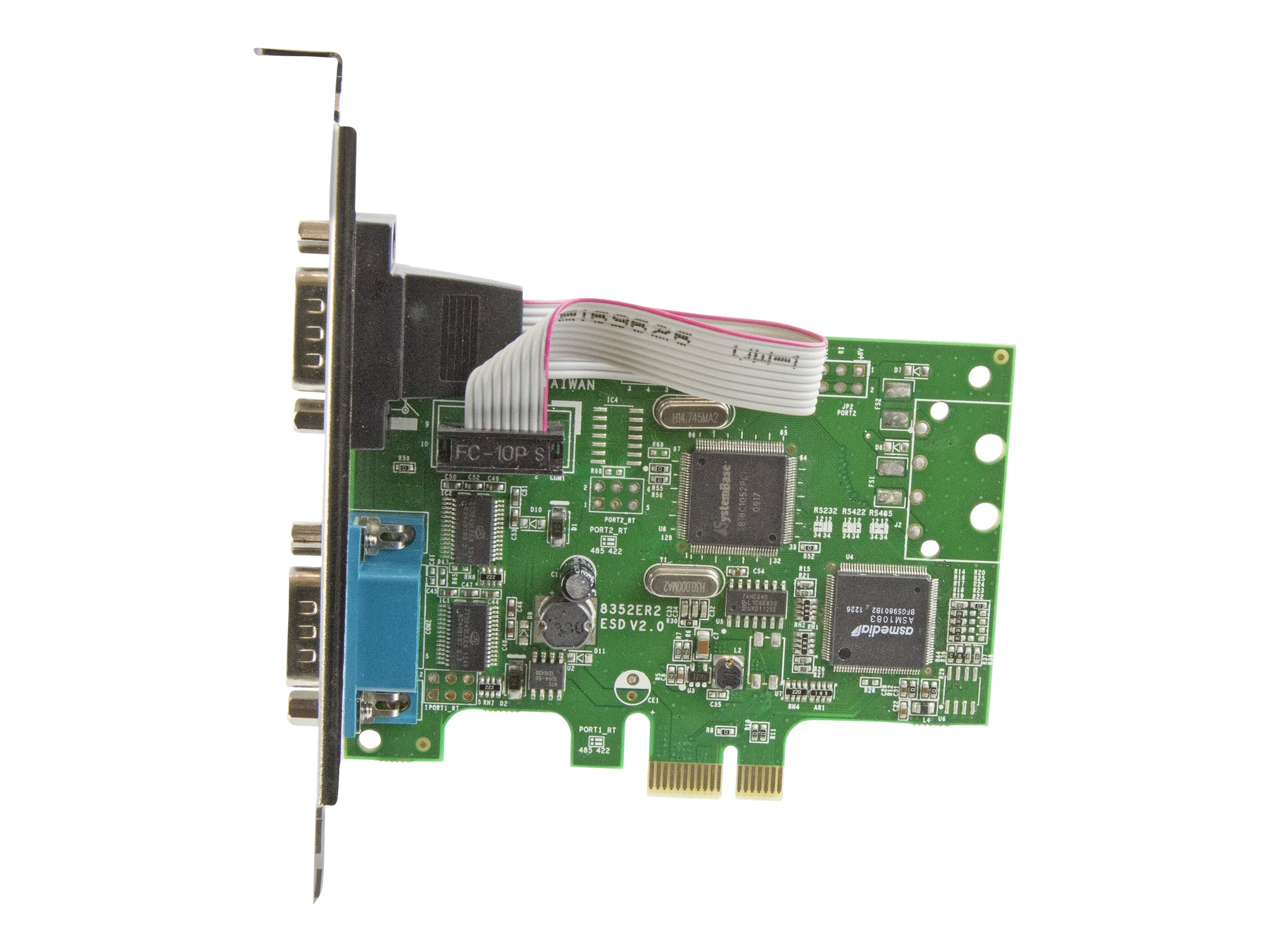

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050) - Seriel adapter - PCI Express x1 lavprofil - RS-232 x 2

  • Product no 992346403

    Model PEX2S1050

    Brand StarTech.com

    EAN 0065030868297

    Weight 0.15 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050) - seriel adapter - PCI Express x1 - RS-232 x 2
Enhedstype Seriel adapter
Model Indstikskort - lavprofil
Grænseflade (bus) type PCI Express x1
PCI-specifikationsrevision PCIe 1.0a
Porte RS-232 x 2
Dimensioner (B x D x H) 12 cm x 10.3 cm x 2 cm
Vægt 61 g
Dataforbindelsesprotokol RS-232
Dataoverførselshastighed 460.8 Kbps
Systemkrav Microsoft Windows 95, Microsoft Windows 98 Second Edition, Microsoft Windows Millennium Edition, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Linux 2.4 - 2.6.x
Producentgaranti 2 års garanti
General
Device Type Serial adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express x1
PCI Specification Revision PCIe 1.0a
Networking
Connectivity Technology Wired
Data Link Protocol RS-232
Data Transfer Rate 460.8 Kbps
Features Software flow control, full duplex mode, 128-byte FIFO
Ports RS-232 x 2
Expansion / Connectivity
Interfaces 2 x RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
Compliant Standards WHQL, FCC, RoHS, WEEE

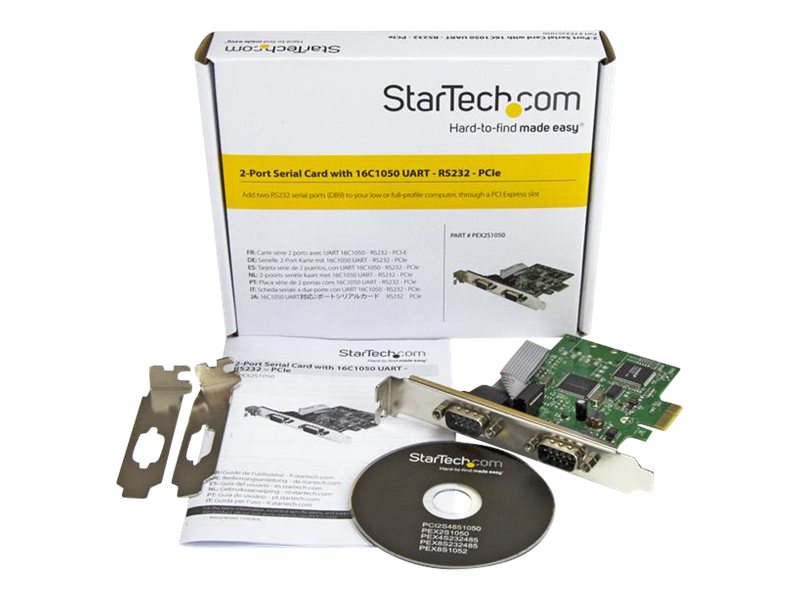

Included Accessories 2 x low-profile bracket
Software / System Requirements
OS Required Microsoft Windows 95, Microsoft Windows 98 Second Edition, Microsoft Windows Millennium Edition, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Linux 2.4 - 2.6.x
Software Included Drivers & Utilities
Dimensions & Weight
Depth 10.3 cm
Height 2 cm
Weight 61 g
Width 12 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 5 - 85%
Max Operating Temperature 80 °C
Min Operating Temperature -10 °C

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

  • Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
  • Maximum data transfer rate of 460Kbps
  • Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
  • 256-Byte deep FIFO per transmitter and receiver
  • In-band software flow control using programmable Xon/Xoff in both directions
  • Out-of-band hardware flow control using RTS / CTS
  • Support for 5,6,7 or 8 data bits
  • Standard profile bracket installed, optional dual low-profile brackets included
Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
Convenient system upgrades through PCIe

Convenient system upgrades through PCIe

The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern orlegacy equipment to newer computer systems that don't have RS232 ports.The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.
High-performance serial communication

High-performance serial communication

The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performanceand prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.
Easy installation

Easy installation

The serial card is easy to install and configure, with support for a broad range of Windows operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.

Applications

  • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
  • POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
  • Consumer (modems, PDAs, digital cameras, printers)
  • Security (UPS control, access key panels, video cameras, card readers, modems)
  • Casino (video lottery terminals, slot machines)
  • Environmental Control (lighting, temperature, clocks)
  • Healthcare (patient monitoring equipment, nurses' stations, modems)
  • Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
  • Hospitality/Restaurant (credit card/debit card reader, serial printers)
  • ISDN Networking
