StarTech.com VGA Over CAT5 Extender 250 ft (80m) 1 Local and 1 Remote Unit - VGA Video Over Extender Kit (ST121UTPEP) Forlænger for video

Startech VGA Over CAT5 Extender 250 ft (80m) 1 Local and 1 Remote Unit - VGA Video Over Ethernet Extender Kit (ST121UTPEP) - Forlænger for video - over CAT 5 - op til 80 m - for P/N: SVA12M2NEUA, SVA12M5NA

  • Product no 988492404

    Model ST121UTPEP

    Brand StarTech.com

    EAN 0065030835398

    Weight 0.78 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Startech VGA Over CAT5 Extender 250 ft (80m) 1 Local and 1 Remote Unit - VGA Video Over Ethernet Extender Kit (ST121UTPEP) - forlænger for video
Enhedstype Forlænger for video
Model Ekstern
Transmissionsmedie CAT 5
Maks. overføringsafstand 80 m
Dimensioner (B x D x H) 10 cm x 13.8 cm x 2.5 cm
Vægt 36 g
Producentgaranti 2 års garanti
Designet for P/N: SVA12M2NEUA, SVA12M5NA
General
Color Black
Device Type Video extender
Form Factor External
Networking
Connectivity Technology Wired
Max Resolution 1920 x 1200
Max Transfer Distance 80 m
Expansion / Connectivity
Interfaces 1 x VGA - HD-15
Miscellaneous
Cables Included 1 x VGA cable
Compliant Standards FCC, RoHS
Power
Power Device External power adapter
Dimensions & Weight
Depth 13.8 cm
Height 2.5 cm
Weight 36 g
Width 10 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Compatibility Information
Designed For P/N: SVA12M2NEUA, SVA12M5NA

Extend a VGA signal to a remote display using Cat5 cabling

  • Extends video signal by up to 250 ft. (80m)
  • Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
  • Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
  • Mounting bracket included
  • Single power adapter can be connected at local or remote end of the extension
  • Uses standard Cat 5 or better cabling
  • Kit consists of 1 Base unit and 1 Remote unit
  • Pure hardware design - no software or drivers required
Extend a VGA signal to a remote display using Cat5 cabling
The ST121UTPEP only requires one power adapter

The ST121UTPEP only requires one power adapter

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment

Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source.

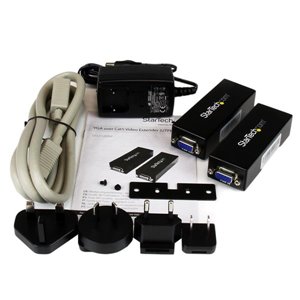

Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation

Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation

The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5e or better UTP cable, terminated with RJ45 connectors).

Applications

  • Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
  • Ideal for digital signage applications in financial, educational, and business sectors
  • Extend your display across harsh environment industrial sites
  • Perfect for video conferencing solutions in boardrooms and office settings
  • Optimize placement of your demo stations at tradeshows and in auditoriums
