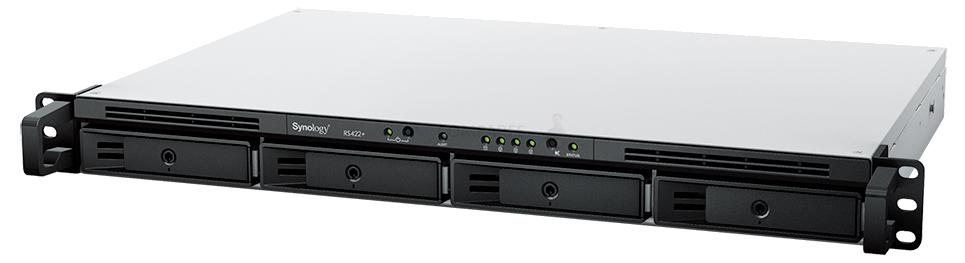

Synology RackStation RS422 4Moduler

Synology RackStation RS422+ - NAS-server - 4 bays - rackversion - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, JBOD - RAM 2 GB - Gigabit Ethernet - iSCSI support - 1U

Med sin kompakte 1U-formfaktor og det kraftfulde operativsystem Synology DiskStation Manager (DSM) er 4-bay Synology RackStation RS422+ en prisbillig alt-i-en-løsning til små virksomheder og ejere af hjemmelaboratorier, der ønsker at opfylde deres daglige behov for datahåndtering, deling, synkronisering og backup.

Product no: 1000621980
Model: RS422+
EAN: 4711174724475
Brand:
Synology
Weight: 6.04 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

CPU Model
AMD Ryzen R1600
CPU Architecture
64-bit
CPU Frequency
2-core 2.6 (base) / 3.1 (turbo) GHz
System Memory
2 GB DDR4 ECC
Drive Bays
4
Compatible Drive Type
3.5" SATA HDD, 2.5" SATA SSD
RJ-45 1GbE LAN Port
2
USB 3.2 Gen 1 Port
1
PCIe Expansion
1 x Gen3 x2 network upgrade slot
Form Factor (RU)
1U
Size (Height x Width x Depth)
44 mm x 478 mm x 327.5 mm
Weight
4.38 kg
System Fan
40 mm x 40 mm x 3 pcs
Noise Level
28.5 dB(A)
Power Supply Unit / Adapter
100 W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
37.93 W (Access), 13.43 W (HDD Hibernation)
British Thermal Unit
129.42 BTU/hr (Access), 45.83 BTU/hr (HDD Hibernation)
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Specifications

Full specifications

General
Built-in Devices
LED panel
Depth
32.75 cm
Device Type
NAS server
Enclosure Type
Rack-mountable - 1U
Height
4.4 cm
Host Connectivity
Gigabit Ethernet
Installed Devices / Modules Qty
0 (installed) / 4 (max)
Total Storage Capacity
0 GB
Weight
4.38 kg ()
Width
47.8 cm
Processor / Memory
Features
ECC
Max Supported Qty
1
Max Turbo Speed
3.1 GHz
Number of Cores
Quad-Core
Processors Installed
1 x AMD Ryzen Embedded R1600 2.6 GHz
RAM
2 GB DDR4
Storage Controller
Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD
Type
RAID
Networking
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Encryption Algorithm
SSL, TLS, AES-NI
Features
Firewall protection, hardware encryption, LDAP support, wake on LAN (WOL), High Availability, backup server, file sharing, event log, Access Control List (ACL) support, FTP server, reset button, bandwidth control, surveillance station, PXE support, D
Network / Transport Protocol
TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DNS, POP3, IMAP, SMB, NFS, SFTP, HTTP, HTTPs
Network Services Compatibility
Microsoft Active Directory (AD), DNS, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalD
Remote Management Protocol
SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, SFTP, LDAP, RADIUS
Security DVR
Compression Format
H.264, H.265
Image Resolution
1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160
IP Cameras Supported
40
Expansion / Connectivity
Expansion Bays
4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
2 (total) / 2 (free) x PCI Express 3.0 x2
Interfaces
2 x Ethernet 1000Base-T - RJ-45 | 1 x USB 3.2 Gen 1 - Type A | 1 x serial (management) - DB-9
Miscellaneous
Compliant Standards
VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM, UKCA
Features
Audible alarm, wake on LAN, built-in 3 cooling fans, scheduled power on/off, reset button, lockable tray
Included Accessories
Accessory pack
Power
Power Device
Internal power supply
Power Provided
100 Watt
Voltage Required
AC 100-240 V (50/60 Hz)
Software / System Requirements
OS Required
Apple MacOS, Linux, Microsoft Windows
Software Included
McAfee AntiVirus (Trial)
Storage Operating System
Synology DiskStation Manager
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating
5 - 95% RH
Max Operating Temperature
35 °C
Min Operating Temperature
0 °C
Sound Emission
28.5 dBA

Features

Pladsbesparende design til fleksibel implementering

Takket være det kompakte 1U-chassis passer RS422+ perfekt i et rack med 2 stolper eller vægmontering. Implementer den i miljøer med begrænset plads eller andre steder uden at investere i dyre railkits eller andet serverudstyr.

Fleksible netværksmuligheder

Udnyt de indbyggede tilslutningsmuligheder til at integrere RS422+ i ethvert IT-miljø, eller udvid dens funktioner ved at tilføje plug-and-play-moduler.

Alt-i-en platform til datahåndtering

RS422+ er designet til at understøtte små installationer i håndteringen af almindelige applikationer som filhåndtering, databackup og overvågning.

Edge storage til distribuerede teams

Giv sikker og praktisk filadgang, deling og synkronisering på flere platforme på tværs af forskellige lokationer.

Databeskyttelse med flere endepunkter

Design en effektiv backup-strategi for at maksimere systemtilgængeligheden med et væld af indbyggede og licensfrie løsninger.

Smart overvågning til små installationer

Udnyt fleksible implementeringsmuligheder, intuitive administrationsfunktioner og avanceret videoanalyse til at sikre dine lokaler.

Drevet af Synology DSM

Drag fordel af en lang række indbyggede produktivitets-, administrations- og sikkerhedsløsninger, der er tilgængelige på det webbaserede DSM-operativsystem.
