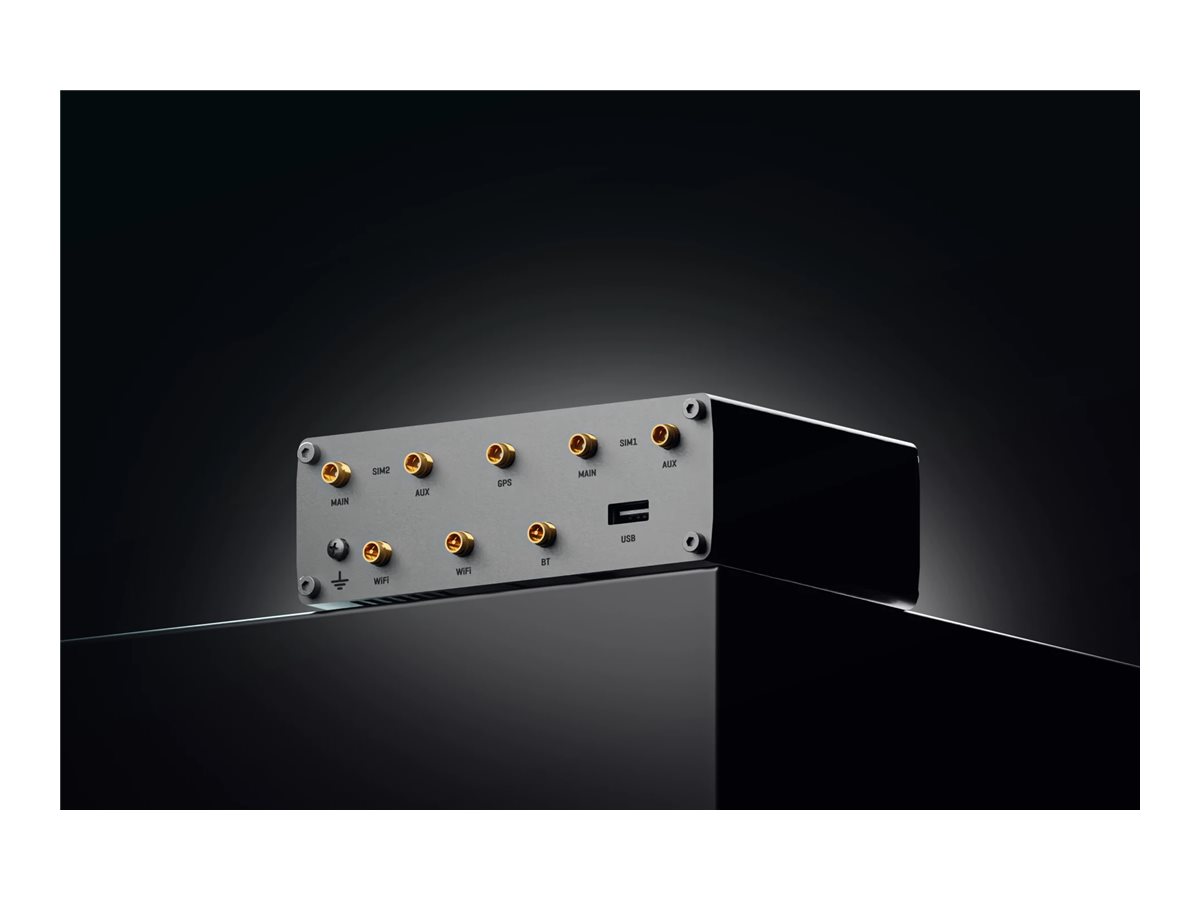

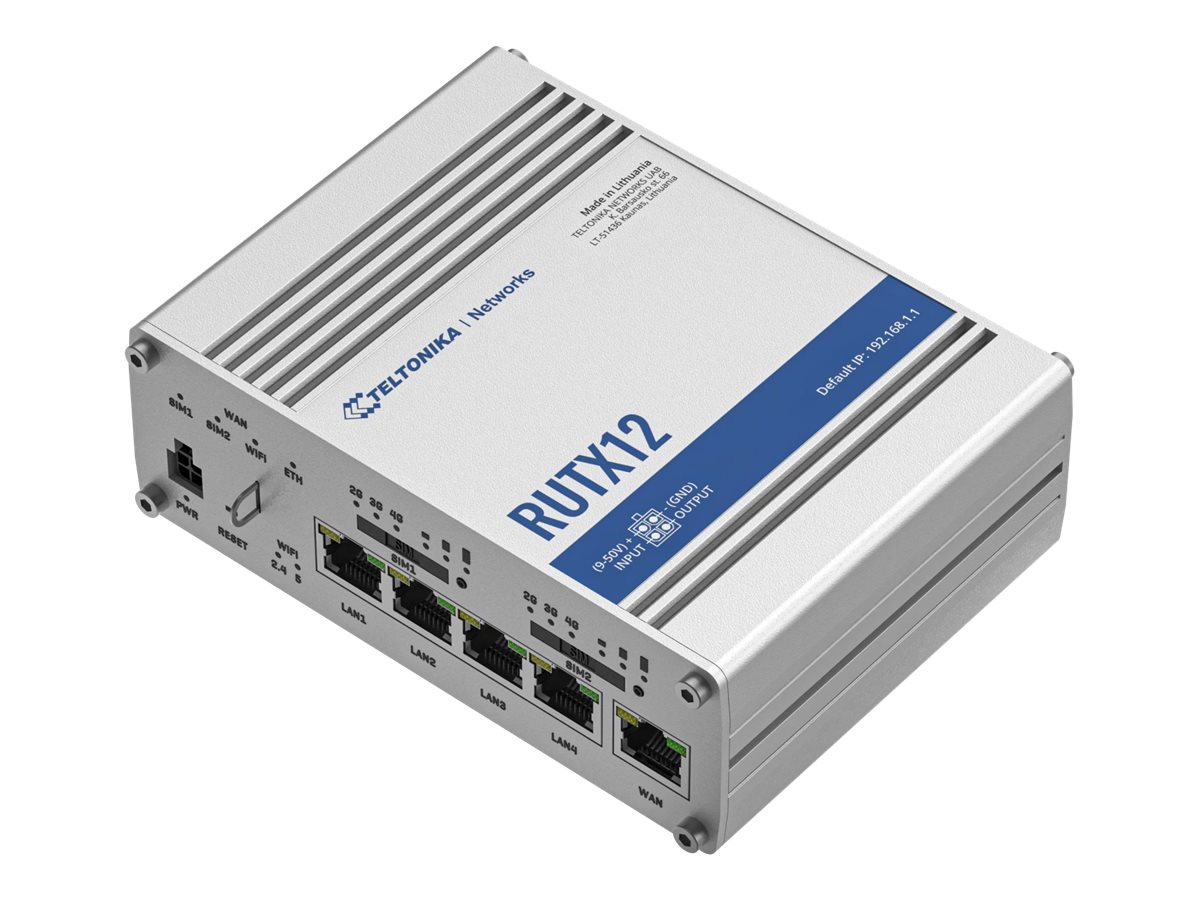

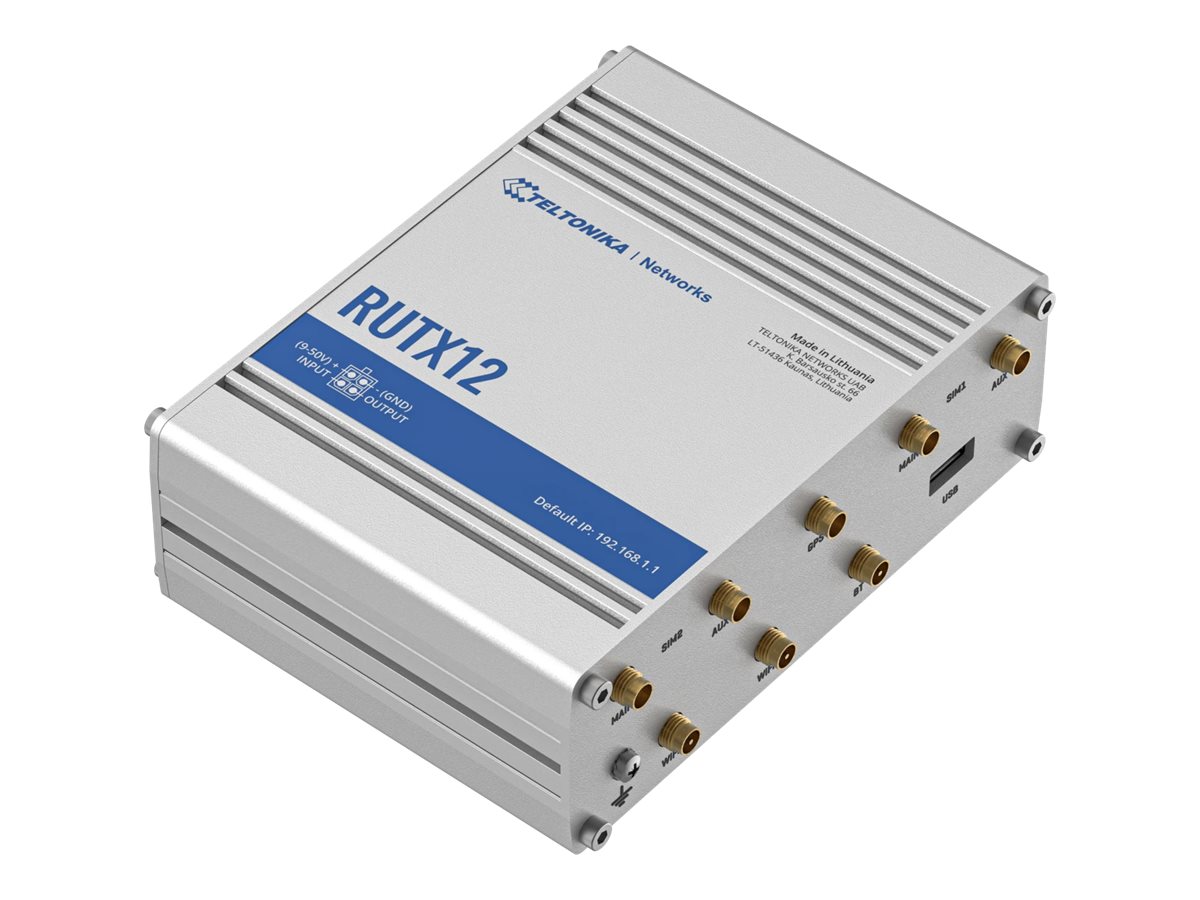

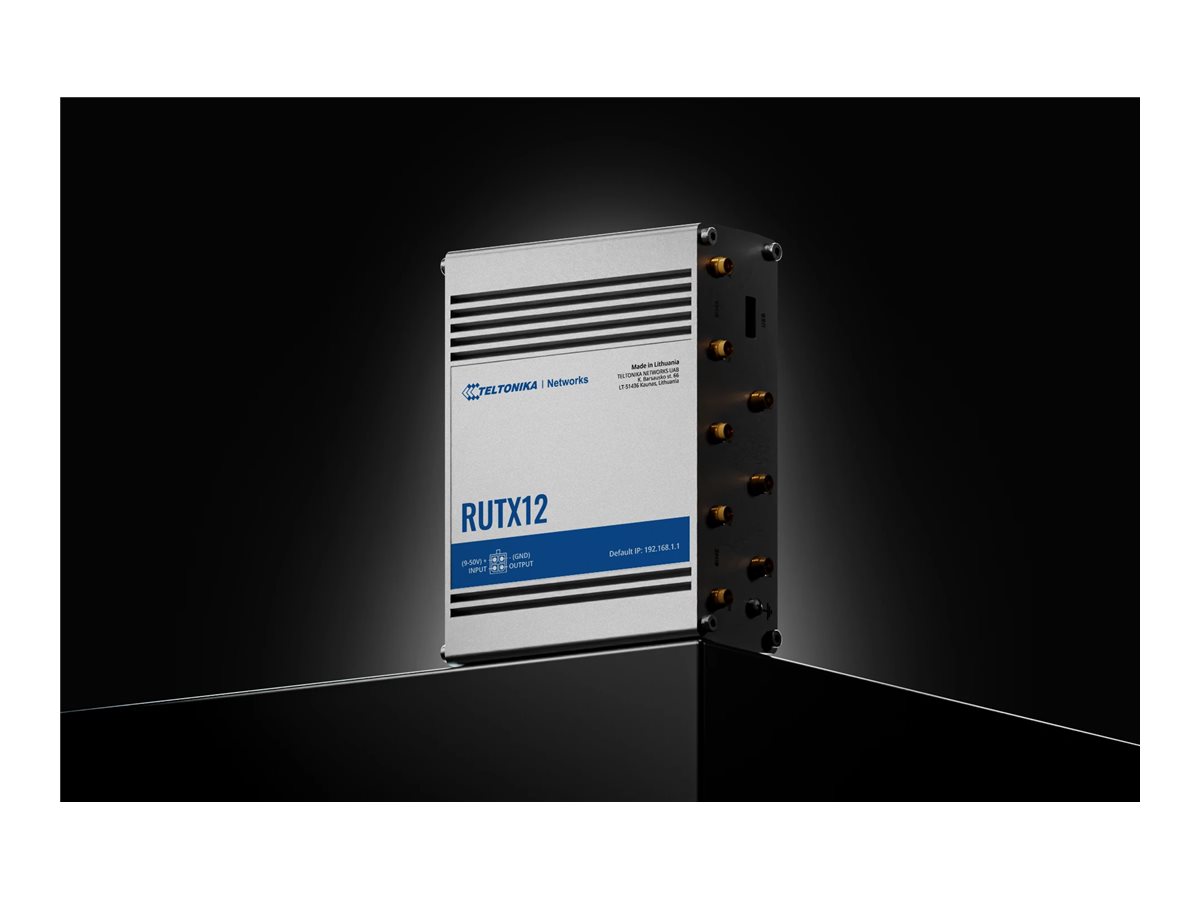

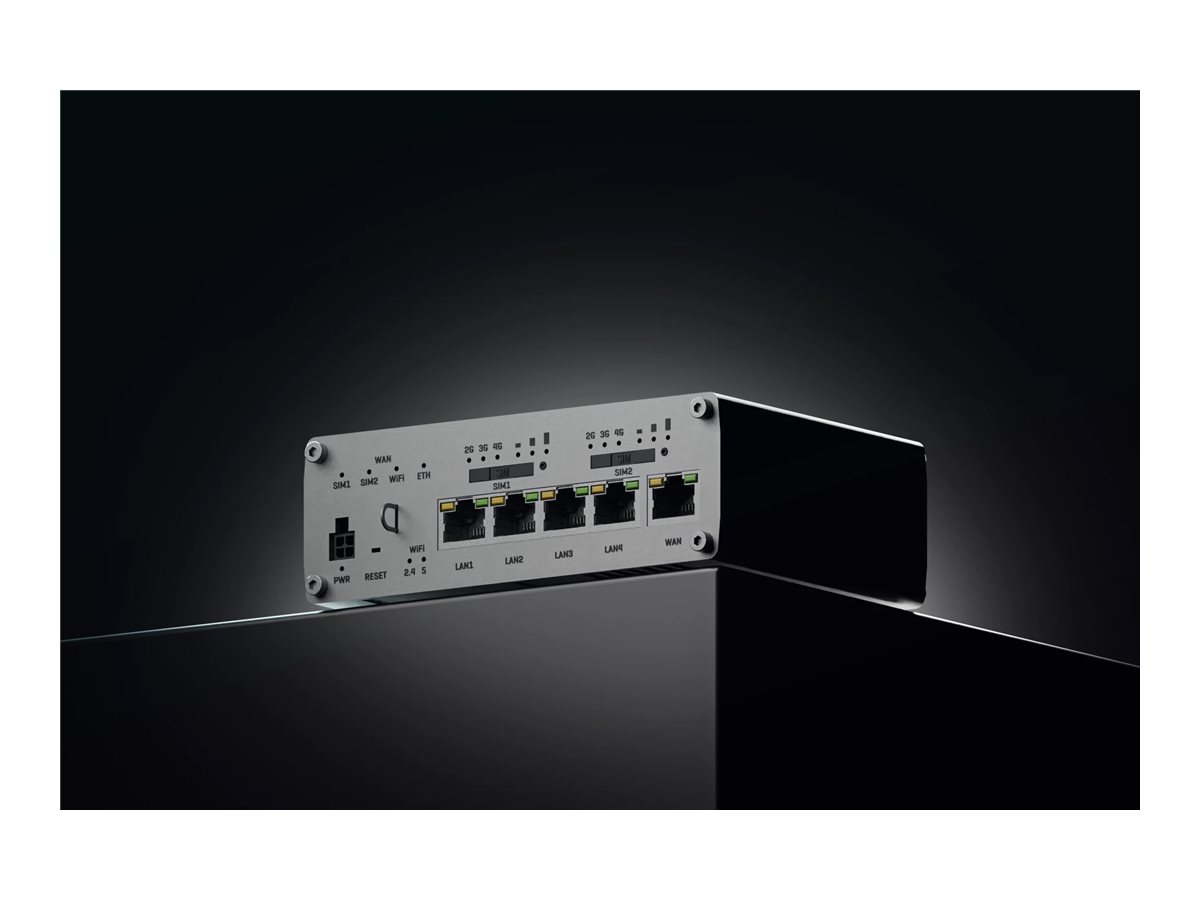

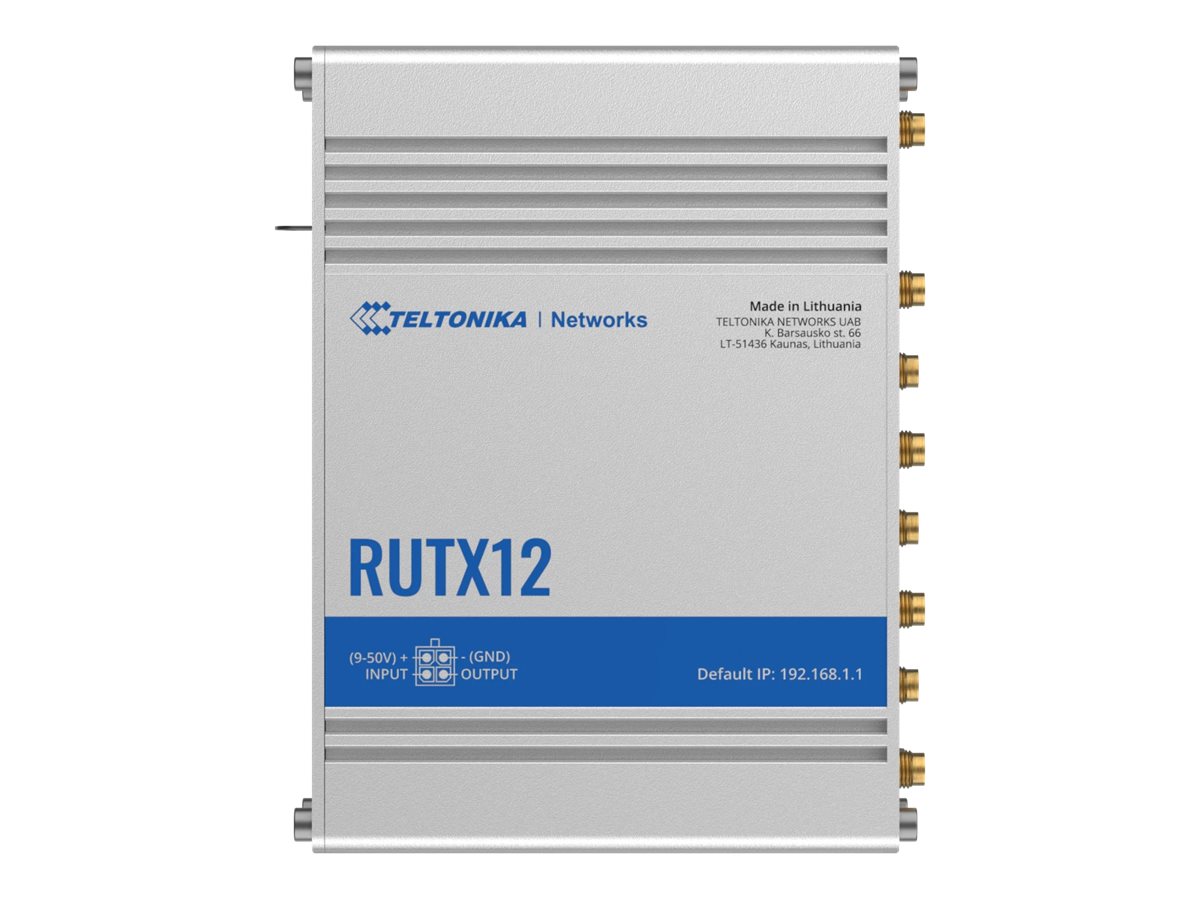

Teltonika RUTX12 Trådløs router
Teltonika RUTX12 - Trådløs router - WWAN 5-port switch - 1GbE, PPP, Modbus - Wi-Fi 5 - Dual Band
-
Product no 996273199
Model RUTX12000000
Brand Teltonika
EAN 4779027312743
Weight 1.09 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Teltonika RUTX12 - trådløs router - WWAN - Bluetooth, Wi-Fi 5 - desktop |
| Enhedstype | Trådløs router - trådløs mobilmodem - 5-port switch (integreret) |
| Pakningstype | Desktop |
| Mobilprotokol | WCDMA, FDD LTE, TDD LTE |
| Mobilbånd | LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38, LTE B32 |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Modbus, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Frekvensbånd | 2,4 GHz/5 GHz |
| Netværks/overføselsprotokol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, IPv4, IPv6 |
| Routingprotokol | RIP-1, RIP-2, BGP, EIGRP, VRRP, NHRP, OSPFv2, statisk IP routing, GRE |
| Protokol til fjernadministration | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, TR-069, JSON-RPC, Modbus, NTP |
| VoIP-protokoller | H.323, SIP |
| Egenskaber | Firewallbeskyttelse, NAT-understøtning, VPN support, aktivitet, WOL, auto-uplink (auto MDI/MDI-X), E-mail advarsel, MAC-adresse-filtrering, firmware kan opgraderes, WMM support, QoS, IPSec NAT-T, DMVPN, SMS alarmer, port fremsendelse, nulstillingsknap, DHCP videresendelse, SNMP fælde, GRE tunneling, mærket VLAN, SYN Flooding, MU-MIMO teknologi, systemlog, passiv PoE-understøttet, Web Filtering, DMZ-support, portbaseret VLAN, sort liste, hvidliste, brotilstand, DDoS Protection, aluminiumskabinet |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Dimensioner (B x D x H) | 13.2 cm x 9.5 cm x 4.4 cm |
| Vægt | 540 g |
| Lokalisering | Stillehavsområdet, Mellemøsten, Afrika, Europa |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, X.509 certificates, Extended Service Set ID (ESSID) |
| Built-in Devices | LED panel, GPS, GLONASS, Beidou, Galileo, QZSS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Modbus, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Device Type | Wireless router - 5-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | DES, Triple DES, RC2, CAST, TLS, SSL 3.0, PEAP, TKIP, AES-CCMP, WPA2-PSK, WPA2-Enterprise, IKEv2, 256-bit AES-CBC, 128-bit AES-CBC, 192-bit AES-CBC, IKEv1 |
| Features | Firewall protection, NAT support, VPN support, load balancing, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), E-mail alert, MAC address filtering, firmware upgradable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPSec NAT-Traversal (N |
| Flash Memory | 256 MB |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, IPv4, IPv6 |
| Processor | 1 x ARM Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, TR-069, JSON-RPC, Modbus, NTP |
| Routing Protocol | RIP-1, RIP-2, BGP, EIGRP, VRRP, NHRP, OSPFv2, static IP routing, GRE |
| Status Indicators | Port status, power, signal strength, WAN, 5 GHz, 2.4 GHz |
| Communications | |
| Cellular Band | LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38, LTE B32 |
| Cellular Protocol | WCDMA, FDD LTE, TDD LTE |
| Max Transfer Rate | 600 Mbps |
| Type | Wireless cellular modem |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE) |
| Internet of Things (IoT) Compatible | Yes |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SIM |

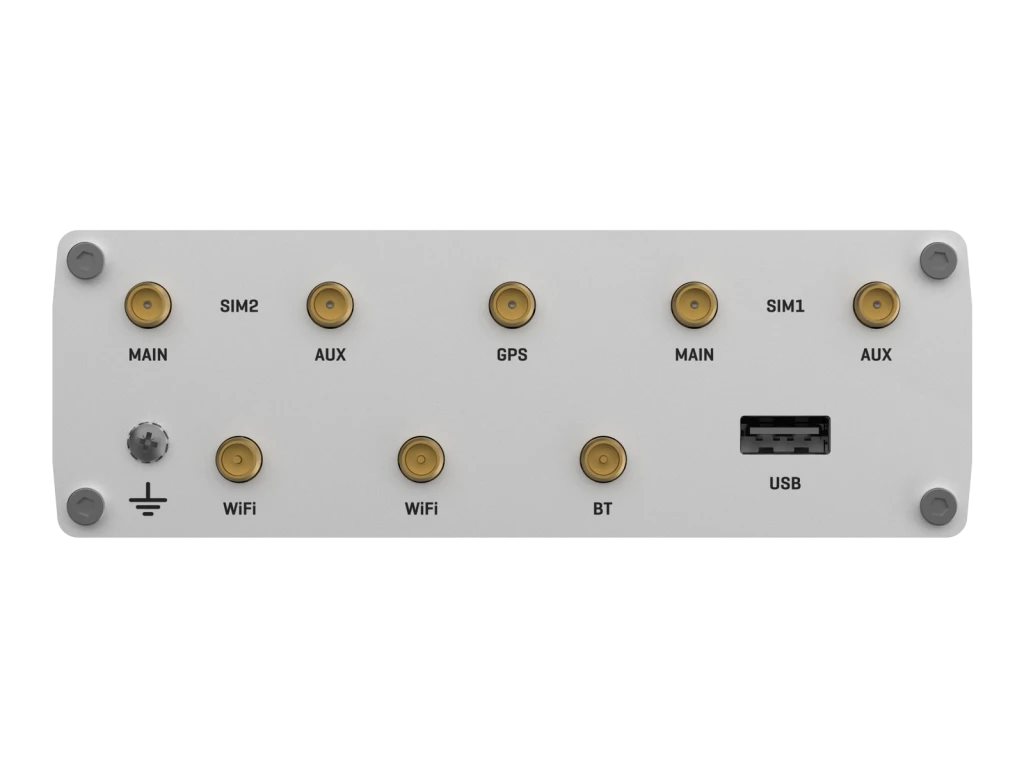

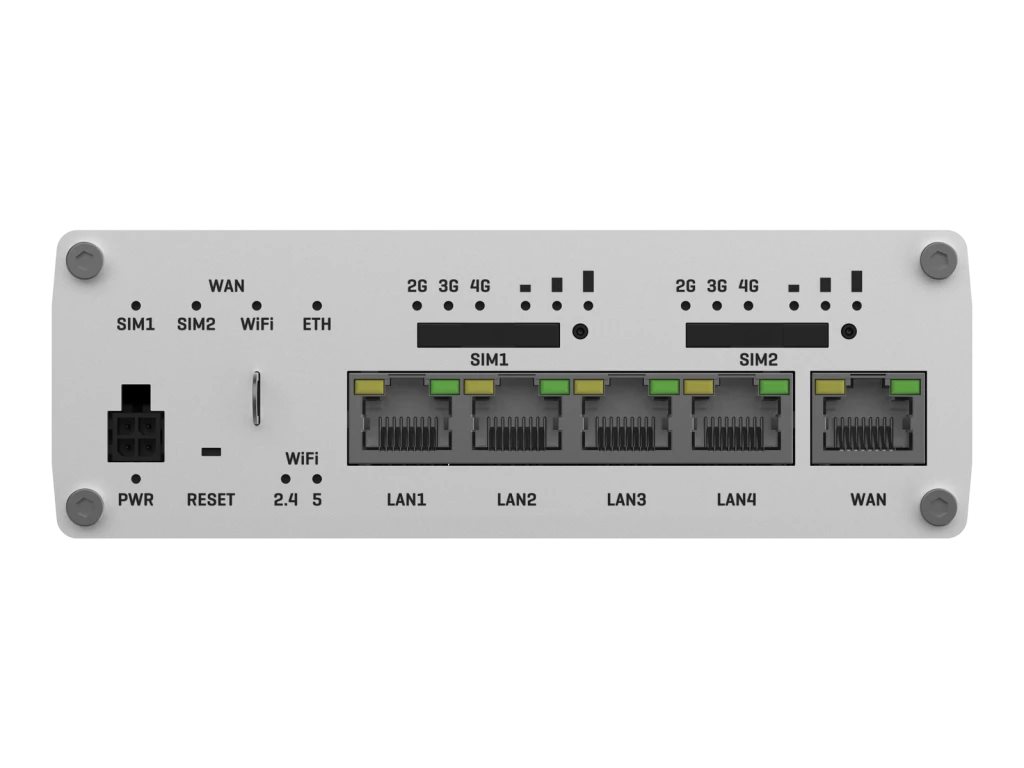

| Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | USB 2.0: 1 x 4 pin USB Type A | 1 x DI | 1 x DO | Antenna: 5 x SMA | Antenna: 3 x RP-SMA |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 8 |
| Power | |
| Power Consumption Operational | 22 Watt |
| Power Device | External power adapter |
| Miscellaneous | |
| Cables Included | 1 x network cable - 1.5 m |
| Included Accessories | GPS antenna, 2 x Wi-Fi antennas, SIM card ejector, Bluetooth antenna, 4 x LTE antennas |
| Localization | Asia Pacific, Middle East, Africa, Europe |
| Software / System Requirements | |
| OS Provided | RutOS |
| Dimensions & Weight | |
| Depth | 9.5 cm |
| Height | 4.4 cm |
| Weight | 540 g |
| Width | 13.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
