- Power supply not included

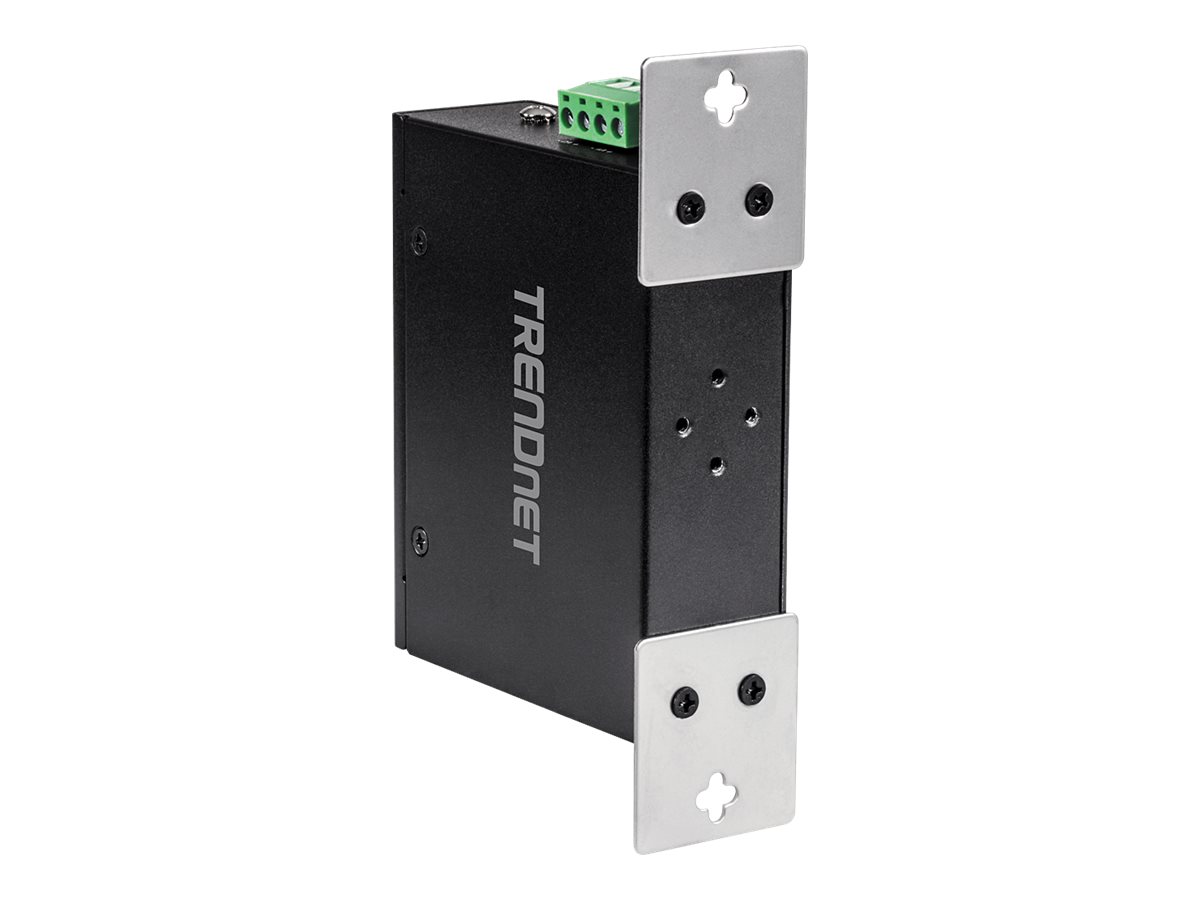

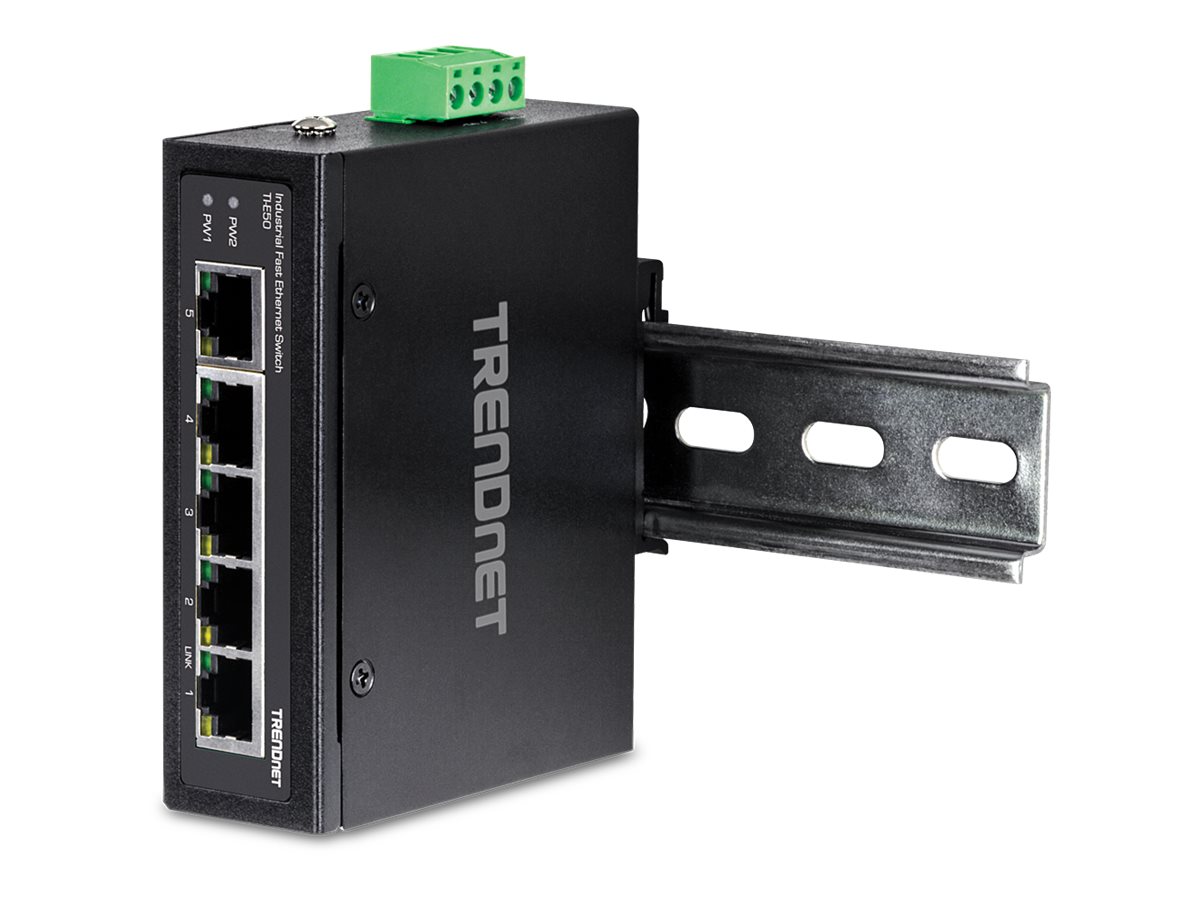

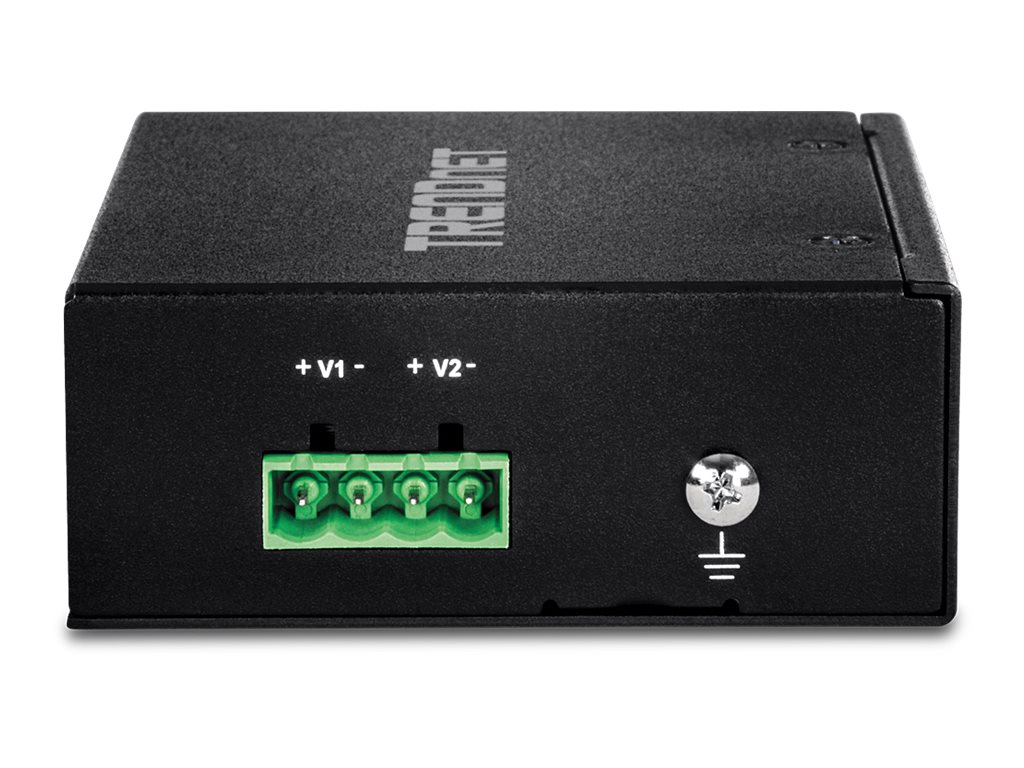

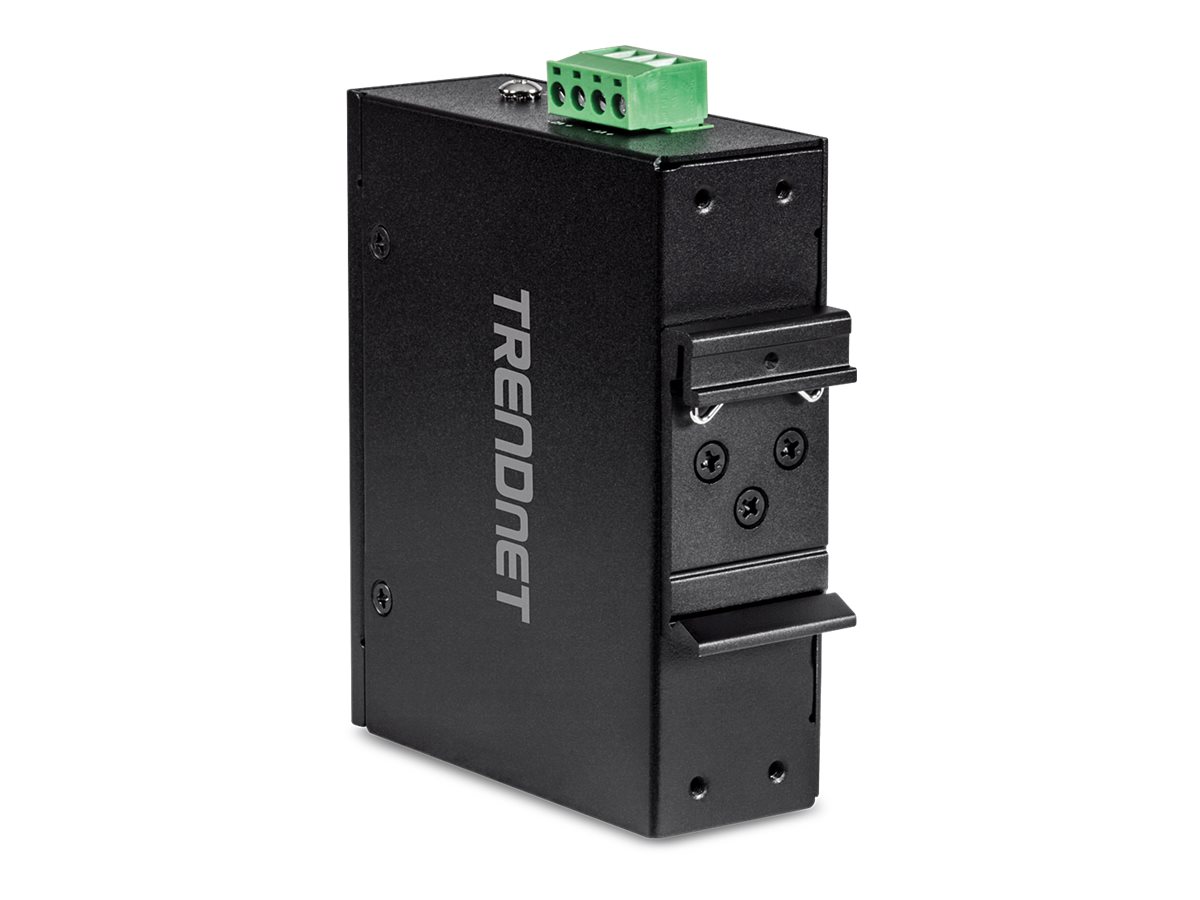

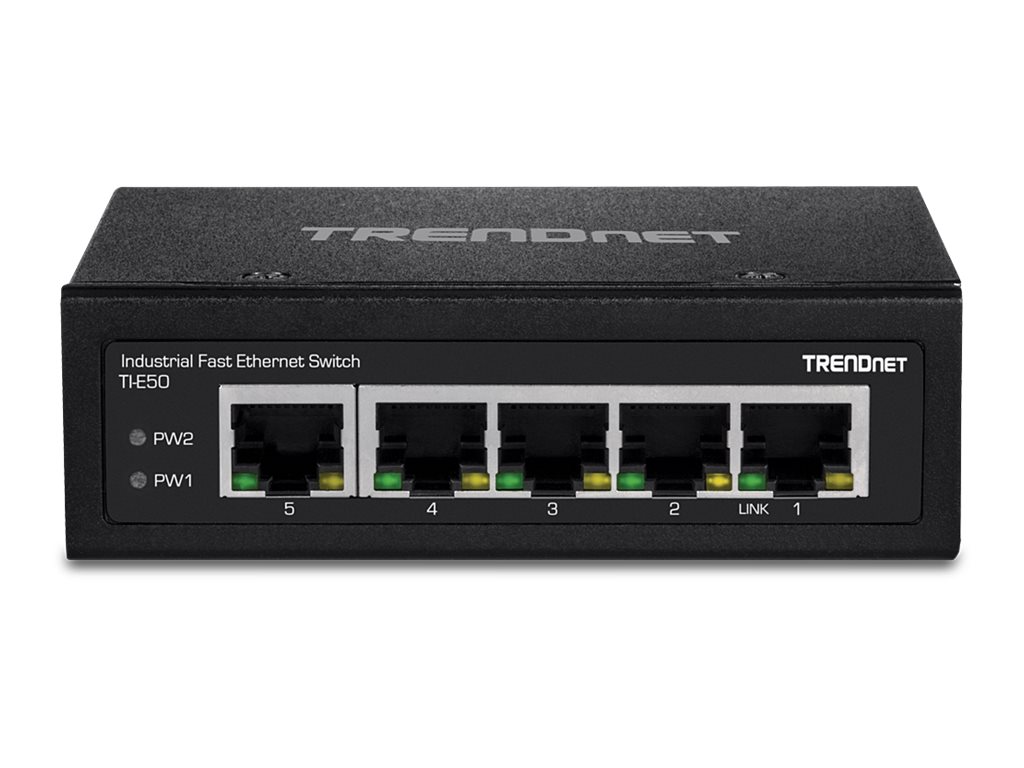

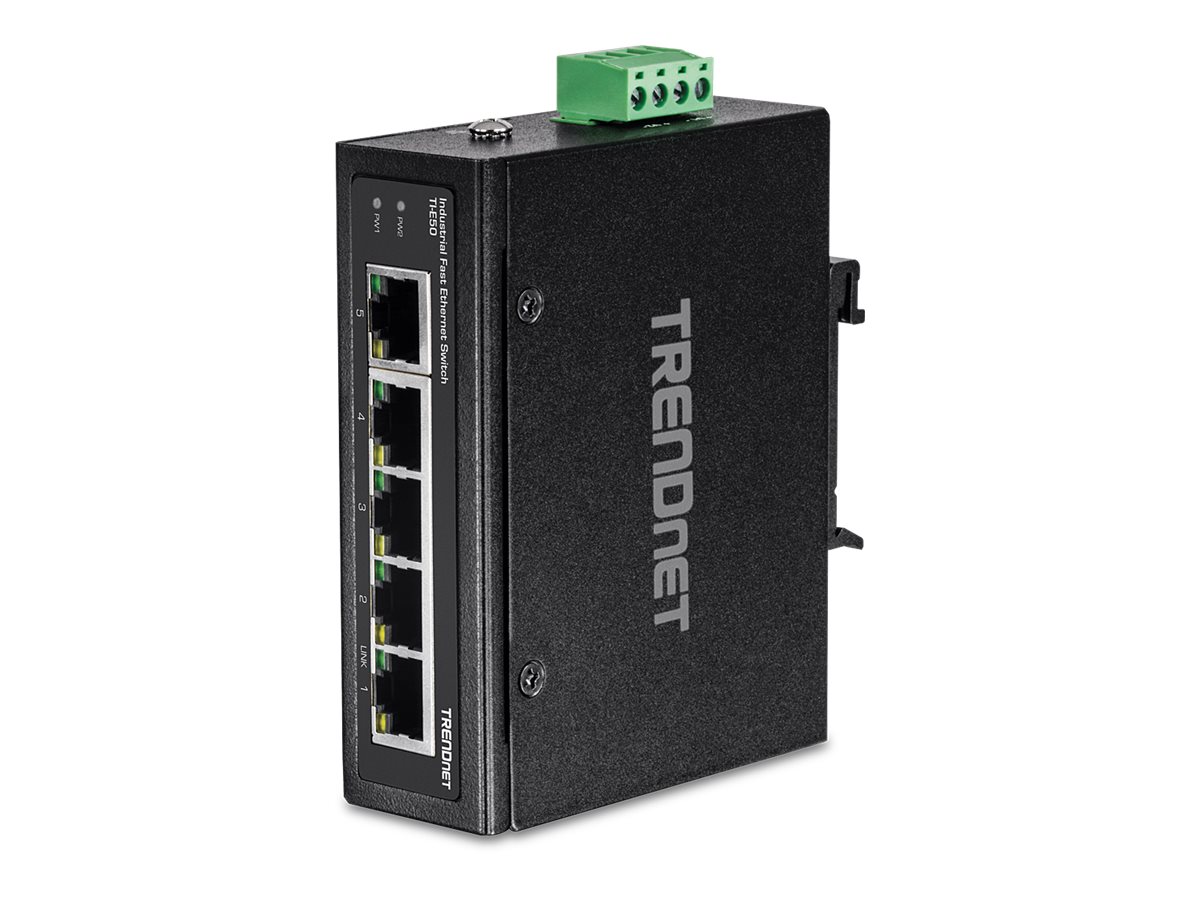

TRENDnet TI-E50 Switch 5-porte 10/100
TRENDnet TI-E50 - Switch - ikke administreret - 5 x 10/100 - DIN monterbar på skinne, væg-monterbar - DC strøm - TAA-kompatibel
-
Product no 994884227
Model TI-E50
Brand
Go to brand's websiteEAN 0710931161755
Weight 0.99 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TI-E50 - switch - 5 porte - ikke administreret - TAA-kompatibel |
| Enhedstype | Switch - 5 porte - ikke administreret |
| Undertype | Fast Ethernet |
| Porte | 5 x 10/100 |
| Præstation | Omkoblingskapacitet: 1 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 0,744 Mpps |
| MAC adresse table størrelse | 1 K indtastningshukommelse |
| Egenskaber | Halv dupleksmodus, fuld dupleksmodus, blæserløs, 56 KB pakkebuffer, 8KV ESD Protector |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Effekt | DC 12 - 56 V - strømadapter ikke inkluderet |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 3.2 cm x 8.2 cm x 10.4 cm |
| Vægt | 486 g |
| TAA kompatibel | Ja |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Features | Half duplex mode, full duplex mode, fanless, 56KB packet buffer, 8KV ESD Protector |
| MAC Address Table Size | 1K entries |
| Performance | Switching capacity: 1 Gbps | Forwarding performance (64-byte packet size): 0.744 Mpps |
| Ports | 5 x 10/100 |
| Subtype | Fast Ethernet |
| Expansion / Connectivity | |
| Interfaces | 5 x 100Base-T RJ-45 |
| Power | |
| Max Supported Qty | 2 |
| Power Consumption Operational | 2.24 Watt |
| Power Device | External power adapter (not included) |
| Power Redundancy | Yes |
| Voltage Required | DC 12 - 56 V |
| Miscellaneous | |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30 |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 510,304 hours |
| Dimensions & Weight | |
| Depth | 8.2 cm |
| Height | 10.4 cm |
| Weight | 486 g |
| Width | 3.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
