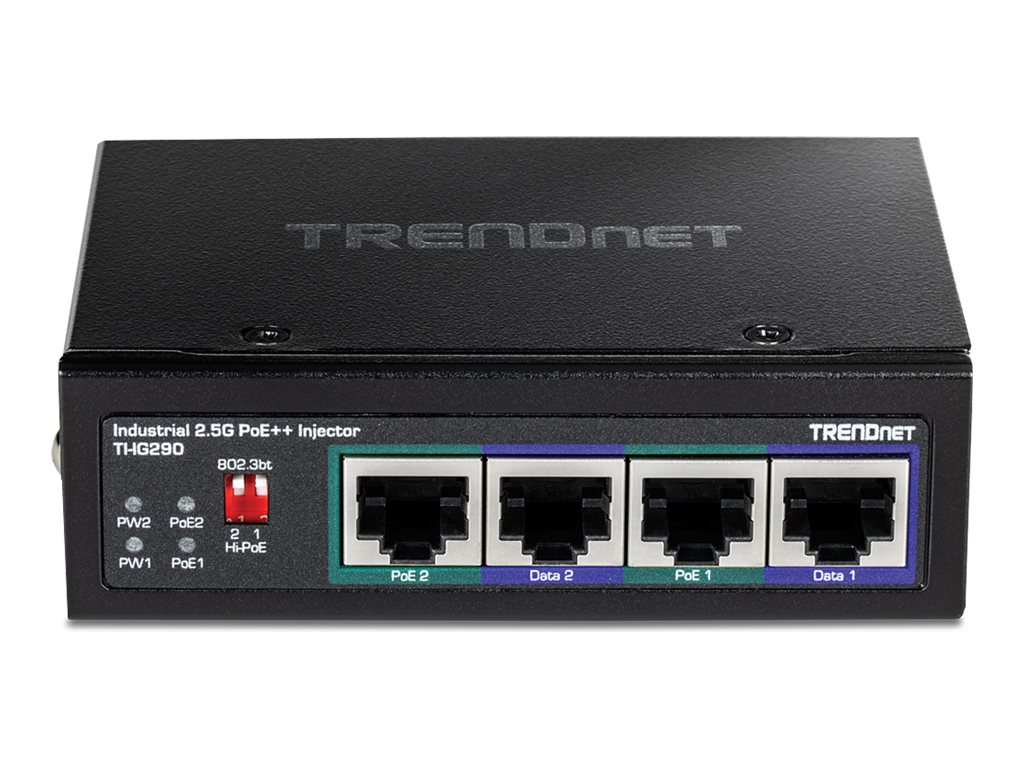

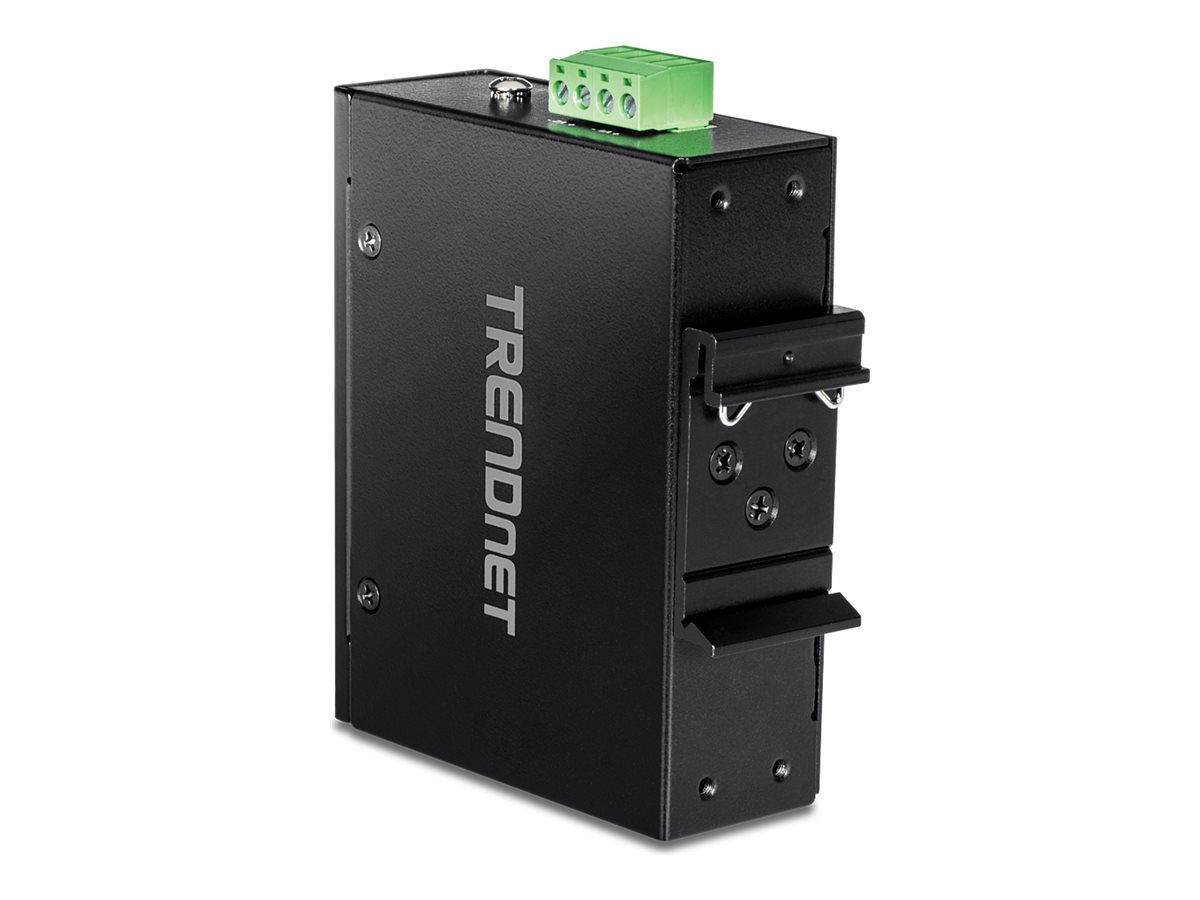

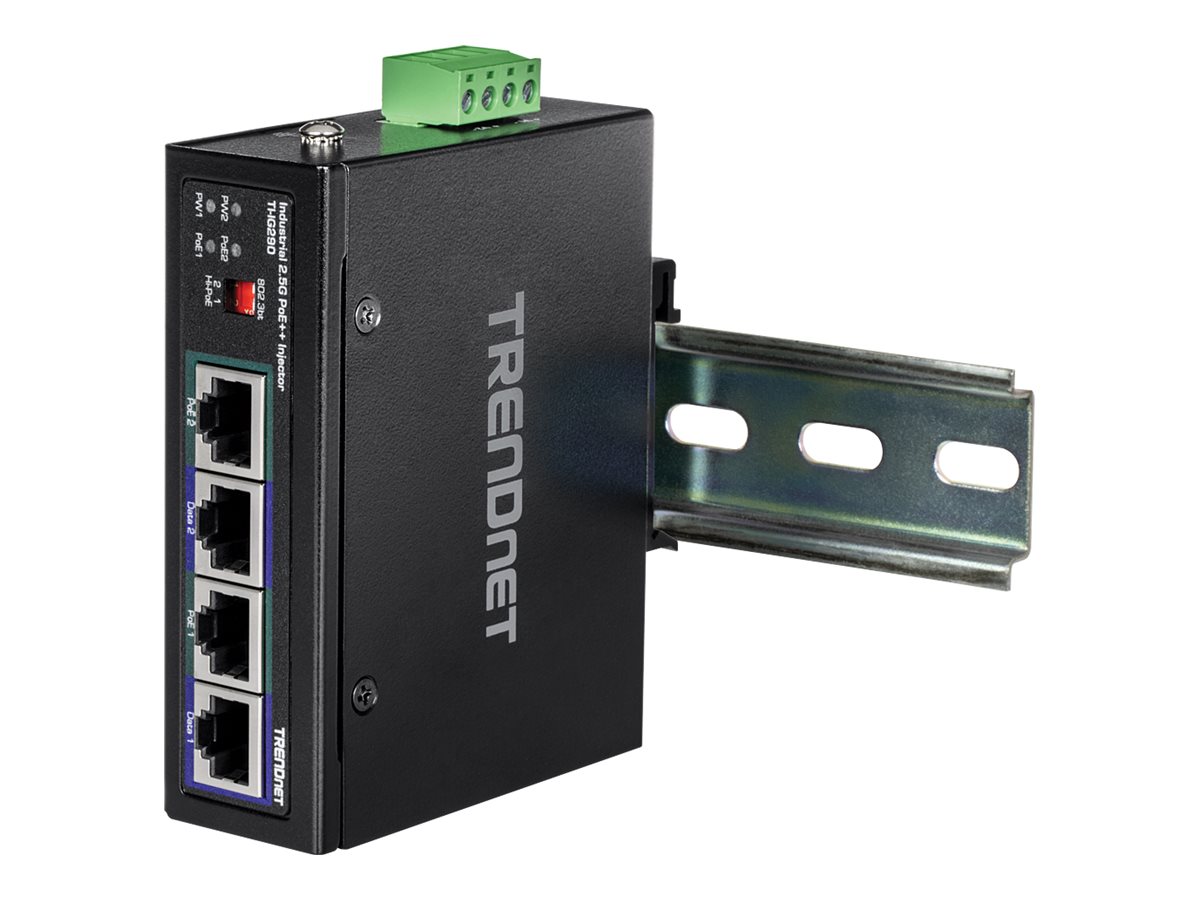

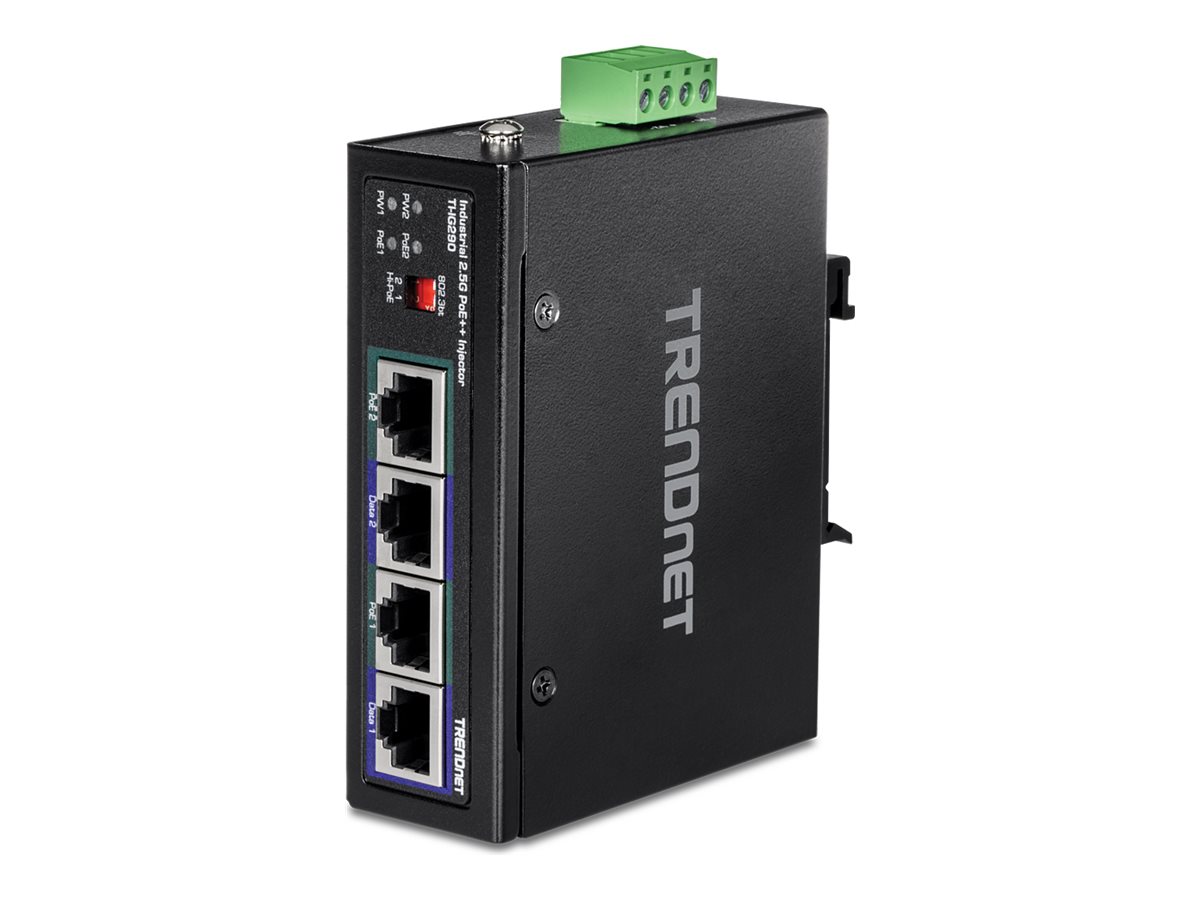

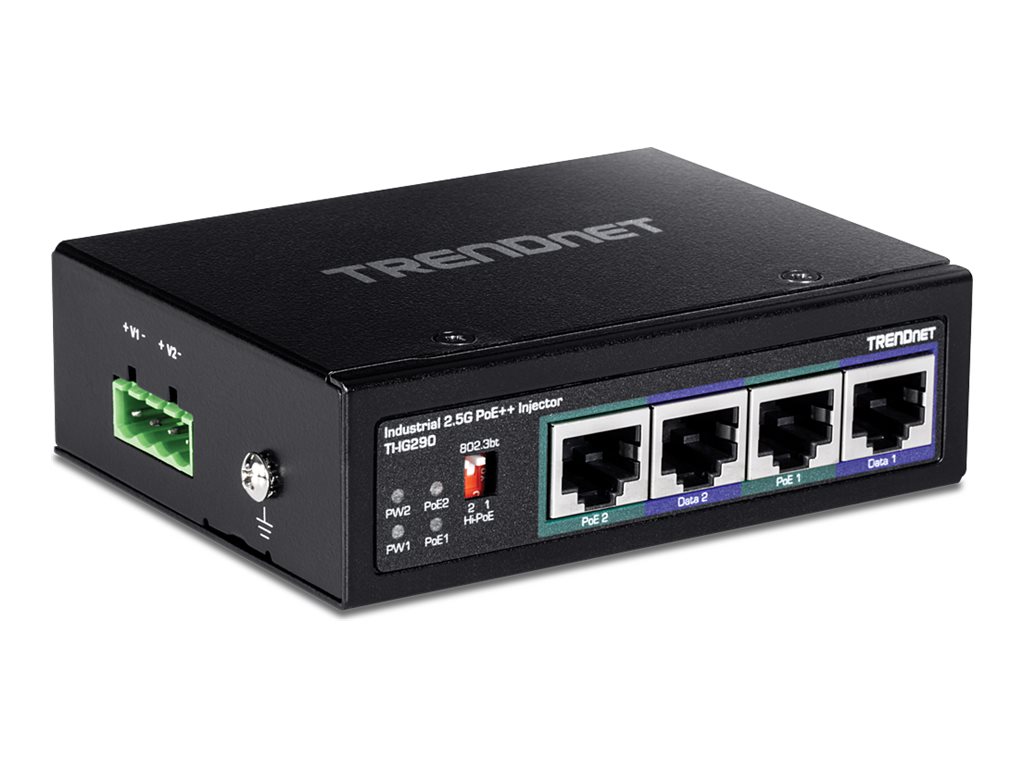

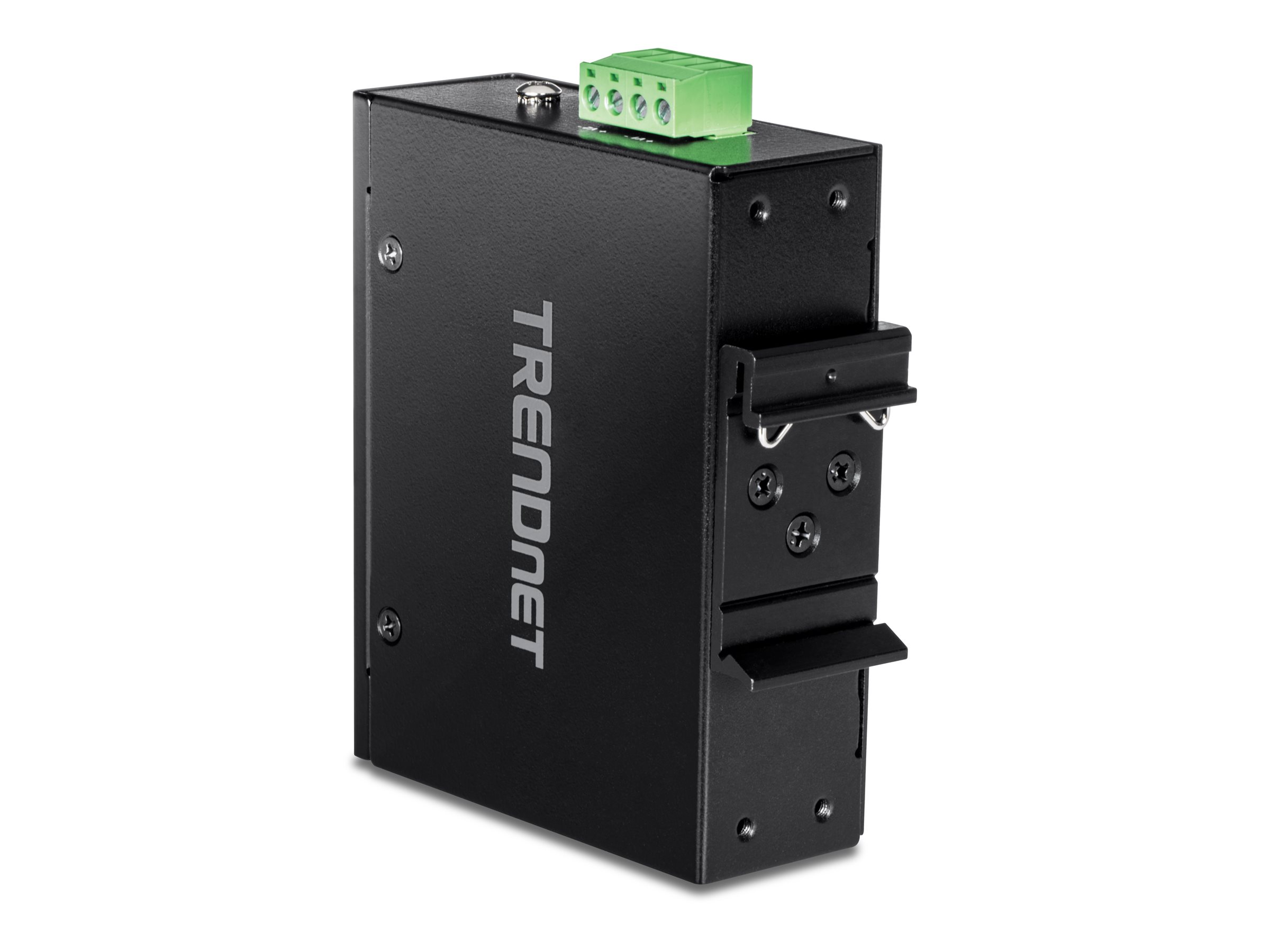

TRENDnet TI-IG290 Strøminjektor Monterbar på DIN rail Sort
TRENDnet TI-IG290 - Strøminjektor (monterbar på DIN rail) - 2,5 G, industriel - 95 Watt - output-stikforbindelser: 2 - TAA-kompatibel
-
Product no 1000955955
Model TI-IG290
Brand
Go to brand's websiteEAN 0710931162301
Weight 0.17 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TI-IG290 - strøminjektor - 2,5 G, industriel - 95 Watt - TAA-kompatibel |
| Enhedstype | Strøminjektor - monterbar på DIN rail |
| Power Over Ethernet (PoE) | PoE++ |
| Vægt | 170 g |
| Strømkapacitet | 95 Watt |

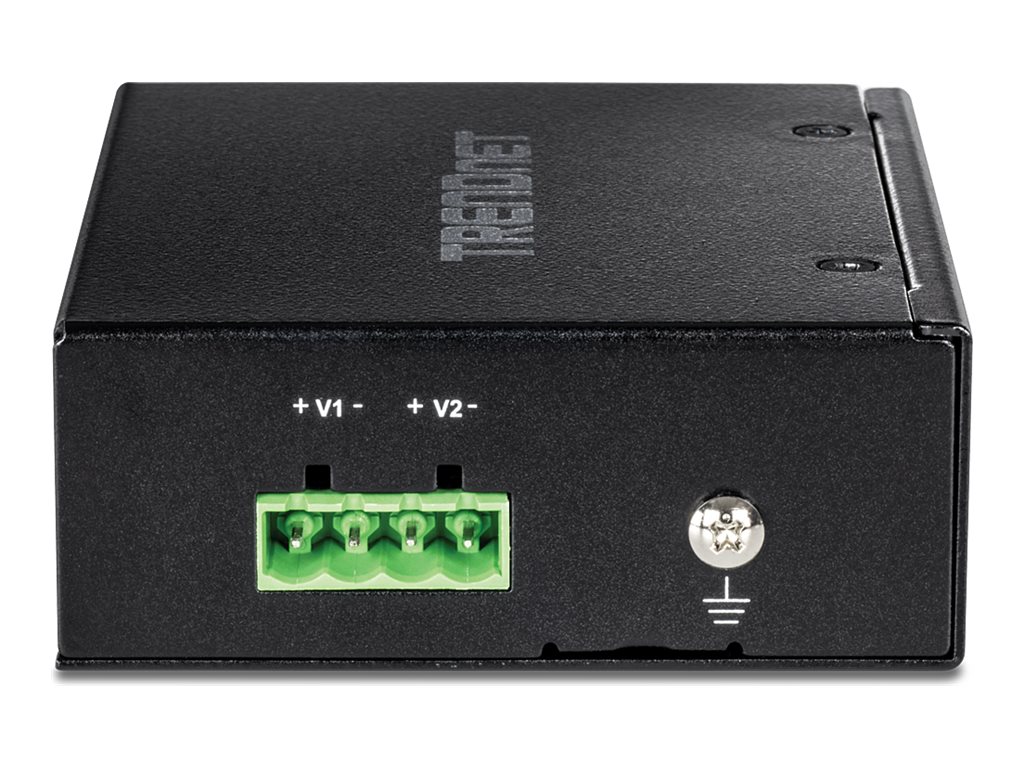

| Input-stik | 2 x 4-pin terminalblok |
| Output-stikforbindelser | 2 x RJ-45 |
| Udstyr inkluderet | Vægmonteringsbøjle, DIN-skinnebøjler |
| TAA kompatibel | TAA-kompatibel |
| Dimensioner (B x D x H) | 3 cm x 8.1 cm x 10.3 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Power Device | |
| Input Connectors | 2 x 4 pin terminal block |
| Input Voltage Range | DC 52 - 56 V |
| Power Capacity | 95 Watt |
| Power Output Connectors Details | 2 x RJ-45 |
| Surge Suppression | Yes |
| Expansion / Connectivity | |
| Interfaces | 2 x 1/2.5 Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt, FCC, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30 |
| Features | Wall mountable, fanless, metal housing, full duplex support, half duplex support, grounding point, LED indicators, overload protection, auto negotiating, 2 kV surge protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact), 180W PoE budget |

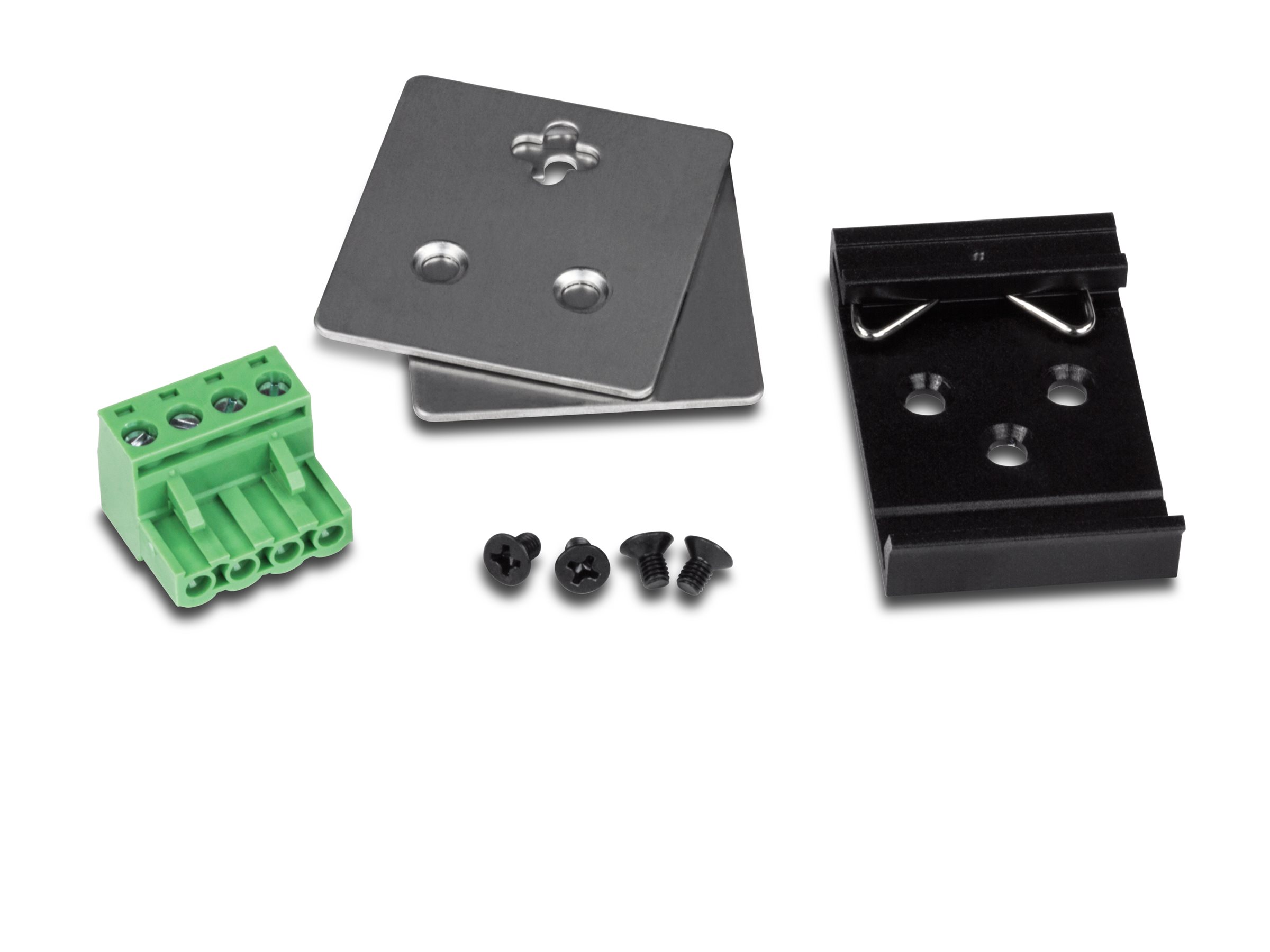

| Included Accessories | Wall mounting bracket, DIN-rail brackets |
| MTBF | 716,685 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Dimensions & Weight | |
| Depth | 8.1 cm |
| Height | 10.3 cm |
| Weight | 170 g |
| Width | 3 cm |
