Product no 990220917
Model TI-PG1284I
Brand
Go to brand's website
EAN 0710931160598
Weight 1.2 kg

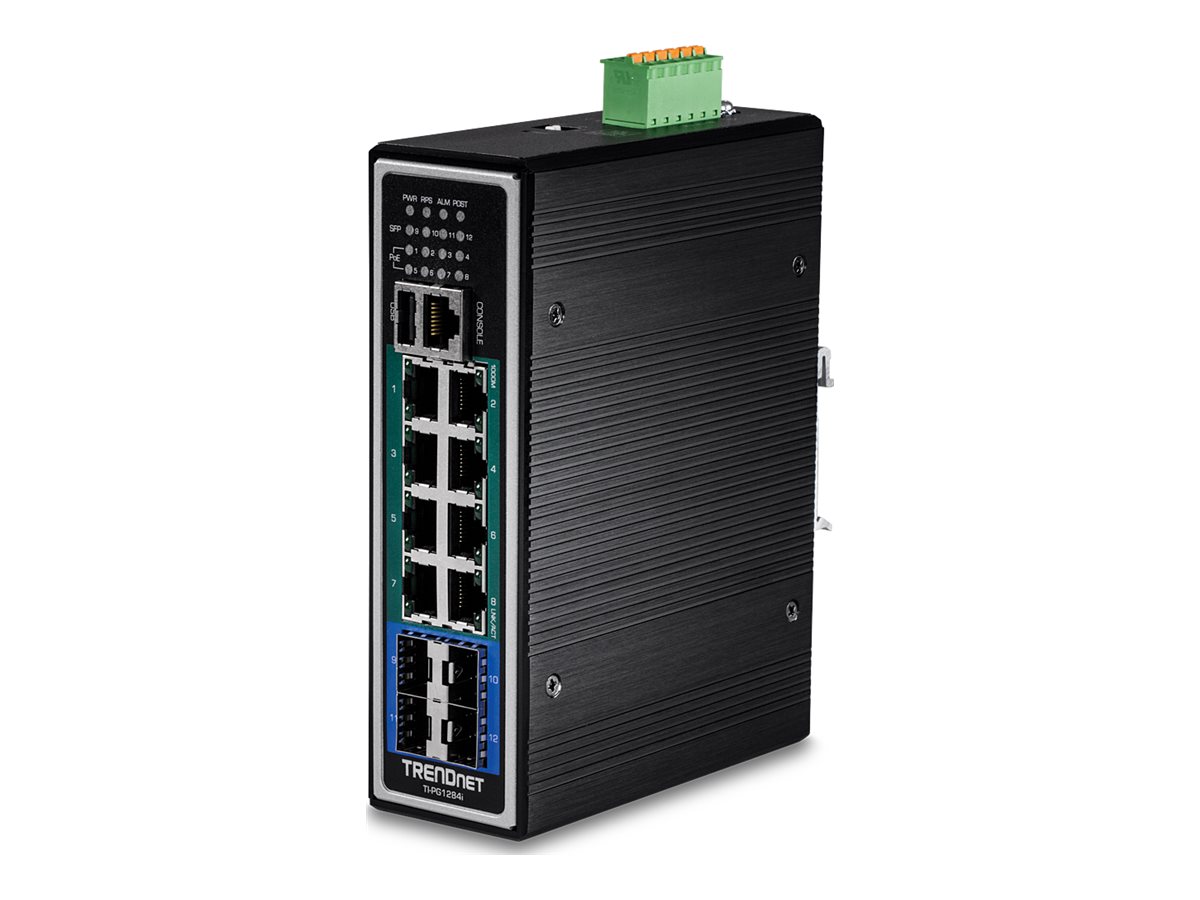

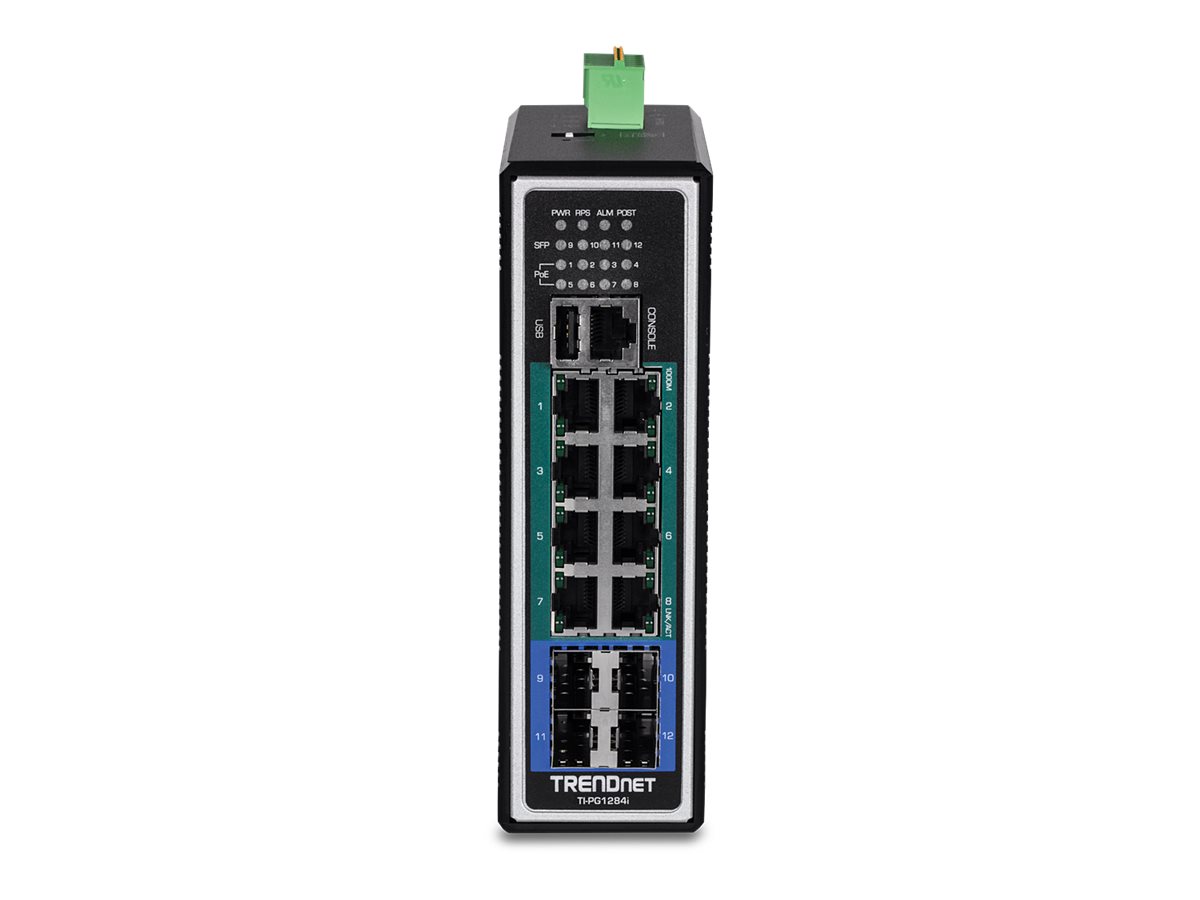

Produktbeskrivelse | TRENDnet TI-PG1284I - switch - 12 porte - Administreret - TAA-kompatibel |
Enhedstype | Switch - 12 porte - L2+ - Administreret |
Undertype | Gigabit Ethernet |
Porte | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE-budget | 240 W |
Præstation | Omkoblingskapacitet: 24 Gbps<br>Fremsendelsespræstation: 17.86 Mpps |
MAC adresse table størrelse | 16K indtastningshukommelse |
Jumborammesupport | 10KB |
Routingprotokol | IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Egenskaber | VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, Weighted Round Robin (WRR) kø, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, strømstødsbeskyttelse, Digital Diagnostics Monitoring Interface (DDMI), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, båndbreddekontrol, IPv4 support, DHCP videresendelse, IP-MAC binding, SNMP fælde, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Strict Priority Queuing (SPQ), indbygget DIP switch, Class of Service (CoS), autoprovisionering, Loopback, 8KV ESD Protector, IGMP proxy, DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), IGMP-filtrering, IP-kildebekyttelse, ARP-inspektion |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Effekt | AC 120/230 V (50/60 Hz) |
Overskudsspænding | Valgfri |
Dimensioner (B x D x H) | 5 cm x 13.2 cm x 17 cm |
Vægt | 920 g |
TAA kompatibel | Ja |
Producentgaranti | Begrænset livtidsgaranti |
General | |
---|---|
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Device Type | Switch - 12 ports - L2+ - managed |

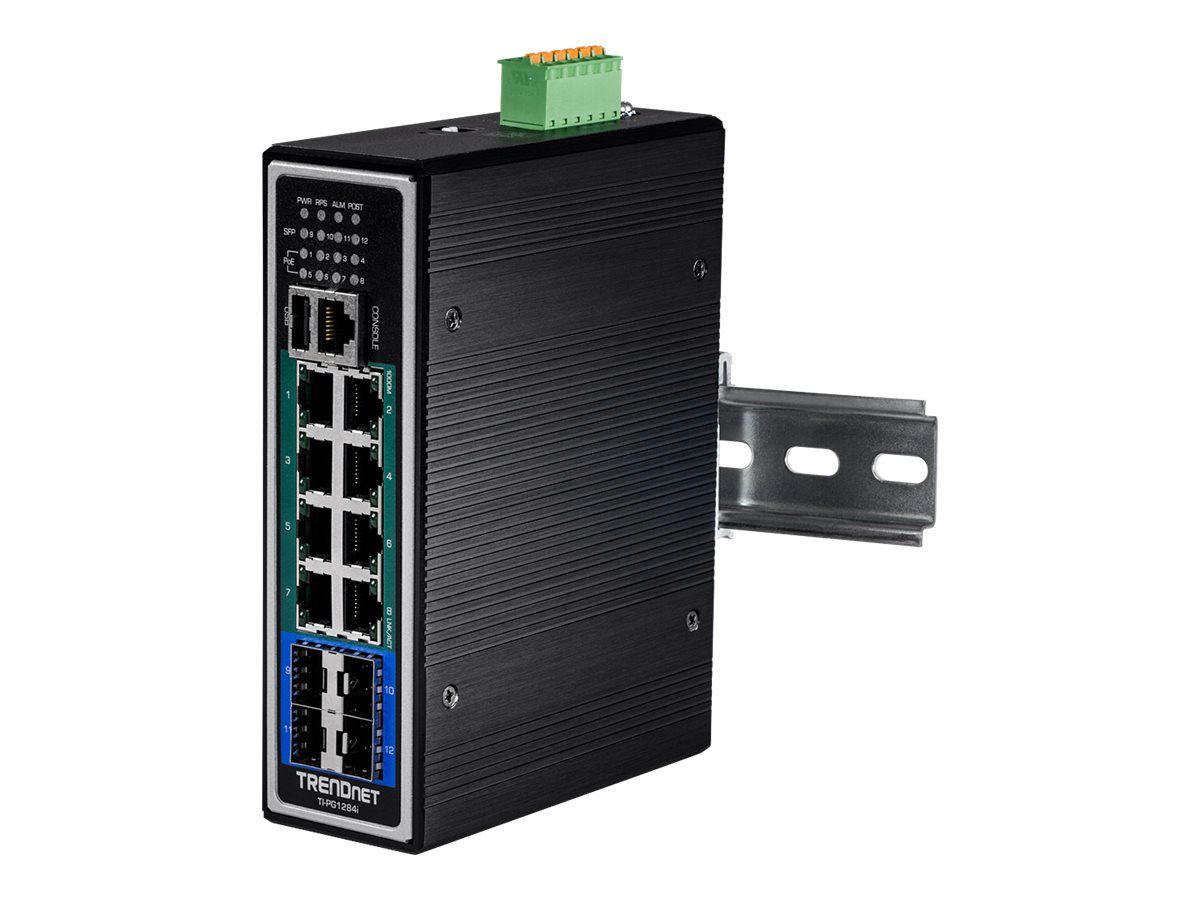

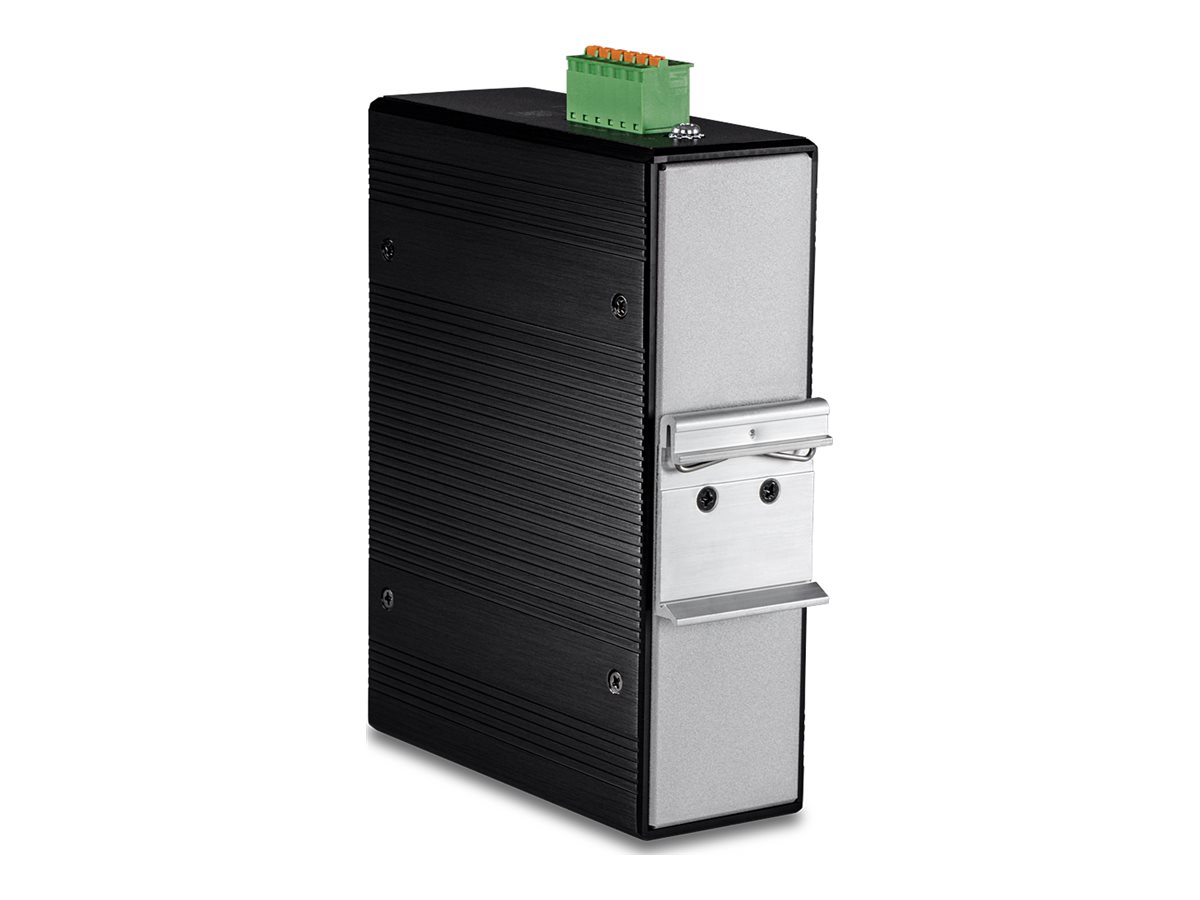

Enclosure Type | DIN rail mountable |
Encryption Algorithm | SSL, MODBUS |
Features | VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, half duplex mode, full duplex mode, SNTP support, surge protection, Digital Diagnostics Monitoring Interface (DDMI), Spanning Tree Protocol |
Jumbo Frame Support | 10KB |
MAC Address Table Size | 16K entries |
Performance | Switching capacity: 24 Gbps | Forwarding performance: 17.86 Mpps |
PoE Budget | 240 W |
Ports | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
RAM | 128 MB |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W | 1 x console RJ-45 | 4 x 1000Base-X SFP |
Power | |
Power Consumption Operational | 18 Watt |
Power Device | External power adapter |
Power Provided | 240 Watt |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |

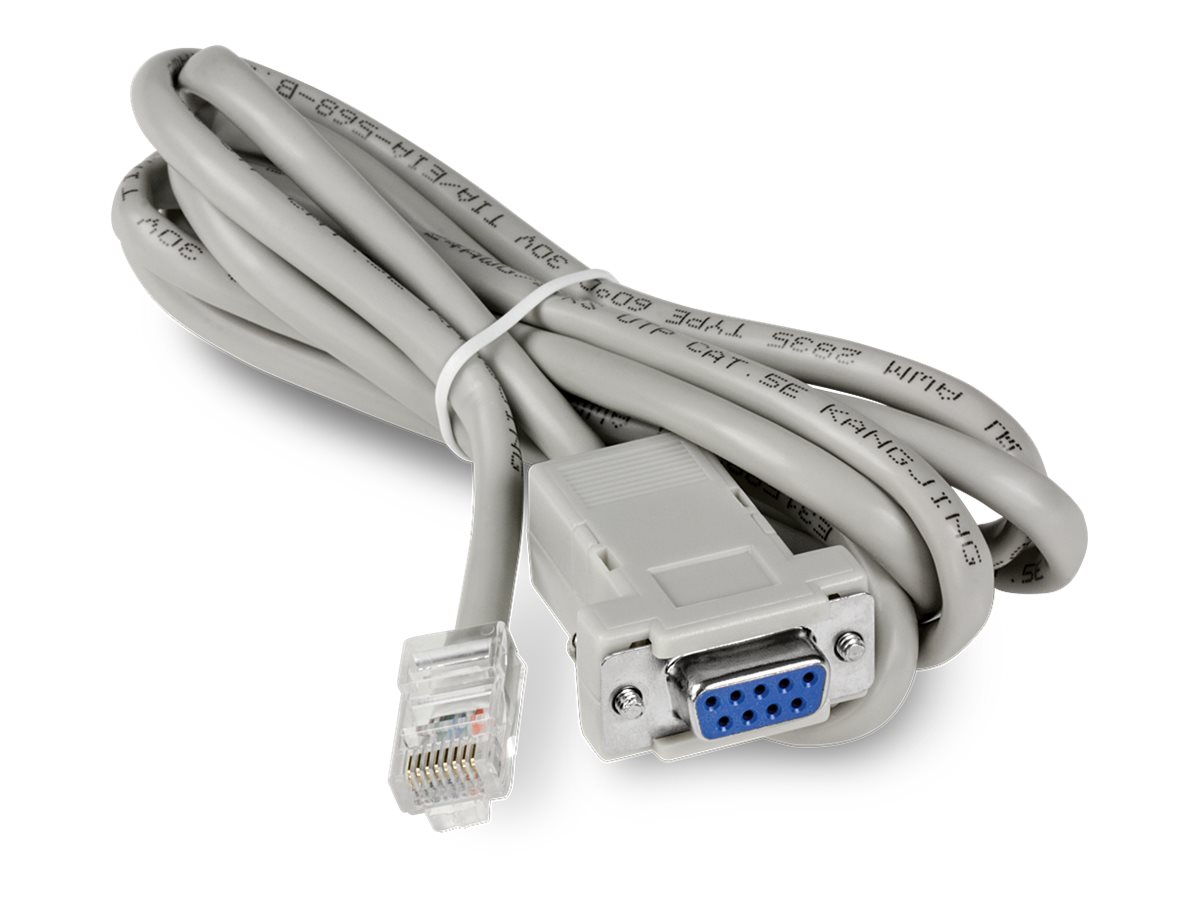

Cables Included | 1 x console cable |
Compliant Standards | FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, IEC 61000-6-2:2005 |
MTBF | 322,805 hours |
Dimensions & Weight | |
Depth | 13.2 cm |
Height | 17 cm |
Weight | 920 g |
Width | 5 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% (non-condensing) |
Max Operating Temperature | 75 °C |
Min Operating Temperature | -40 °C |
