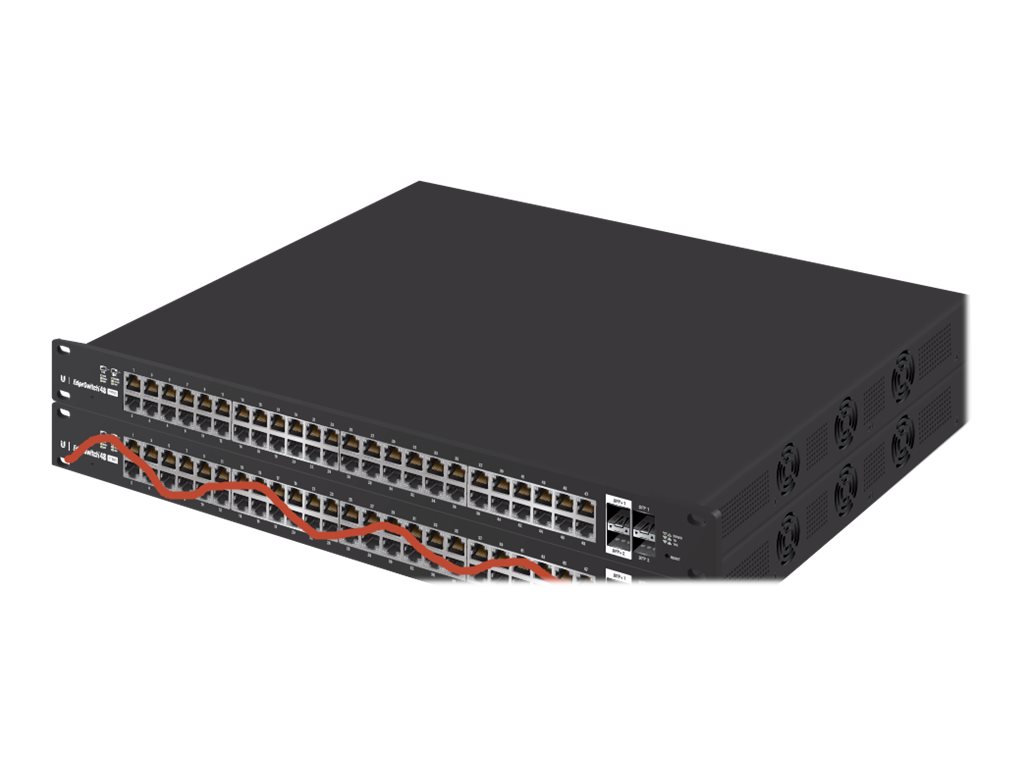

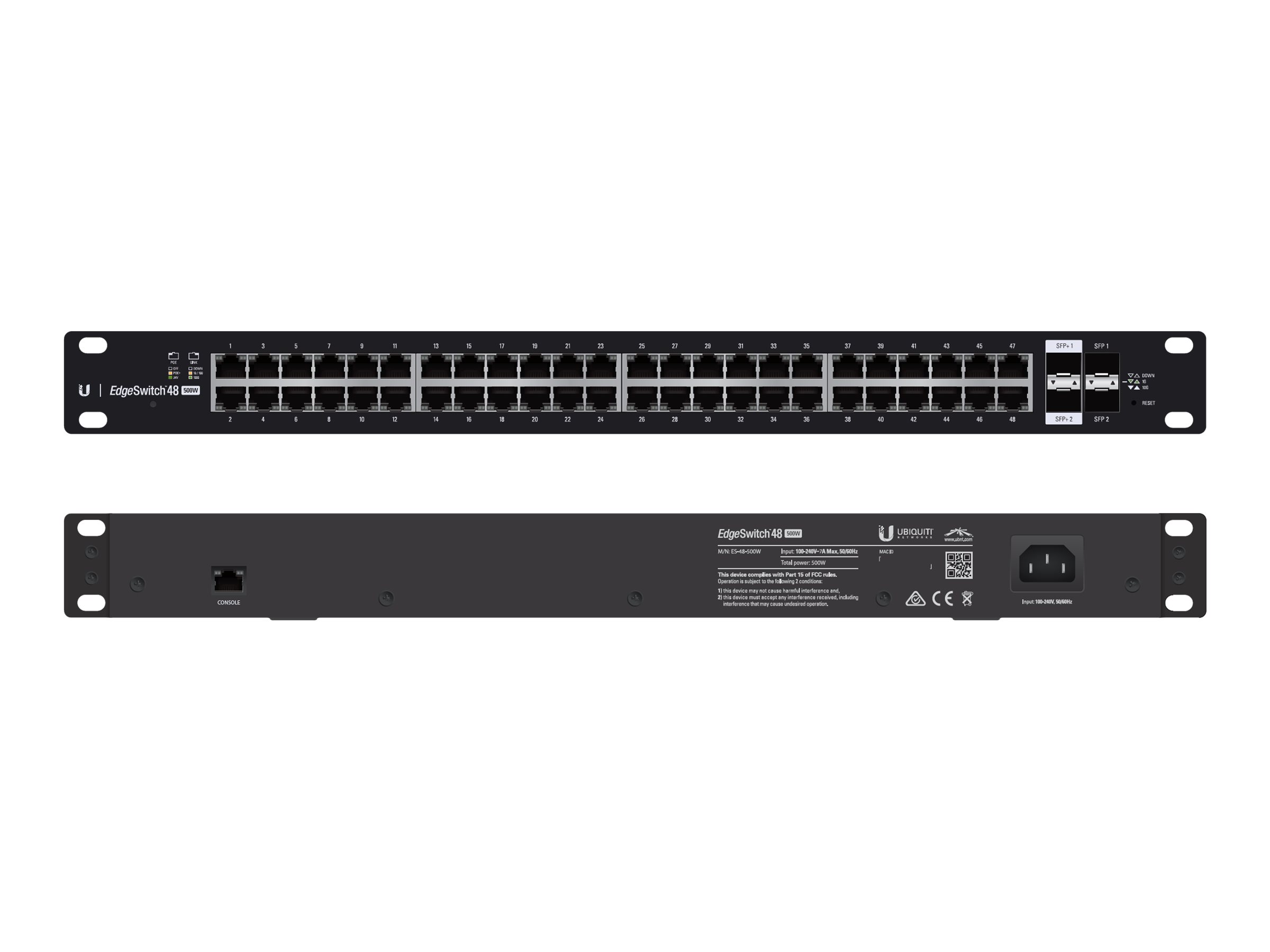

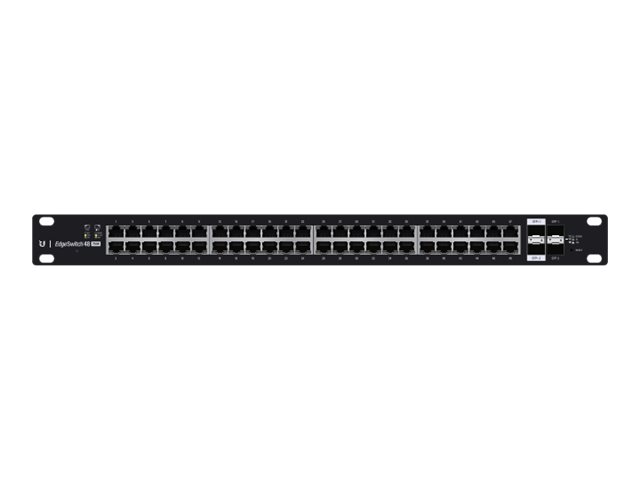

Ubiquiti EdgeSwitch 48 Switch 10 Gigabit PoE+
Ubiquiti EdgeSwitch 48 - Switch - Administreret - 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP - monterbar på stativ - PoE+
Product no:
989071954
Model:
ES-48-500W
EAN:
0810354022272
Brand:
Weight:
7.28 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Ubiquiti EdgeSwitch 48 - switch - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - Administreret
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
10 Gigabit Ethernet
|
|
Porte
|
48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Præstation
|
Non-blocking switching-kapacitet: 70 Gbps
|
|
Egenskaber
|
VLAN-understøttet, STP support, RSTP support, Jumbo Frames support, 24KV ESD Protector
|
|
Overensstemmelsesstandarder
|
IEEE 802.3af, IEEE 802.3at
|
|
Effekt
|
AC 120/230 V (50 - 60 Hz)
|
|
Dimensioner (B x D x H)
|
48.1 cm x 34.8 cm x 4.45 cm
|
|
Vægt
|
5.3 kg
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3af, IEEE 802.3at
|
|
Device Type
|
Switch - managed
|
|
Enclosure Type
|
Rack-mountable 1U
|
|
Features
|
VLAN support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Jumbo Frames support, 24KV ESD Protector
|
|
Performance
|
Non-blocking switching capacity: 70 Gbps
|
|
Ports
|
48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Status Indicators
|
Port status, port transmission speed, PoE, link/activity
|
|
Subtype
|
10 Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
48 x 1000Base-T RJ-45 PoE+ | 2 x SFP+ | 2 x SFP
|
|
Power
|
|
|
Power Consumption Operational
|
500 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50 - 60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC
|
|
Dimensions & Weight
|
|
|
Depth
|
34.8 cm
|
|
Height
|
4.45 cm
|
|
Weight
|
5.3 kg
|
|
Width
|
48.1 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
-5 °C
|
Media
