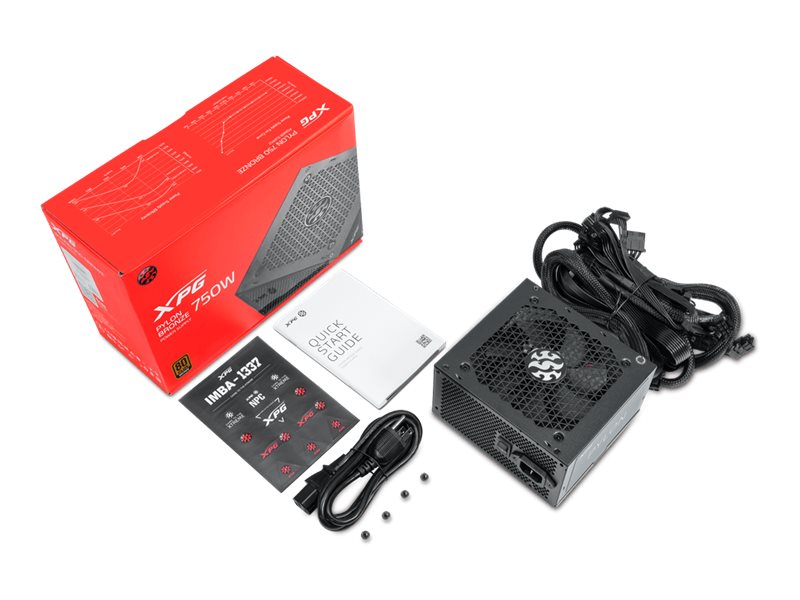

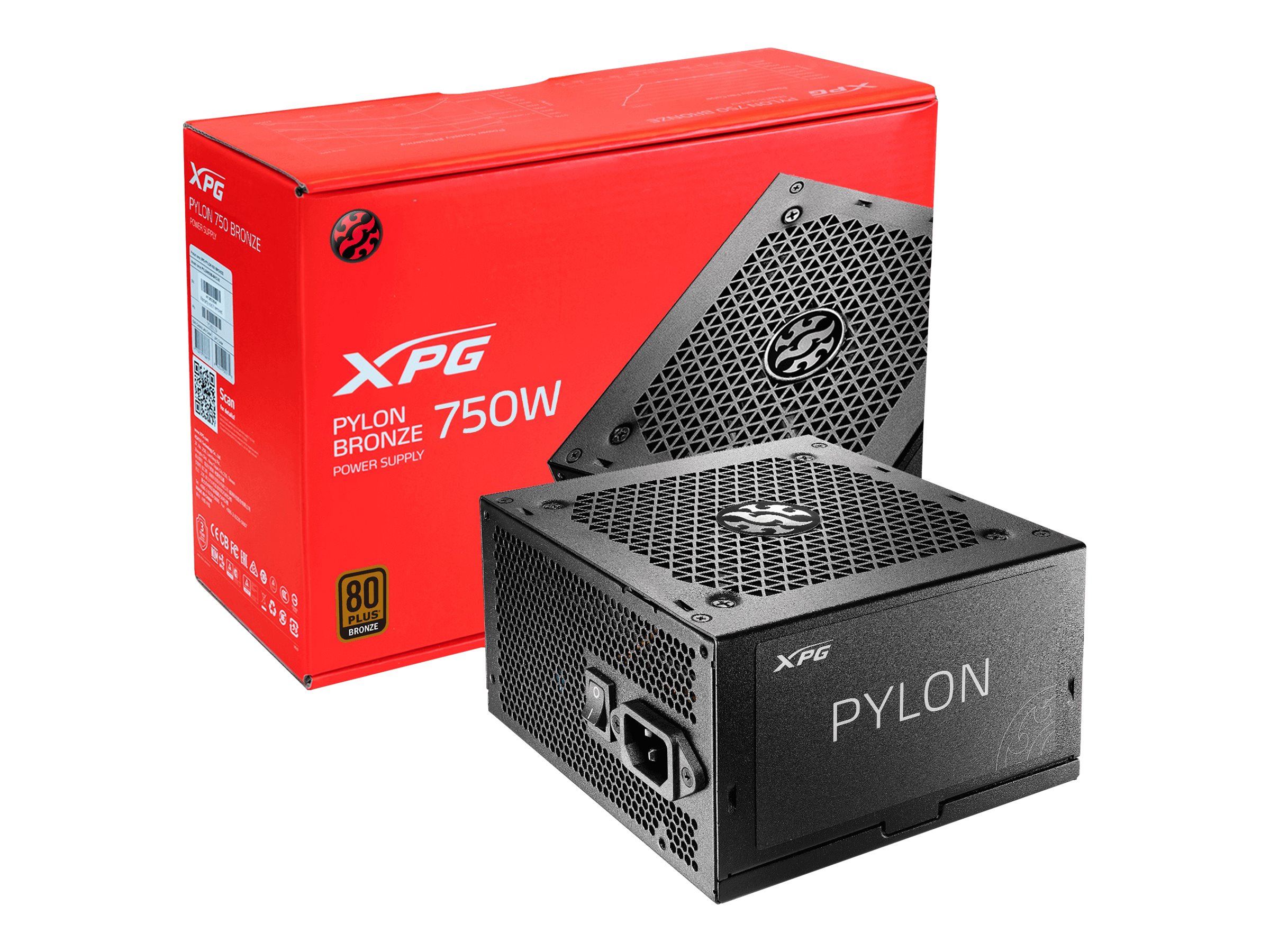

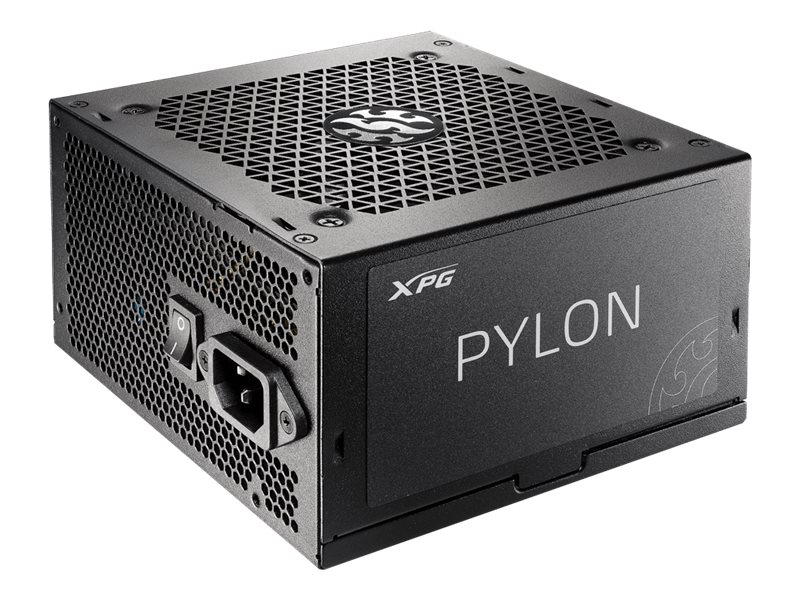

XPG PYLON Strømforsyning 750Watt
XPG PYLON - Strømforsyning (intern) - ATX12V 2.52 - 80 PLUS Bronze - AC 90-264 V - 750 watt - Europa
-
Product no 998672578
Model PYLON750B-BKCEU
Brand ADATA Technology
EAN 4710273776965
Weight 1.6 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | XPG PYLON - strømforsyning - 750 watt |
| Enhedstype | Strømforsyning - intern |
| Specifikationsoverensstemmelse | ATX12V 2.52 |
| 80 PLUS certificering | 80 PLUS Bronze |
| Lokalisering | Europa |
| Indgangspænding | AC 90-264 V |
| Strømkapacitet | 750 watt |
| Output-stikforbindelser | 2 x strøm 24 pin ATX<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>8 x 15 pin Serial ATA strøm<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Kølesystem | 120 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Power supply - internal |
| Localization | Europe |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.52 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 90-264 V |
| Power Capacity | 750 Watt |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details | 2 x power 24 pin ATX | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 8 x 15 pin Serial ATA power | 4 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power | 1 x 4 pin mini-power connector |
| Miscellaneous | |
| Compliant Standards | TUV, BSMI, TUV S, CCC, EMC, FCC, RoHS, cTUVus, EAC, RCM, Energy-Related Products (ErP) Lot 3, CB 60950, CB 62368 |
| Cooling System | 120 mm fan |
| Features | Overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, no load operation protection, Surge & Inrush Protection (SIP) |
| MTBF | 100,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.6 cm |
| Width | 15 cm |
