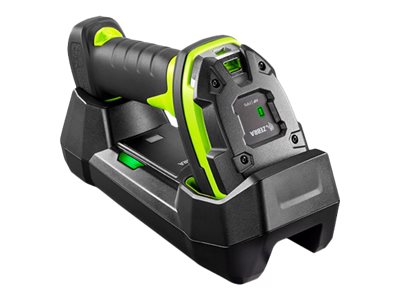

Zebra DS3678-ER Stregkodescanner

Zebra DS3678-ER - Stregkodescanner - bærbar - 2D imager - afkodet - tastaturkile, RS-232, USB, Bluetooth 4.0

Product no: 991788094
Model: DS3678-ER3U42A2SVW
EAN: 5711783787266
Brand:
Zebra Technologies
Weight: 1.65 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Zebra DS3678-ER - stregkodescanner
Type
Stregkodescanner - bærbar - tastaturkile, RS-232, USB, Bluetooth 4.0 - afkodet
Farve
Industriel grøn
Min. linjebredde
3 mil
Scanningskomponenttype
2D imager
Forbindelsesteknologi
Trådløs, kablet
Trådløs tilslutning
Bluetooth 4.0 LE
Batteri
1 x Litiumion
Dimensioner (B x D x H)
7.7 cm x 14.3 cm x 18.5 cm
Vægt
436 g
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Color
Industrial green
Type
Barcode scanner - portable
Barcode
Connectivity Technology
Wireless, wired
Decode Capability
GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, TLC39, Micro QR code, China Han Xin Code
Features
Rugged
Interface Type
Keyboard wedge, RS-232, USB, Bluetooth 4.0
Minimum Bar Width
3 mil
OK Notification
Beeper, LED indicator, vibration
Pitch (Degrees)
60
Scan Element Type
2D imager
Scan Mode
Single-pass
Skew (Degrees)
60
TTL Decoding
Decoded
Networking
Wireless Connectivity
Bluetooth 4.0 LE
Expansion / Connectivity
Interfaces
1 x USB | 1 x keyboard wedge | 1 x RS-232
Miscellaneous
Cables Included
1 x USB cable - external
Compliant Standards
UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2
Included Accessories
Cradle
Power
Battery
1 x lithium ion
Power Device
Power adapter
Dimensions & Weight
Depth
14.3 cm
Height
18.5 cm
Weight
436 g
Width
7.7 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Drop Specification
2.4 m to concrete
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
-20 °C

Media
