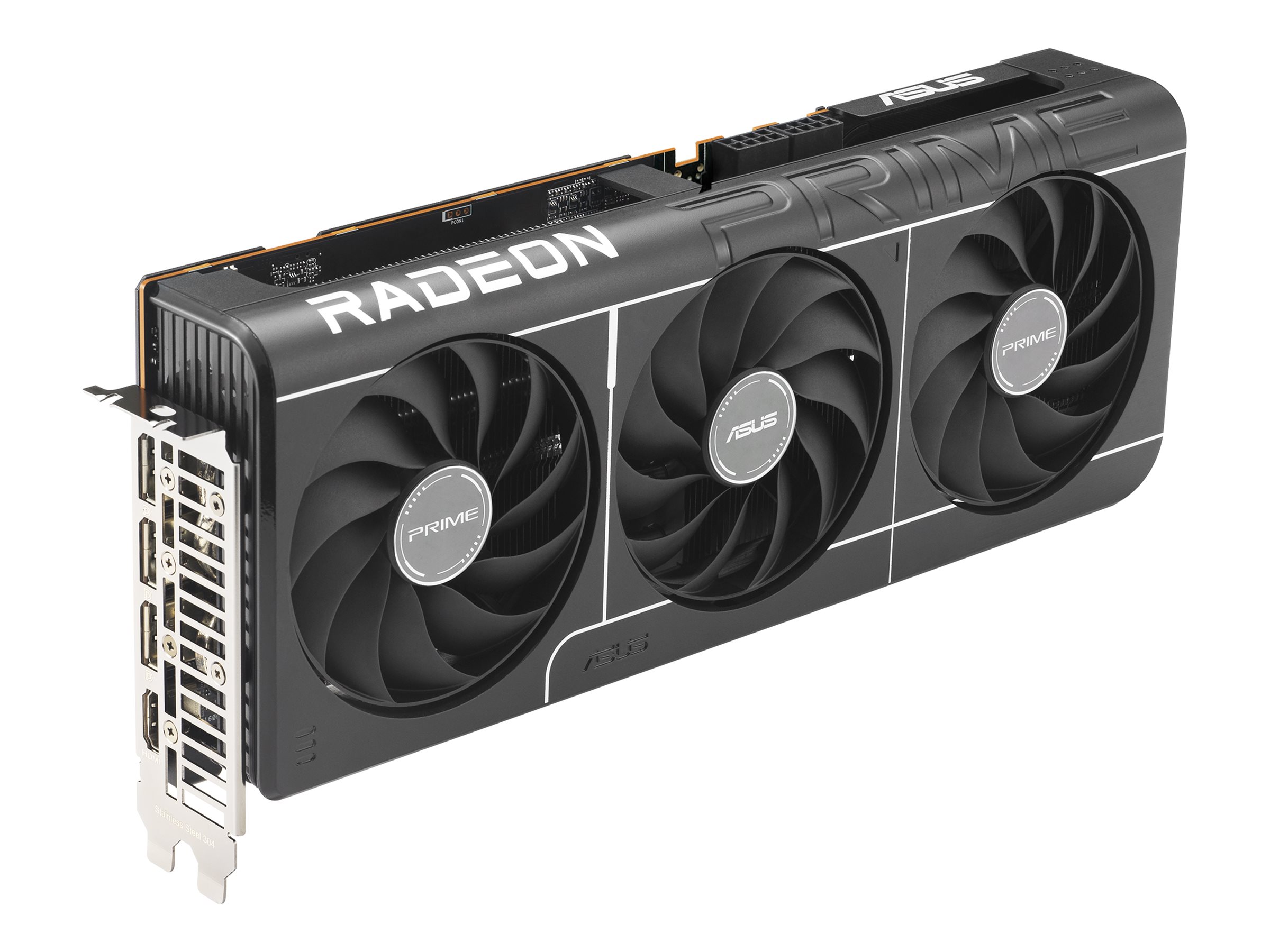

ASUS Prime Radeon RX 9070 16GB 16GB OC Edition

ASUS Prime Radeon RX 9070 16GB - OC Edition - grafikkort - Radeon RX 9070 - 16 GB GDDR6 - PCI Express 5.0 - 3 x DisplayPort, HDMI

  • Product no 1003147184

    Model PRIME-RX9070-O16G

    Brand ASUSTeK COMPUTER
    Go to brand's website

    EAN 4711387829592

    Weight 1.75 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse ASUS Prime Radeon RX 9070 16GB - OC Edition - grafikkort - Radeon RX 9070 - 16 GB
Enhedstype Grafikkort
Bus Type PCI Express 5.0
Grafik engine AMD Radeon RX 9070
Hukommelse 16 GB GDDR6
Hukommelseshastighed 20 Gbps
Strømprocessorer 3584
Hukommelses interface 256-bit
Maksimum opløsning 7680 x 4320
Maks. antal understøttede monitorer 4
Interfacedetaljer 3 x DisplayPort<br>HDMI
API-understøttet OpenGL 4.6
Dimensioner (B x D x H) 5 cm x 31.2 cm x 13 cm
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6
slide {0} of {1}, zoom in, ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6

PRIME RADEON™ RX 9070

PRIMED FOR POWER

Experience Primal performance with the Prime Radeon™ RX 9070 graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a phase-change GPU thermal pad and a triple-fan setup for supreme cooling.
Product image
Angled top down view of the Prime Radeon RX 9070 XT graphics card hero angle

Cooling

2.5-slot Design

The Prime Radeon™ RX 9070 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades

Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

Axial-Tech Fan Upgrades Video

0 dB Technology

All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.

Prime Radeon RX 9070 XT fan illustration

Dual Ball Fan Bearings

Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

Prime Radeon RX 9070 XT dual ball fan bearings

Vented Backplate

Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Prime Radeon RX 9070 XT card backplate vent

MaxContact Design

MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.



Phase-Change GPU Thermal Pad

By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.


Unmatched Reliability

ASUS GPU Guard & Bracket
Prime Radeon RX 9070 XT card backplate
Prime Radeon RX 9070 XT card bracket

ASUS GPU Guard & Bracket

ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective Backplate

The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket

The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.

Engineering

Prime Radeon RX 9070 XT card PQ mode

Dual BIOS

Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
Auto−Extreme Technology

Auto−Extreme Technology

An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

BEST PSU FOR RADEON™ RX 9000 SERIES

Use the wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.

Software

GPU Tweak III

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It lets you tweak critical parameters including GPU core clocks, memory frequency and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

GPU Tweak III User Interface

One Month of Free Adobe Creative Cloud

Enjoy all things AI at Adobe. Get complimentary membership to Adobe Creative Cloud with the purchase of select ASUS products, granting you access to all Adobe apps and Substance 3D.

Monitor on a desk, with Adobe product logos floating around the monitor

ALL YOU NEED FOR ULTRA-FAST GAMING

Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon™ RX 9000 Series Graphics are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX6 to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 41, delivering an immersive gaming experience now and for years to come.

Icon of AMD Radeon graphics cards

SUPERPOWERED VISUALS ENHANCED WITH AI

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 41 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.

Focused icon of AMD Radeon

INSTANT PERFORMANCE FOR EVERY MOVE

Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX6 in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution1, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.

Image of Avatar

SFUTURE READY TECH WITH AI

AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology3 to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support, and up to 16GB of video memory to experience AAA games in all their visual glory, now and for years to come.

Image of a full AMD PC build with a gaming monitor
  • 1. AMD FidelityFX Super Resolution (FSR) versions 1, 2, 3, and 4 are available on select games which require game developer integration and are supported on select AMD products. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendors' graphics cards. See https://www.amd.com/en/technologies/fidelityfx-super-resolution for additional information. GD-187b.
  • As of March 2023, Radeon Super Resolution (RSR) is compatible with Radeon RX 5000 series graphics and newer and works with games that support exclusive full-screen mode. AMD Software: Adrenalin Edition 22.3.1 or newer is required. For additional information, visit www.amd.com/rsr. GD-197.
  • AMD smart technologies, including AMD SmartAccess Graphics, SmartAccess Storage, SmartAccess Video, SmartShift Eco, and SmartShift Max may require OEM or developer enablement and are available with select configurations only. Select additional AMD hardware is required. For additional information see https://www.amd.com/en/graphics/amd-radeon-rx-laptops. GD-216.
  • Video codec acceleration (including at least the HEVC (H.265), H.264, VP9, and AV1 codecs) is subject to and not operable without inclusion/installation of compatible media players. GD-176
  • AMD Noise Suppression works on AMD Ryzen™ 6000 Series processors with integrated graphics, and AMD Radeon™ RX 6000 Series desktop graphics and newer. AMD Noise Suppression requires AMD Software: Adrenalin Edition™ 22.7.1 and newer and may not install on systems equipped with Realtek ACP-based ANR. GD-213
  • AMD HYPR-RX works on the AMD Radeon™ RX 7000 Series GPUs and newer or the Ryzen 7040 Series APUs with integrated RDNA 3 graphics and newer. AMD HYPR-RX allows various features within AMD Software interoperate, working at the same time, including Radeon Super Resolution, FidelityFX Super Resolution, Radeon Anti-Lag, Radeon Boost, and AMD Fluid Motion Frames where applicable to select titles. GD-225A.
  • Radeon™ Boost is compatible with Windows 10 and 11 in select titles only. Hardware compatibility includes RX 400 and newer consumer dGPUs, Ryzen 2000 and newer APUs, including hybrid and detachable graphics configurations. No mGPU support. Radeon™ Boost VRS compatible with AMD Radeon™ RX 6000 Series Graphics exclusively. For a list of compatible titles see https://www.amd.com/en/technologies/radeon-boost GD-158
  • Radeon™ Anti-Lag is compatible with DirectX 9, DirectX 11 and DirectX 12 APIs, Windows 10 and 11. Hardware compatibility includes Polaris and newer consumer dGPUs Ryzen 2000 and newer APUs, including hybrid and detachable graphics configurations. No mGPU support. GD-157
  • AMD Fluid Motion Frames, or AFMF, is a frame generation technology designed to increase frame rates and smooth movement for game winning performance with minimal impact to image quality. AFMF is integrated into AMD Software and currently supports the Radeon RX 6000 and 7000 series graphics cards. GD-234
    • © Pearl Abyss Corp. All Rights Reserved.
    © 2024 MARVEL
    © 1997-2024 NetEase,Inc. All Rights Reserved
    © 2024 Activision Publishing, Inc. ACTIVISION, CALL OF DUTY, and CALL OF DUTY BLACK OPS are trademarks of Activision Publishing, Inc. All other trademarks and trade names are the property of their respective owners.
    © 2025 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, AMD Radiance Display, AMD Smart Access Memory, RDNA, Ryzen, Radeon, and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies.
    logo list of PEARL ABYSS, ACTIVISION, MARVEL
    HDMI
    • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
    • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
    • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
    • PCB color and bundled software versions are subject to change without notice.
    • Brand and product names mentioned are trademarks of their respective companies.
    • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
