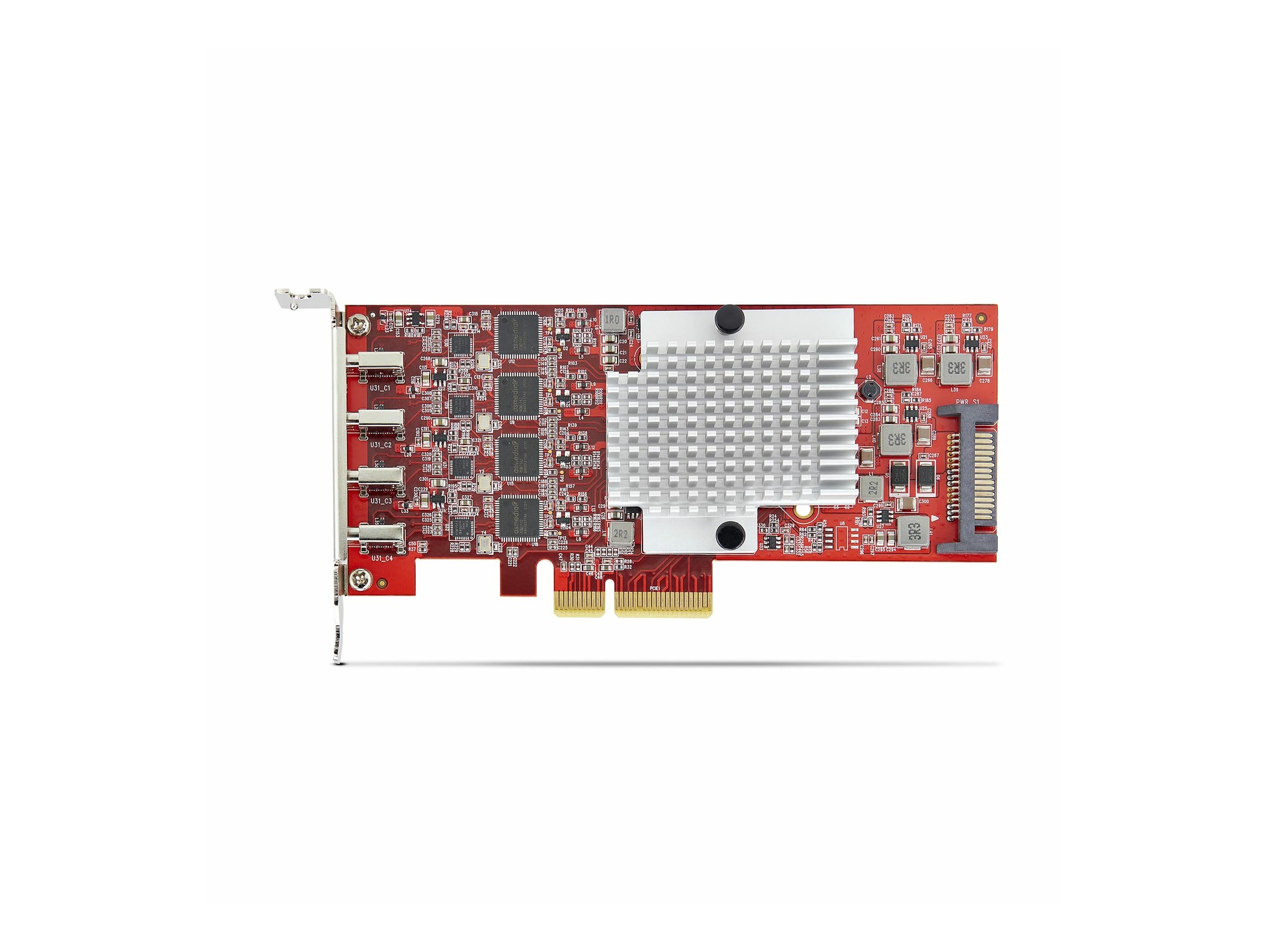

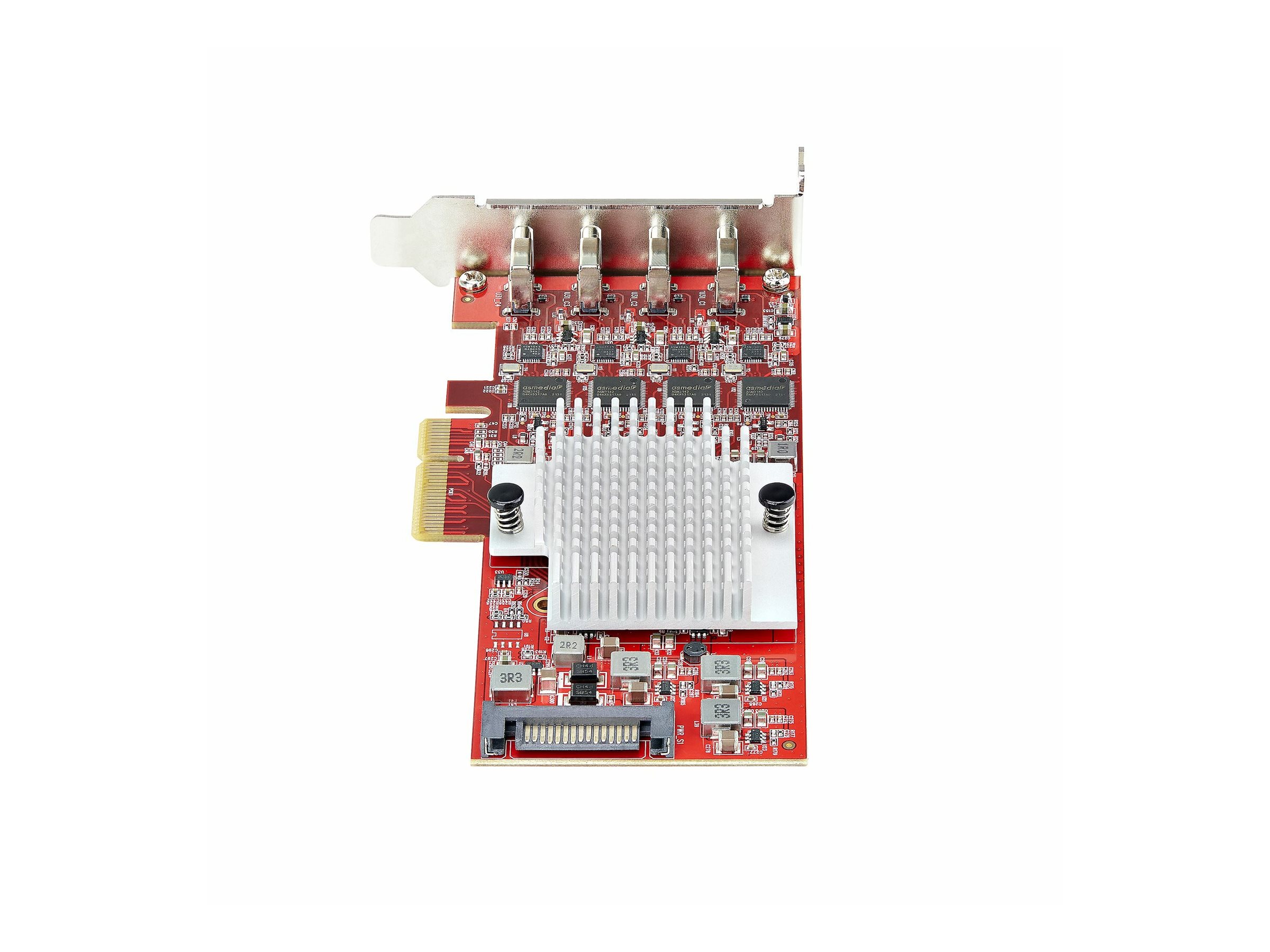

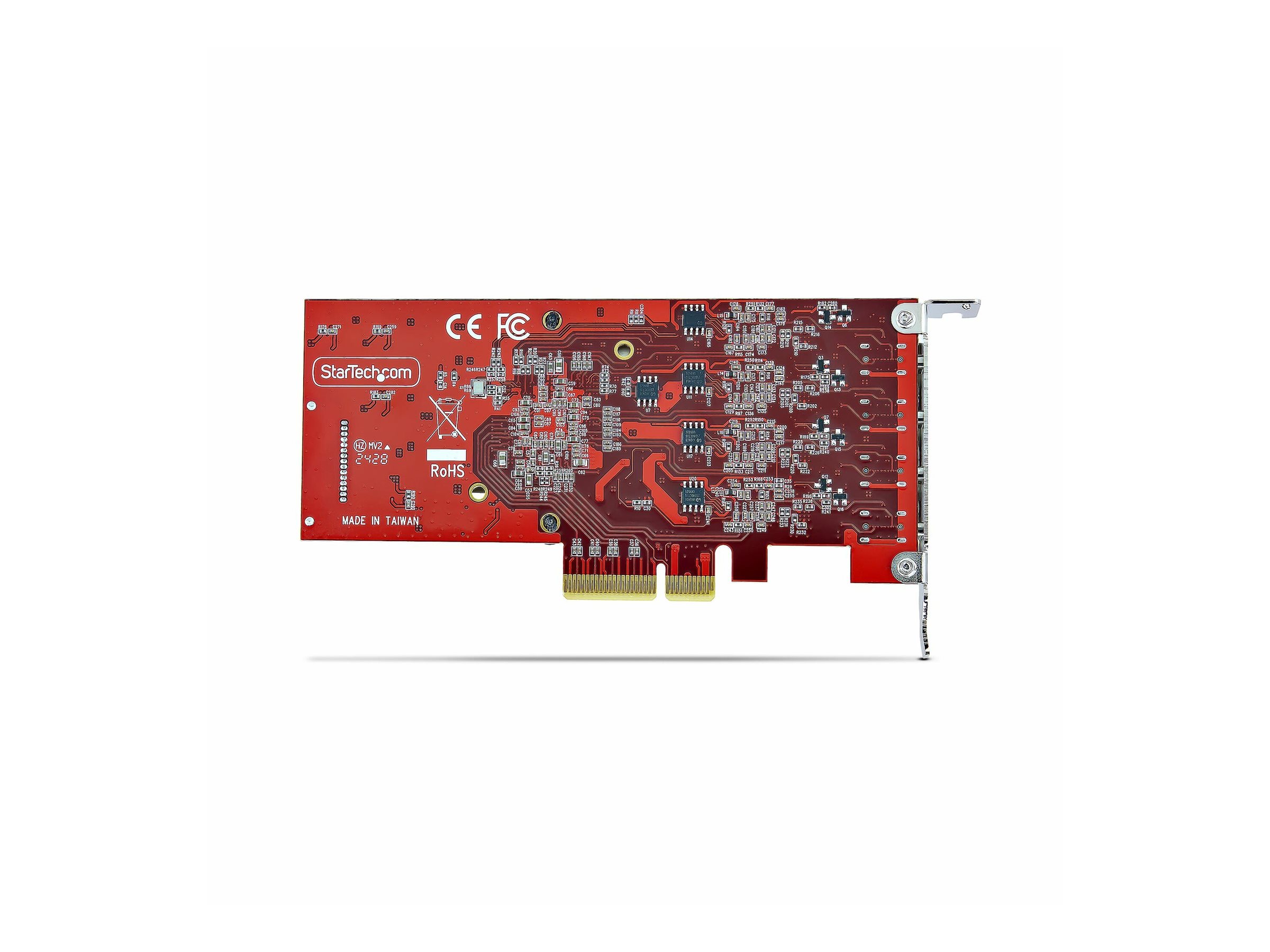

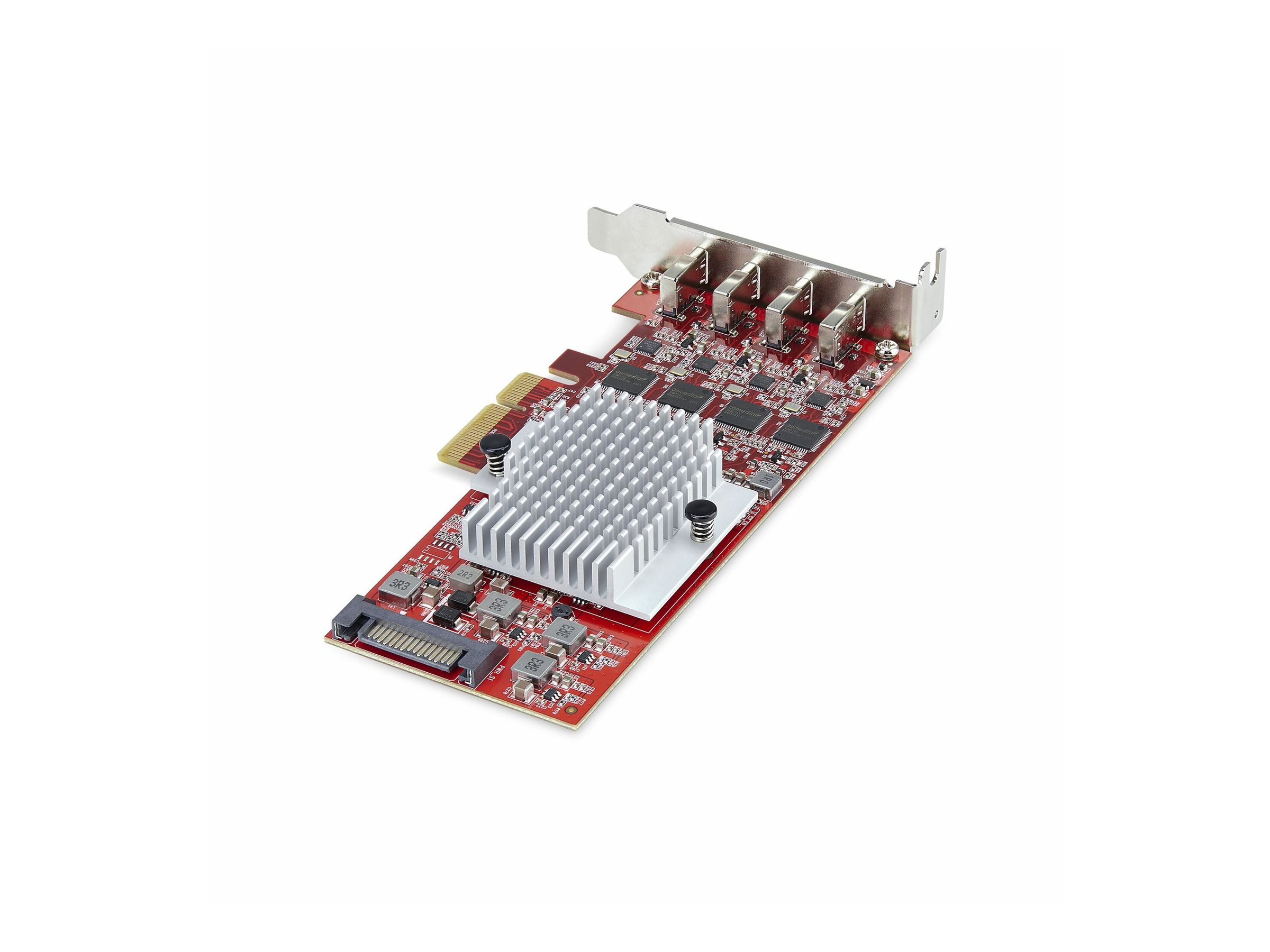

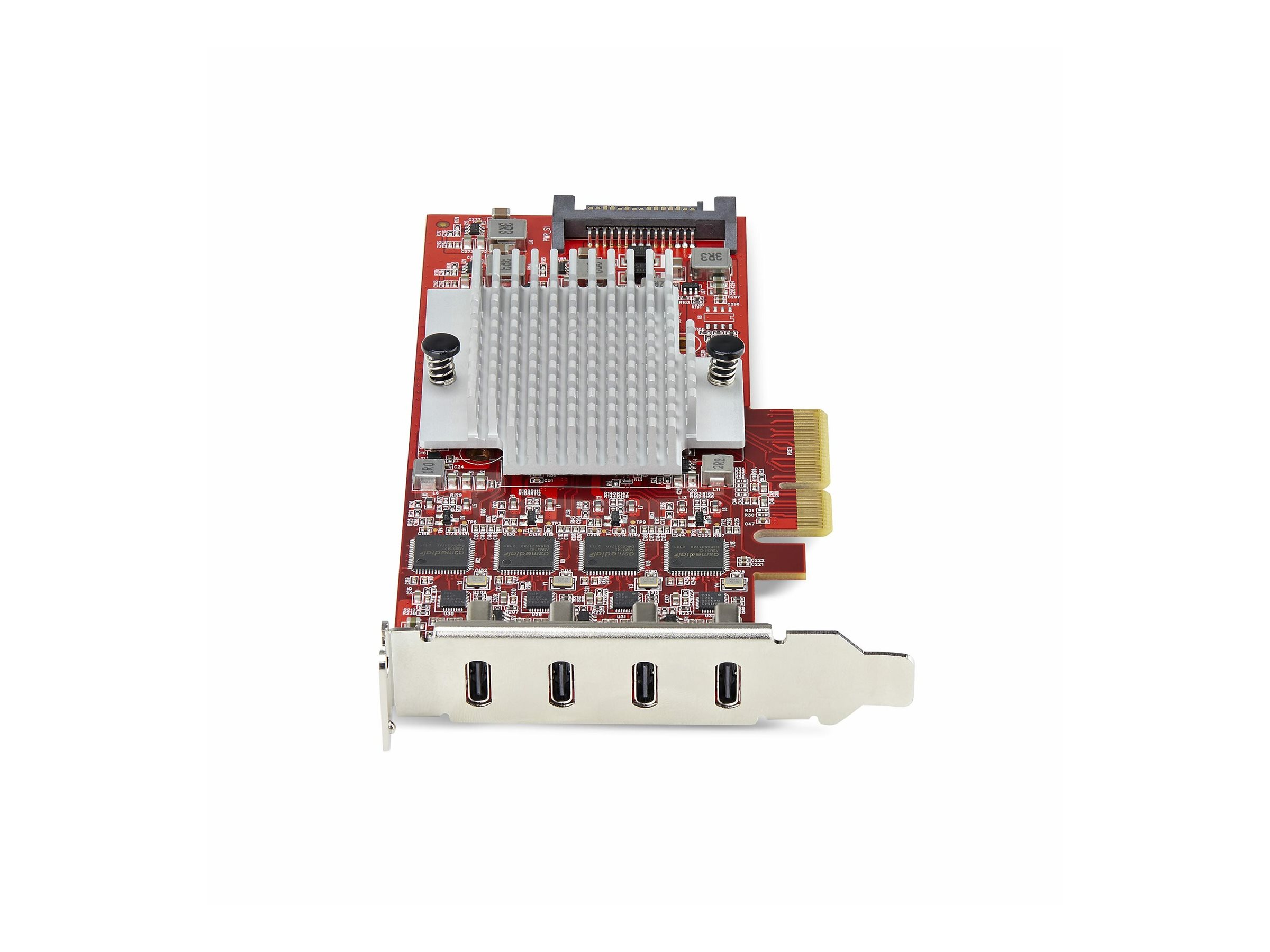

StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA USB-adapter PCI Express 3.0 x4 10Gbps

StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA - USB-adapter - PCIe 3.0 x4 lavprofil - USB-C 3.2 Gen 2 x 4 - TAA-kompatibel

  • Product no 1003436823

    Model P10Q4C-USB-CARD-LP

    Brand StarTech.com

    EAN 0065030920292

    Weight 0.16 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA - USB-adapter - PCIe 3.0 x4 - USB-C 3.2 Gen 2 x 4 - TAA-kompatibel
Enhedstype USB-adapter
Model Indstikskort - lavprofil
Grænseflade (bus) type PCI Express 3.0 x4
Porte USB-C 3.2 Gen 2 x 4
Dimensioner (B x D x H) 5.62 cm x 14 cm x 7.92 cm
Vægt 100 g
Dataforbindelsesprotokol USB-C
Dataoverførselshastighed 10 Gbps
Overensstemmelsesstandarder USB 1.1, USB 2.0, USB 3.0, USB 3.1, USB 3.2
Systemkrav Linux 2.6.31 eller senere, Microsoft Windows 10 / 11, Microsoft Windows Server 2019/2022 Standard, Apple macOS Sequoia 15.x, Apple macOS Sonoma
TAA kompatibel Ja
Producentgaranti 2 års garanti

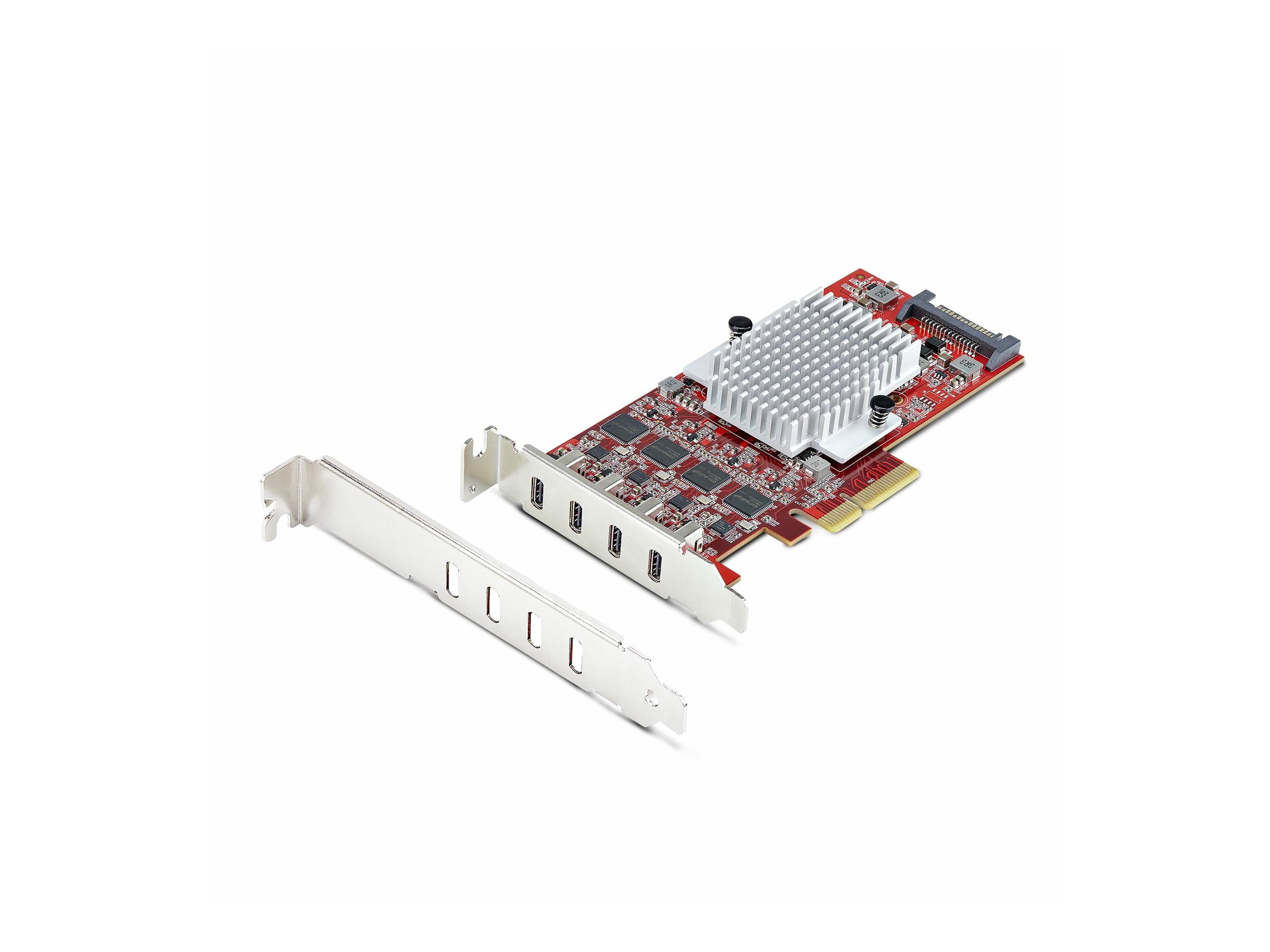

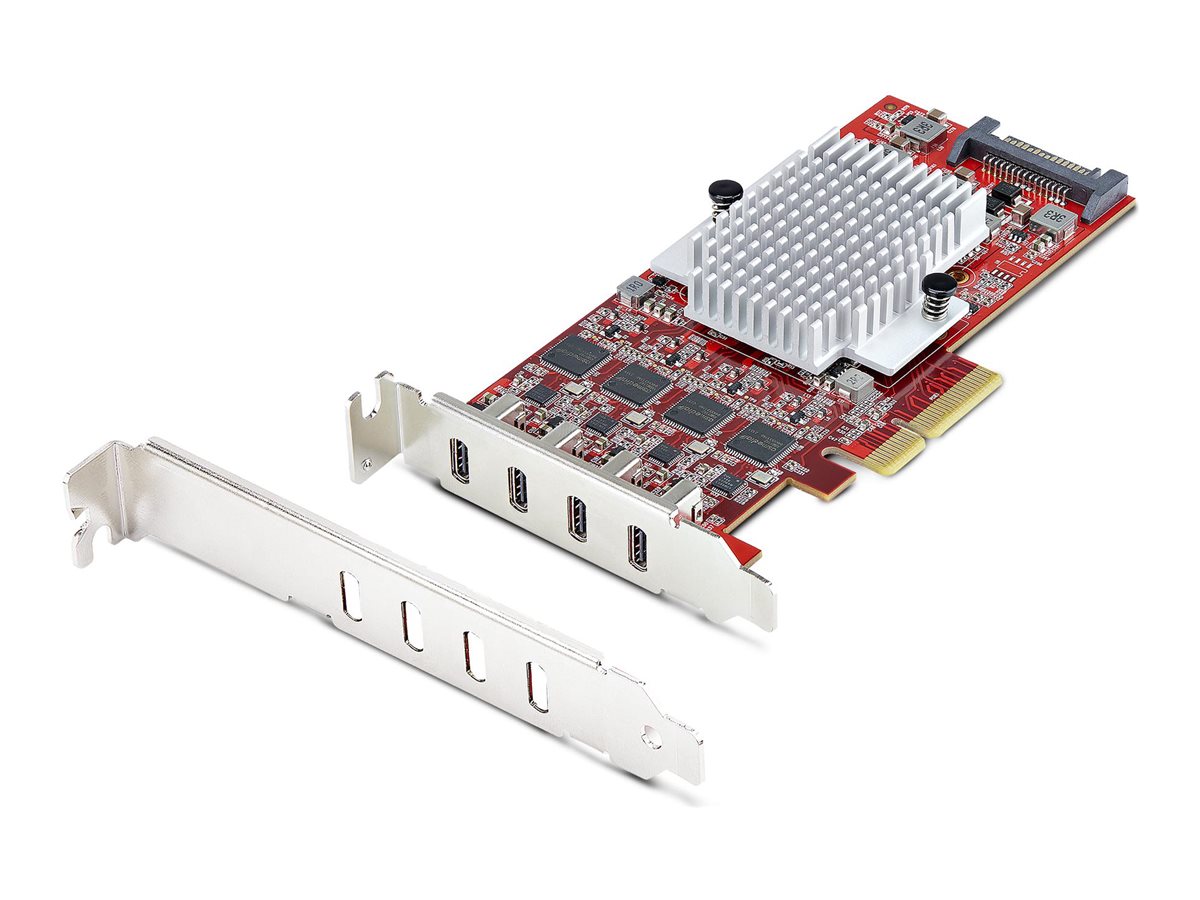

4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA

slide {0} of {1}, zoom in, 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
slide {0} of {1}, zoom in, 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
slide {0} of {1}, zoom in, 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
slide {0} of {1}, zoom in, 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
slide {0} of {1}, zoom in, 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
slide {0} of {1}, zoom in, 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
slide {0} of {1}, zoom in, 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
slide {0} of {1}, zoom in, 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA

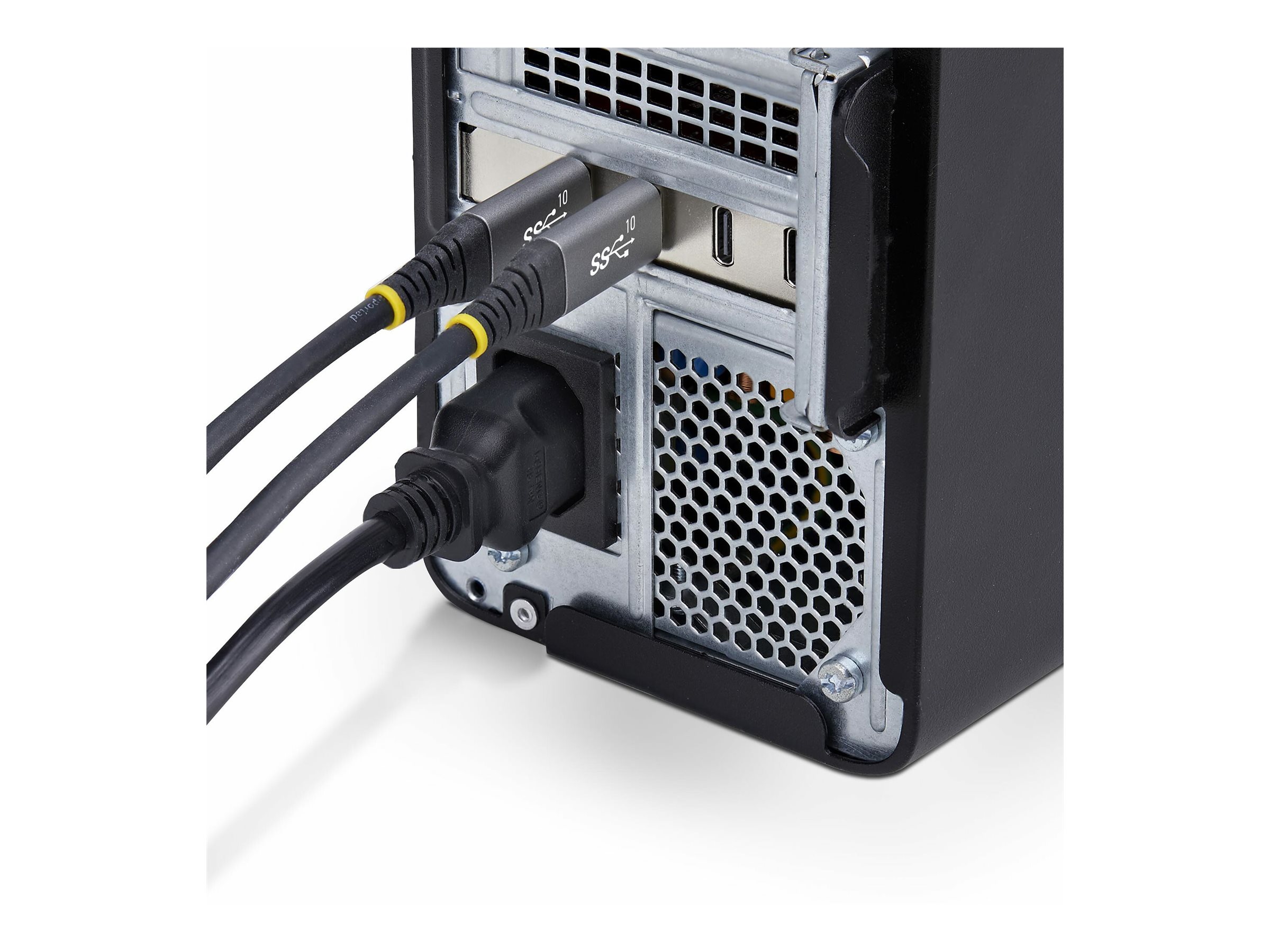

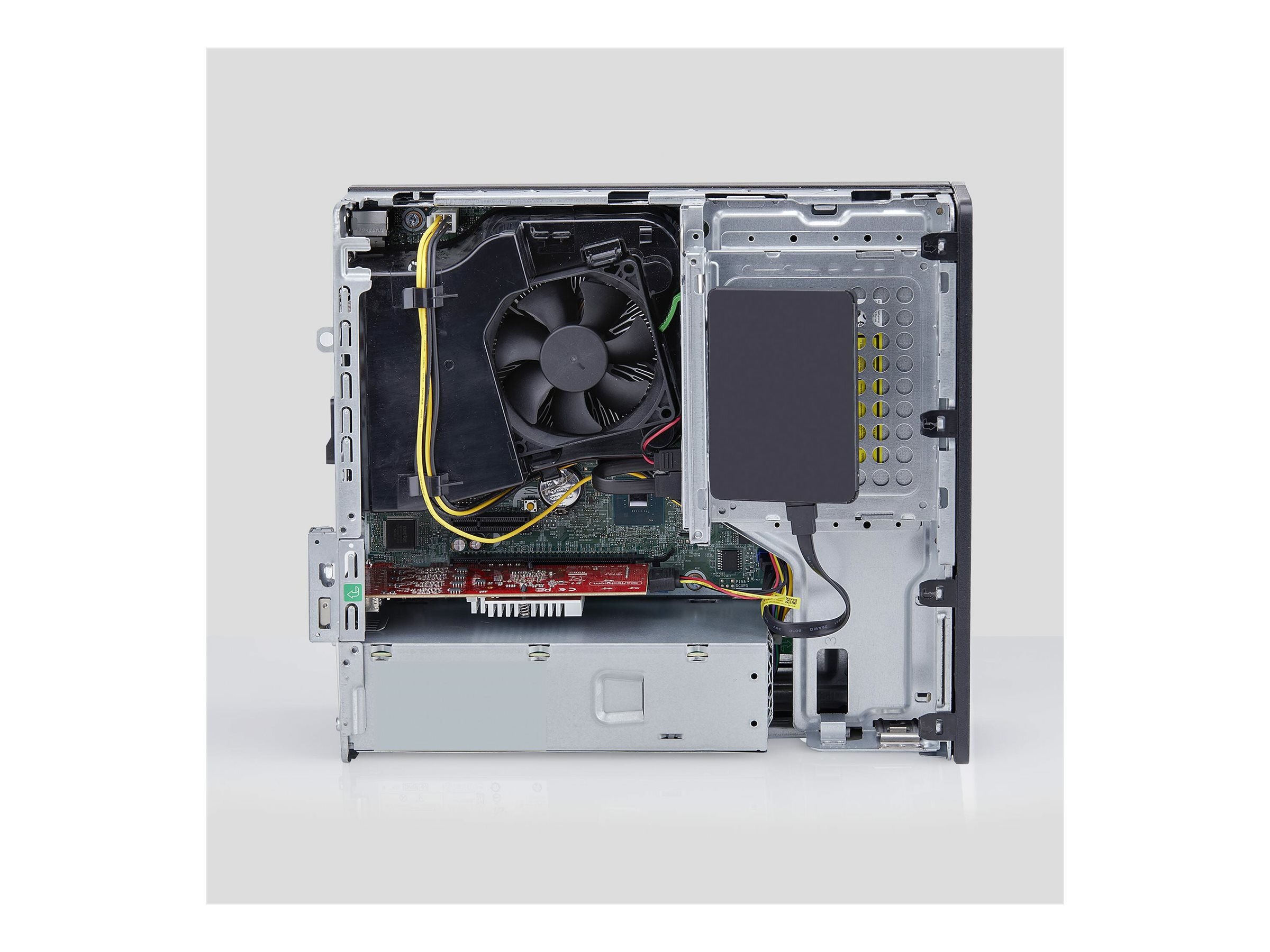

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

Dedicated USB Controllers

Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

Charge and Sync USB Devices

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

Compatibility

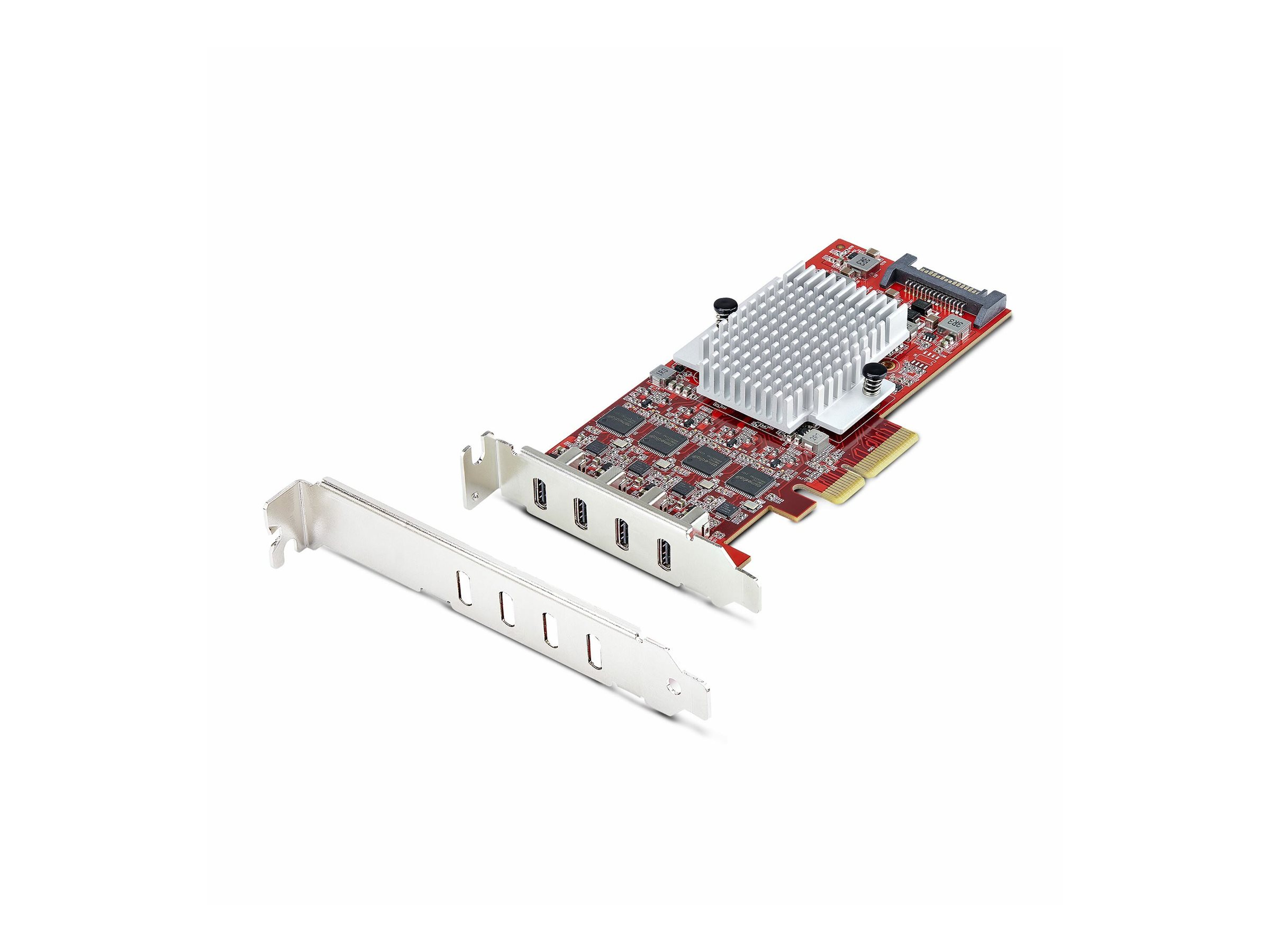

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.

Physical Characteristics
ColorRed
Length14 cm
Width5.62 cm
Height7.92 cm

  • 1 PCIe USB Card (Low-Profile Bracket Installed)
  • 1 Standard-Profile Bracket
  • 1 Quick-Start Guide
