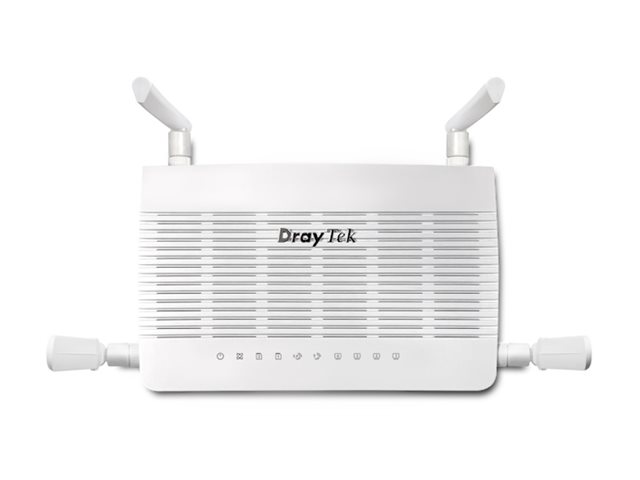

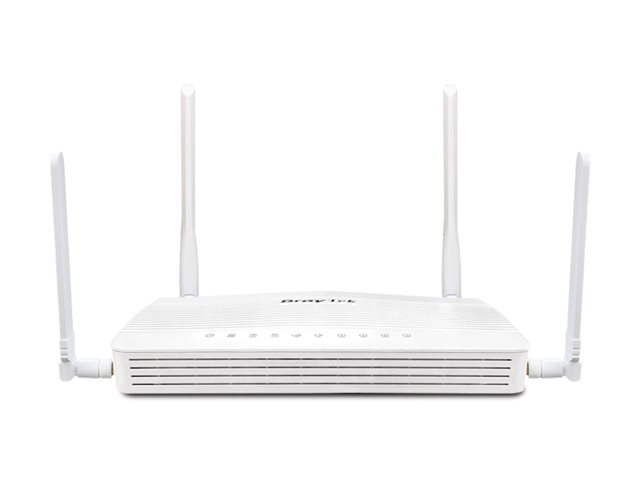

DrayTek Vigor C510ax Trådløs router
Draytek Vigor C510AX - Trådløs router - mesh - WWAN 4-port switch WAN-porte: 2 - Wi-Fi 6 - Dual Band - 5G, 4G, 3G
-
Product no 1004249365
Model VIGOR C510AX
Brand Draytek
Weight 0.508 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Draytek Vigor C510AX - trådløs router - WWAN - Wi-Fi 6 - 5G, 4G, 3G - desktop |
| Enhedstype | Trådløs router - mesh - trådløs mobilmodem - 4-port switch (integreret) |
| Pakningstype | Desktop |
| Mobilprotokol | WCDMA, FDD LTE, TDD LTE, 5G |
| Generation | 5G, 4G, 3G |
| Mobilbånd | WCDMA B1, WCDMA B8, LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, 5G n1, 5G n20, 5G n28, 5G n3, 5G n38, 5G n40, 5G n7, 5G n77, 5G n78, 5G n8 |
| Antal WAN porte | 2 |
| Dataforbindelsesprotokol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11a |
| Frekvensbånd | 2,4 GHz/5 GHz |
| Præstation | NAT throughput: 940 Mbps<br>Linkhastighed (2.4 GHz): 574 Mbps<br>Linkhastighed (5 GHz): 2.402 Gbps<br>VPN-gennemløb (256-bit AES IPSec): 370 Mbps<br>VPN WireGuard-gennemløb: 50 Mbps |
| Kapacitet | NAT-sessioner: 50000<br>Maksimalt antal VLANs: 8<br>SSIDer per trådløst bånd: 4<br>VPN-tunneler: 4 |
| Netværks/overføselsprotokol | PPPoE, DHCP, IPv4, IPv6, DHCPv6, ARP, DDNS, IGMPv2, IGMPv3, FTP, IPSec, OpenVPN, WireGuard |
| Routingprotokol | Statisk IP routing, RIP-1, RIP-2, OSPFv2, OSPFv3, BGP |
| Protokol til fjernadministration | HTTP, HTTPS, Telnet, SSH-2, TR-069, TFTP, SNMP 3, SNMP 2c, SNMP 1, Syslog |
| Egenskaber | NAT-understøtning, PPP, VLAN Tagging, failover-support, pingdetektion, WAN Budget, dynamisk DNS, DrayDDNS, tag-baserede VLANs, portbaseret VLAN, DHCP server, 802.1x autentificering, portspejling, DNS server, 2x2 MIMO 2.4GHz, 3x3 MU-MIMO 5GHz, PSK, WPS-knap, WDS support, klientisolation, skjult SSID, WLAN-planlægning, Airtime Fairness, båndstyring, WMM support, DNSSEC support, IGMP snooping, IGMP proxy, IGMP hurtigafgang, RADIUS Server, Intelligent Bandwidth Management, QoS, VoIP prioritering, RBAC, SMS alarmer, E-mail advarsel, IP-rygte, ARP spoofing, IP-spoofing, MAC-adresse-filtrering, Single-Armed VPN, IPSec NAT-T |
| Overensstemmelsesstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Dimensioner (B x D x H) | 20.7 cm x 13.1 cm x 4.2 cm |
| Producentgaranti | 2 års garanti |
