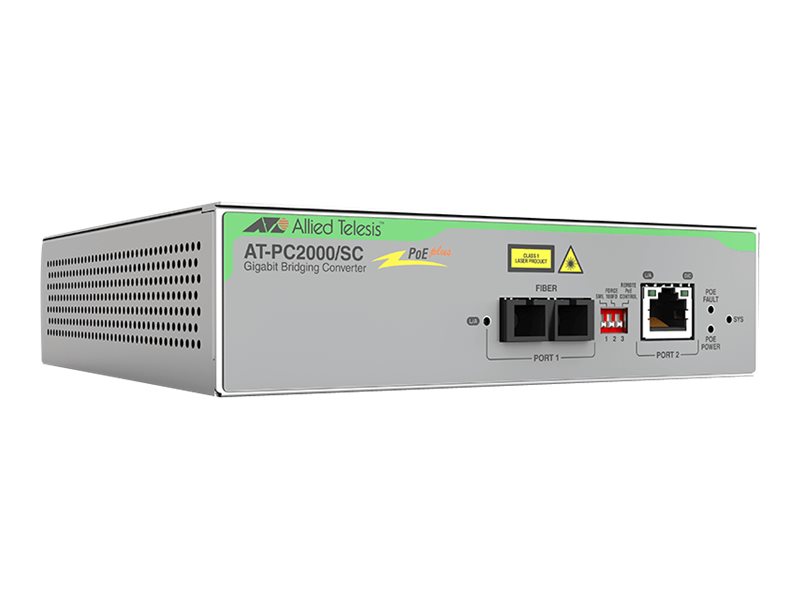

Allied Telesis AT-PC2000/SC Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet
Allied Telesis AT PC2000/SC - Fibermedieomformer - 1GbE - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T, 1000Base-SC - SC / RJ-45 - 850 nm - TAA-kompatibel
-
Product no 999566301
Model AT-PC2000/SC-960
Brand Allied Telesis
EAN 0767035224398
Weight 0.748 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Allied Telesis AT PC2000/SC - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE - TAA-kompatibel |
| Enhedstype | Fibermedieomformer - SC / RJ-45 |
| Model | Vægmonterbar |
| Lokalisering | Australien, United Kingdom, USA, Europa |
| Kabeltype | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T, 1000Base-SC |
| Optisk bølgelængde | 850 nm |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE |
| Power Over Ethernet (PoE) | PoE+ |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 15.5 cm x 14.9 cm x 4 cm |
| Vægt | 748 g |
| TAA kompatibel | Ja |
| General | |
|---|---|
| Device Type | Fiber media converter |
| Form Factor | Wall mountable |
| Localization | Australia, United Kingdom, United States, Europe |
| Networking | |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T, 1000Base-SC |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3at |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), store and forward, Jumbo Frames support |
| MAC Address Table Size | 4K entries |
| Optical Wave Length | 850 nm |
| Status Indicators | Power, active, fault |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female | 1 x Ethernet 1000Base-SC/1000Base-SX - SC female x 2 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, C-Tick, EN 55022 Class A |
| TAA Compliant | Yes |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Consumption Operational | 35 Watt |
| Power Device | Internal power supply |
| Power Over Ethernet (PoE) | PoE+ |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight | |
| Depth | 14.9 cm |
| Height | 4 cm |
| Weight | 748 g |
| Width | 15.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
