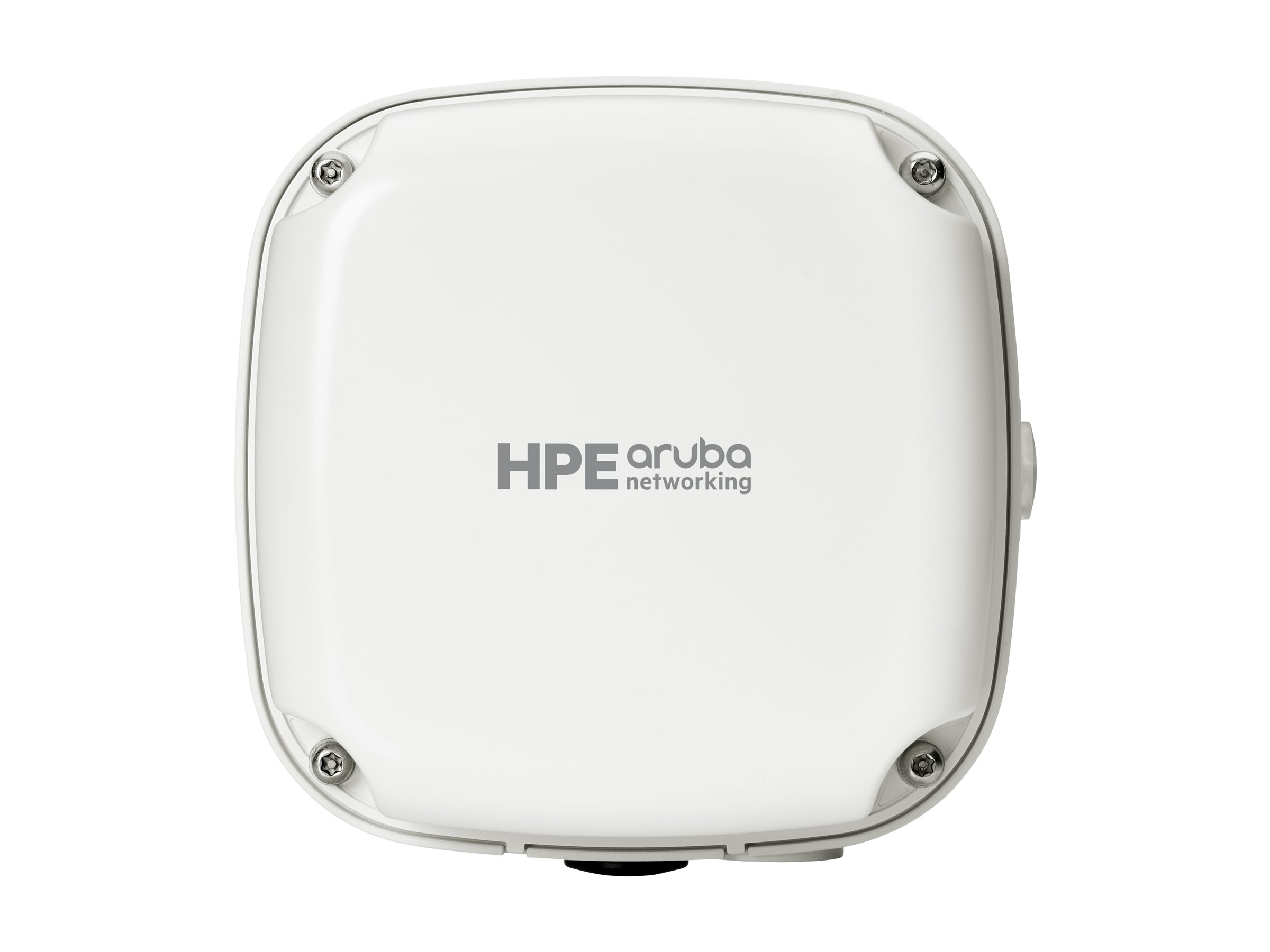

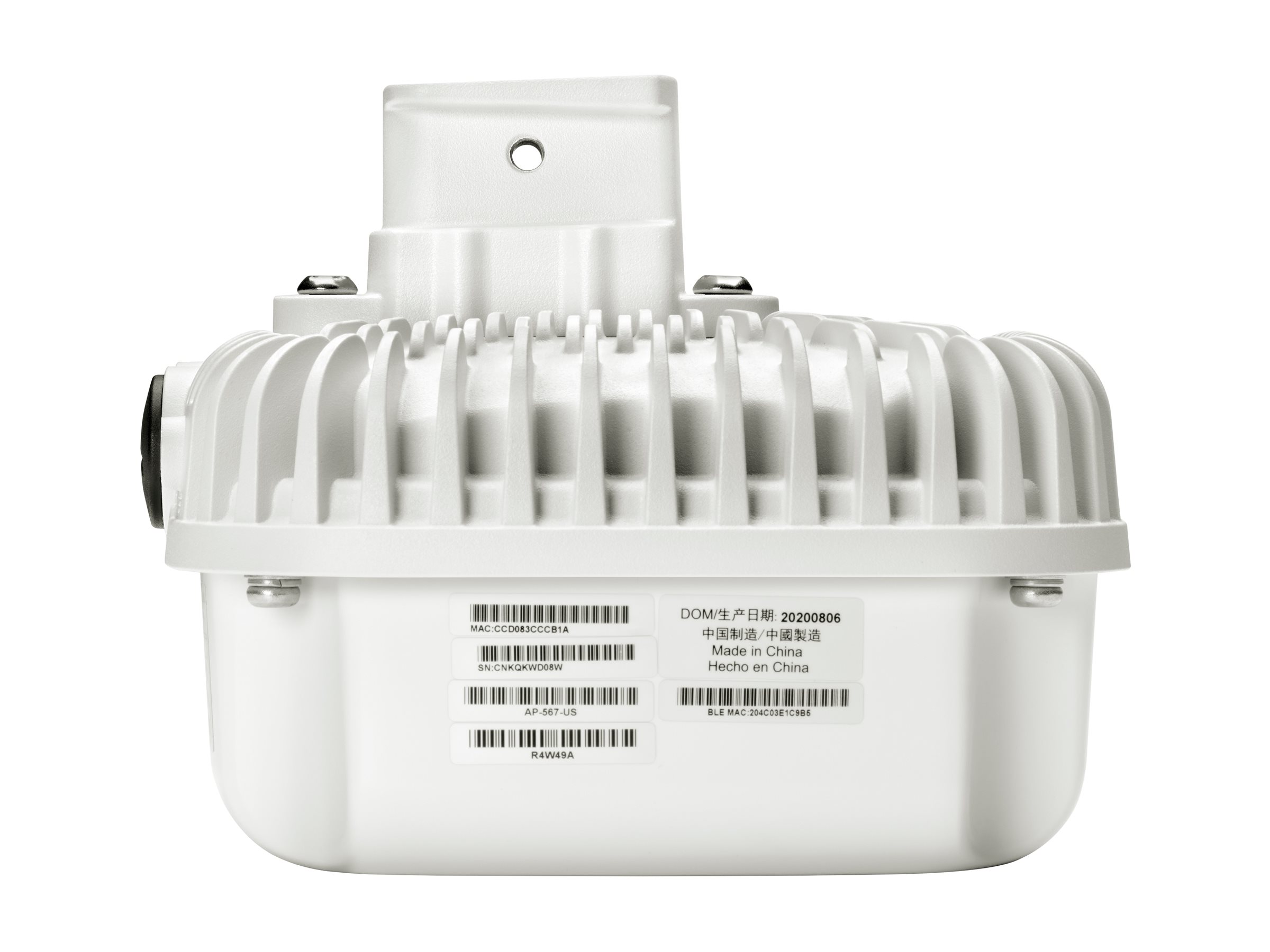

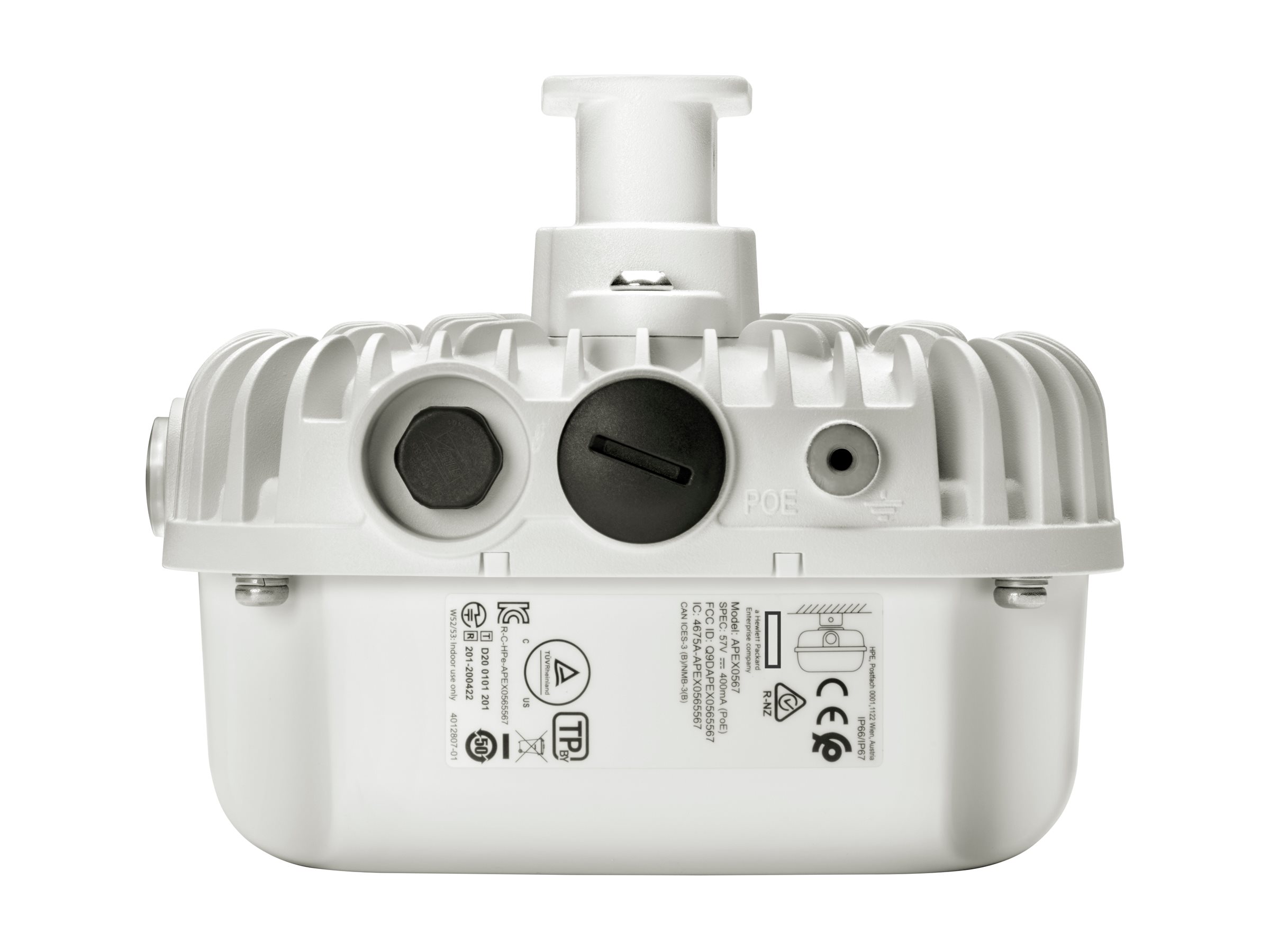

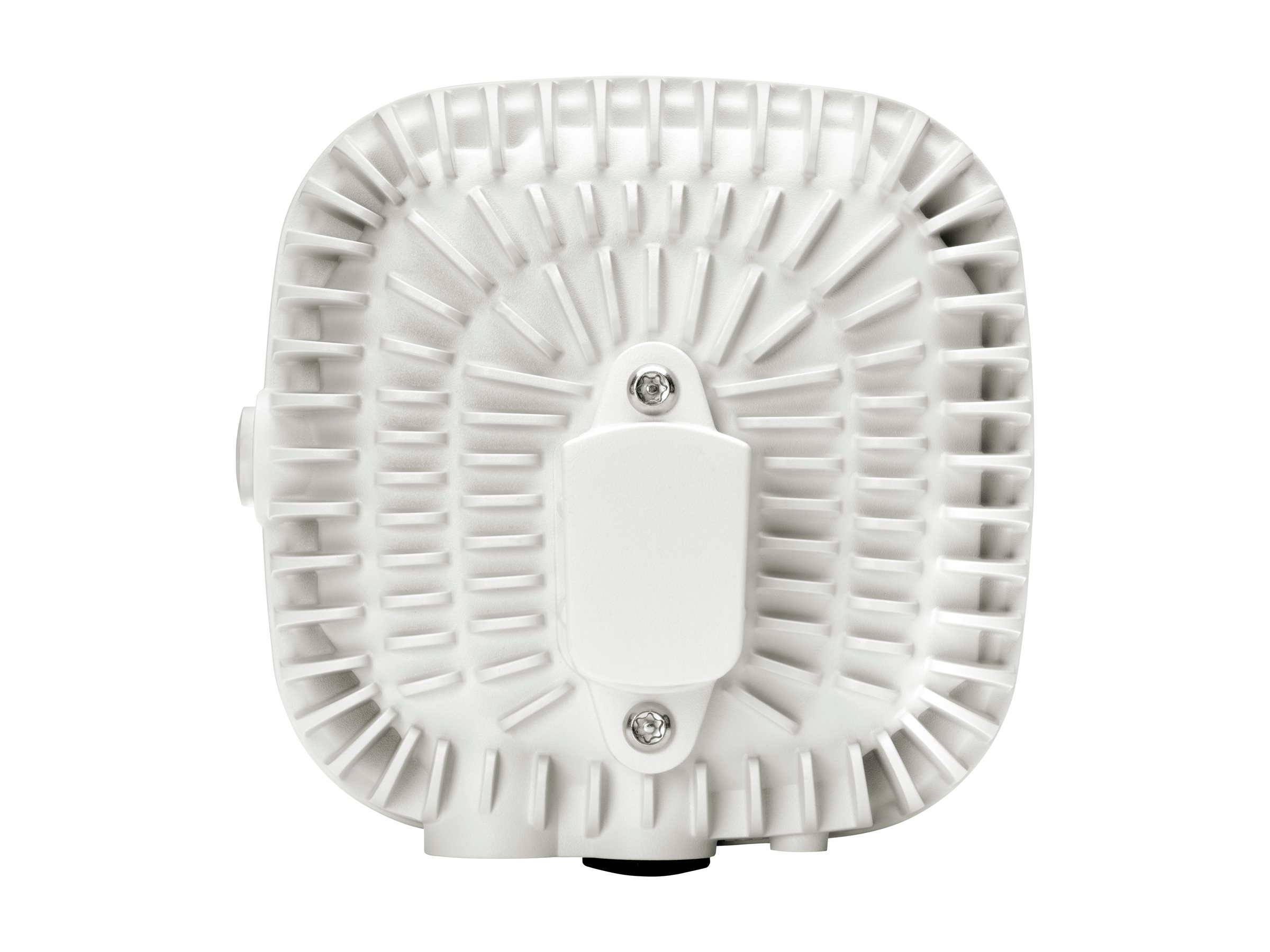

HPE Aruba AP-565 (RW) Trådløs forbindelse Hvid

HPE Aruba AP-565 (RW) - Trådløs forbindelse - ZigBee, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO

  • Product no 996574703

    Model R4W43A

    Brand Aruba Networks

    EAN 0190017447346

    Weight 1.67 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse HPE Aruba AP-565 (RW) - trådløs forbindelse - ZigBee, Bluetooth, Wi-Fi 6
Enhedstype Trådløs forbindelse
Formfaktor Ekstern - udendørs
Dataforbindelsesprotokol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Frekvensbånd 2.4 GHz, 5 GHz
Præstation Maksimum datahastighed (5 GHz): 1,2 Gbps<br>Maksimum datahastighed (2,4 GHz): 574 Mbps
Kapacitet Trådløse klienter per WiFi-radio: 256<br>BSSIDs per radio: 16<br>OFDMA-enheder: 16
OS nødvendig ArubaOS, InstantOS 8.8.0.0
Power Over Ethernet (PoE) understøttet PoE+
Pristype BTO
Dimensioner (B x D x H) 16.5 cm x 16.5 cm x 11 cm
Vægt 1.03 kg
Producentgaranti Begrænset livtidsgaranti

HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP

The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning (ZTP). HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and virtual private networks (VPNs). AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560 series outdoor APs include a limited lifetime warranty.
HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP
slide {0} of {1}, zoom in, HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP
slide {0} of {1}, zoom in, HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP
slide {0} of {1}, zoom in, HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP
slide {0} of {1}, zoom in, HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP
Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps peak aggregate data rate and are ideal for outdoor and warehouse environments
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +55˚C)
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
Small form factor for flexible deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEFs) that automatically enforce consistent policies across all networks, keeping users and devices secure
Entry-level Outdoor Wi-Fi 6

Entry-level Outdoor Wi-Fi 6

  • HPE Aruba Networking 560 Series Outdoor Access Points are ideal for environmentally challenging locations and can endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and maximum 165 mph wind speeds.
  • Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +55˚C, including full solar loading.
  • With peak aggregate data rate of 1.49 Gbps (HE80/HE20), the series delivers the speed and reliability needed for most environments
  • It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).
  • Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
IoT Ready

IoT Ready

  • HPE Aruba Networking 560 Series Outdoor Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
  • The AP supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
  • Target wake time (TWT) improves battery life of IoT devices.
  • HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Simple Access With Enhanced Security

Simple Access With Enhanced Security

  • The HPE Aruba Networking 560 Series Outdoor Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
  • It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls.
  • The AP simplifies policy enforcement by using the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
  • For enhanced device assurance, the access points include an installed trusted platform module (TPM).

TechnicalSpecifications
PortsE0: 10/100/1000BASE-T (RJ-45) USB-C console interface
CertificationsCB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance® certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED® ac (with wave 2 features) Wi-Fi CERTIFIED Location
RegulatoryFCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN/UL 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs: EN 50155:2017—Railway Applications EN 50121-1:2017—Railway EMC EN 50121-3-2—Railway EMC EN 50121-4:2016—Railway Immunity IEC 61373 ed2:2008—Railway Shock and Vibration For more country-specific regulatory information and approvals, contact your HPE representative.
Wi-Fi antennaBuilt-in omnidirectional antennas with 5.4 dBi gain maximum, for 5 GHz antennas and 3.2 dBi gain maximum for 2.4 GHz antennas
Product dimensions (metric)165 x 165 x 130 mm
Weight1.03 kg

HPE Aruba Networking 560 Series Outdoor Access Points (English)HPE Aruba Networking 560 Series Outdoor Access Points (English)
HPE Aruba Networking 560 Series Outdoor Access Points QuickSpecs (English)HPE Aruba Networking 560 Series Outdoor Access Points QuickSpecs (English)
