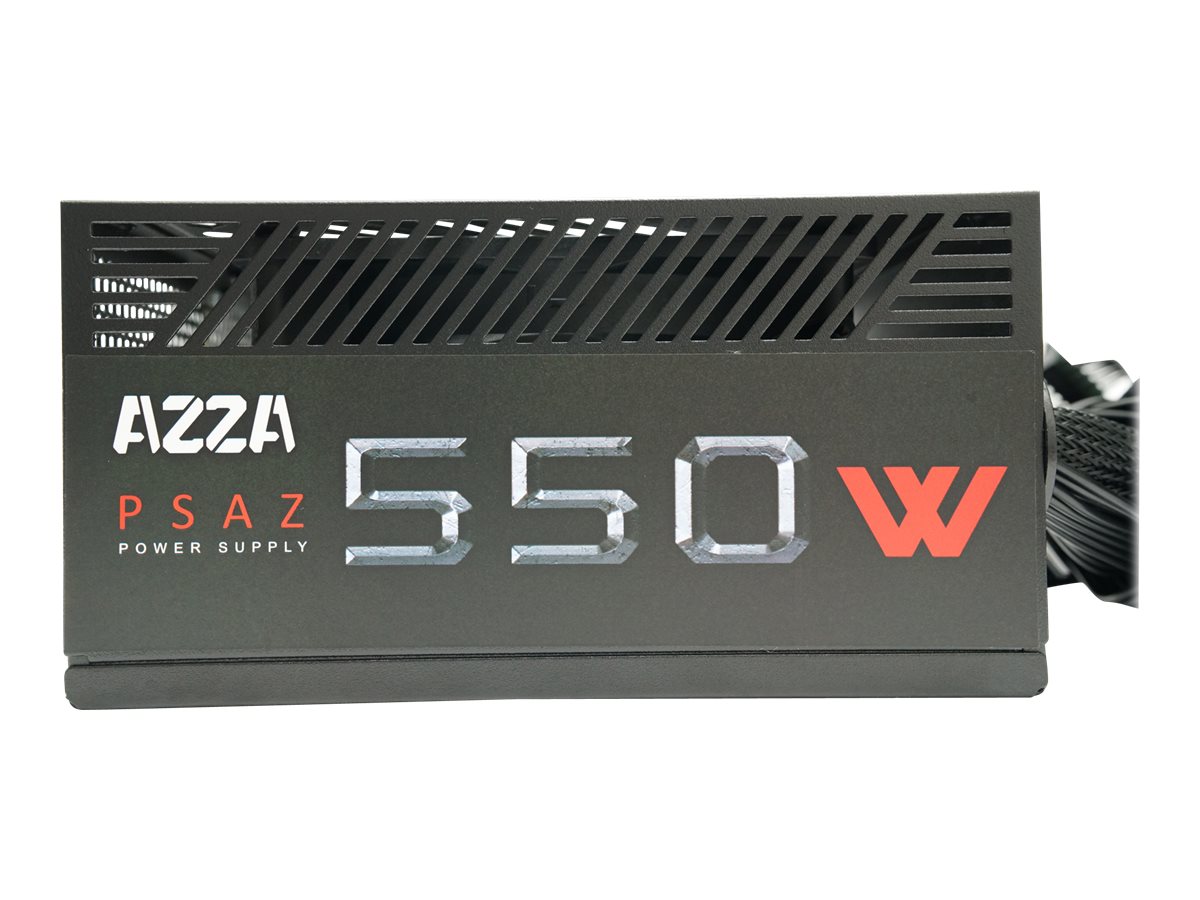

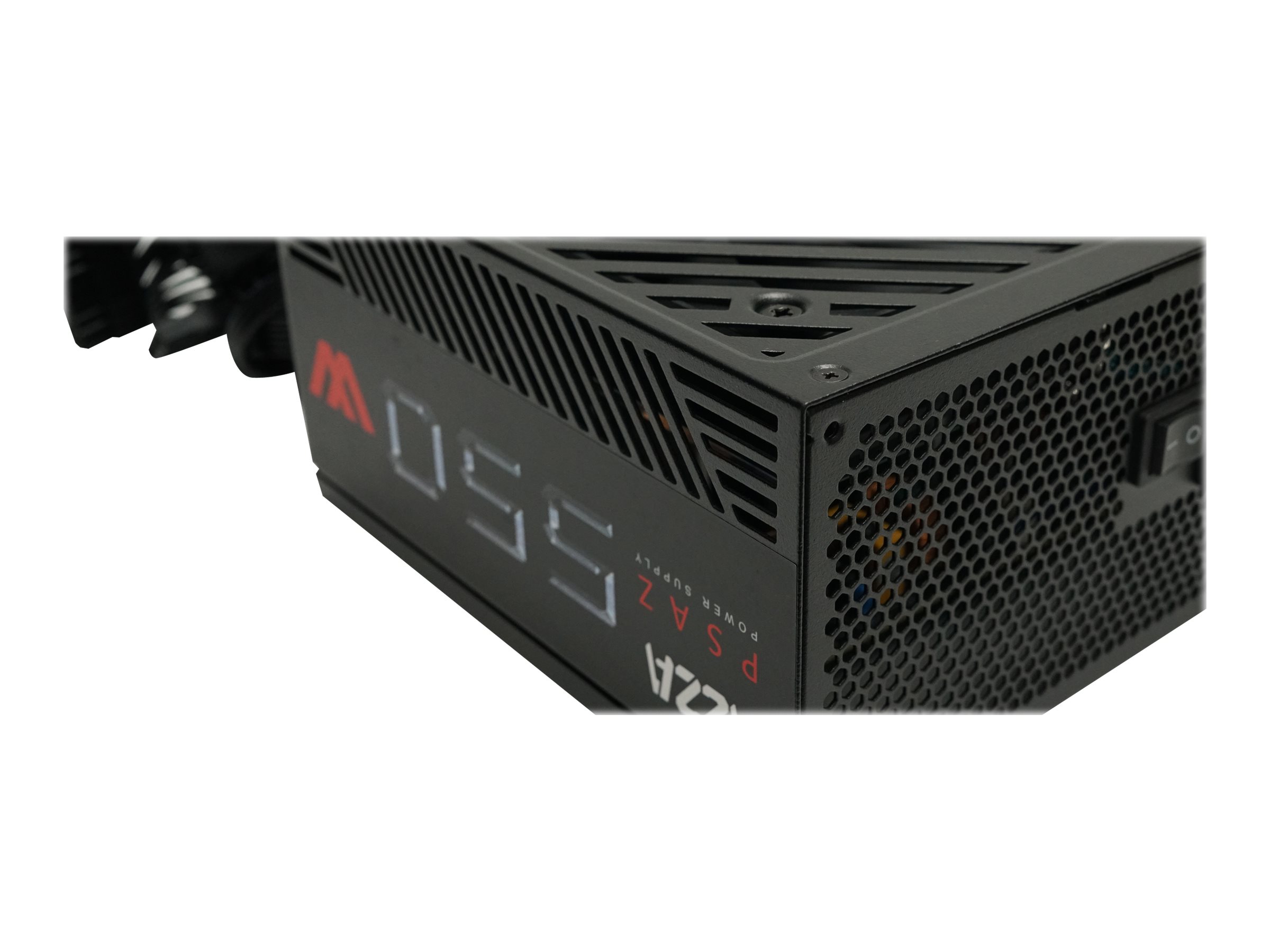

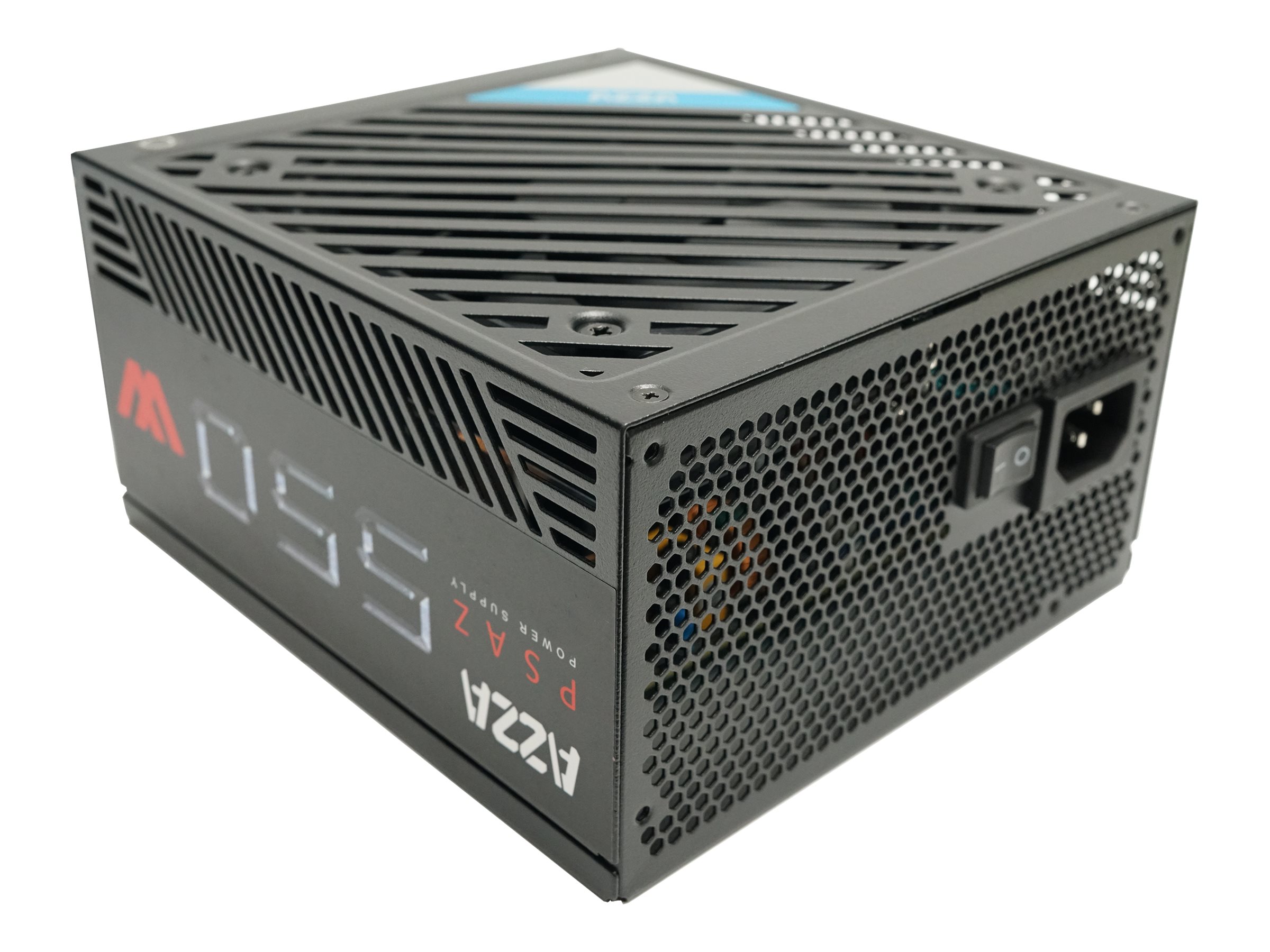

AZZA 550Watt 80 PLUS Bronze
AZZA - Strømforsyning (intern) - ATX12V / EPS12V - 80 PLUS Bronze - AC 100-240/200-240 V - 550 Watt - sort
-
Product no 996297988
Model PSAZ 550W
Brand AZZA
EAN 4712839557230
Weight 1.8 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AZZA - strømforsyning - 550 Watt |
| Enhedstype | Strømforsyning - intern |
| Specifikationsoverensstemmelse | ATX12V / EPS12V |
| 80 PLUS certificering | 80 PLUS Bronze |
| Indgangspænding | AC 100-240/200-240 V |
| Udgangspænding | DC +3.3, DC +5, DC ±12 V |
| Strømkapacitet | 550 Watt |
| Output Current | +3.3V - 20 A<br>+5V - 20 A<br>+12V - 41 A<br>-12V - 0.4 A<br>+5VSB - 2.5 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>5 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Kølesystem | 120 mm ventilator |
| Farve | Sort |
| Dimensioner (B x D x H) | 15 cm x 16.5 cm x 8.6 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Color | Black |
| Device Type | Power supply - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V / EPS12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100-240/200-240 V |
| Output Current | +3.3V - 20 A | +5V - 20 A | +12V - 41 A | -12V - 0.4 A | +5VSB - 2.5 A |
| Output Voltage | DC +3.3, DC +5, DC ±12 V |
| Power Capacity | 550 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 5 x 15 pin Serial ATA power | 2 x 4 pin internal power | 2 x 8 pin PCI Express power with detachable 2 pin section | 1 x 4 pin mini-pow |
| Miscellaneous | |
| Compliant Standards | TUV, FCC, RoHS, EuP, EAC, RCM, TUV Rheinland |
| Cooling System | 120 mm fan |
| Features | On/off switch, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, non-modular |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 8.6 cm |
| Width | 15 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 24 cm |
| Shipping Height | 11.5 cm |
| Shipping Width | 18.5 cm |
