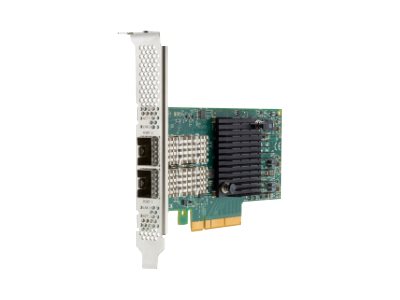

Broadcom BCM57414 Netværksadapter PCI Express 3.0 x8 25Gbps
Broadcom BCM57414 - Netværksadapter - PCIe 3.0 x8 - Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 - for ProLiant DL20 Gen10, DL325 Gen10, DL360 Gen10, DL380 Gen10, ML30 Gen10, XL220n Gen10
-
Product no 998135355
Model P26262-B21
Brand Hewlett Packard Ente
EAN 0190017443973
Weight 0.99 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Broadcom BCM57414 - netværksadapter - PCIe 3.0 x8 - Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 |
| Enhedstype | Netværksadapter |
| Model | Indstikskort |
| Grænseflade (bus) type | PCI Express 3.0 x8 |
| PCI-specifikationsrevision | PCIe 3.0 |
| Porte | Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 |
| Dataforbindelsesprotokol | 1GbE, 10GbE, 25GbE, RoCE v1, RoCE v2 |
| Dataoverførselshastighed | 25 Gbps |
| Processor | 1 x Broadcom BCM57414 |
| Designet for | Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10; ProLiant DL110 Gen10, DL20 Gen10, DL325 Gen10, DL345 Gen10, DL360 Gen10, DL365 Gen10, DL380 Gen10, DL385 Gen10, ML30 Gen10, XL220n Gen10, XL225n Gen10, XL290n Gen10 |
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v1), RDMA over Converged Ethernet (RoCE v2) |
| Data Transfer Rate | 25 Gbps |
| Features | IPv6 support, IPv4 support, Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), secure boot, Network Partitioning (NPAR |
| Ports | Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 |
| Processor / Memory | |
| Processor | 1 x Broadcom BCM57414 |
| Expansion / Connectivity | |
| Interfaces | 2 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28 |
| Power | |
| Power Consumption Operational | 9.1 Watt |
| Compatibility Information | |
| Designed For | HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus | HPE ProLiant DL110 Gen10 Plus Front Cabled Telco, DL20 Gen10 Plus, DL20 Gen10 Plus Base, DL20 Gen10 Plus Entry, DL20 Gen10 Plus High Performance, DL20 Gen10 Plus Performance |
Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
Is your data center constantly challenged to deliver increased security and reliability in a cost-effective and scalable solution for your network bandwidth? The HPE Gen10 Plus Ethernet adapters are 1 Gb, 10 Gb, 10/25 Gb, 100 Gb, and 200 Gb Ethernet solutions that are scalable and compatible with HPE Gen10 Plus servers for hybrid cloud services, mobile data, and streaming video applications. Your server is the foundation of your data center, but it doesn’t work alone. When one link in your component chain slows down, so does the rest of your operation. Keep your network and data flowing with a seamless ecosystem of HPE servers, networking adapters, transceivers, cables, and switches.
Better Performance
- HPE Gen10 Plus Ethernet adapters are engineered for an assortment of bandwidths and latency-sensitive applications.
- The adapters reduce CPU utilization with support for a variety of I/O offloads including remote direct memory access (RDMA) and tunneling.
Reliability and Security
- HPE Gen10 Plus Ethernet adapters authenticate updates for NICs, and help ensure that signed firmware is correct and trusted to reduce rogue firmware installation.
- The adapters protect applications, data, and server infrastructure by authenticating digitally-signed firmware via a root-of-trust architecture.
Specifications
| TechnicalSpecifications | |
|---|---|
| Form factor | Stand up |
| Data rate | 10/25 Gb |
| Bus type | PCIe Gen3x8 |
| Number of ports | 2 |
