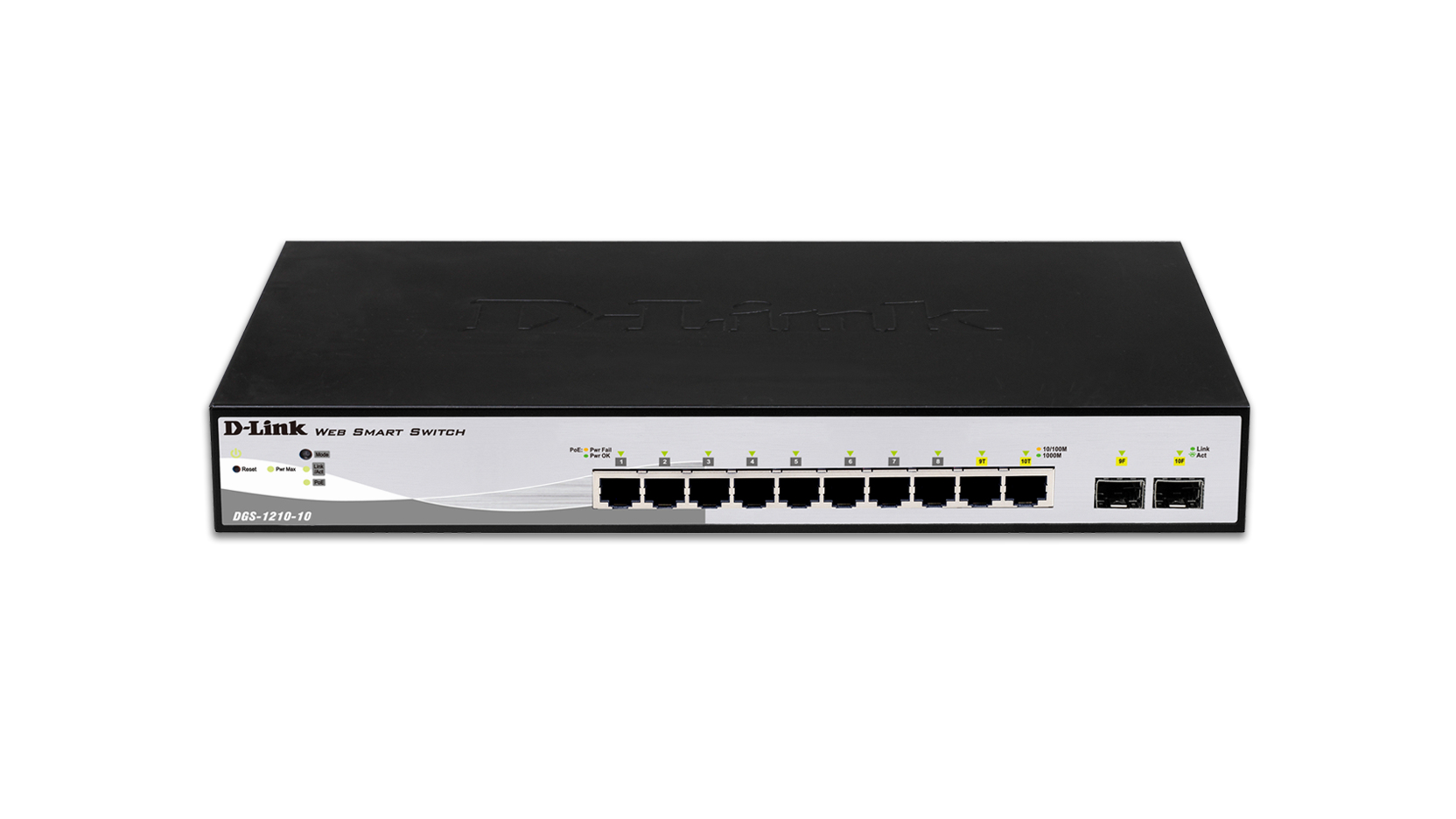

D-Link DGS 1210-10 Switch 10-porte Gigabit
D-Link DGS 1210-10 - Switch - smart - 8 x 10/100/1000 + 2 x Gigabit SFP - desktop, monterbar på stativ
-
Product no 1000623852
Model DGS-1210-10/E
Brand D-Link
EAN 0790069467707
Weight 1.78 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | D-Link DGS 1210-10 - switch - 10 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 10 porte - smart |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Præstation | Omkoblingskapacitet: 20 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 14.88 Mpps |
| Kapacitet | Statiske MAC-poster: op til 256<br>IGMP-grupper: 256<br>QoS hardware-køer pr. port: 8<br>ACL-regler: 768 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 10.000 byte |
| Routingprotokol | IGMPv2, IGMP, statisk IP routing, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, TFTP, CLI |
| Egenskaber | Datatransport, komplet duplex ydeevne, understøttet af BOOTP, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack beskyttelse, portspejling, gem og send, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MDL snooping, Safeguard Engine, D-Link Green Technology, blæserløs, LLDP support, TFTP-klient, LLDP-MED, WRR, tilbageløkke-detektion, 4,1 Mbit pakkebuffer, anti-stemme-VLAN, anti-ARP spoofing |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3az |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 28 cm x 12.6 cm x 4.4 cm |
| Vægt | 980 g |
| Lokalisering | Europa |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Capacity | Static MAC entries: up to 256 | IGMP groups: 256 | QoS hardware queues per port: 8 | ACL rules: 768 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3az |
| Device Type | Switch - 10 ports - smart |
| Enclosure Type | Desktop, rack-mountable |
| Encryption Algorithm | MD5, SSL, TLS, TLS 1.0, SSL 3.0, SSL 2.0, TTLS |
| Features | Flow control, full duplex capability, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, |
| Flash Memory | 32 MB |
| Jumbo Frame Support | 10000 bytes |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 20 Gbps | Forwarding performance (64-byte packet size): 14.88 Mpps |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| RAM | 128 MB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, TFTP, CLI |
| Routing Protocol | IGMPv2, IGMP, static IP routing, MLDv2, MLD |
| Status Indicators | Power, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 | 2 x 1000Base-X SFP |
| Power | |
| Power Consumption Operational | 6.33 Watt |
| Power Consumption Stand by | 2.07 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, BSMI, CB, CCC, VCCI Class A |
| Localization | Europe |
| MTBF | 1,380,058 hours |
| Software / System Requirements | |
| Software Included | D-Link Network Assistant |
| Dimensions & Weight | |
| Depth | 12.6 cm |
| Height | 4.4 cm |
| Weight | 980 g |
| Width | 28 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -20 °C |
