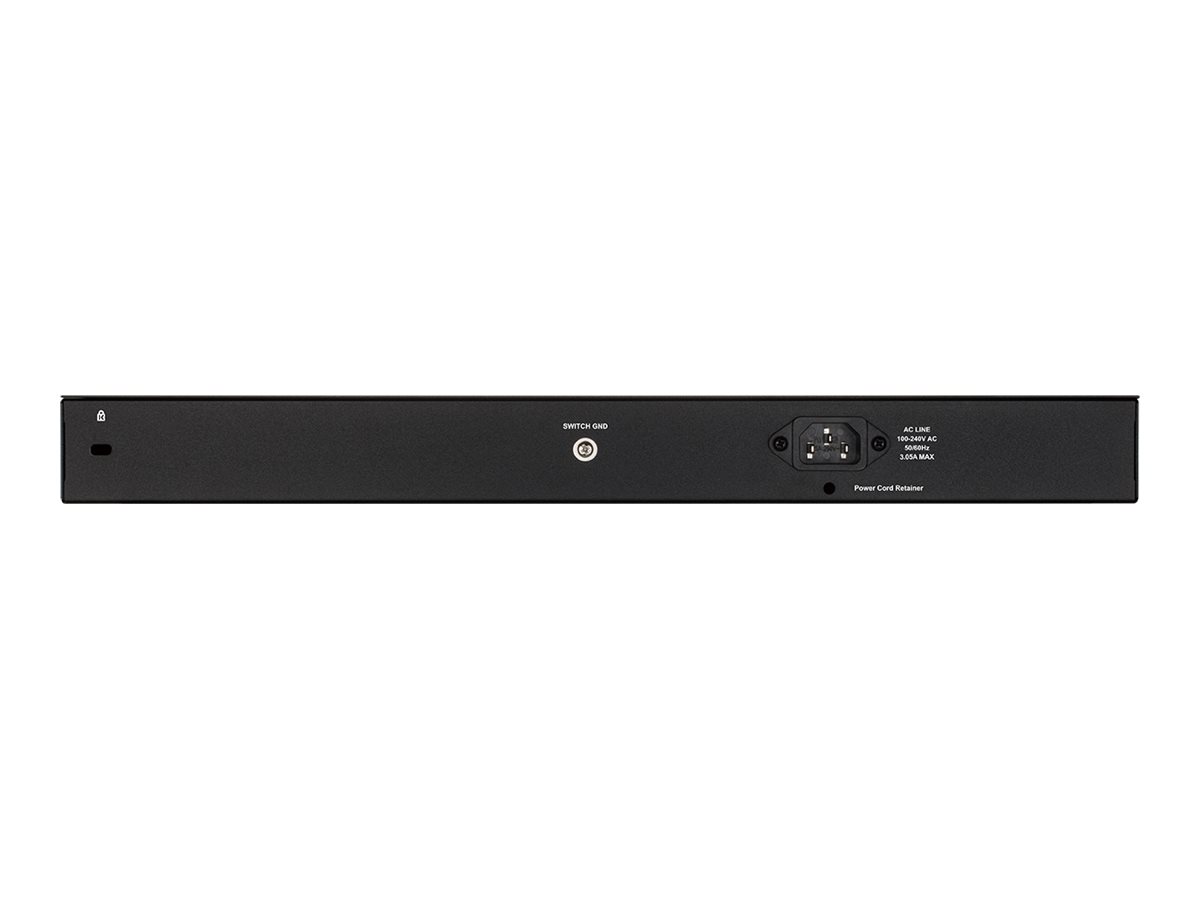

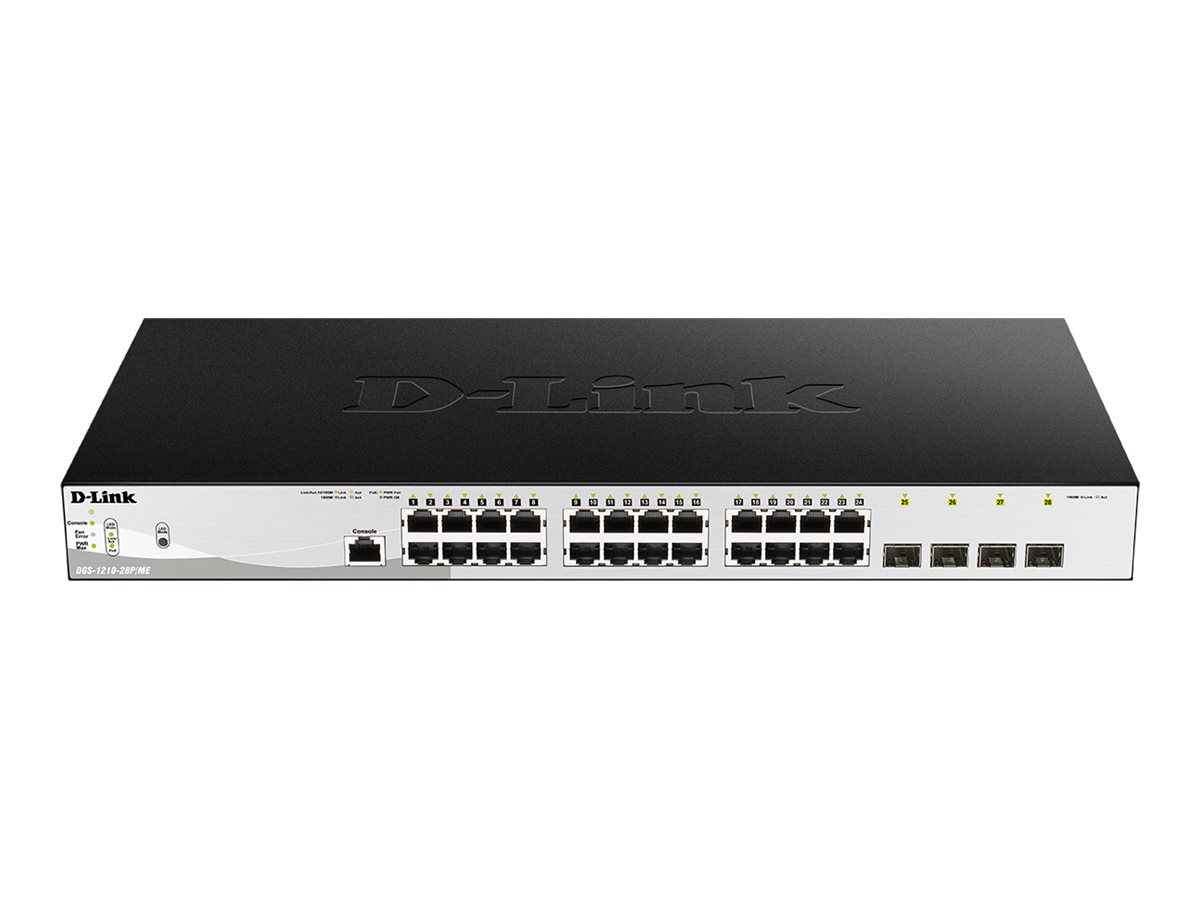

D-Link DGS 1210-28P/ME Switch 28-porte Gigabit PoE
D-Link DGS 1210-28P/ME - Switch - Administreret - 24 x 10/100/1000 (PoE) + 4 x Gigabit SFP - monterbar på stativ - PoE (193 W)
-
Product no 1000734725
Model DGS-1210-28P/ME/E
Brand D-Link
EAN 0790069467585
Weight 4.55 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | D-Link DGS 1210-28P/ME - switch - 28 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 28 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 (PoE) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE-budget | 193 W |
| Præstation | Omkoblingskapacitet: 56 Gbps<br>Videresendelsesrate (64‑byte pakker): 41.7 Mpps |
| Kapacitet | Pakkebufferstørrelse: 1,5 MB<br>Linksammenlægningsgrupper: 8<br>VLAN-grupper: 4094<br>ACL-regler: 256<br>MLD-grupper: 256<br>Dynamiske VLAN-indtastninger: 256 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| Egenskaber | Datatransport, Layer 2 switching, auto-negotiation, understøttet af BOOTP, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DoS attack beskyttelse, WRR kø, Broadcast Storm Control, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, strømstødsbeskyttelse, STP support, ACL support, QoS, IPv4 support, LLDP support, IP-MAC binding, SNMP fælde, DHCP klient, TFTP-klient, SNMP-support, ERPS, 2 blæsere, AAA, LLDP-MED, tilbageløkke-detektion, Dying Gasp, Q-i-Q tunnelering, VLAN trunking, MIB support |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44 cm x 21 cm x 4.4 cm |
| Vægt | 3.34 kg |
| Lokalisering | Europa |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+ |
| Capacity | Packet buffer size: 1.5 MB | Link aggregation groups: 8 | VLAN groups: 4094 | ACL rules: 256 | MLD groups: 256 | Dynamic VLAN entries: 256 |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 28 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL, SSL 3.0, SSL 2.0 |
| Features | Flow control, layer 2 switching, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, half duplex mode, full du |
| Flash Memory | 32 MB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 56 Gbps | Forwarding rate (64‑byte packets): 41.7 Mpps |
| PoE Budget | 193 W |
| Ports | 24 x 10/100/1000 (PoE) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| RAM | 256 MB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| Routing Protocol | IGMPv2, IGMP, MLDv2, MLD |
| Status Indicators | Power, fan, console, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-45 PoE | 4 x 1000Base-X SFP | 1 x console RJ-45 |
| Power | |
| Power Consumption Stand by | 16.1 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, BSMI, IEC 61000-4-5, CB, CCC, LVD |
| Localization | Europe |
| MTBF | 331,699 hours |
| Dimensions & Weight | |
| Depth | 21 cm |
| Height | 4.4 cm |
| Weight | 3.34 kg |
| Width | 44 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
