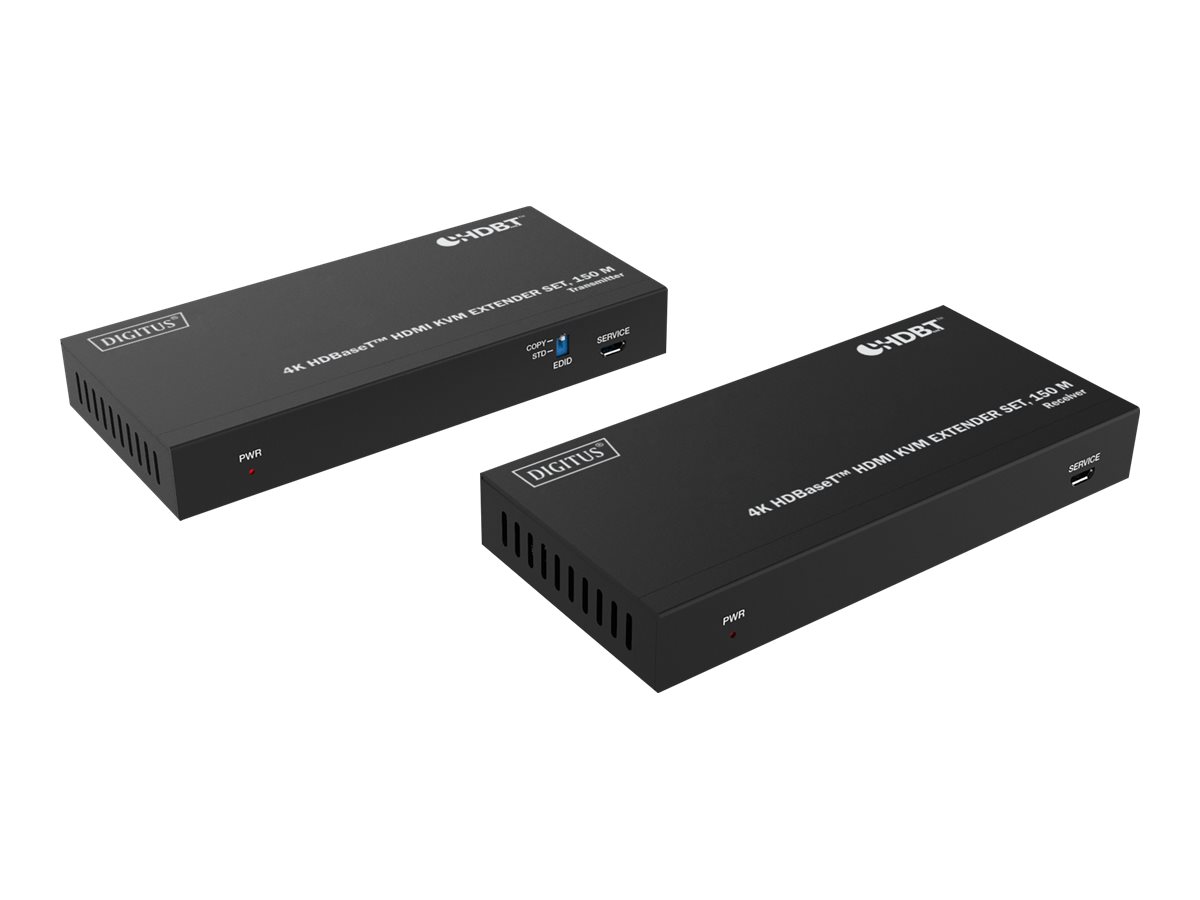

DIGITUS 4K HDBaseT DS-55522 Video/audio/USB forlænger
DIGITUS 4K HDBaseT DS-55522 - Sender og modtager - video/audio/USB forlænger - HDBaseT - over CAT 6a/7/8 - op til 150 m
-
Product no 1000877899
Model DS-55522
Brand DIGITUS
EAN 4016032483694
Weight 1.09 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | DIGITUS 4K HDBaseT DS-55522 - sender og modtager - video/audio/USB forlænger - HDBaseT |
| Enhedstype | Video/audio/USB forlænger |
| Model | Ekstern |
| Dataforbindelsesprotokol | HDBaseT |
| Transmissionsmedie | CAT 6a/7/8 |
| Maks. overføringsafstand | 150 m |
| General | |
|---|---|
| Color | Black |
| Device Type | Video/audio/USB extender |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Features | Metal housing, power over cable (PoC), HDR support, bi-directional IR, HDR10 support, Dolby Vision HDR support, HDR10+ support, Hybrid Log-Gamma (HLG) support, 4:4:4 chroma subsampling support, 18 Gbps bandwidth |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 150 m |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A | 1 x HDBaseT (transmitter) - RJ-45 | (transmitter) | 1 x IR input (transmitter) | 1 x IR output (transmitter) | 1 x USB (transmitter) - Type B | 1 x USB (transmitter input) - micro-USB | 1 x HDMI out |
| Miscellaneous | |
| Cables Included | 1 x IR emitter cable - 1.5 m | 1 x IR receiver cable - 1.5 m | 1 x USB cable - 1.5 m |
| Compliant Standards | EDID compatible, HDCP 2.2 |
| Included Accessories | Mounting kit |
| Power | |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Receiver: 14 cm x 6.5 cm x 1.8 cm / 246 g | Transmitter: 14 cm x 6.5 cm x 1.8 cm / 246 g |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
