Edimax Pro GS-5654LX Switch 54-porte Gigabit

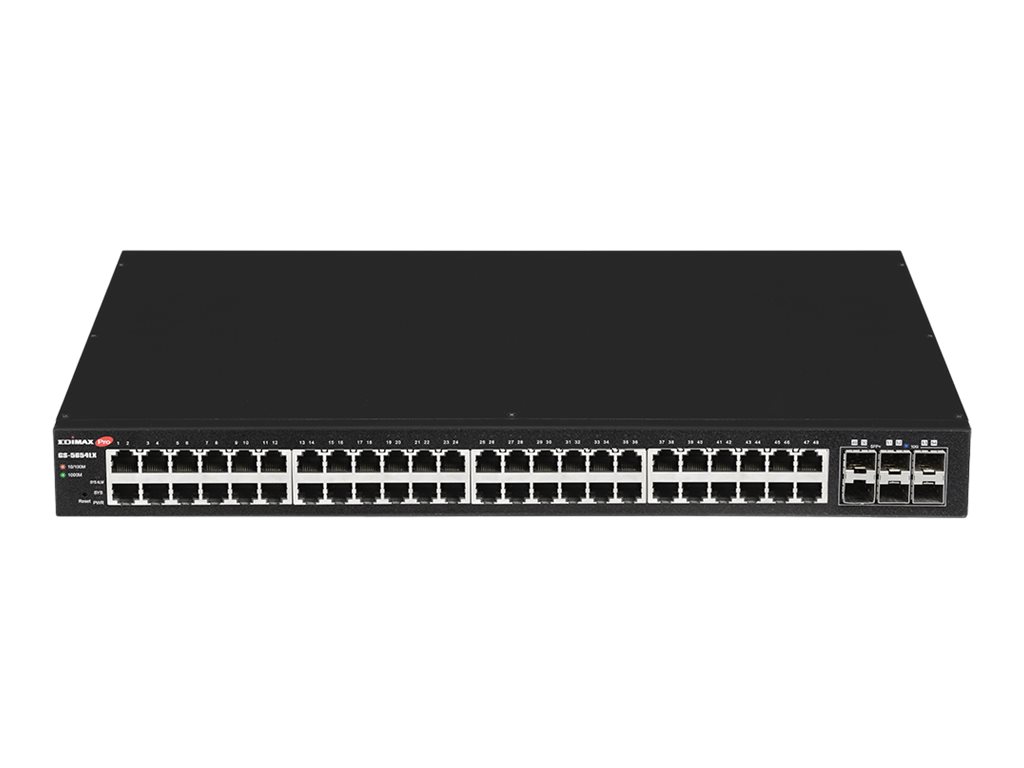

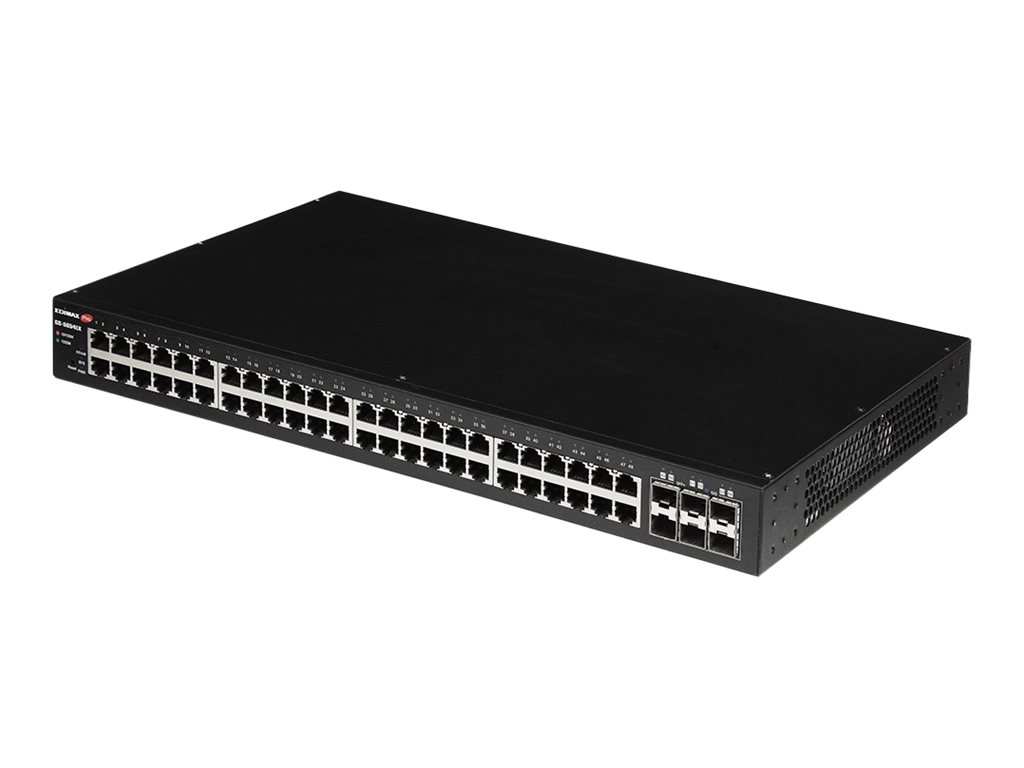

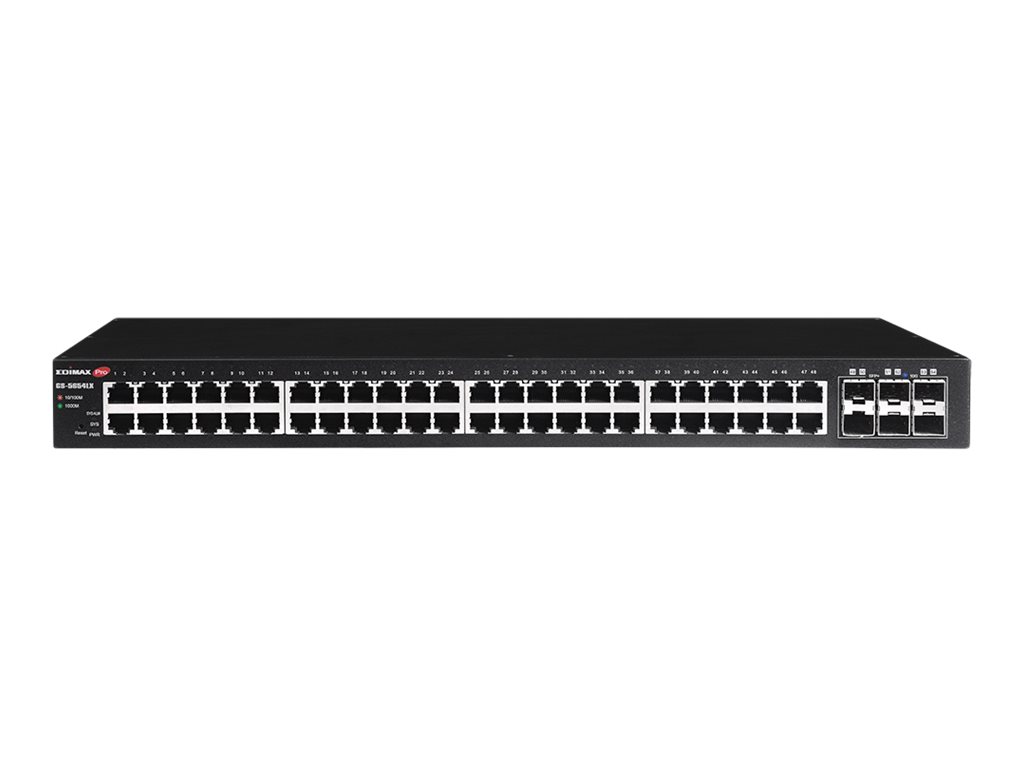

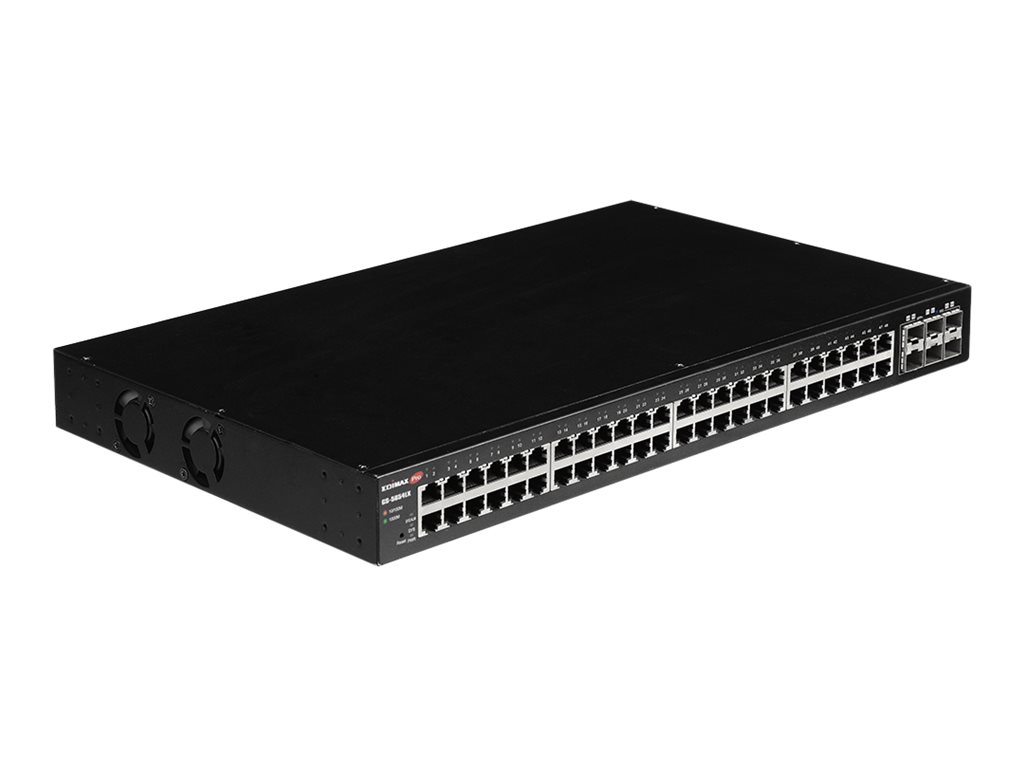

Edimax Pro GS-5654LX - Switch - smart - 48 x 10/100/1000 + 6 x 10 Gigabit SFP+ (uplink) - desktop, monterbar på stativ
-
Product no 999250350
Model GS-5654LX
Brand Edimax Technology
EAN 4717964704481
Weight 4.05 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Edimax Pro GS-5654LX - switch - 54 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 54 porte - smart |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 + 6 x 10 Gigabit SFP+ (uplink) |
| Præstation | Omkoblingskapacitet: 216 Gbps<br>Videresendelseshastighed: 160,7 Mpps |
| Kapacitet | VLAN ID'er: 4096<br>Virtuelle grænseflader (VLANs): 256 |
| MAC adresse table størrelse | 32K indtastningshukommelse |
| Jumborammesupport | 12KB |
| Protokol til fjernadministration | SNMP 3, HTTP |
| Egenskaber | Datatransport, VLAN-understøttet, IGMP snooping, portspejling, gem og send, IPv6 understøttet, fuld dupleksmodus, firmware kan opgraderes, STP support, RSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DAI, nulstillingsknap, LACP support, Port Security, dobbelt firmware-billeder, NAC, SPQ, CoS, mærket VLAN, GVRP, DoS, ONVIF support, 3 blæsere, Storm Control, IP-kildebekyttelse, 6 KV strømstødsbeskyttelse, Voice VLAN, EEE, WRR, port-trunking, DSCP-prioritering |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3az |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.1 cm x 27 cm x 4.5 cm |
| Vægt | 4.05 kg |
| General | |
|---|---|
| Authentication Method | RADIUS |
| Capacity | VLAN IDs: 4096 | Virtual interfaces (VLANs): 256 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3az |
| Device Type | Switch - 54 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Flow control, VLAN support, IGMP snooping, port mirroring, store and forward, IPv6 support, full duplex mode, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List ( |
| Jumbo Frame Support | 12KB |
| MAC Address Table Size | 32K entries |
| Performance | Switching capacity: 216 Gbps | Forwarding rate: 160.7 Mpps |
| Ports | 48 x 10/100/1000 + 6 x 10 Gigabit SFP+ (uplink) |
| Remote Management Protocol | SNMP 3, HTTP |
| Status Indicators | Power, link/activity |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |

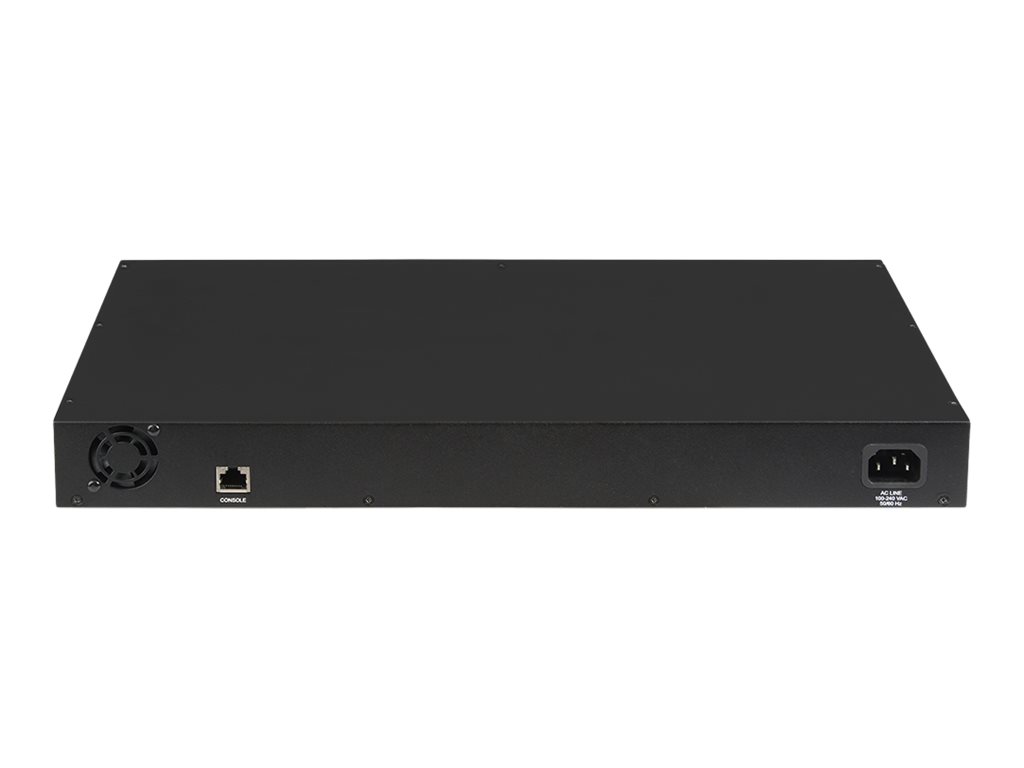

| Interfaces | 48 x 1000Base-T RJ-45 | 6 x 1000Base-X SFP+ uplink | 1 x console RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC |
| Dimensions & Weight | |
| Depth | 27 cm |
| Height | 4.5 cm |
| Weight | 4.05 kg |
| Width | 44.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
