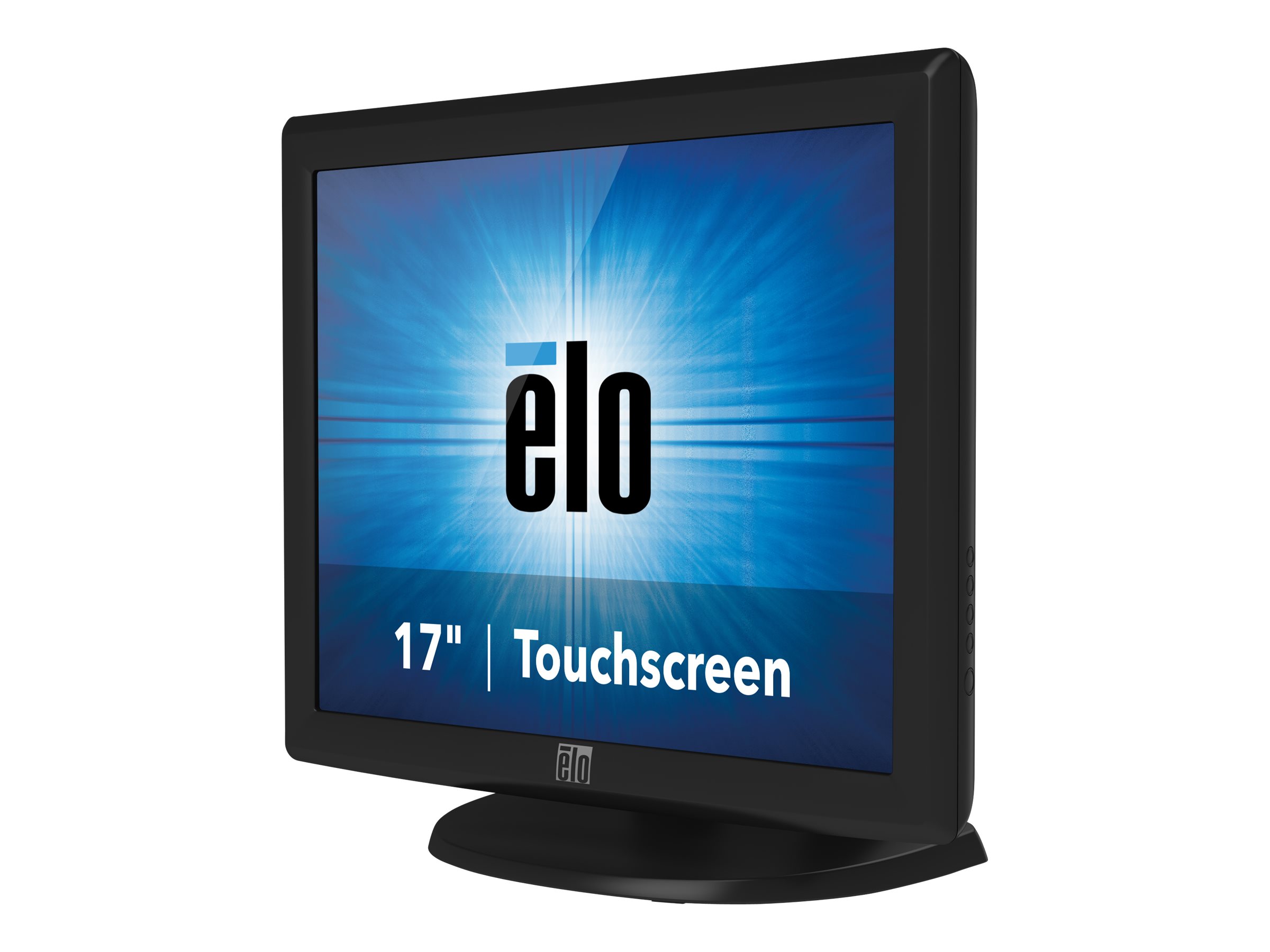

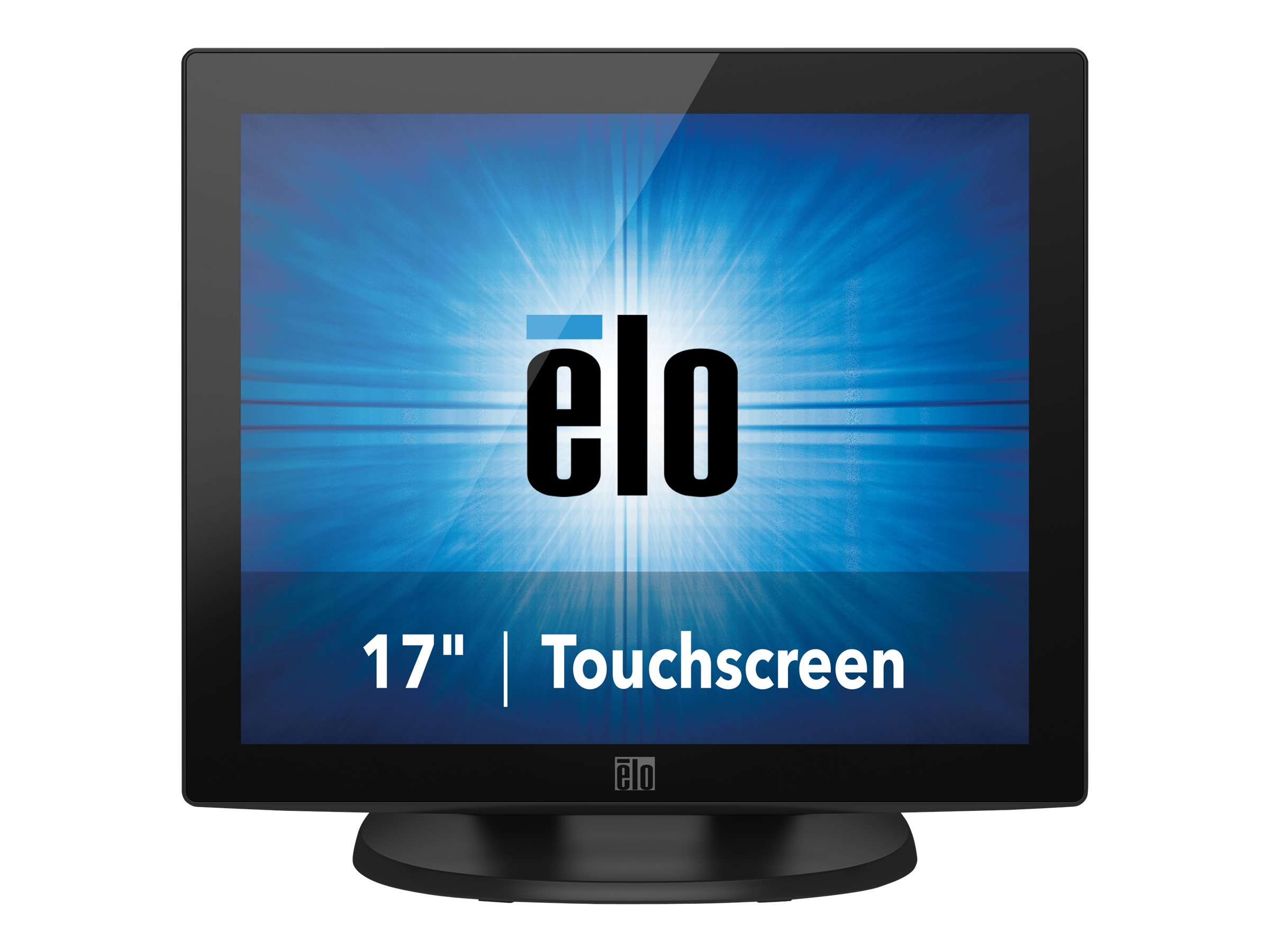

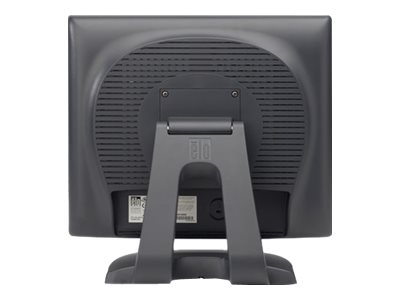

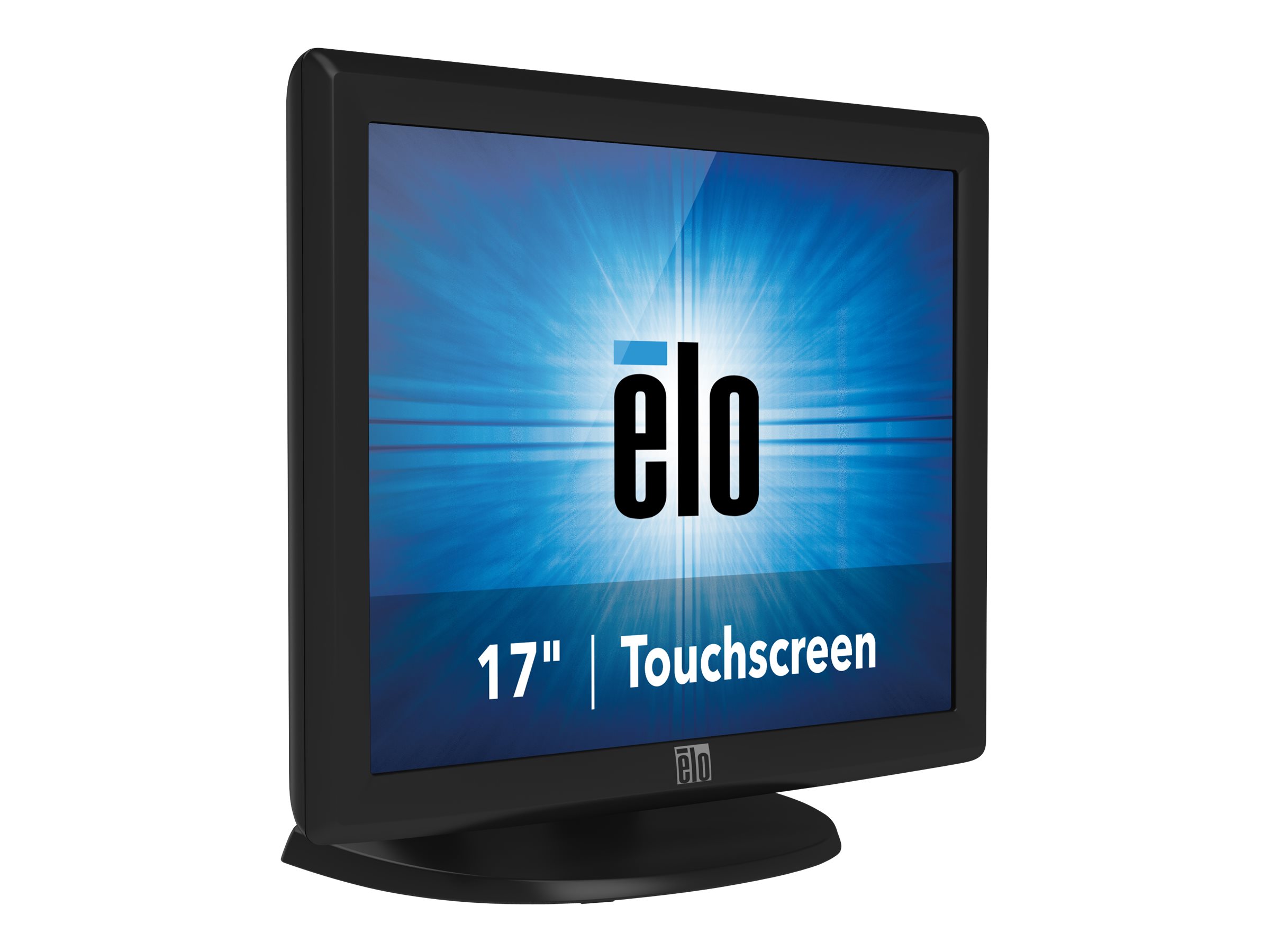

Elo 1715L AccuTouch 17" 1280 x 1024 VGA (HD-15) 75Hz
Elo 1715L AccuTouch - LED-skærm - 17" - 1280 x 1024 @ 75 Hz - 200 cd/m² - 1000:1 - 5 ms - VGA - mørkegrå
-
Product no 988025107
Model E603162
Brand Elo TouchSystems
EAN 7411493185014
Weight 9.22 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Elo 1715L AccuTouch - LED-skærm - 17" |
| Enhedstype | LED-baggrundsbelyst LCD-skærm - 17" |
| Egenskaber | Touch-screen |
| Formatforhold | 5:4 |
| Standard opløsning | 1280 x 1024 ved 75 Hz |
| Lysstyrke | 200 cd/m² |
| Kontrastforhold | 1000:1 |
| Responstid | 5 ms |
| Farve support | 16,7 millioner farver |
| Input-stik | VGA |
| Spænding | AC 120/230 V (50/60 Hz) |
| Farve | Mørkegrå |
| Dimensioner (B x D x H) - med stander | 39.1 cm x 20.3 cm x 36.6 cm |
| Vægt | 6.9 kg |
| Lokalisering | EMEA, Americas |
| Overensstemmelsesstandarder | MPR II, UL, VCCI, C-Tick, cUL, IC, FCC, S Mark, RCM |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Aspect Ratio | 5:4 |
| Backlight Technology | LED backlight |
| Brightness | 200 cd/m² |
| Color | Dark gray |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1000:1 |
| Controls & Adjustments | Brightness, contrast, H/V position, color temperature, phase, clock |
| Diagonal Size | 17" |
| Dimensions (WxDxH) | 39.1 cm x 20.3 cm x 36.6 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | AccuTouch Five-Wire Resistive, anti-glare, OSD lock, HID Compliant |
| Horizontal Refresh Rate | 31.5 - 80 kHz |
| Horizontal Viewing Angle | +85 / -85 |
| Native Resolution | 1280 x 1024 at 75 Hz |
| OSD Languages | English, German, French, Spanish, Japanese |
| Response Time | 5 ms |
| Vertical Refresh Rate | 56.3 - 75 Hz |
| Vertical Viewing Angle | +80 / -80 |
| Weight | 6.9 kg |
| Input | |
| Movement Detection Technology | Resistive |
| Type | Touchscreen |
| Connectivity | |
| Interfaces | VGA | Serial | USB |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included | 1 x VGA cable | 1 x serial cable | 1 x USB cable |
| Compliant Standards | MPR II, UL, VCCI, C-Tick, cUL, IC, FCC, S Mark, RCM |
| Features | Water-resistant, wall mountable, dust-resistant, dirt-resistant, Flexible Mounting Profile, mounting holes, security lock, magnetic stripe |
| Localization | EMEA, Americas |
| MTBF | 50,000 hour(s) |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 21 Watt |
| Power Supply | Internal |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 29 cm |
| Shipping Height | 44 cm |
| Shipping Weight | 9.6 kg |
| Shipping Width | 45.7 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
