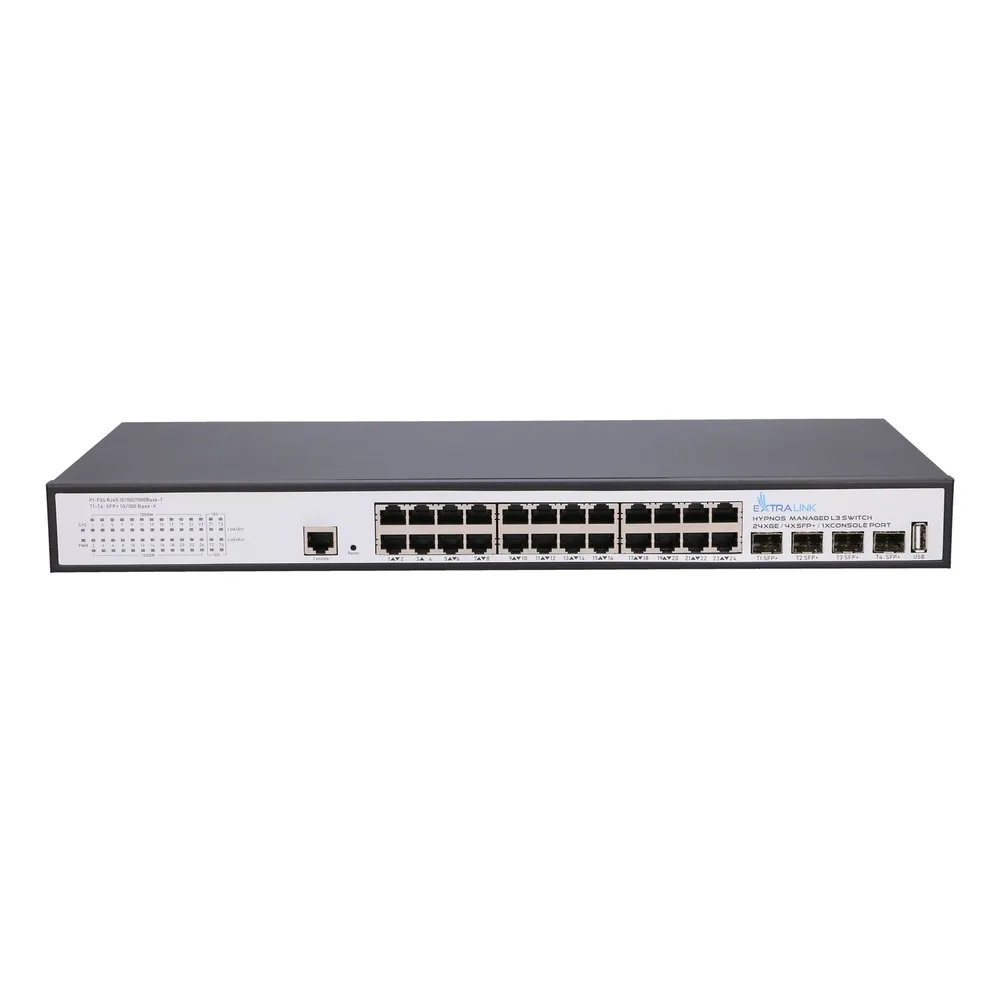

Extralink Hypnos | Switch | 24x RJ45 1000Mb/s, 4x SFP+, L3, managed
Extralink Hypnos | Switch | 24x RJ45 1000Mb/s, 4x SFP+, L3, managed
-
Product no 1000836685
Model EX.30660
Brand Extralink
EAN 5905090330660
Weight 2.64 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cables included | AC |
| DHCP features | DHCP client, DHCP server |
| Form factor | 1U |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Housing material | Metal |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Bandwidth | 256Gbps |
| Dimensions (W x L x H) | 440mm x 290mm x 44.5mm |
| Weight | 3kg |
| Administrationsfunktioner | |
|---|---|
| Servicekvalitet support (QoS) | Ja |
| Switch lag | L2/L3 |
| Switch-type | Administreret |
| Webbaseret administration | Ja |
| Porte & Grænseflader | |
| Antal installerede SFP moduler | 4 |
| Antal installerede SFP+ moduler | 4 |
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (kobber) porte, antal | 24 |
| Strømstik | AC-in jack |
| Netværk | |
| 10G understøttelse | Ja |
| Auto-forhandling | Ja |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Flowkontrol support | Ja |
| Link aggregering | Ja |
| Netværksstandarder | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Spanning tree protokol | Ja |
| VLAN understøttelse | Ja |
| Dataoverførsel | |
| Gennnemløb | 126,67 Mpps |
| MAC adresselabel | 32768 entries |
| Statisk rute | Ja |
| Switch kapacitet | 360 Gbit/sek. |
| Sikkerhed | |
| Adgangskontrolliste (ACL) | Ja |
| DHCP funktioner | DHCP client, DHCP server |
| Design | |
| Formfaktor | 1U |
| Husmateriale | Metal |
| Knap til nulstilling | Ja |
| LED-indikatorer | Data, Link, Strøm, Status, System, Uplink |
| Stabelbar | Ingen |
| Stativ-montering | Ja |
| Præstation | |
| Firmware kan opgraderes | Ja |
| Strømstyring | |
| Antal strømforsyninger | 1 |
| Strømforsyning inkluderet | Ja |
| Strømkilde | Vekselstrøm |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ingen |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -20 - 55 °C |
| Opbevaringstemperatur (T-T) | -40 - 75 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 440 mm |
| Dybde | 290 mm |
| Højde | 44,5 mm |
| Vægt | 3 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
| Kabler inkluderet | Vekselstrøm |
| Rack monteringskit | Ja |
| Emballeringsdata | |
| Pakketype | Kasse |
