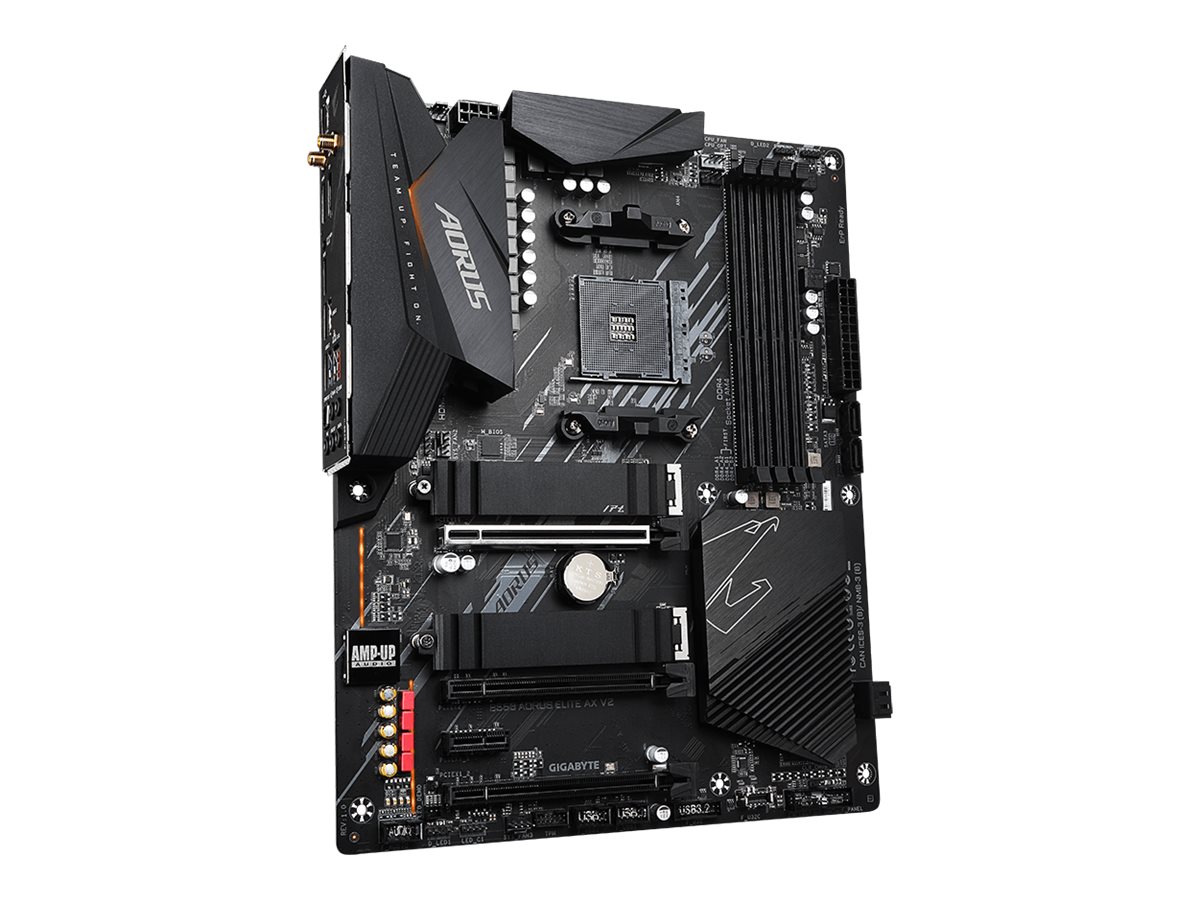

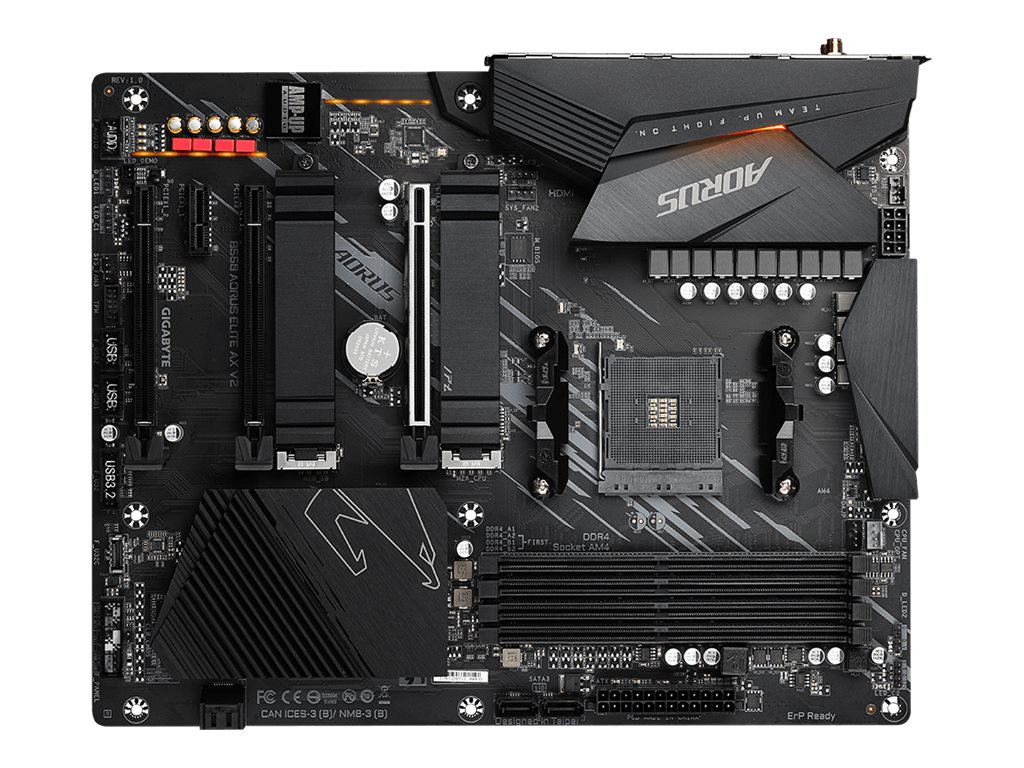

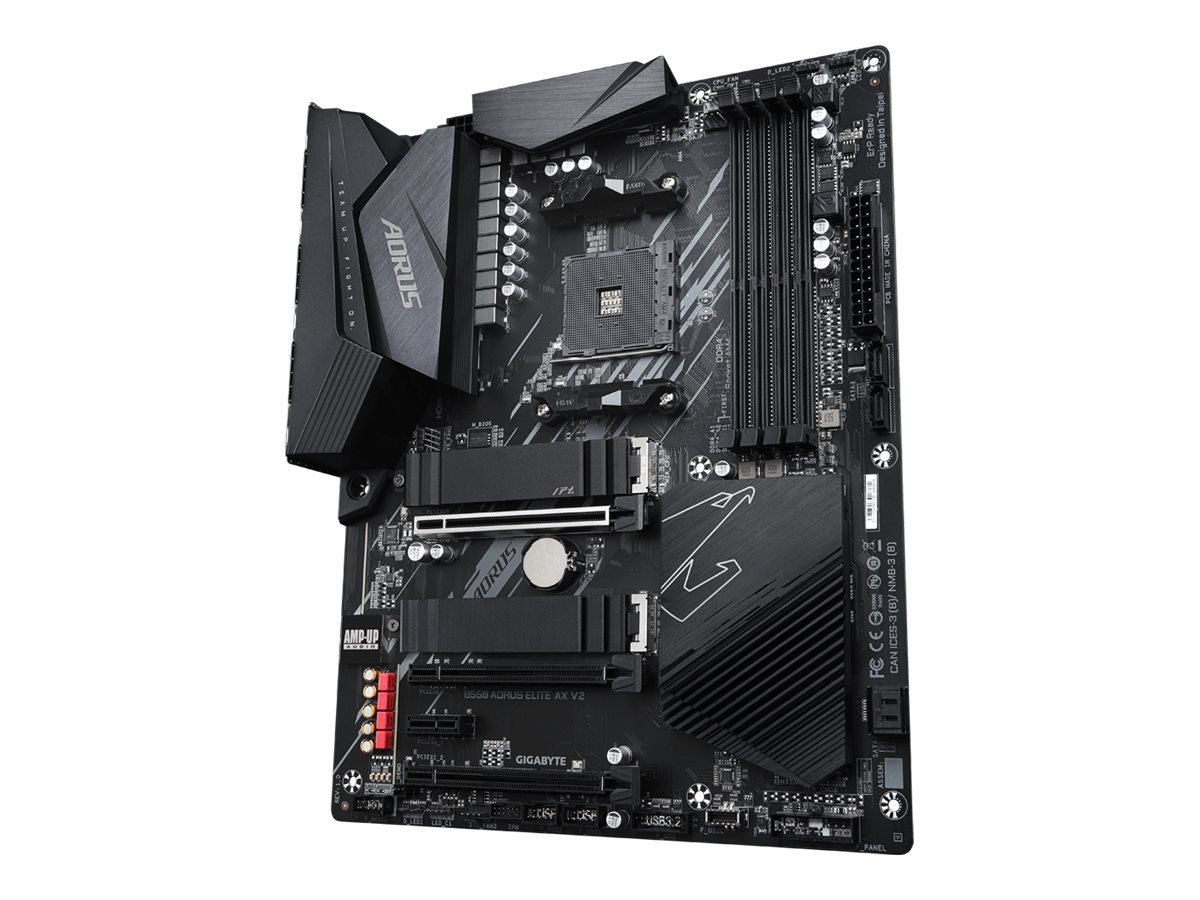

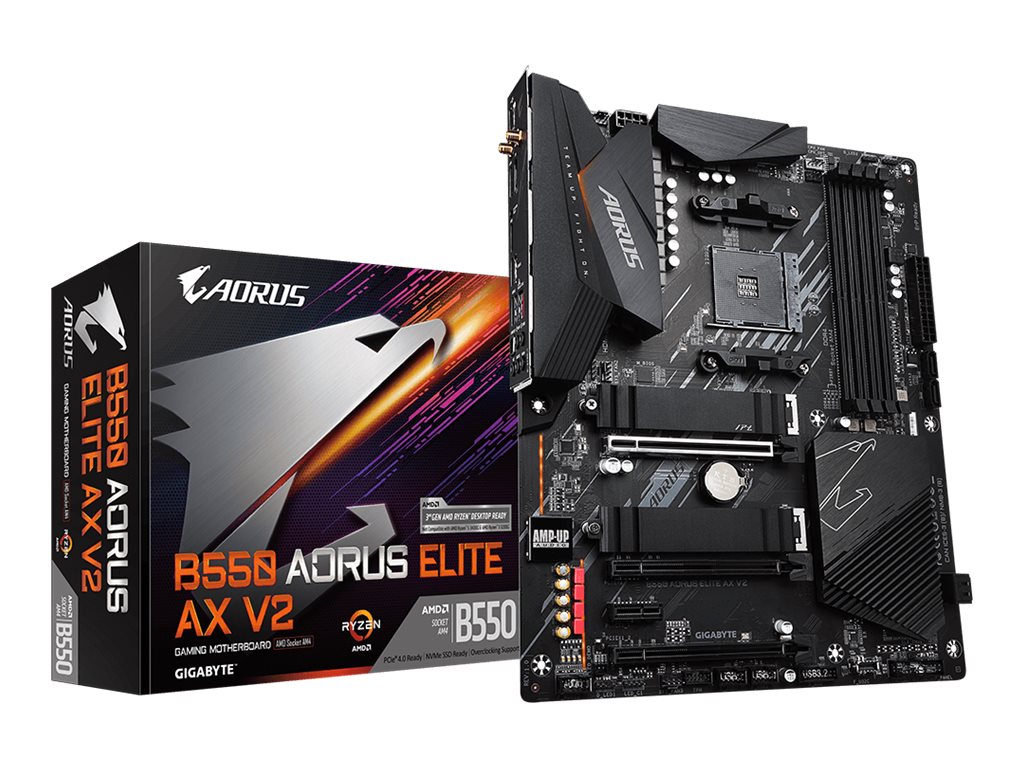

Gigabyte B550 AORUS ELITE AX ATX AM4 AMD B550

Gigabyte B550 AORUS ELITE AX - 1.0 - bundkort - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

  • Product no 996692082

    Model B550 AORUS ELITE AX

    Brand
    Go to brand's website

    EAN 4719331809904

    Weight 1.76 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Gigabyte B550 AORUS ELITE AX - 1.0 - bundkort - ATX - Socket AM4 - AMD B550
Produkttype Bundkort - ATX
Chipsættype AMD B550
Processor-socket 1 x Socket AM4
Kompatible processorer Ryzen (understøtter 3. Generation Ryzen /3. Generation Ryzen med Radeon Graphics)
Max RAM-størrelse 128 GB
RAM understøttet 4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte 4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio HD Audio (8-kanaler)
LAN 2.5 Gigabit Ethernet
General
Chipset Type AMD B550
Compatible Processors Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
Max Processors Qty 1
Processor Socket Socket AM4
Product Type Motherboard - ATX
Supported RAM
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.)
Features Dual channel memory architecture, supported ECC modules operate in non-ECC mode
Max Size 128 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Technology DDR4
Audio
Audio Codec Realtek ALC1220
Compliant Standards High Definition Audio
Type HD Audio (8-channel)
LAN
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU)) | 1 x PCIe 3.0 x16 (x2 mode) | 1 x PCIe 3.0 x16 (x1 mode) | 1 x PCIe 3.0 x1

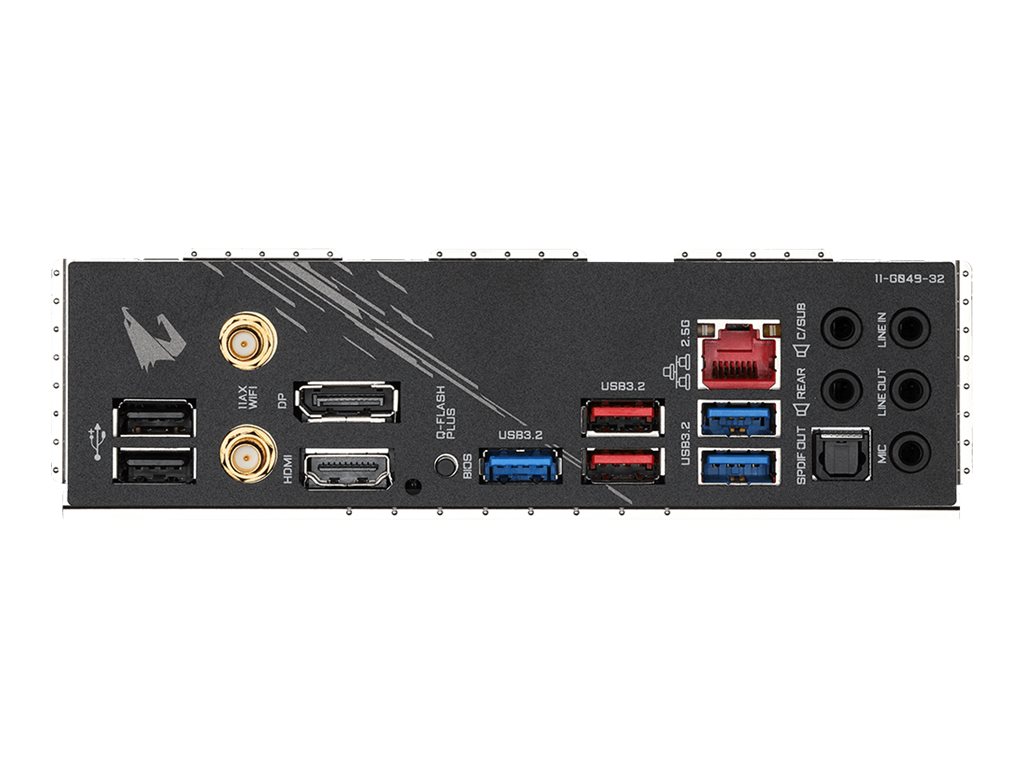

Interfaces 2 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x HDMI | 1 x DisplayPort | 2 x USB 2.0 | 3 x USB 3.2 Gen 1 | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (r
Internal Interfaces 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | PCIe 3.0 -connectors: 1 x M.2
Features
BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
BIOS Type AMI
Hardware Features Q-Flash, 12+2 Phase Power Design, HDCP compliant, On/Off Charge, Ultra Durable, GIGABYTE AMP-UP Audio, Audio Noise Guard with Path Lighting, 2x Copper PCB, WIMA film capacitors, Q-Flash Plus, Nichicon Fine Gold Series Audio Capacitors, Game Boost, GI
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Miscellaneous
Compliant Standards HDCP 2.3
Depth 24.4 cm
Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Width 30.5 cm
