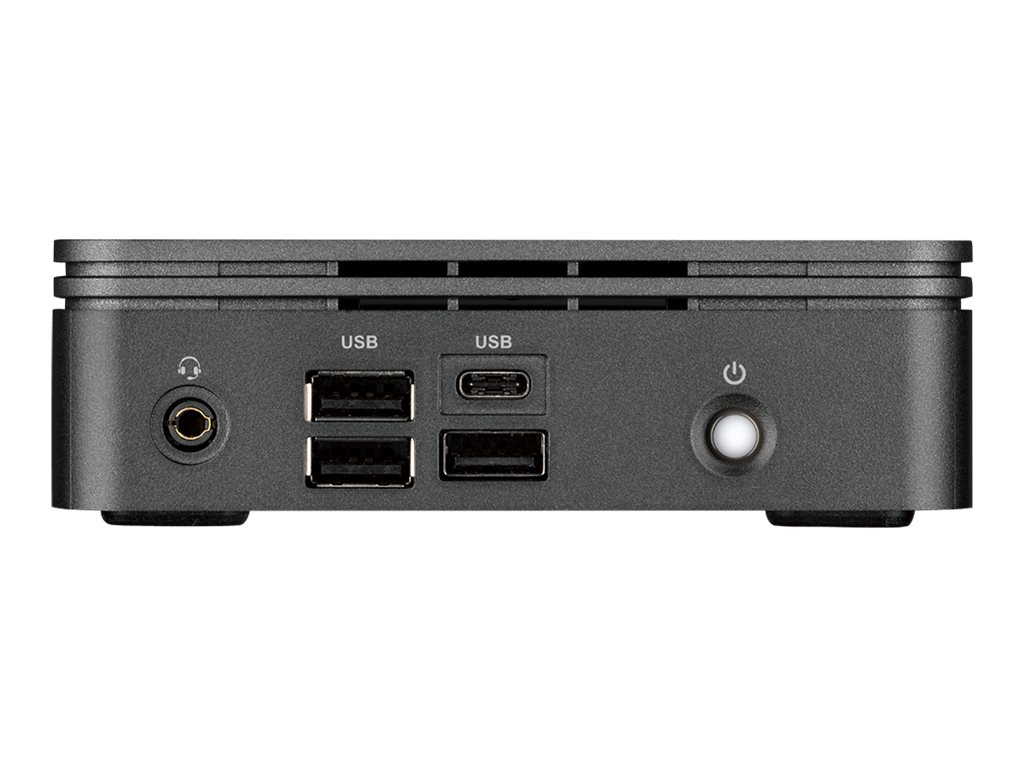

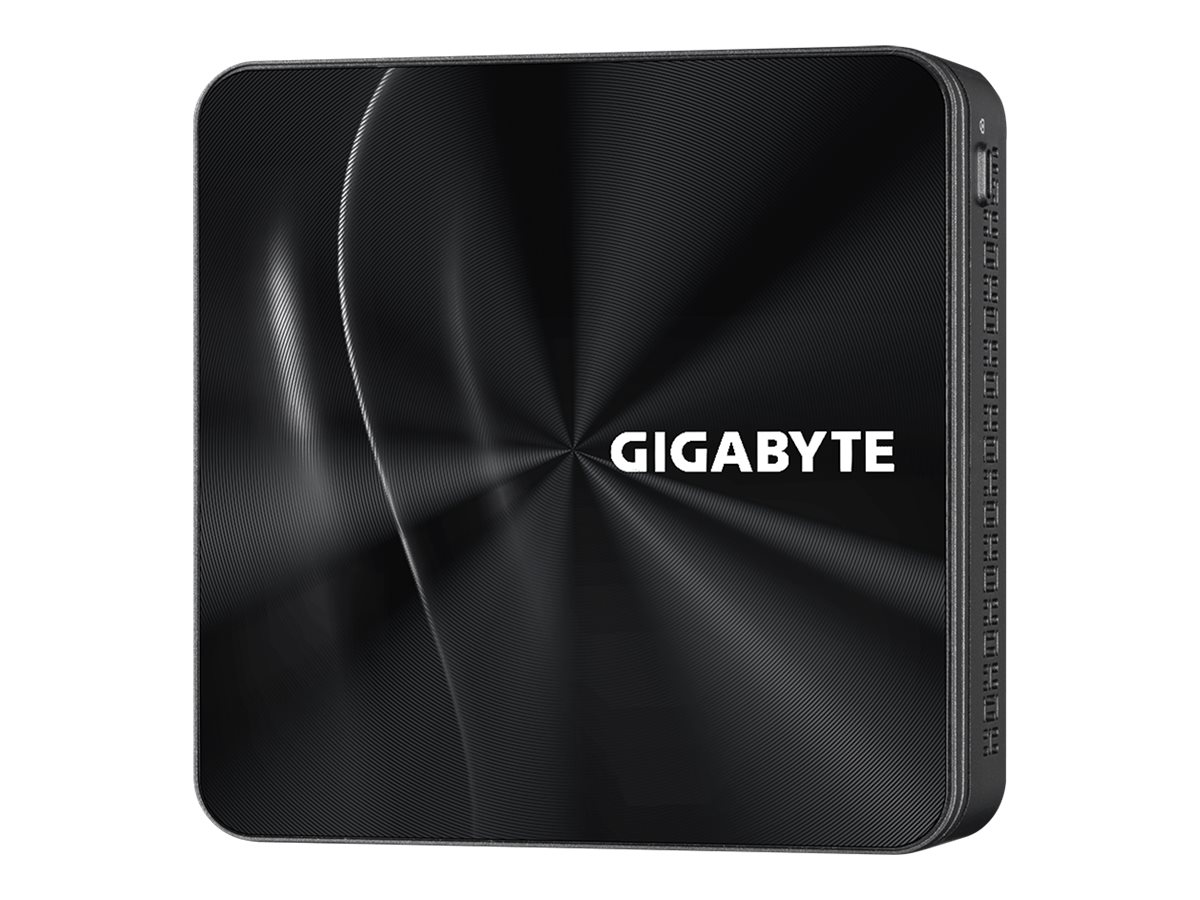

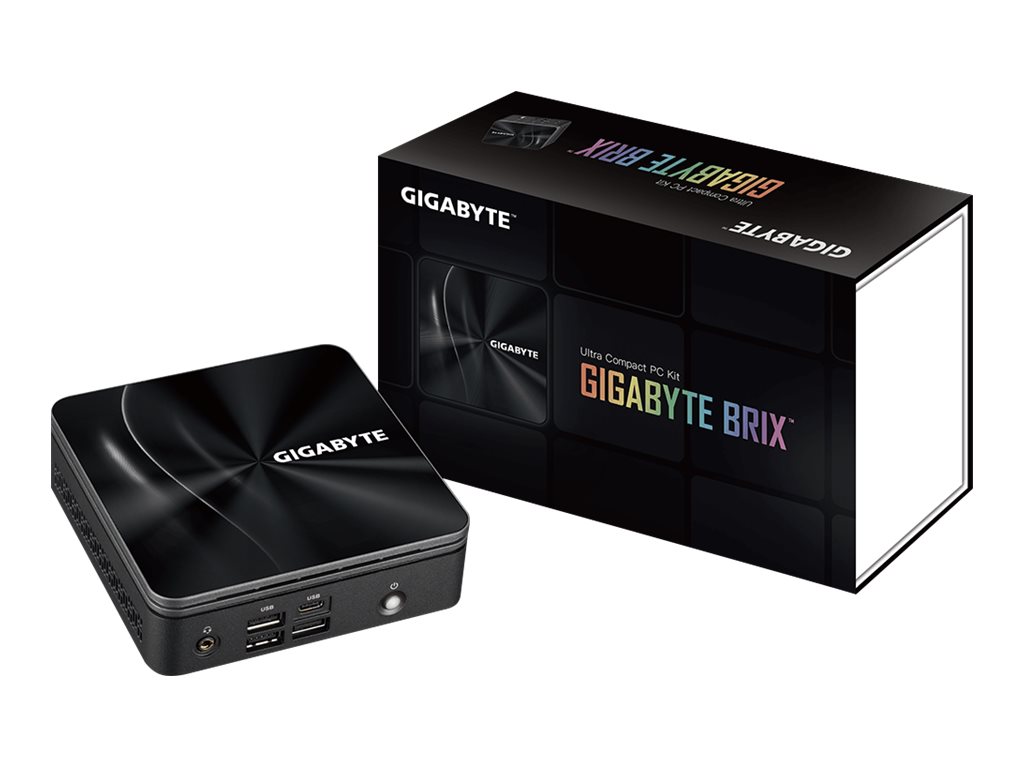

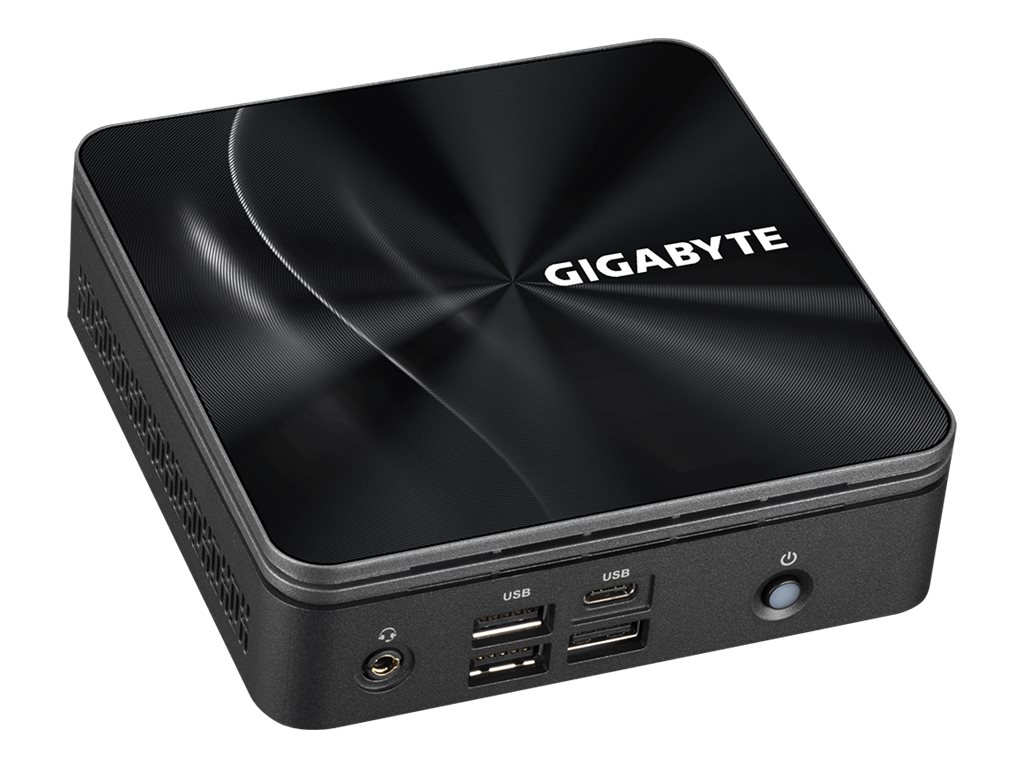

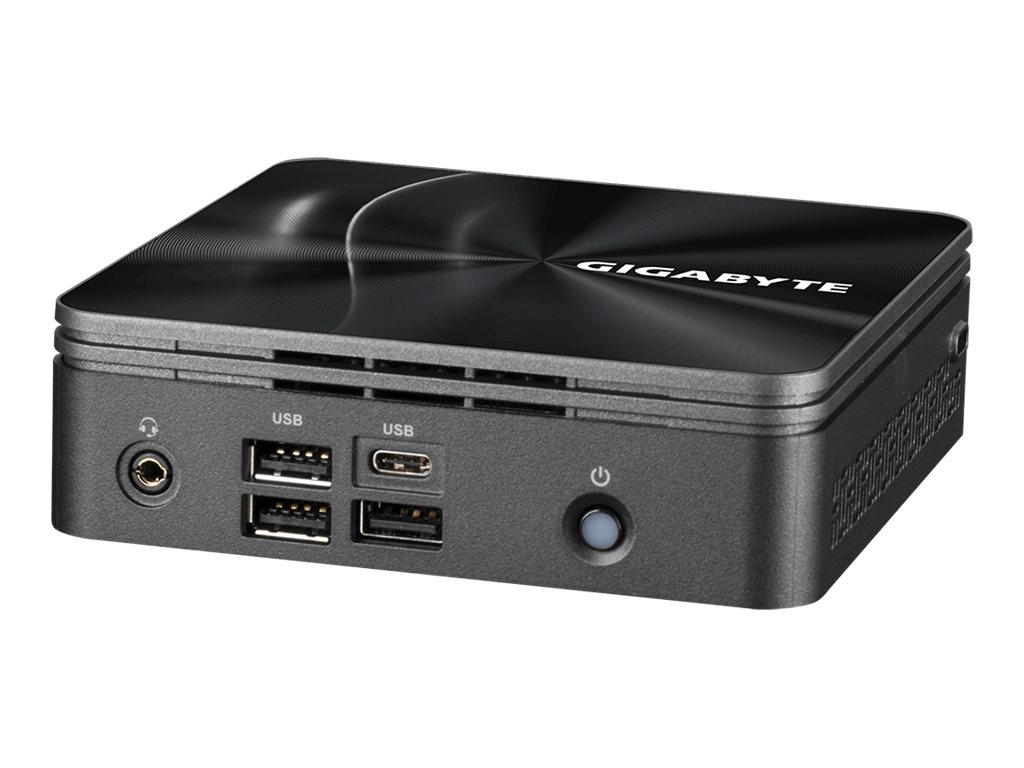

Gigabyte BRIX GB-BRR7-4800 (rev. 1.0) UCFF 4800U 0GB No-OS
Gigabyte BRIX GB-BRR7-4800 (rev. 1.0) - Barebone - Ultra Compact PC Kit 1 x Ryzen 7 4800U / op til 4.2 GHz - RAM 0 GB - Radeon Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet
-
Product no 998630237
Model GB-BRR7-4800
Brand
Go to brand's websiteEAN 4719331600679
Weight 1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Gigabyte BRIX GB-BRR7-4800 (rev. 1.0) - Ultra Compact PC Kit Ryzen 7 4800U 1.8 GHz - 0 GB - ingen HDD |
| Type | PC barebone - Ultra Compact PC Kit |
| Processor | 1 x AMD Ryzen 7 4800U / 1.8 GHz (op til 4.2 GHz, (8-core) |
| Cachehukommelse | 8 MB L3 |
| Cache pr. processor | 8 MB |
| RAM | 0 GB (installeret) / 64 GB (maks.) - DDR4 SDRAM |
| Harddisk | Ingen HDD |
| Optisk lagring | Intet optisk drev |
| Grafik controller | AMD Radeon Graphics |
| Lydudgang | Stereo |
| Netværk | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, 802.11ax, Bluetooth 5.1 |
| Effekt | AC 120/230 V |
| Med OS | Intet operativt system |
| Dimensioner (B x D x H) | 11.95 cm x 11.95 cm x 3.47 cm |
| General | |
|---|---|
| Product Form Factor | Ultra Compact PC Kit |
| Type | PC barebone |
| Processor / Chipset | |
| Clock Speed | 1.8 GHz |
| CPU | AMD Ryzen 7 4800U |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.2 GHz |
| Number of Cores | 8-core |
| Cache Memory | |
| Cache Per Processor | 8 MB |
| Installed Size | L3 cache - 8 MB |
| RAM | |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB / 64 GB (max) |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Hard Drive | |
| Type | No HDD |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Graphics |
| Max Monitors Supported | 2 |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Sound Output Mode | Stereo |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.1 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 200 |
| Expansion / Connectivity | |

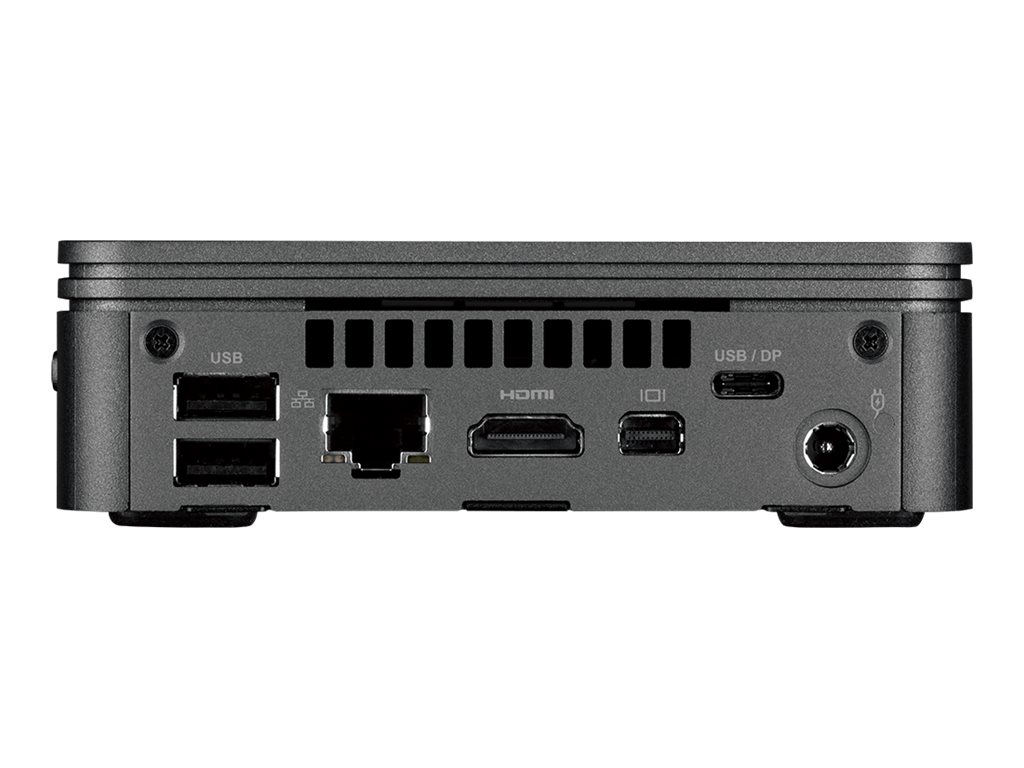

| Interfaces | 2 x DisplayPort/USB-C 3.2 Gen 2 (1 front, 1 rear) | 1 x HDMI | 1 x Mini DisplayPort | 1 x LAN (2.5Gigabit Ethernet) | 1 x headphones/microphone (1 in front) | 5 x USB 3.2 Gen 1 (3 front, 2 rear) |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2230 (Key A-E) | 1 (total) / 1 (free) x M.2 Card - 2280 |
| Miscellaneous | |
| Included Accessories | VESA wallmount adapter |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Power | |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| Voltage Required | AC 120/230 V |
| Operating System / Software | |
| OS Provided | No operating system |
| Dimensions & Weight | |
| Depth | 11.95 cm |
| Height | 3.47 cm |
| Width | 11.95 cm |
| Environmental Parameters | |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
