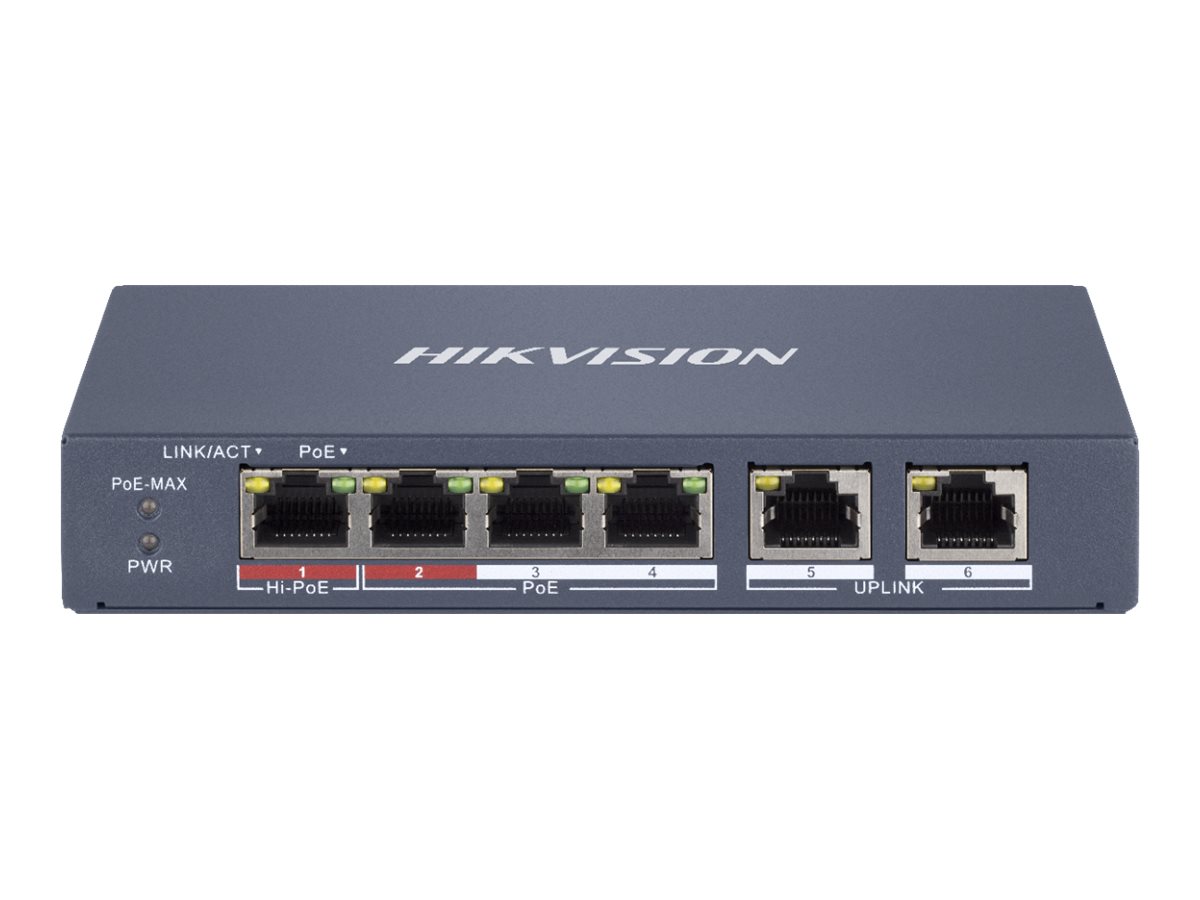

Hikvision DS-3E1106HP-EI Switch 4-porte 10/100 High PoE / PoE+
Hikvision DS-3E1106HP-EI - Switch - smart - 3 x 10/100 (PoE+) + 2 x 10/100 (uplink) + 1 x 10/100 (Hi-PoE) - desktop - High PoE / PoE+ (60 W)
-
Product no 1000544247
Model DS-3E1106HP-EI
Brand Hikvision Digital Te
EAN 6941264094692
Weight 0.645 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Hikvision DS-3E1106HP-EI - switch - 4 porte - smart |
| Enhedstype | Switch - 4 porte - smart |
| Undertype | Fast Ethernet |
| Porte | 3 x 10/100 (PoE+) + 2 x 10/100 (uplink) + 1 x 10/100 (Hi-PoE) |
| Power Over Ethernet (PoE) | High PoE / PoE+ |
| PoE-budget | 60 W |
| Præstation | Omkoblingskapacitet: 1,2 Gbps<br>Pakkevideresendelseshastighed: 0.8928 Mpps |
| MAC adresse table størrelse | 2K indtastningshukommelse |
| Egenskaber | Datatransport, gem og send, til vægmontering, 768 KB pakke-buffer, 6 KV strømstødsbeskyttelse |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Dimensioner (B x D x H) | 14.5 cm x 6.845 cm x 2.56 cm |
| Vægt | 245 g |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Device Type | Switch - 4 ports - smart |
| Enclosure Type | Desktop |
| Features | Flow control, store and forward, wall mountable, 768KB packet buffer, 6KV Surge protection |
| MAC Address Table Size | 2K entries |
| Performance | Switching capacity: 1.2 Gbps | Packet forwarding rate: 0.8928 Mpps |
| PoE Budget | 60 W |
| Ports | 3 x 10/100 (PoE+) + 2 x 10/100 (uplink) + 1 x 10/100 (Hi-PoE) |
| Power Over Ethernet (PoE) | High PoE / PoE+ |
| Subtype | Fast Ethernet |
| Expansion / Connectivity | |
| Interfaces | 3 x 100Base-TX RJ-45 PoE+ - 30 W | 2 x 100Base-TX RJ-45 uplink | 1 x 100Base-TX RJ-45 HPoE - 60 W |
| Power | |
| Power Consumption Operational | 65 Watt |
| Power Consumption Stand by | 2 Watt |
| Power Device | External power adapter |
| Power Provided | 65 Watt - 48 V - 1.35 A |
| Miscellaneous | |
| Compliant Standards | UL, CB, EMC, IC, UL 60950-1, FCC CFR47 Part 15 B, REACH, LVD, RCM, RoHS 2011/65/EU, EN 61000-3-3:2013, Regulation EC 1907/2006, WEEE 2012/19/EU, EN 61000-3-2:2014, EN 55024:2010+A1:2015, EN 55032:2015, AS/NZS CISPR 32:2015, IEC60950-1:2005+Am1:2009+A |
| Dimensions & Weight | |
| Depth | 6.845 cm |
| Height | 2.56 cm |
| Weight | 245 g |
| Width | 14.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 645 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -40 °C |
