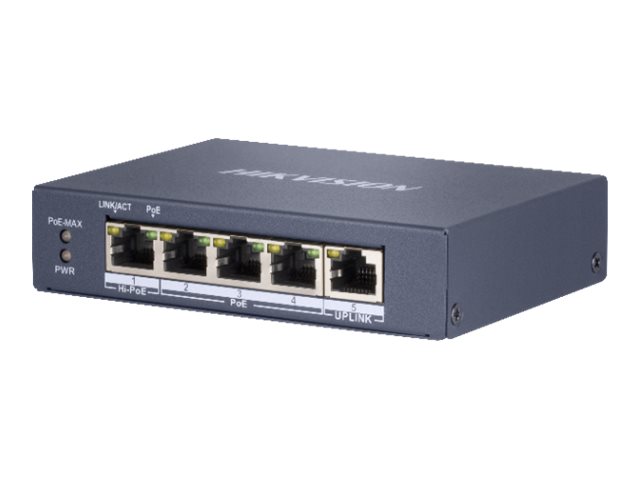

Hikvision Pro Series DS-3E0505HP-E Switch 5-porte Gigabit High PoE / PoE
Hikvision Pro Series DS-3E0505HP-E - Switch - ikke administreret - 3 x 10/100/1000 (PoE) + 1 x 10/100/1000 (Hi-PoE) + 1 x 10/100/1000 - desktop - High PoE / PoE (60 W)
-
Product no 995954579
Model DS-3E0505HP-E
Brand Hikvision Digital Te
EAN 6941264031604
Weight 0.85 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Hikvision Pro Series DS-3E0505HP-E - switch - 5 porte - ikke administreret |
| Enhedstype | Switch - 5 porte - ikke administreret |
| Undertype | Gigabit Ethernet |
| Porte | 3 x 10/100/1000 (PoE) + 1 x 10/100/1000 (Hi-PoE) + 1 x 10/100/1000 |
| Power Over Ethernet (PoE) | High PoE / PoE |
| PoE-budget | 60 W |
| Præstation | Omkoblingskapacitet: 10 Gbps<br>Pakkevideresendelseshastighed: 7,44 Mpps |
| MAC adresse table størrelse | 2K indtastningshukommelse |
| Egenskaber | Komplet duplex ydeevne, auto-uplink (auto MDI/MDI-X), gem og send, blæserløs, portisolering, 6KV ESD Protector, metalkabinet |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Dimensioner (B x D x H) | 12.1 cm x 8.81 cm x 2.76 cm |
| Vægt | 270 g |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop |
| Features | Full duplex capability, auto-uplink (auto MDI/MDI-X), store and forward, fanless, port isolation, 6KV ESD Protector, metal housing |
| MAC Address Table Size | 2K entries |
| Performance | Switching capacity: 10 Gbps | Packet forwarding rate: 7.44 Mpps |
| PoE Budget | 60 W |
| Ports | 3 x 10/100/1000 (PoE) + 1 x 10/100/1000 (Hi-PoE) + 1 x 10/100/1000 |
| Power Over Ethernet (PoE) | High PoE / PoE |
| Status Indicators | Power, link/activity, PoE max |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 3 x 1000Base-T RJ-45 PoE - 30 W | 1 x 1000Base-T RJ-45 HPoE - 60 W | 1 x 1000Base-T RJ-45 |
| Power | |
| Power Consumption Operational | 65 Watt |
| Power Consumption Stand by | 5 Watt |
| Power Device | External power adapter |
| Power Provided | 48 V - 1.35 A |
| Miscellaneous | |
| Compliant Standards | IC, UL 60950-1, FCC CFR47 Part 15 B, RCM, RoHS 2011/65/EU, EN 61000-3-3:2013, WEEE 2012/19/EU, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55024:2010+A1:2015, EN 55032:2015, REACH 2006/1907, AS/NZS CISPR 32:2015, EN 60950-1:2005+Am1:2 |
| Dimensions & Weight | |
| Depth | 8.81 cm |
| Height | 2.76 cm |
| Weight | 270 g |
| Width | 12.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -40 °C |
